51374 - TFR/TFS(EUROPE)-LHD
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#79469) — 15 parça
Tümü
A - TFB6CF
B - TFB6WF
C - TFS6CF
D - TFS6SF
E - TFS6WF
F - TFB6SF
◀

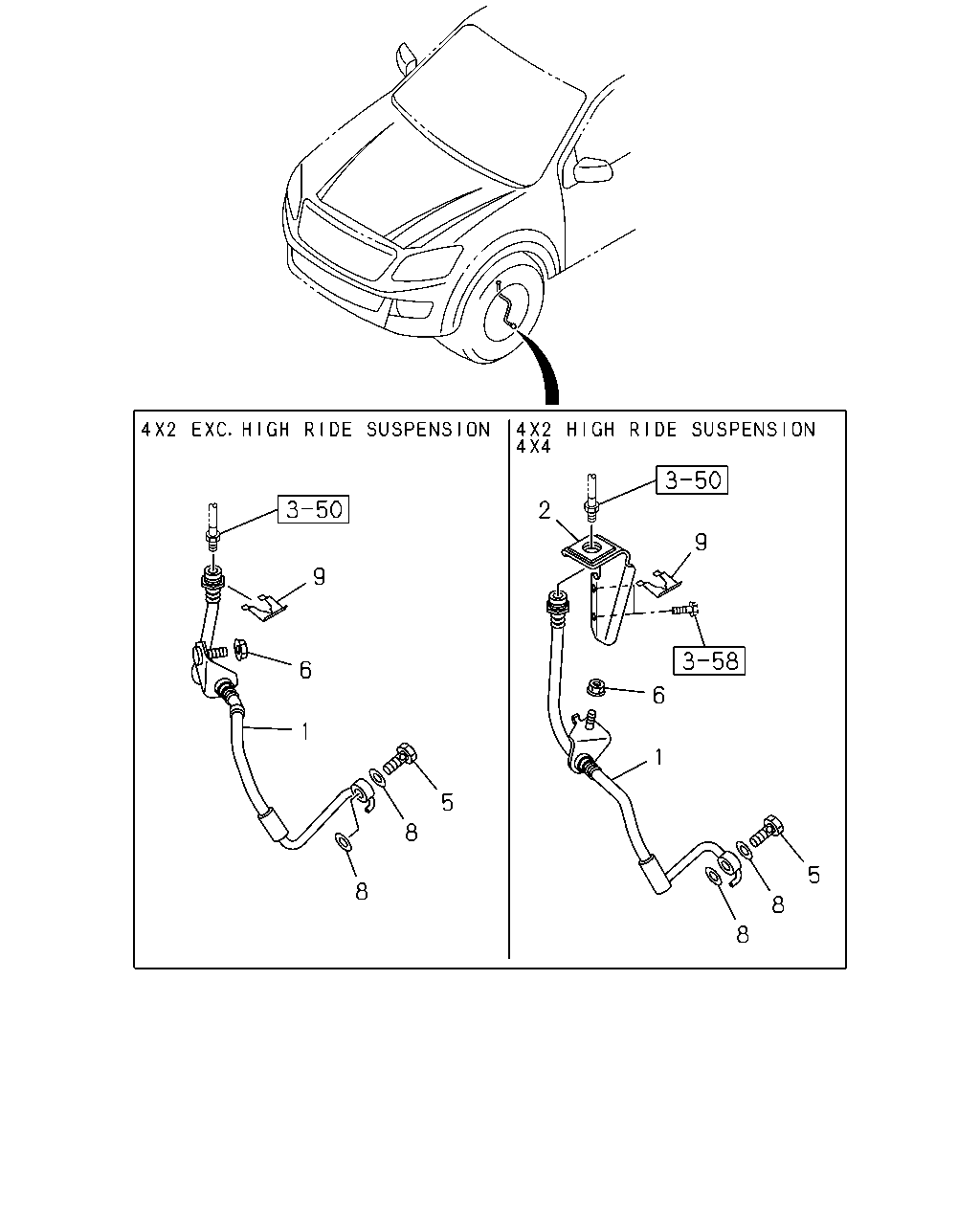

[352A] FLEX HOSE (14 parça)
[352A] BOLT;BRACKET FIXING (1 parça)
▶
2
9
9
6
6
1
1
5
8
5
8
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391
8-98067-246-4
01
1
1203-
●
●
1
04.680 HOSE; FLEX,FRT BRK
L=391
8-98067-246-4
01
1
1203-
●
●
●
1
04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391
8-98067-247-4
01
1
1203-
●
●
1
04.680 HOSE; FLEX,FRT BRK
L=391
8-98067-247-4
01
1
1203-
●
●
●
1
04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413
8-98067-244-1
01
1
1203-
●
●
1
04.680 HOSE; FLEX,FRT BRK
L=413
8-98067-244-1
01
1
1203-
●
1
04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413
8-98067-248-1
01
1
1203-
●
●
1
04.680 HOSE; FLEX,FRT BRK
L=413
8-98067-248-1
01
1
1203-
●
2
04.681 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC)
8-97947-149-1
01
1
1203-
●
●
2
04.681 BRACKET; FLEX HOSE,FRT BRK
8-97947-149-1
01
1
1203-
●
●
●
5
04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
8-98014-005-0
02
1
1203-
●
●
●
●
●
●
6
04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE
0-91180-108-0
02
1
1203-
●
●
●
●
●
●
8
04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0
9-09571-410-0
04
1
1203-
●
●
●
●
●
●
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
1203-
●
●
●
●
●
●
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F

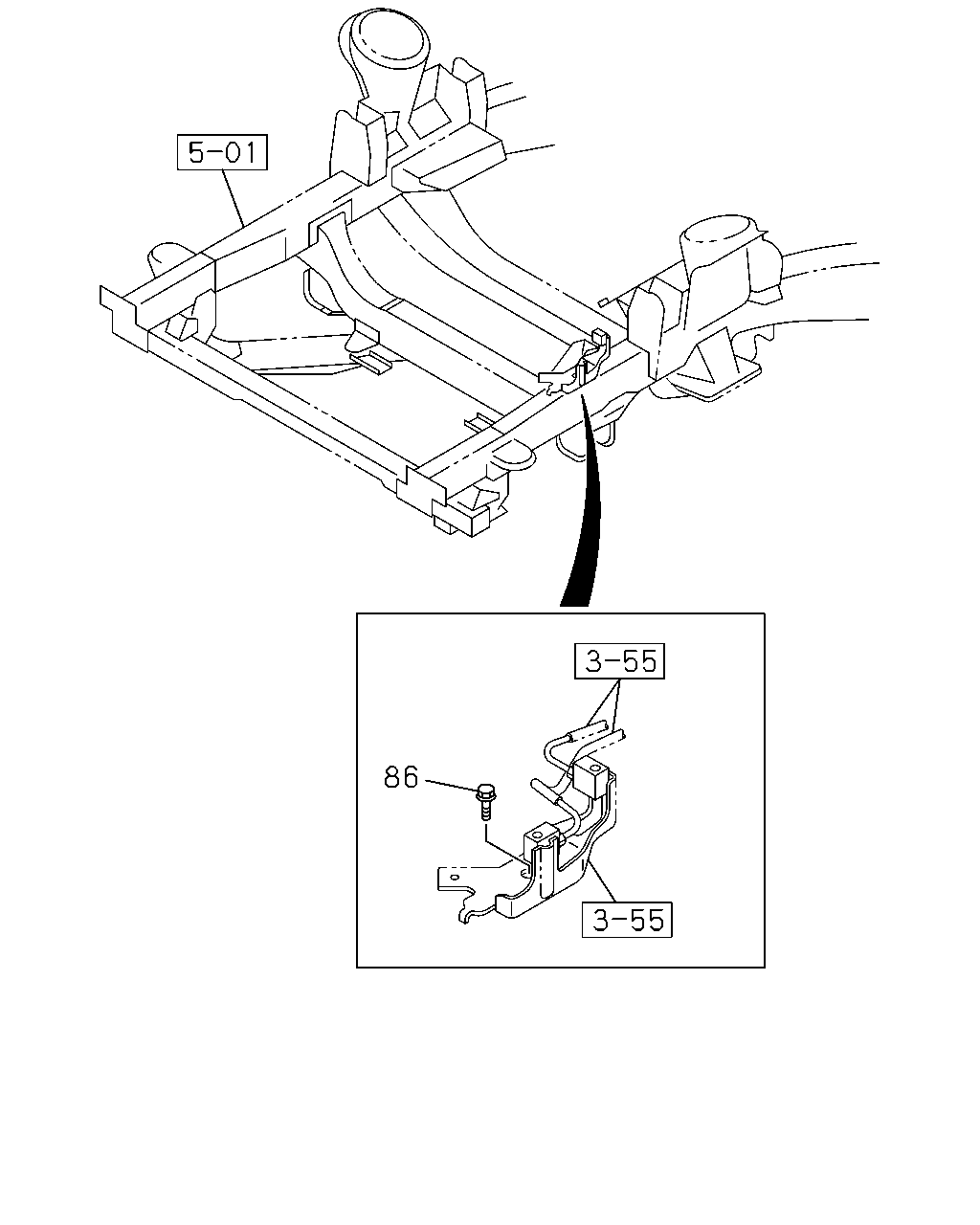

86
04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE
0-28650-820-0
01
1
1203-
●
●
●
●
●
●
