Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#79468) — 49 parça

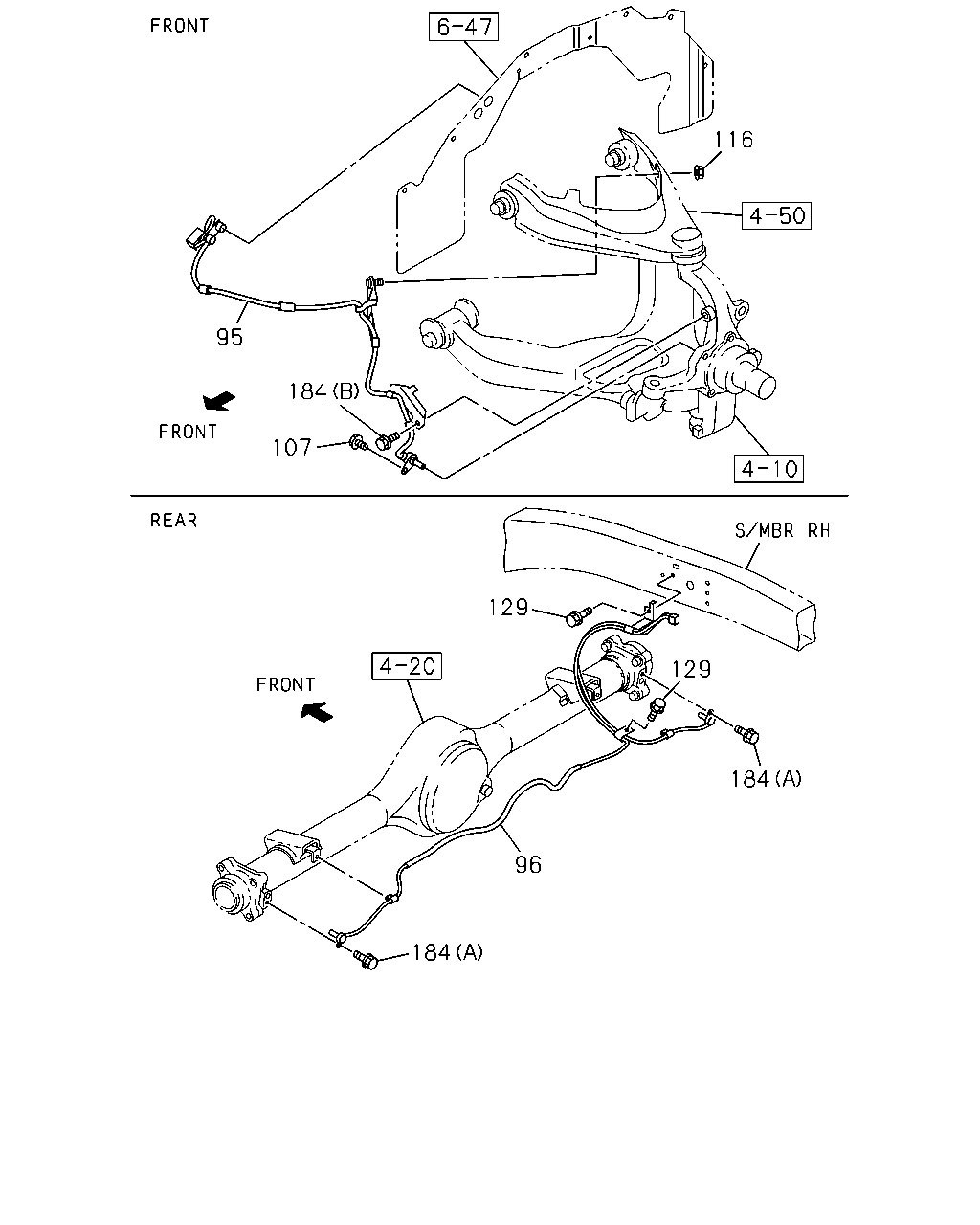

116 95 184 107 129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-119-1	01	1	1203-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-119-1	01	1	1203-1509			●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-432-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-432-0	01	1	1510-			●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-120-1	01	1	1203-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-120-1	01	1	1203-1509			●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL HIGH RIDE SUSPENSION(7YC)	8-98292-433-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-433-0	01	1	1510-			●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-117-1	01	1	1203-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-117-1	01	1	1203-1509						●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-430-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-430-0	01	1	1510-						●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-118-1	01	1	1203-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98052-118-1	01	1	1203-1509						●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-431-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-98292-431-0	01	1	1510-						●
96	04.710 SENSOR; SPD,RR WHEEL HIGH RIDE SUSPENSION(7YC)	8-98052-122-1	01	1	1203-	●	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98052-122-1	01	1	1203-			●	●	●
96	04.710 SENSOR; SPD,RR WHEEL EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-121-1	01	1	1203-	●	●
96	04.710 SENSOR; SPD,RR WHEEL	8-98052-121-1	01	1	1203-						●
107	04.710 BOLT; WHEEL SPD SENSOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1203-1509	●	●	●	●	●	●
107	04.710 BOLT; WHEEL SPD SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1203-	●	●	●	●	●	●
129	04.710 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●	●
184	04.681 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1203-1509	●	●	●	●	●	●
184	04.681 BOLT; CLIP 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●	●	●
184	04.681 BOLT; CLIP 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1203-	●	●	●	●	●	●

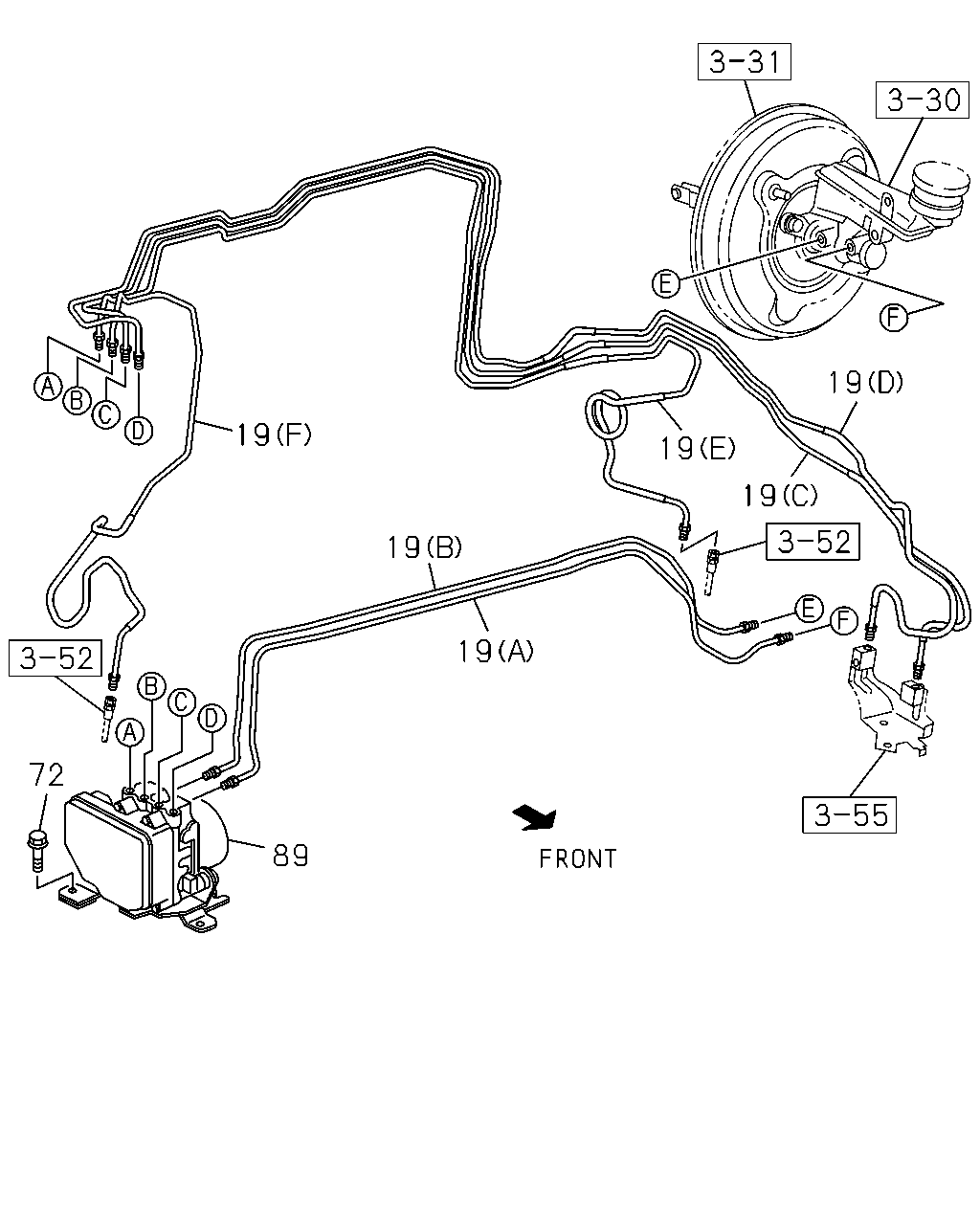

19 19 19 19 19 19 72 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC) (F)	8-98155-583-1	01	1	1203-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F)	8-98155-583-1	01	1	1203-			●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98155-585-1	01	1	1203-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (F)	8-98155-585-1	01	1	1203-						●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98099-746-2	01	1	1203-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-747-2	01	1	1203-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98099-752-3	01	1	1203-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98203-949-0	01	1	1203-	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (E)	8-98203-951-0	01	1	1203-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98203-951-0	01	1	1203-			●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98203-950-0	01	1	1203-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (E)	8-98203-950-0	01	1	1203-						●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 75D26L-DUAL(TQ9) HIGH RIDE SUSPENSION(7YC) (F)	8-98202-319-0	01	1	1203-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (F)	8-98202-319-0	01	1	1203-			●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BATTERY 75D26L-DUAL(TQ9) EXC. HIGH RIDE SUSPENSION(7YC) (F)	8-98202-317-0	01	1	1203-	●	●				●
72	04.686 BOLT; BRKT TO BODY 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1203-	●	●	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98232-480-0	01	1	1302-	●	●				●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98182-431-2	01	1	1203-1301	●	●				●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98232-481-0	01	1	1302-			●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98182-432-2	01	1	1203-1301			●	●	●

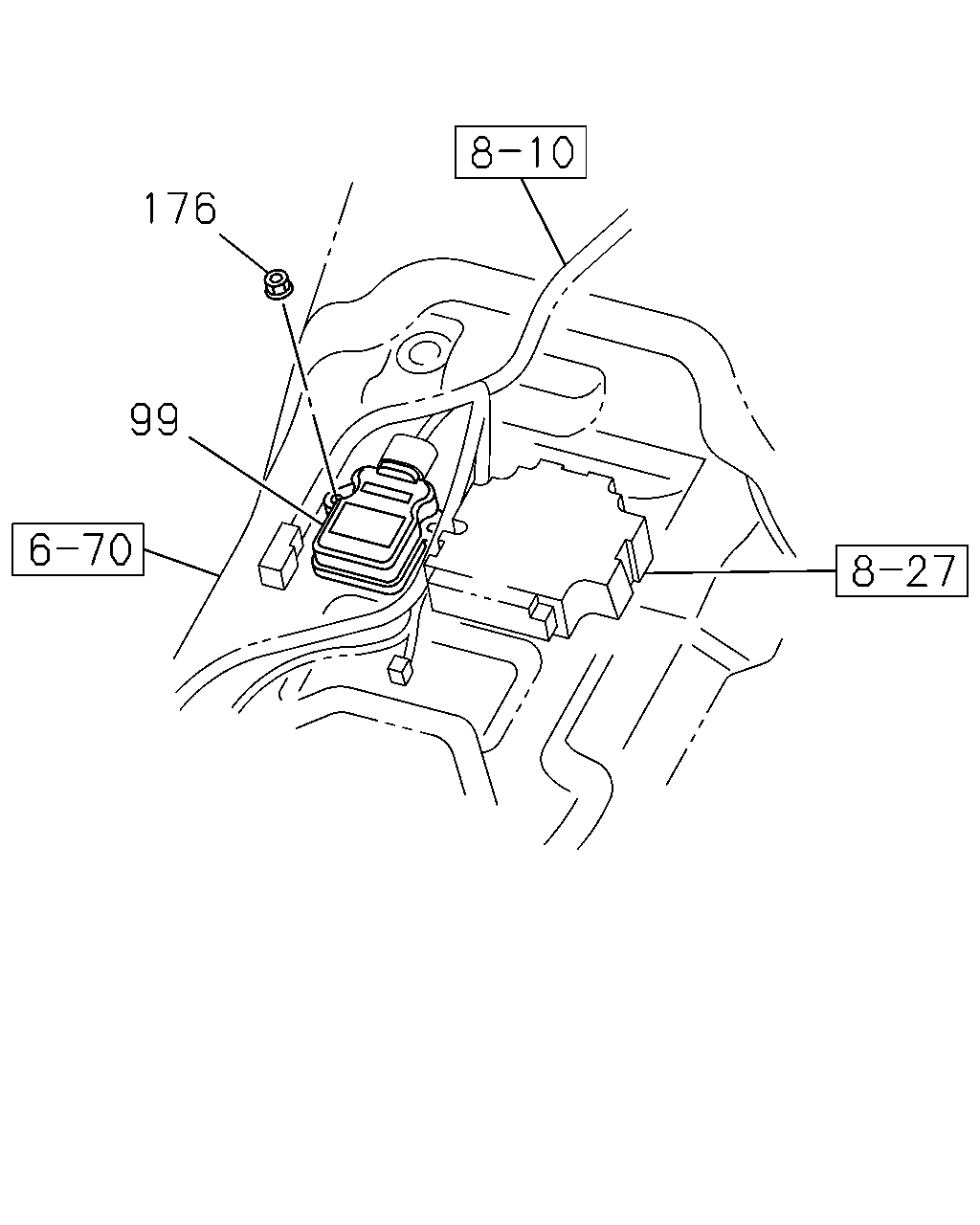

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	99	04.710 SENSOR; DECELERATION	8-98052-116-1	01	1	1203-	●	●	●	●	●	●
	176	04.730 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	1203-	●	●	●	●	●	●
