3-10 — BRAKE PEDAL AND CONTROL (#79464) — 18 parça

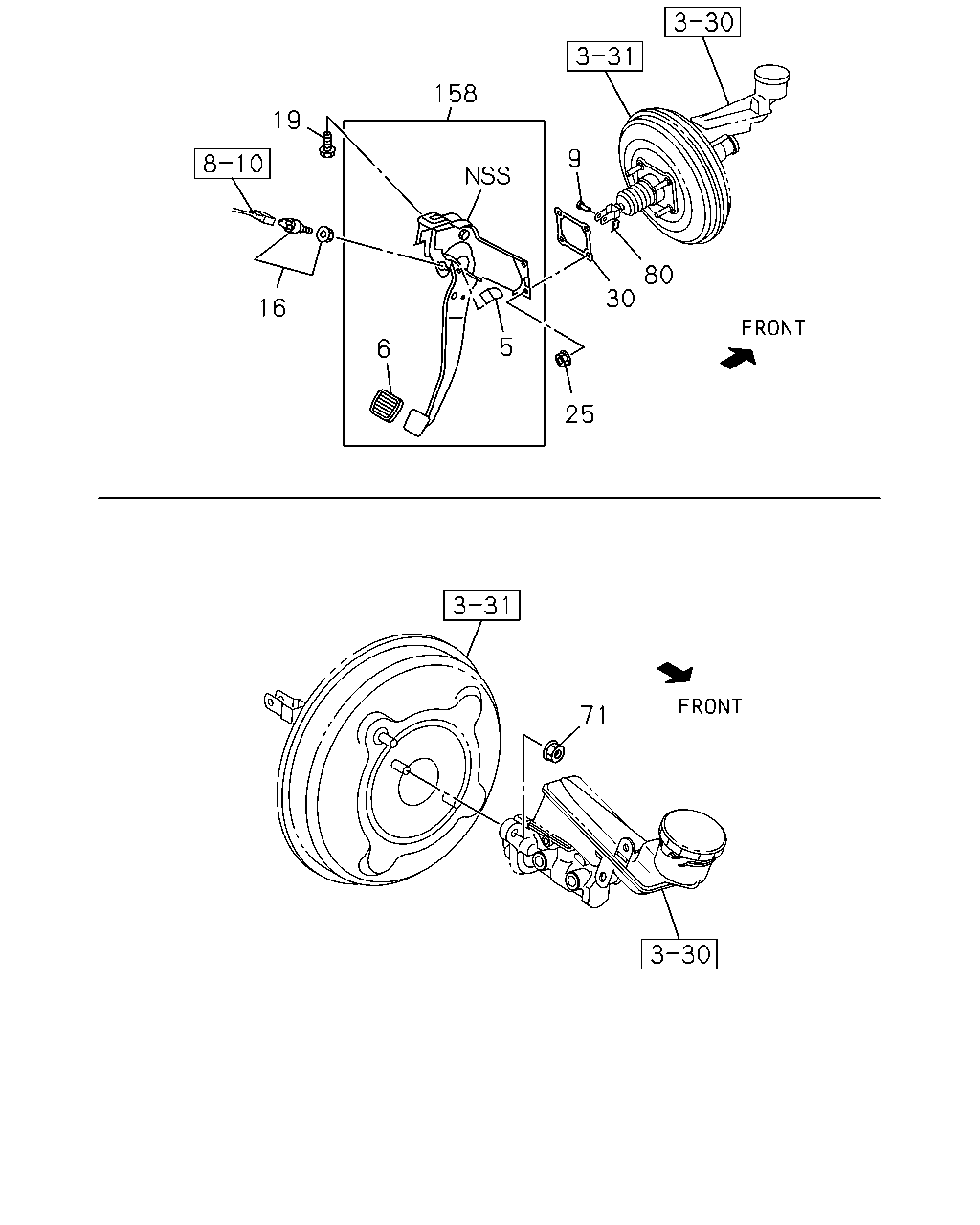

çizim 182814
158 19 9 80 30 16 5 6 25 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 04.634 STOPPER; BRK PEDAL 8-98029-187-0 01 1 1203- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T AISIN 6 SPEED(RNU) 		8-97318-799-0 01 1 1203- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1203- ● ●
9 04.634 PIN; JAW JOINT
M/T AISIN 6 SPEED(RNU) 		8-97311-602-0 01 1 1203- ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 1203- ● ●
16 02.447 SWITCH; STOP LAMP
M/T AISIN 6 SPEED(RNU) 		8-98140-487-0 01 1 1203- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1203- ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1203- ● ●
16 02.447 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1203- ● ●
19 04.634 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1203- ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M/T AISIN 6 SPEED(RNU) M8 FLANGE 		8-97581-233-0 04 1 1203- ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1203- ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1203- ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 1203- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
M/T AISIN 6 SPEED(RNU) 00.833 		8-98007-161-0 01 1 1203- ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1203- ● ●
158 04.625 PEDAL ASM; BRK
M/T AISIN 6 SPEED(RNU) 		8-98061-819-0 01 1 1203- ● ● ● ● ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-820-0 01 1 1203- ● ●
