0-25 — INLET MANIFOLD (#7946) — 312 parça

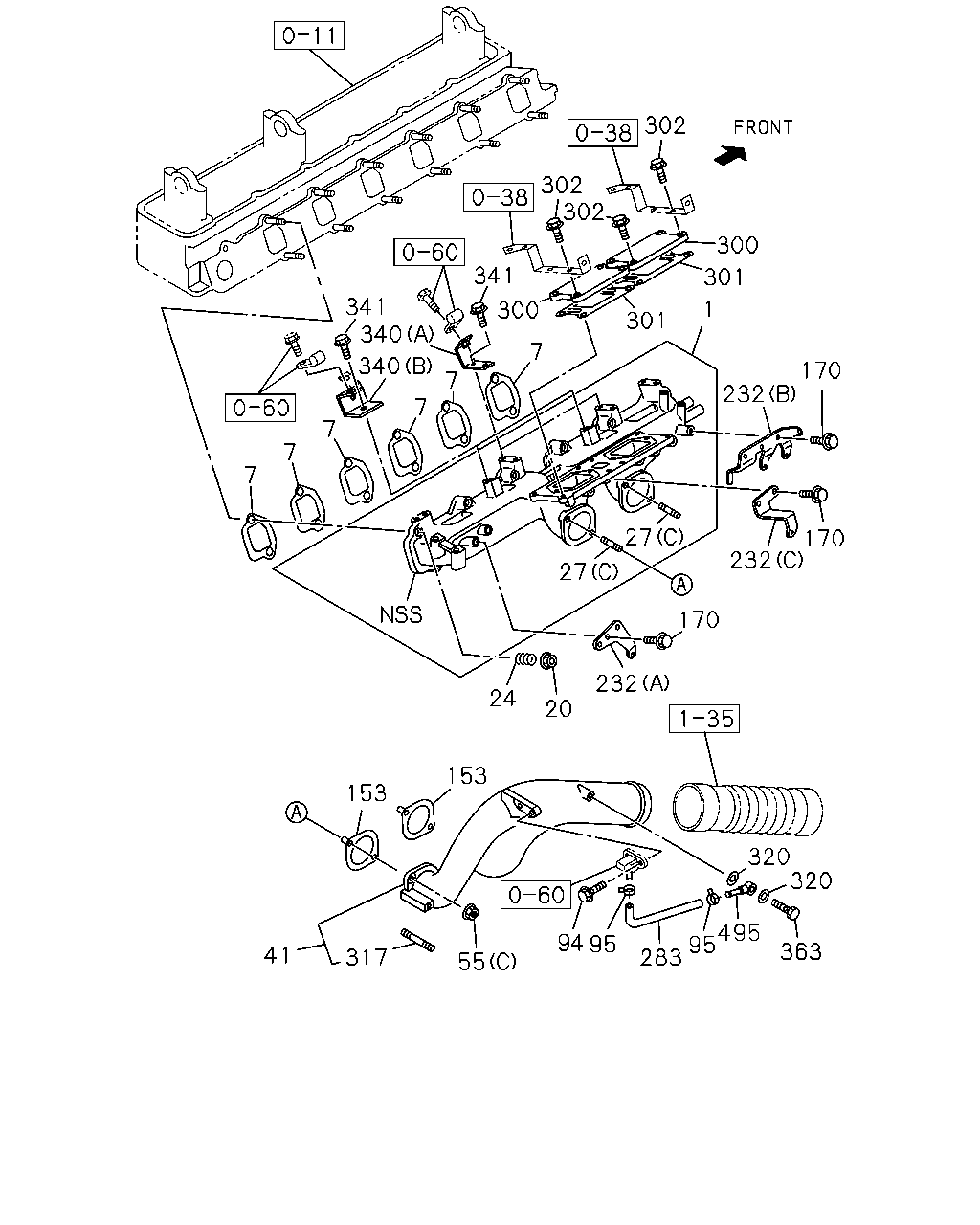

302 302 302 300 341 301 341 340 1 300 301 7 340 170 232 7 7 7 7 7 27 170 232 27 170 232 24 20 153 153 320 320 495 95 283 363 41 317 55 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL EURO3 SPECIFICATION(NJX)	1-14110-599-1	01	1	0107-	●
1	MANIFOLD; INL	1-14110-551-4	01	1	0204-		●
1	MANIFOLD; INL	1-14110-596-1	01	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX)	1-14115-091-0	06	1	0107-0210	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	0204-		●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	12	1	0107-0210	●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	12	1	0211-0602	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	12	1	0211-0602			●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	12	1	0603-	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	12	1	0603-			●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0204-0602		●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-		●
24	SPRING; INL MANIF EURO3 SPECIFICATION(NJX)	8-94393-858-0	12	1	0107-0210	●
24	SPRING; INL MANIF EURO3 SPECIFICATION(NJX)	8-94393-858-0	12	1	0211-	●
24	SPRING; INL MANIF	8-94393-858-0	12	1	0211-			●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0204-		●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	9-04411-025-0	04	1	0107-0210	●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	9-04411-025-0	04	1	0211-0604	●
27	STUD; INL MANIF (C) M10X25 L=40	9-04411-025-0	04	1	0211-0604			●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	0-44011-025-0	04	1	0605-	●
27	STUD; INL MANIF (C) M10X25 L=40	0-44011-025-0	04	1	0605-			●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	0204-0604		●
27	STUD; INL MANIF (A) M6X30 L=38	0-41010-630-0	08	1	0605-		●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	0204-0604		●
27	STUD; INL MANIF (B) M8X16 L=28	0-41010-816-0	06	1	0605-		●
41	DUCT; INT COVER	1-14134-283-2	01	1	0012-0106	●
41	DUCT; INT COVER EXC. EURO3 SPECIFICATION(NJX)	1-14134-283-2	01	1	0107-	●
41	DUCT; INT COVER EURO3 SPECIFICATION(NJX)	1-14134-435-0	01	1	0107-0210	●
41	DUCT; INT COVER EURO3 SPECIFICATION(NJX)	1-14134-435-0	01	1	0211-	●
41	DUCT; INT COVER	1-14134-435-0	01	1	0211-			●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	06	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91150-108-0	06	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	02	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0107-0203	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210		●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602		●	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91180-110-0	04	1	0603-	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
94	BOLT EURO3 SPECIFICATION(NJX) M6X12 FLANGE	0-28080-612-0	02	1	0107-0210	●
94	BOLT EURO3 SPECIFICATION(NJX) M6X12 FLANGE	0-28080-612-0	02	1	0211-0512	●
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0211-0512			●
94	BOLT EURO3 SPECIFICATION(NJX) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
95	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NJX) ID=11 WHITE	5-09707-005-1	02	1	0107-0210	●
95	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NJX) ID=11 WHITE	5-09707-005-1	02	1	0211-	●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0211-			●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX)	1-14115-097-0	02	1	0107-0210	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-097-0	02	1	0211-	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-097-0	02	1	0211-			●
170	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	07	1	0107-0209	●
232	BRACKET; INJ PIPE EURO3 SPECIFICATION(NJX) (A)	1-15419-534-0	01	1	0107-0209	●
232	BRACKET; INJ PIPE EURO3 SPECIFICATION(NJX) (B)	1-15419-547-0	01	1	0107-0209	●
232	BRACKET; INJ PIPE EURO3 SPECIFICATION(NJX) (C)	1-15419-548-0	01	1	0107-0209	●
283	RUBBER	8-94394-268-1	03	1	0012-0106	●
283	RUBBER EXC. EURO3 SPECIFICATION(NJX)	8-94394-268-1	03	1	0107-0109	●
283	RUBBER EXC. EURO3 SPECIFICATION(NJX)	8-94394-268-1	02	1	0110-	●
283	RUBBER EURO3 SPECIFICATION(NJX)	1-14119-435-0	01	1	0107-0210	●
283	RUBBER EURO3 SPECIFICATION(NJX)	1-14119-435-0	01	1	0211-	●
283	RUBBER	1-14119-435-0	01	1	0211-			●
300	COVER; INL MANIF EURO3 SPECIFICATION(NJX)	1-11749-191-0	02	1	0107-0203	●
300	COVER; INL MANIF EURO3 SPECIFICATION(NJX)	1-11749-208-0	02	1	0204-0210	●
300	COVER; INL MANIF EURO3 SPECIFICATION(NJX)	1-11749-208-0	02	1	0211-	●
300	COVER; INL MANIF	1-11749-208-0	02	1	0211-			●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX)	1-16185-004-0	02	1	0107-0210	●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NJX).	1-16185-004-0	02	1	0211-	●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	0211-			●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	04	1	0107-0107	●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28181-020-0	04	1	0107-0107	●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X20 FLANGE	0-28181-020-0	08	1	0107-0203	●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X30 FLANGE	0-28181-030-0	08	1	0204-0210	●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X30 FLANGE	0-28181-030-0	08	1	0211-0512	●
302	BOLT; INL MANIF COVER M10X30 FLANGE	0-28181-030-0	08	1	0211-0512			●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION(NJX) M10X30 FLANGE	0-28151-030-0	08	1	0601-	●
302	BOLT; INL MANIF COVER M10X30 FLANGE	0-28151-030-0	08	1	0601-			●
317	STUD; HARNESS CLIP EURO3 SPECIFICATION(NJX) M8X51	8-94202-458-1	01	1	0107-0210	●
317	STUD; HARNESS CLIP EURO3 SPECIFICATION(NJX) M8X51	8-94202-458-1	01	1	0211-	●
317	STUD; HARNESS CLIP M8X51	8-94202-458-1	01	1	0211-			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=8.2 OD=13.2	1-09630-082-0	02	1	0107-0210	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0211-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0211-			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	0204-		●
340	BRACKET; HARNESS INL MANIF EURO3 SPECIFICATION(NJX) (B)	1-13729-052-0	02	1	0107-	●
340	BRACKET; HARNESS INL MANIF EURO3 SPECIFICATION(NJX) (A)	1-14119-463-0	02	1	0107-0209	●
340	BRACKET; HARNESS INL MANIF EURO3 SPECIFICATION(NJX) (A)	1-14119-463-0	03	1	0210-	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	06	1	0107-0107	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0107-0209	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	03	1	0210-0512	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION(NJX) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
363	BOLT; EYE	1-09675-184-0	01	1	0012-0106	●
363	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX)	1-09675-184-0	01	1	0107-	●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	1-09675-206-0	01	1	0107-0210	●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	1-09675-206-0	01	1	0211-0306	●
363	BOLT; EYE M8X24	1-09675-206-0	01	1	0211-0306			●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	8-97257-826-0	01	1	0307-	●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0307-			●
495	PIPE; BOOST SENSOR EURO3 SPECIFICATION(NJX)	8-94428-807-0	01	1	0107-0210	●
495	PIPE; BOOST SENSOR EURO3 SPECIFICATION(NJX)	8-94428-807-0	01	1	0211-	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0211-			●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	0204-		●

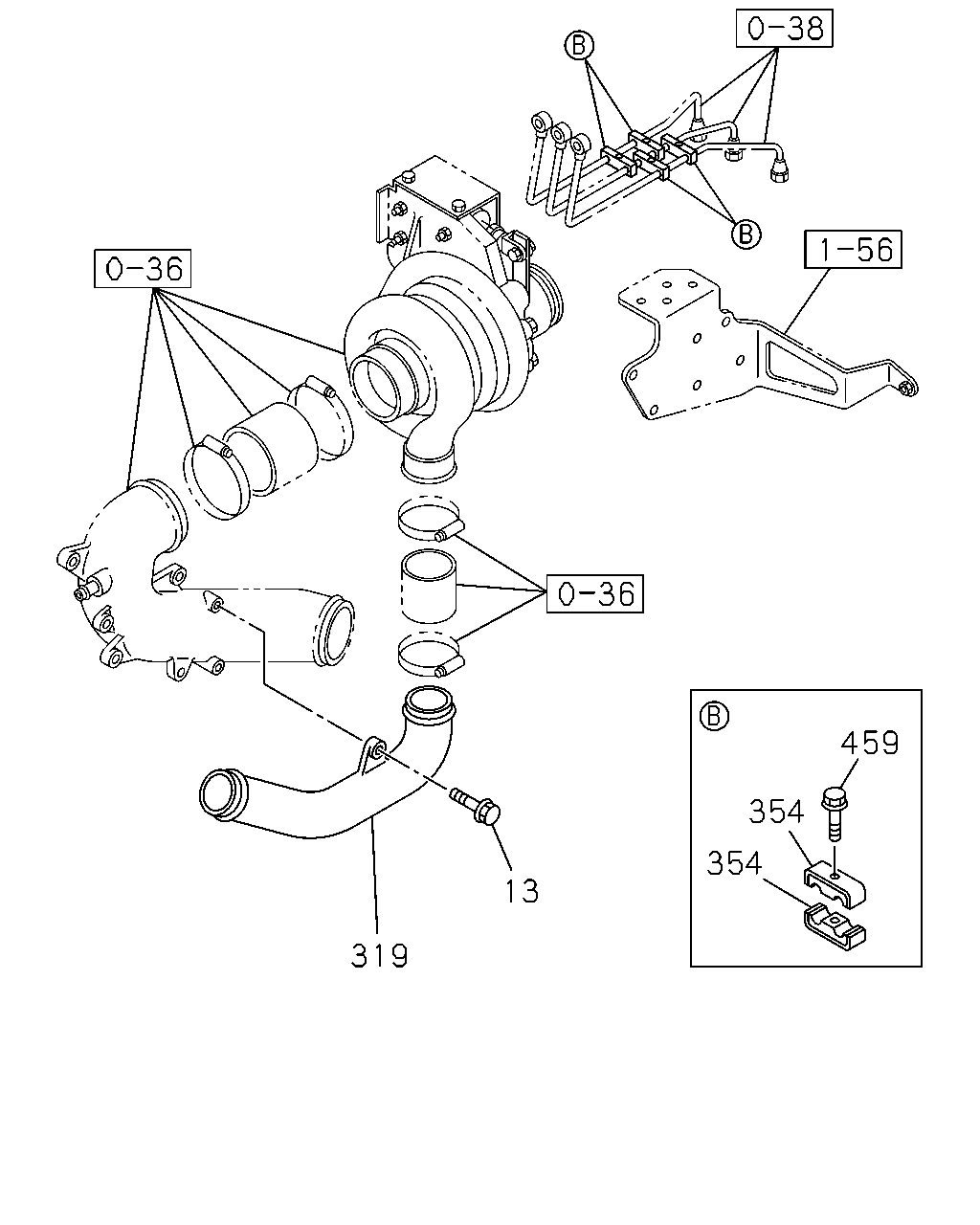

459 354 354 13 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	0012-0106	●
13	BOLT; INL MANIF EXC. EURO3 SPECIFICATION(NJX) M10X85 FLANGE	8-97020-251-0	01	1	0107-	●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28680-840-0	02	1	0107-0210	●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512	●
13	BOLT; INL MANIF M8X40 FLANGE	0-28680-840-0	02	1	0211-0512		●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28650-840-0	02	1	0601-	●
13	BOLT; INL MANIF M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
319	DUCT; INL,TURBOCHARGER	1-14134-267-1	01	1	0012-0106	●
319	DUCT; INL,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-14134-267-1	01	1	0107-	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-14134-434-1	01	1	0107-0210	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-14134-434-1	01	1	0211-	●
319	DUCT; INL,TURBOCHARGER	1-14134-434-1	01	1	0211-		●
354	CLIP; AIR PIPE	1-09701-132-0	02	1	0012-0106	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION(NJX)	1-09701-132-1	02	1	0107-	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-240-0	08	1	0107-0210	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-240-0	08	1	0211-	●
354	CLIP; AIR PIPE	1-09701-240-0	08	1	0211-		●
459	BOLT; CLIP FIX EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	04	1	0107-0210	●
459	BOLT; CLIP FIX EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28680-635-0	04	1	0211-0512	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28680-635-0	04	1	0211-0512		●
459	BOLT; CLIP FIX EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28650-635-0	04	1	0601-	●
459	BOLT; CLIP FIX M6X35 FLANGE	0-28650-635-0	04	1	0601-		●

2 161 228 228 18 228 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	COVER; INL	1-14110-552-1	01	1	0012-0101	●
2	COVER; INL	1-14110-603-0	01	1	0102-0106	●
2	COVER; INL EXC. EURO3 SPECIFICATION(NJX)	1-14110-603-0	01	1	0107-	●
18	SCREW; PLATE,INL CVR	1-09054-019-0	08	1	0012-0106	●
18	SCREW; PLATE,INL CVR EXC. EURO3 SPECIFICATION(NJX)	1-09054-019-0	08	1	0107-	●
161	STUD; BRKT,INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0012-0106	●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION(NJX) M8X20 L=32	9-04110-820-0	02	1	0107-0604	●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION(NJX) M8X20 L=32	0-41010-820-0	02	1	0605-	●
221	PLATE; INL COVER	1-14119-261-0	04	1	0012-0106	●
221	PLATE; INL COVER EXC. EURO3 SPECIFICATION(NJX)	1-14119-261-0	04	1	0107-	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0012-0106	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (A) M8X20 L=32	9-04110-820-0	02	1	0107-0604	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	0012-0106	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 L=37	9-04110-825-0	04	1	0107-0604	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 L=37	0-41010-825-0	04	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0012-0106	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (C) M8X60 L=72	9-04110-860-0	01	1	0107-0604	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION(NJX) (C) M8X60 L=72	0-41010-860-0	01	1	0605-	●

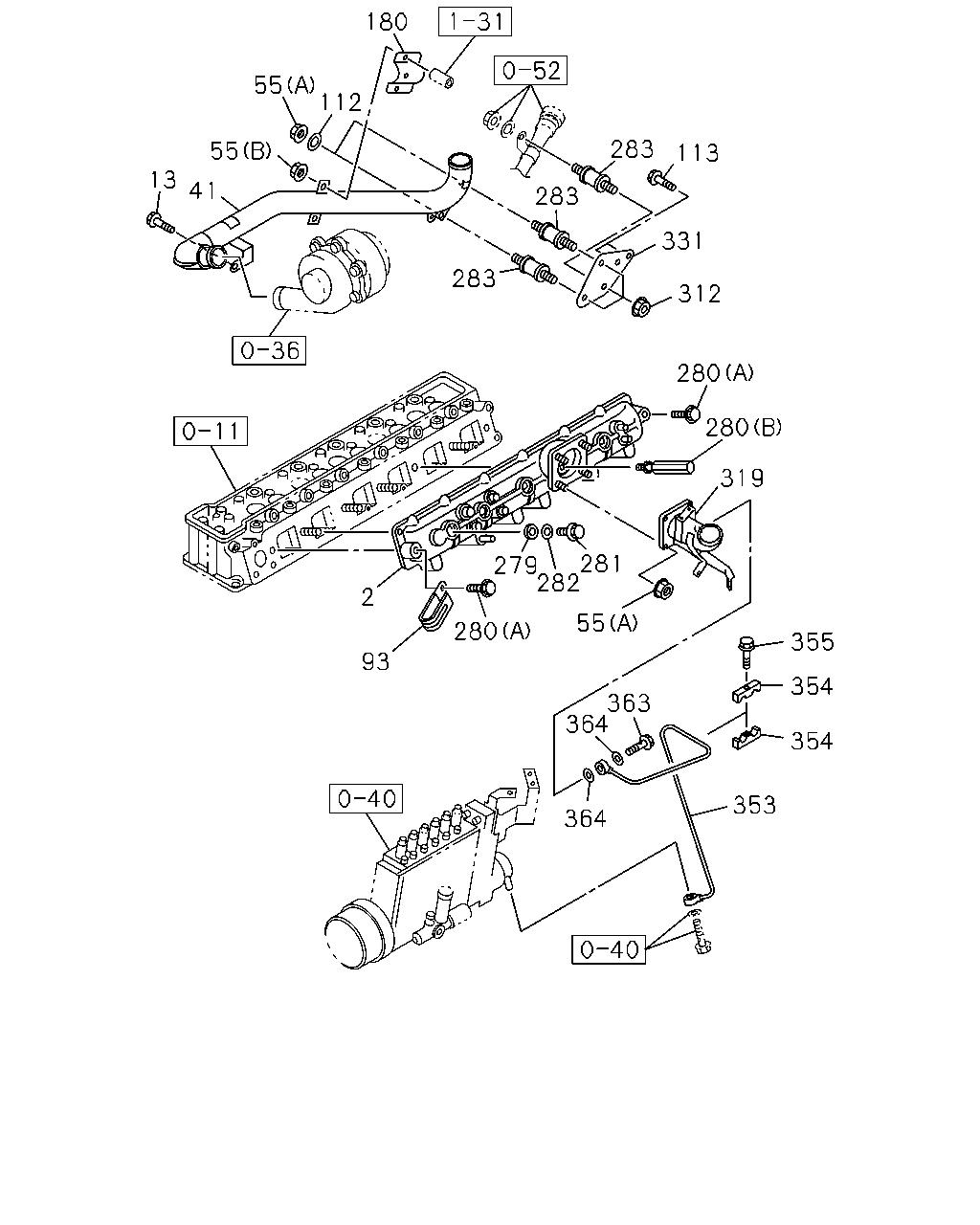

180 55 112 283 55 113 13 41 283 331 283 312 280 280 319 279 281 282 2 55 280 355 93 354 363 364 354 353 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL	1-14110-552-1	01	1	0012-0101	●
2	COVER; INL	1-14110-603-0	01	1	0102-0106	●
2	COVER; INL EXC. EURO3 SPECIFICATION(NJX)	1-14110-603-0	01	1	0107-	●
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	0012-0106	●
13	BOLT; INL MANIF EXC. EURO3 SPECIFICATION(NJX) M10X85 FLANGE	8-97020-251-0	01	1	0107-	●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28680-840-0	02	1	0107-0210	●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512	●
13	BOLT; INL MANIF M8X40 FLANGE	0-28680-840-0	02	1	0211-0512			●
13	BOLT; INL MANIF EURO3 SPECIFICATION(NJX) M8X40 FLANGE	0-28650-840-0	02	1	0601-	●
13	BOLT; INL MANIF M8X40 FLANGE	0-28650-840-0	02	1	0601-			●
41	DUCT; INT COVER	1-14134-283-2	01	1	0012-0106	●
41	DUCT; INT COVER EXC. EURO3 SPECIFICATION(NJX)	1-14134-283-2	01	1	0107-	●
41	DUCT; INT COVER EURO3 SPECIFICATION(NJX)	1-14134-435-0	01	1	0107-0210	●
41	DUCT; INT COVER EURO3 SPECIFICATION(NJX)	1-14134-435-0	01	1	0211-	●
41	DUCT; INT COVER	1-14134-435-0	01	1	0211-			●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	06	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91150-108-0	06	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	02	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0107-0203	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210		●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602		●	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91180-110-0	04	1	0603-	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
93	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0012-0106	●
93	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) ID=18 L=44	8-94225-185-0	01	1	0107-0801	●
93	CLIP; HARNESS EXC. EURO3 SPECIFICATION(NJX) ID=18 L=44	8-97367-985-1	01	1	0802-	●
112	WASHER; PL ID=8.4 OD=26	9-09164-808-0	02	1	0012-0106	●
112	WASHER; PL EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	9-09164-808-0	02	1	0107-0605	●
112	WASHER; PL EXC. EURO3 SPECIFICATION(NJX) ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	0012-0106	●
113	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●
113	BOLT; STAY EXC. EURO3 SPECIFICATION(NJX) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
180	PROTECTOR; HEAT	1-14181-286-0	01	1	0012-0106	●
180	PROTECTOR; HEAT EXC. EURO3 SPECIFICATION(NJX)	1-14181-286-0	01	1	0107-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0012-0106	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX)	1-14115-046-0	04	1	0107-	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	0012-0106	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION(NJX) (A) M8X45 FLANGE	0-28080-845-0	02	1	0107-0512	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION(NJX) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0012-0106	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION(NJX) (B) M8X28.5	1-09009-125-1	01	1	0107-	●
281	NUT; INL COVER	1-11175-011-1	04	1	0012-0106	●
281	NUT; INL COVER EXC. EURO3 SPECIFICATION(NJX)	1-11175-011-1	04	1	0107-	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0012-0106	●
282	WASHER; PL,INL CVR FIX EXC. EURO3 SPECIFICATION(NJX) ID=12.5	1-09503-186-0	04	1	0107-	●
283	RUBBER	8-94394-268-1	03	1	0012-0106	●
283	RUBBER EXC. EURO3 SPECIFICATION(NJX)	8-94394-268-1	03	1	0107-0109	●
283	RUBBER EXC. EURO3 SPECIFICATION(NJX)	8-94394-268-1	02	1	0110-	●
283	RUBBER EURO3 SPECIFICATION(NJX)	1-14119-435-0	01	1	0107-0210	●
283	RUBBER EURO3 SPECIFICATION(NJX)	1-14119-435-0	01	1	0211-	●
283	RUBBER	1-14119-435-0	01	1	0211-			●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	03	1	0012-0106	●
312	NUT; MTG RUBBER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0109	●
312	NUT; MTG RUBBER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0110-0602	●
312	NUT; MTG RUBBER EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●
319	DUCT; INL,TURBOCHARGER	1-14134-267-1	01	1	0012-0106	●
319	DUCT; INL,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX)	1-14134-267-1	01	1	0107-	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-14134-434-1	01	1	0107-0210	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION(NJX)	1-14134-434-1	01	1	0211-	●
319	DUCT; INL,TURBOCHARGER	1-14134-434-1	01	1	0211-			●
331	STAY; INL DUCT	1-14119-415-0	01	1	0012-0106	●
331	STAY; INL DUCT EXC. EURO3 SPECIFICATION(NJX)	1-14119-415-0	01	1	0107-0109	●
331	STAY; INL DUCT EXC. EURO3 SPECIFICATION(NJX)	1-14119-464-0	01	1	0110-	●
353	PIPE; AIR,BOOST	1-19193-100-0	01	1	0012-0106	●
353	PIPE; AIR,BOOST EXC. EURO3 SPECIFICATION(NJX)	1-19193-100-0	01	1	0107-	●
354	CLIP; AIR PIPE	1-09701-132-0	02	1	0012-0106	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION(NJX)	1-09701-132-1	02	1	0107-	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-240-0	08	1	0107-0210	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION(NJX)	1-09701-240-0	08	1	0211-	●
354	CLIP; AIR PIPE	1-09701-240-0	08	1	0211-			●
355	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28080-635-0	01	1	0012-0106	●
355	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28080-635-0	01	1	0107-0512	●
355	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION(NJX) M6X35 FLANGE	0-28050-635-0	01	1	0601-	●
363	BOLT; EYE	1-09675-184-0	01	1	0012-0106	●
363	BOLT; EYE EXC. EURO3 SPECIFICATION(NJX)	1-09675-184-0	01	1	0107-	●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	1-09675-206-0	01	1	0107-0210	●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	1-09675-206-0	01	1	0211-0306	●
363	BOLT; EYE M8X24	1-09675-206-0	01	1	0211-0306			●
363	BOLT; EYE EURO3 SPECIFICATION(NJX) M8X24	8-97257-826-0	01	1	0307-	●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0307-			●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0012-0106	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION(NJX) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-	●

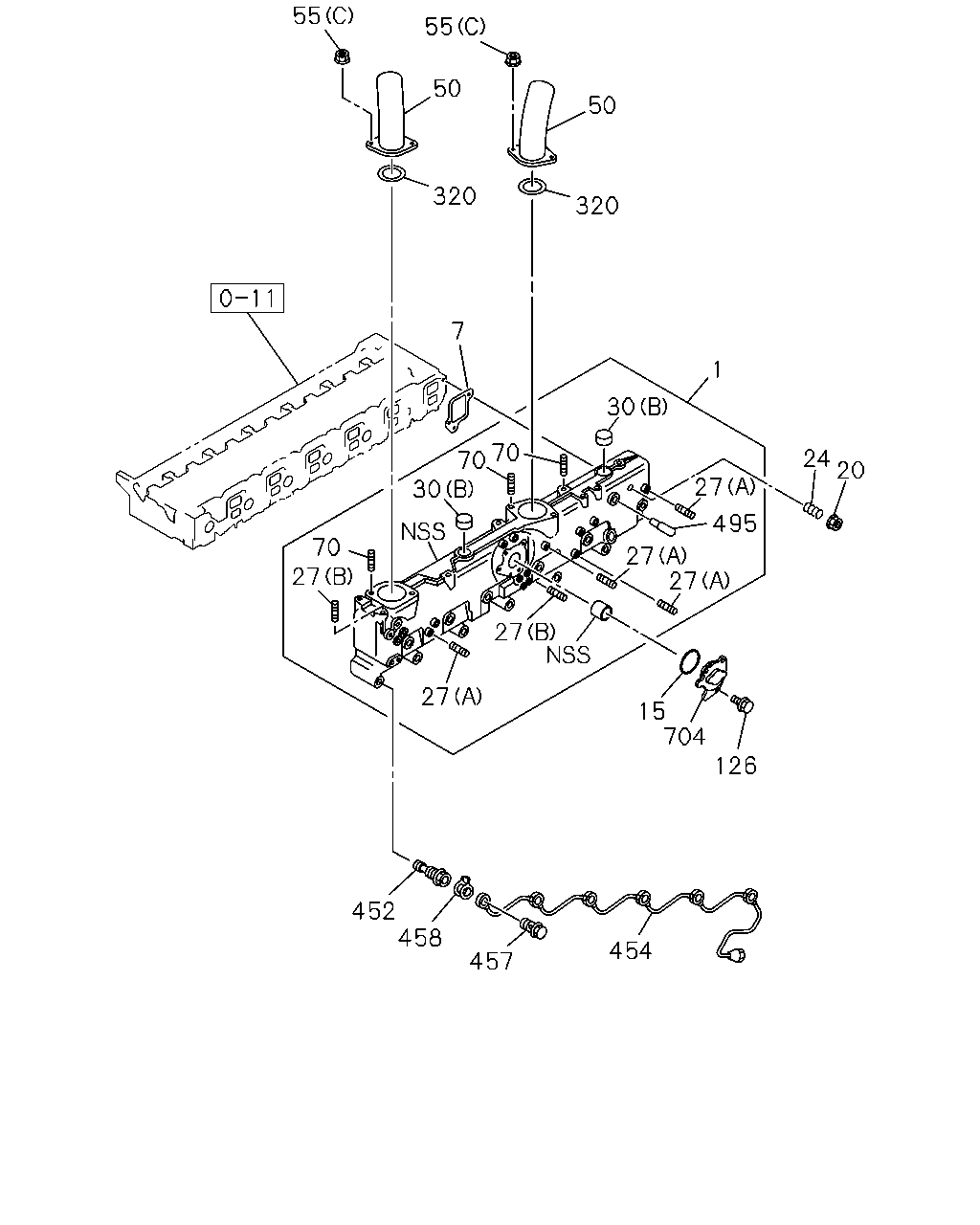

55 55 50 50 320 320 7 1 30 70 70 30 24 20 27 27 27 495 70 27 27 27 15 704 126 452 458 454 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; INL EURO3 SPECIFICATION(NJX)	1-14110-599-1	01	1	0107-	●
1	MANIFOLD; INL	1-14110-551-4	01	1	0204-		●
1	MANIFOLD; INL	1-14110-596-1	01	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX)	1-14115-091-0	06	1	0107-0210	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-091-0	06	1	0211-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-063-1	06	1	0204-		●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0204-		●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	12	1	0107-0210	●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	12	1	0211-0602	●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	12	1	0211-0602			●
20	NUT; INL MANIF EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	12	1	0603-	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	12	1	0603-			●
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0204-0602		●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-		●
24	SPRING; INL MANIF EURO3 SPECIFICATION(NJX)	8-94393-858-0	12	1	0107-0210	●
24	SPRING; INL MANIF EURO3 SPECIFICATION(NJX)	8-94393-858-0	12	1	0211-	●
24	SPRING; INL MANIF	8-94393-858-0	12	1	0211-			●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0204-		●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	9-04411-025-0	04	1	0107-0210	●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	9-04411-025-0	04	1	0211-0604	●
27	STUD; INL MANIF (C) M10X25 L=40	9-04411-025-0	04	1	0211-0604			●
27	STUD; INL MANIF EURO3 SPECIFICATION(NJX) (C) M10X25 L=40	0-44011-025-0	04	1	0605-	●
27	STUD; INL MANIF (C) M10X25 L=40	0-44011-025-0	04	1	0605-			●
27	STUD; INL MANIF (A) M6X30 L=38	9-04110-630-0	08	1	0204-0604		●
27	STUD; INL MANIF (A) M6X30 L=38	0-41010-630-0	08	1	0605-		●
27	STUD; INL MANIF (B) M8X16 L=28	9-04110-816-0	06	1	0204-0604		●
27	STUD; INL MANIF (B) M8X16 L=28	0-41010-816-0	06	1	0605-		●
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	0204-		●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	0204-		●
50	PIPE; INL	1-14112-742-0	02	1	0204-		●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	06	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91150-108-0	06	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	0012-0106	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91150-110-0	02	1	0107-0602	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION(NJX) (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0107-0203	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0204-0210		●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91150-110-0	04	1	0211-0602		●	●
55	NUT; INL PIPE EURO3 SPECIFICATION(NJX) (C) M10 FLANGE	0-91180-110-0	04	1	0603-	●
55	NUT; INL PIPE (C) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
70	STUD; WATER PIPE M10X20 L=35	9-04411-020-0	07	1	0204-		●
126	BOLT; COVER M10X20 FLANGE	0-28181-020-0	03	1	0204-0512		●
126	BOLT; COVER M10X20 FLANGE	0-28151-020-0	03	1	0601-		●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ID=8.2 OD=13.2	1-09630-082-0	02	1	0107-0210	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0211-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	0211-			●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6	1-09623-421-0	02	1	0204-		●
452	CYLINDER ASM; AIR	1-14370-013-0	06	1	0204-		●
454	PIPE; AIR,IVES	1-19192-590-1	01	1	0204-		●
457	BOLT; EYE,AIR PIPE,IVES M8X18 EYE-BOLT	1-09675-037-1	06	1	0204-		●
458	GASKET; AIR PIPE,VSS ID=8.6	8-94395-214-0	06	1	0204-		●
495	PIPE; BOOST SENSOR EURO3 SPECIFICATION(NJX)	8-94428-807-0	01	1	0107-0210	●
495	PIPE; BOOST SENSOR EURO3 SPECIFICATION(NJX)	8-94428-807-0	01	1	0211-	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0211-			●
495	PIPE; BOOST SENSOR	1-09669-073-0	01	1	0204-		●
704	COVER	1-14134-193-0	01	1	0204-		●

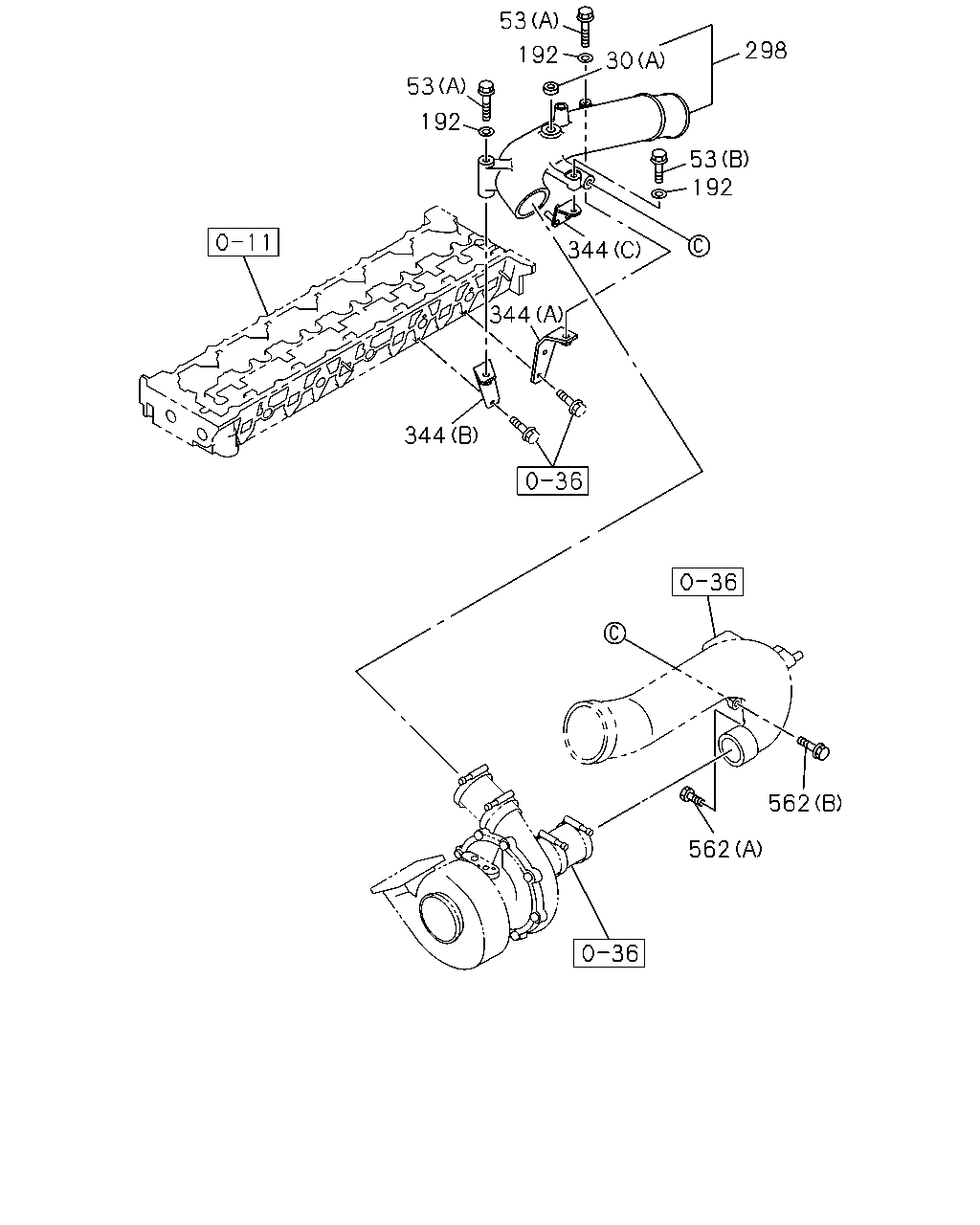

53 298 192 30 53 192 53 192 344 344 344 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
30	CUP; SEALING,INL MANIF (B) OD=30	8-94241-638-0	02	1	0204-	●
30	CUP; SEALING,INL MANIF (A) OD=20	9-11129-128-0	01	1	0204-	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28181-000-0	02	1	0204-0512	●
53	BOLT; INL PIPE (A) M10X100 FLANGE	0-28151-000-0	02	1	0601-	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28181-040-0	01	1	0204-0512	●
53	BOLT; INL PIPE (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22	9-09160-610-0	03	1	0204-0605	●
192	WASHER; PL,INL PIPE ID=10.5 OD=22 T=1.6	0-91610-610-0	03	1	0606-	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-485-2	01	1	0204-	●
344	BRACKET; INL PIPE (A)	1-14119-314-0	01	1	0204-	●
344	BRACKET; INL PIPE (B)	1-14119-324-0	01	1	0204-	●
344	BRACKET; INL PIPE (C)	1-14119-393-0	01	1	0204-	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28181-020-0	01	1	0204-0512	●
562	BOLT; INL DUCT (A) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28181-035-0	02	1	0204-0512	●
562	BOLT; INL DUCT (B) M10X35 FLANGE	0-28151-035-0	02	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
