0-22 — ENGINE MOUNTING (#7945) — 186 parça

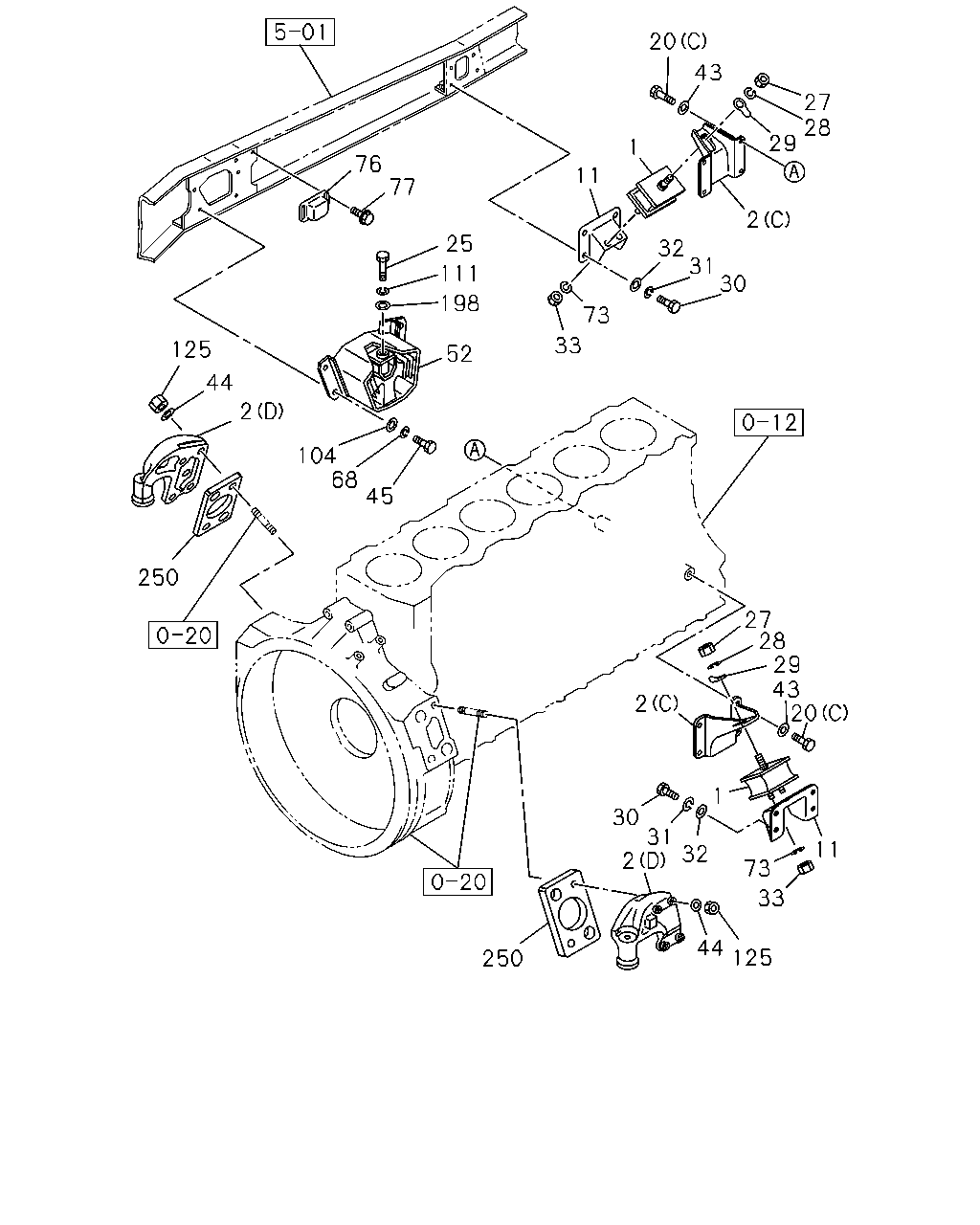

20 43 27 28 29 1 76 77 11 2 25 32 31 30 111 198 73 33 125 52 44 2 104 68 45 250 27 28 29 43 20 2 1 30 31 2 11 32 73 33 44 125 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-131-2	02	1	0012-0203	●
1	RUBBER; ENG FOOT,FRT ISUZU M/T<X9A>	1-53215-131-2	02	1	0204-0210	●
1	RUBBER; ENG FOOT,FRT ISUZU M/T<X9A>	1-53215-131-2	02	1	0211-	●
1	RUBBER; ENG FOOT,FRT	1-53215-131-2	02	1	0211-		●
1	RUBBER; ENG FOOT,FRT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-53215-220-0	02	1	0204-	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	0204-			●
2	FOOT; ENG (A)	1-11771-172-0	02	1	0012-0210	●
2	FOOT; ENG (A)	1-11771-172-0	02	1	0211-	●	●
2	FOOT; ENG (B)	1-11777-178-1	01	1	0012-0210	●
2	FOOT; ENG (B)	1-11777-178-1	01	1	0211-0501	●	●
2	FOOT; ENG (B)	8-97605-933-0	01	1	0502-	●	●
2	FOOT; ENG (B)	1-11777-179-0	01	1	0012-0210	●
2	FOOT; ENG (B)	1-11777-179-0	01	1	0211-	●	●
2	FOOT; ENG (C)	1-11771-220-0	02	1	0204-			●
2	FOOT; ENG (D)	1-11777-197-1	01	1	0204-			●
2	FOOT; ENG (D)	1-11777-189-1	01	1	0204-			●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-147-2	02	1	0012-0210	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-147-2	02	1	0211-0211	●	●
11	BRACKET; CUSHION RUBBER,FRT L=70	1-53211-139-2	02	1	0212-	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	0204-			●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0012-0210	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0211-	●	●
20	BOLT; ENG FOOT (A) M12X24	1-09020-101-0	04	1	0012-0210	●
20	BOLT; ENG FOOT (A) M12X24	1-09020-101-0	04	1	0211-	●	●
20	BOLT; ENG FOOT (B) M16X78	1-09020-113-0	08	1	0012-0210	●
20	BOLT; ENG FOOT (B) M16X78	1-09020-113-0	08	1	0211-	●	●
20	BOLT; ENG FOOT (C) M14X32	9-92361-432-0	08	1	0204-			●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	0012-0105	●
25	BOLT; CUSHION RUBBER TO BRKT M22X85	1-09020-077-1	02	1	0106-0210	●
25	BOLT; CUSHION RUBBER TO BRKT M22X85	1-09020-077-1	02	1	0211-	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	0204-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0012-0203	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0204-0512	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0012-0203	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0204-0603	●	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0604-	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0012-0203	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0204-	●	●	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	0012-0203	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	0204-0512	●	●	●
30	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	08	1	0601-	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0012-0203	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0204-0603	●	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	0604-	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	0012-0203	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	0204-	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	0012-0203	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	0204-0512	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0601-	●
43	WASHER; ENG FOOT ID=14.2	1-09503-050-0	08	1	0204-			●
44	WASHER; LK,ENG FOOT ID=16.2	9-09851-672-2	08	1	0012-0210	●
44	WASHER; LK,ENG FOOT ID=16.2	9-09851-672-2	08	1	0211-	●	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	0204-			●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	12	1	0012-0210	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	12	1	0211-0512	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	12	1	0601-	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	10	1	0204-0512			●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	10	1	0601-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-374-0	02	1	0012-0210	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-374-0	02	1	0211-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-384-0	01	1	0204-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-377-0	01	1	0204-			●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	12	1	0012-0210	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	12	1	0211-0603	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	12	1	0604-	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	10	1	0204-0603			●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	10	1	0604-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	04	1	0012-0203	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	04	1	0204-0603	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	04	1	0604-	●
76	STOPPER; ENG MTG RUBBER	1-53229-075-2	02	1	0012-0210	●
76	STOPPER; ENG MTG RUBBER	1-53229-075-2	02	1	0211-	●	●
76	STOPPER; ENG MTG RUBBER	1-53229-072-0	01	1	0204-			●
76	STOPPER; ENG MTG RUBBER	1-53229-071-0	01	1	0204-			●
77	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	02	1	0012-0203	●
77	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	02	1	0204-0512	●	●	●
77	BOLT; STOPPER M14X40 FLANGE	0-28651-440-0	02	1	0601-	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	12	1	0012-0210	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	12	1	0211-	●	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	10	1	0204-			●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	0012-0203	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	0204-0603	●	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	0-91510-622-0	02	1	0604-	●
125	NUT; ENG FOOT M18	9-99110-518-0	08	1	0204-0512			●
125	NUT; ENG FOOT M18	0-91110-518-0	08	1	0601-			●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	0012-0203	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	0204-	●	●	●
250	SPACER; ENG FOOT	1-11777-251-0	02	1	0204-			●

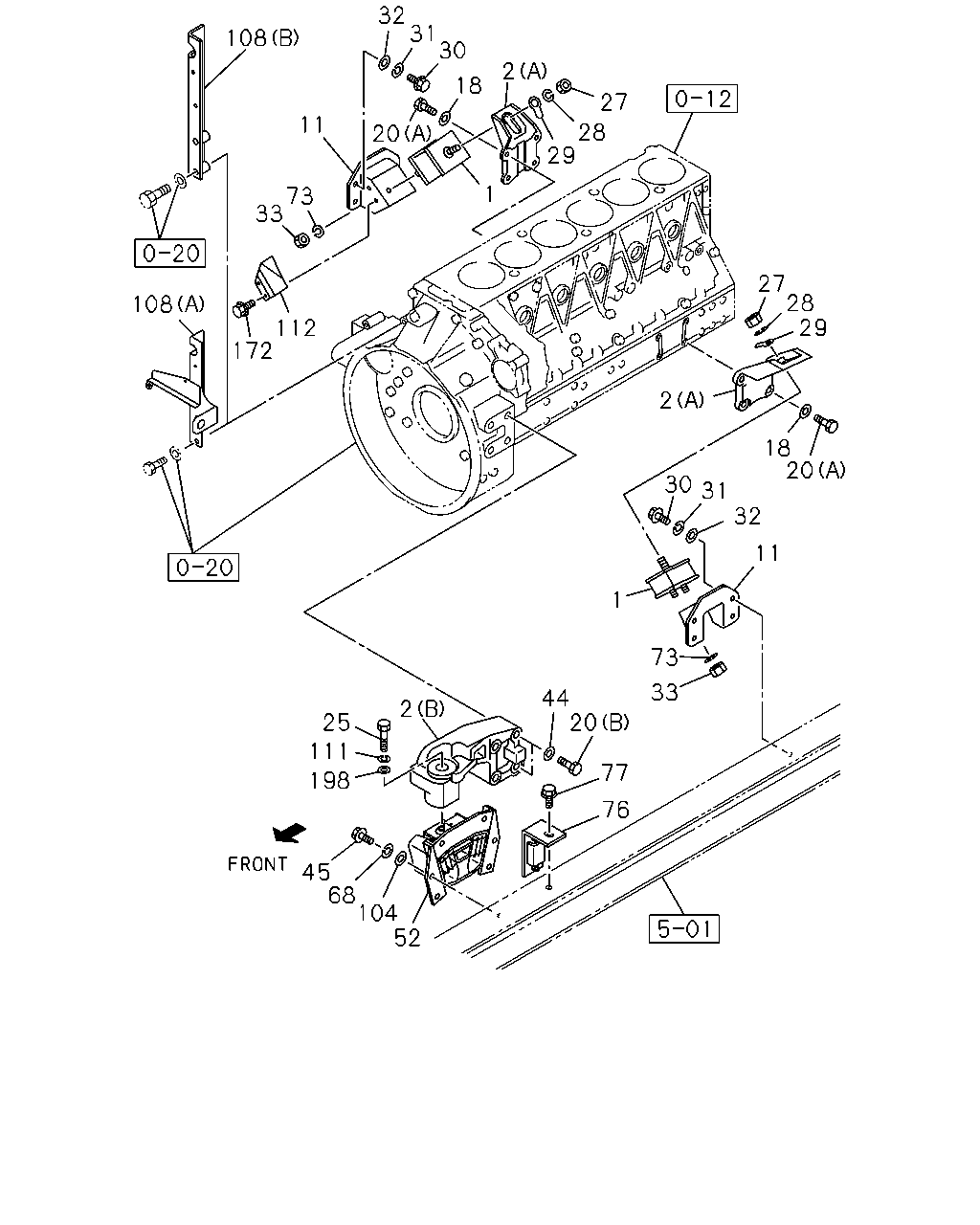

32 31 30 108 2 18 27 11 28 29 20 1 73 33 27 28 29 108 112 172 2 18 20 30 1 32 11 1 73 33 44 20 2 25 111 77 198 76 45 68 104 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-131-2	02	1	0012-0203	●
1	RUBBER; ENG FOOT,FRT ISUZU M/T<X9A>	1-53215-131-2	02	1	0204-0210	●
1	RUBBER; ENG FOOT,FRT ISUZU M/T<X9A>	1-53215-131-2	02	1	0211-	●
1	RUBBER; ENG FOOT,FRT	1-53215-131-2	02	1	0211-		●
1	RUBBER; ENG FOOT,FRT A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E)	1-53215-220-0	02	1	0204-	●
1	RUBBER; ENG FOOT,FRT	1-53215-147-1	02	1	0204-			●
2	FOOT; ENG (A)	1-11771-172-0	02	1	0012-0210	●
2	FOOT; ENG (A)	1-11771-172-0	02	1	0211-	●	●
2	FOOT; ENG (B)	1-11777-178-1	01	1	0012-0210	●
2	FOOT; ENG (B)	1-11777-178-1	01	1	0211-0501	●	●
2	FOOT; ENG (B)	8-97605-933-0	01	1	0502-	●	●
2	FOOT; ENG (B)	1-11777-179-0	01	1	0012-0210	●
2	FOOT; ENG (B)	1-11777-179-0	01	1	0211-	●	●
2	FOOT; ENG (C)	1-11771-220-0	02	1	0204-			●
2	FOOT; ENG (D)	1-11777-197-1	01	1	0204-			●
2	FOOT; ENG (D)	1-11777-189-1	01	1	0204-			●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-147-2	02	1	0012-0210	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-147-2	02	1	0211-0211	●	●
11	BRACKET; CUSHION RUBBER,FRT L=70	1-53211-139-2	02	1	0212-	●	●
11	BRACKET; CUSHION RUBBER,FRT	1-53211-222-0	02	1	0204-			●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	0012-0210	●
18	WASHER; PL,ENG FOOT ID=12.2	1-09503-008-0	08	1	0211-	●	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0012-0210	●
20	BOLT; ENG FOOT (A) M12X28.5	1-09020-100-0	04	1	0211-	●	●
20	BOLT; ENG FOOT (A) M12X24	1-09020-101-0	04	1	0012-0210	●
20	BOLT; ENG FOOT (A) M12X24	1-09020-101-0	04	1	0211-	●	●
20	BOLT; ENG FOOT (B) M16X78	1-09020-113-0	08	1	0012-0210	●
20	BOLT; ENG FOOT (B) M16X78	1-09020-113-0	08	1	0211-	●	●
20	BOLT; ENG FOOT (C) M14X32	9-92361-432-0	08	1	0204-			●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	0012-0105	●
25	BOLT; CUSHION RUBBER TO BRKT M22X85	1-09020-077-1	02	1	0106-0210	●
25	BOLT; CUSHION RUBBER TO BRKT M22X85	1-09020-077-1	02	1	0211-	●	●
25	BOLT; CUSHION RUBBER TO BRKT M22X105	9-09804-230-1	02	1	0204-			●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0012-0203	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	9-99110-518-0	02	1	0204-0512	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M18	0-91110-518-0	02	1	0601-	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0012-0203	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	9-09150-518-0	02	1	0204-0603	●	●	●
28	WASHER; LK,SUPPORT BRKT ID=18.2	0-91510-518-0	02	1	0604-	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0012-0203	●
29	PLATE; LK,CUSHION RUBBER,FRT	1-53229-040-0	02	1	0204-	●	●	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	0012-0203	●
30	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	08	1	0204-0512	●	●	●
30	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	08	1	0601-	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0012-0203	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	9-09150-814-0	08	1	0204-0603	●	●	●
31	WASHER; LK,BRKT TO FRAME ID=14.2	0-91510-814-0	08	1	0604-	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	0012-0203	●
32	WASHER; PL,BRKT TO FRAME ID=15	9-09651-069-0	08	1	0204-	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	0012-0203	●
33	NUT; CUSHION RUBBER TO BRKT M14	9-99110-514-0	04	1	0204-0512	●	●	●
33	NUT; CUSHION RUBBER TO BRKT M14	0-91110-514-0	04	1	0601-	●
44	WASHER; LK,ENG FOOT ID=16.2	9-09851-672-2	08	1	0012-0210	●
44	WASHER; LK,ENG FOOT ID=16.2	9-09851-672-2	08	1	0211-	●	●
44	WASHER; LK,ENG FOOT ID=18.2 OD=29	1-09503-032-0	08	1	0204-			●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	12	1	0012-0210	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	12	1	0211-0512	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	12	1	0601-	●	●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	9-92061-440-0	10	1	0204-0512			●
45	BOLT; CUSHION RUBBER TO FRAME M14X40	0-20951-440-0	10	1	0601-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-374-0	02	1	0012-0210	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-374-0	02	1	0211-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-384-0	01	1	0204-			●
52	RUBBER; CUSHION,ENG MTG,RR	1-53225-377-0	01	1	0204-			●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	12	1	0012-0210	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	12	1	0211-0603	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	12	1	0604-	●	●
68	WASHER; LK,CUSHION RUBBER ID=14.2	9-09150-814-0	10	1	0204-0603			●
68	WASHER; LK,CUSHION RUBBER ID=14.2	0-91510-814-0	10	1	0604-			●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	04	1	0012-0203	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	9-09150-814-0	04	1	0204-0603	●	●	●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=14.2	0-91510-814-0	04	1	0604-	●
76	STOPPER; ENG MTG RUBBER	1-53229-075-2	02	1	0012-0210	●
76	STOPPER; ENG MTG RUBBER	1-53229-075-2	02	1	0211-	●	●
76	STOPPER; ENG MTG RUBBER	1-53229-072-0	01	1	0204-			●
76	STOPPER; ENG MTG RUBBER	1-53229-071-0	01	1	0204-			●
77	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	02	1	0012-0203	●
77	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	02	1	0204-0512	●	●	●
77	BOLT; STOPPER M14X40 FLANGE	0-28651-440-0	02	1	0601-	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	12	1	0012-0210	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	12	1	0211-	●	●
104	WASHER; PL,CUSHION RUBBER ID=15	9-09651-069-0	10	1	0204-			●
108	HANGER; ENG FLYWHEEL HSG (A)	1-11777-248-0	01	1	0012-0106	●
108	HANGER; ENG FLYWHEEL HSG EXC. EURO3 SPECIFICATION(NJX) (A)	1-11777-248-0	01	1	0107-	●
108	HANGER; ENG FLYWHEEL HSG EURO3 SPECIFICATION(NJX) (B)	1-11777-254-0	01	1	0107-0210	●
108	HANGER; ENG FLYWHEEL HSG EURO3 SPECIFICATION(NJX) (B)	1-11777-254-0	01	1	0211-	●
108	HANGER; ENG FLYWHEEL HSG (B)	1-11777-254-0	01	1	0211-		●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	0012-0203	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	9-09150-622-0	02	1	0204-0603	●	●	●
111	WASHER; LK,CUSHION RUBBER TO BRKT ID=22.5	0-91510-622-0	02	1	0604-	●
112	PROTECTOR; HEAT	1-53239-001-0	01	1	0012-0210	●
112	PROTECTOR; HEAT	1-53239-001-0	01	1	0211-	●	●
172	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
172	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
172	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	0012-0203	●
198	WASHER; PL,CUSHION TO BRKT,RR	9-09164-622-0	02	1	0204-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
