◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#79437) — 15 parça

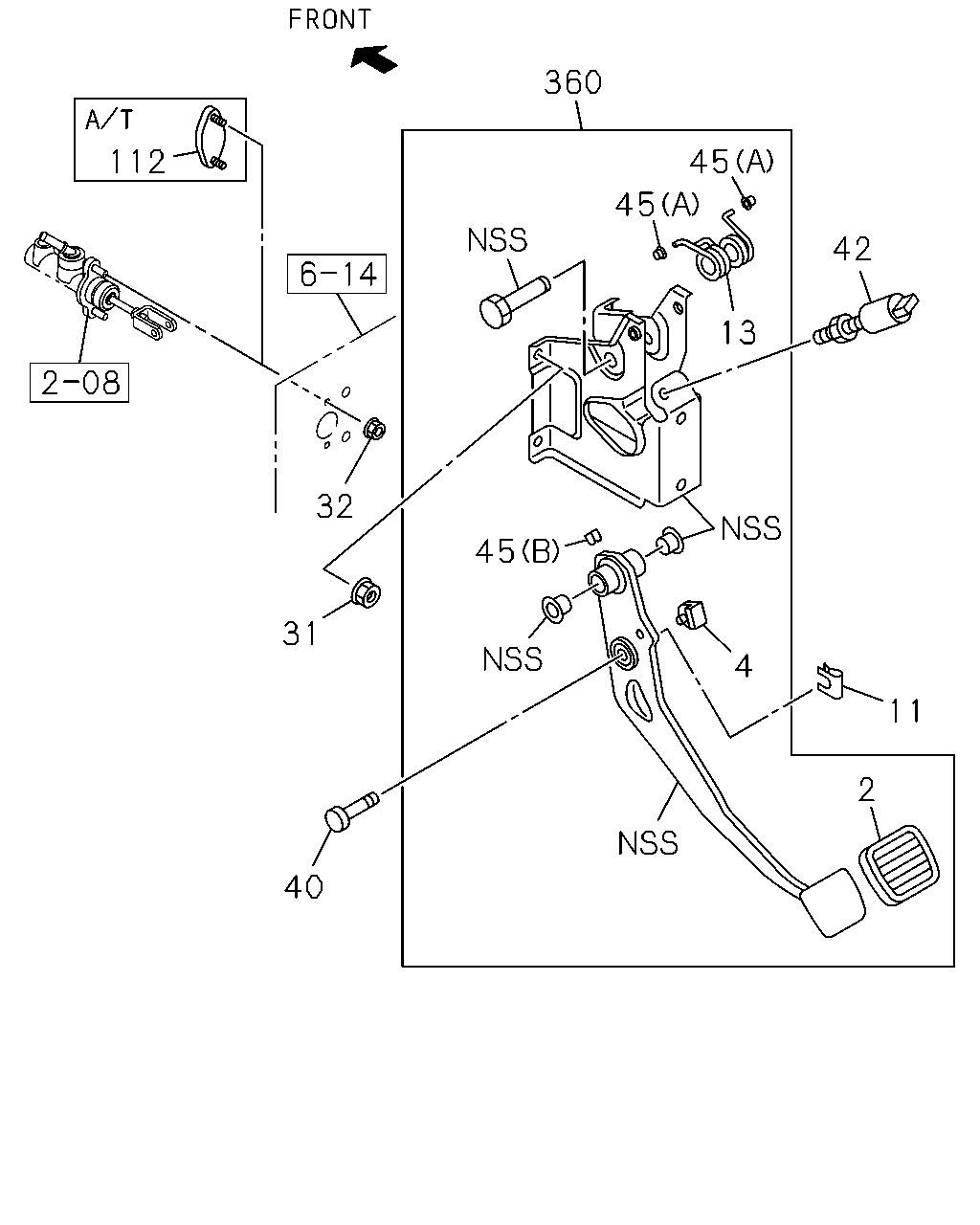

çizim 98521
40 2 11 4 31 32 45 13 42 45 45 360 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 04.630 COVER; CLU PEDAL
M/T AISIN 6 SPEED(RNU) 		8-97318-799-0 01 1 1203- ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL
M/T AISIN 6 SPEED(RNU) 		8-97947-783-0 01 1 1203- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T AISIN 6 SPEED(RNU) 		8-98007-161-0 01 1 1203- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T AISIN 6 SPEED(RNU) 		8-97942-312-0 01 1 1203- ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
M/T AISIN 6 SPEED(RNU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1203- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M/T AISIN 6 SPEED(RNU) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1203- ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1203- ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T AISIN 6 SPEED(RNU) OD=7.9 L=27.5 		8-97312-338-0 01 1 1203- ● ● ● ● ● ●
42 04.054 SWITCH; CLU
M/T AISIN 6 SPEED(RNU) 		8-98154-210-0 01 1 1203- ● ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T AISIN 6 SPEED(RNU) (A) 		8-97942-313-0 02 1 1203- ● ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T AISIN 6 SPEED(RNU) (B) 		8-97942-314-0 01 1 1203- ● ● ● ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1203- ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T AISIN 6 SPEED(RNU) 		8-97947-242-1 01 1 1203-1205 ● ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T AISIN 6 SPEED(RNU) 		8-97947-853-0 01 1 1206-1512 ● ● ● ● ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T AISIN 6 SPEED(RNU) 		8-98317-405-0 01 1 1601- ● ● ● ● ● ●
