1-50 — EXHAUST PIPE AND SILENCER (#79434) — 64 parça

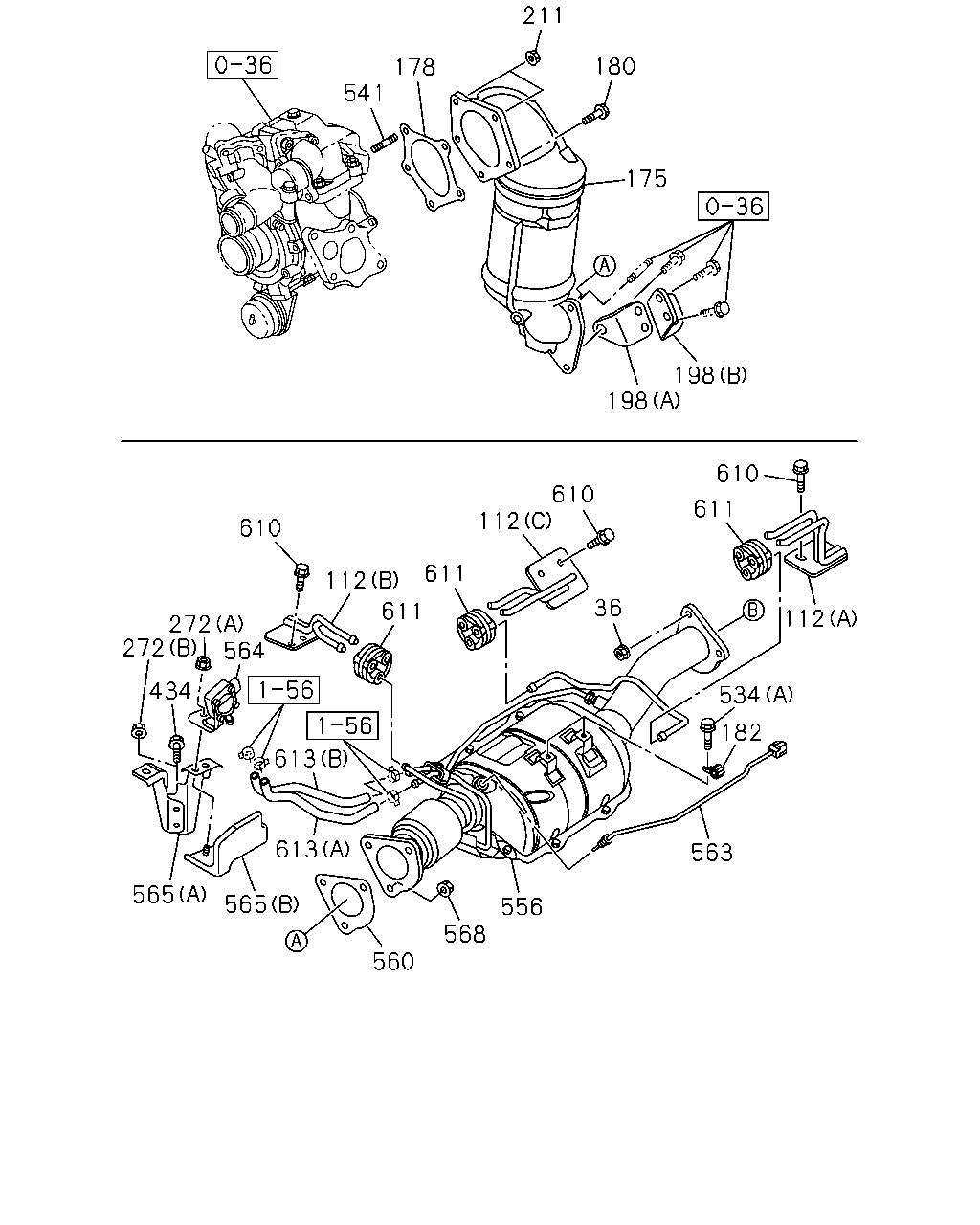

çizim 96590
211 180 178 541 175 198 198 610 610 112 611 610 611 112 36 611 112 272 272 564 434 534 182 613 613 563 565 565 556 568 560
BalonParca AdiParca NoAdetTipApplied Date
36 03.613 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 03 1 1203-
112 03.706 BRACKET; HANGER
(C) 		8-98196-456-2 01 1 1203-
112 03.706 BRACKET; HANGER
4X2(TFB***) (A) 		8-98196-457-1 01 1 1203-
112 03.706 BRACKET; HANGER
(B) 		8-98196-455-1 01 1 1203-
112 03.706 BRACKET; HANGER
4X4(TFS***) (A) 		8-98196-458-1 01 1 1203-
175 03.685 CONVERTER; CATALYST 8-98177-633-4 01 1 1203-
178 03.611 GASKET; CONV TO MANIF 8-98151-218-0 01 1 1203-
180 03.708 BOLT; CONV TO PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 03 1 1203-
182 03.682 CLIP; HARNESS
ID=7 		8-98002-767-0 02 1 1203-
198 03.685 BRACKET; CONV MTG
(B) 		8-98196-696-1 01 1 1203-
198 03.685 BRACKET; CONV MTG
(A) 		8-98196-697-1 01 1 1203-
211 03.685 NUT; CONV
03.342 M8 FLANGE 		8-97379-384-0 02 1 1203-
272 03.685 NUT; FLANGE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1203-
272 03.685 NUT; FLANGE
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 01.540 (B) M8 FLANGE 		0-91180-208-0 01 1 1203-
434 03.613 BOLT; BRKT
4X2 EXTENDED CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1203-
434 03.613 BOLT; BRKT
4X4(TFS***) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1203-
534 03.704 BOLT; CLIP
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1203-
534 03.704 BOLT; CLIP
(B) 		8-98182-197-0 01 1 1203-
541 03.708 STUD; CONV TO PIPE
03.601 M8X25 L=36 		8-97378-062-0 02 1 1203-
556 03.701 DPD ASM 8-98177-632-4 01 1 1203-
560 03.611 GASKET; DPD 8-98151-231-0 01 1 1203-
563 01.150 SENSOR; TEMPERATURE,DPD 8-98206-094-0 01 1 1203-
564 01.150 SENSOR; PRESSURE,DPD
4X2 EXTENDED CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) HIGH RIDE SUSPENSION(7YC) 		8-98178-090-0 01 1 1203-1311
564 01.150 SENSOR; PRESSURE,DPD
4X4(TFS***) 		8-98178-090-0 01 1 1203-1311
564 01.150 SENSOR; PRESSURE,DPD
4X2 EXTENDED CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) HIGH RIDE SUSPENSION(7YC) 		8-98260-258-0 01 1 1312-
564 01.150 SENSOR; PRESSURE,DPD
4X4(TFS***) 		8-98260-258-0 01 1 1312-
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98178-093-0 01 1 1203-1311
564 01.150 SENSOR; PRESSURE,DPD
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98260-259-0 01 1 1312-
565 03.706 BRACKET; SENSOR,PRESSURE
4X2 EXTENDED CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) HIGH RIDE SUSPENSION(7YC) (A) 		8-98175-943-0 01 1 1203-
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) (A) 		8-98175-943-0 01 1 1203-
565 03.706 BRACKET; SENSOR,PRESSURE
4X2 EXTENDED CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) HIGH RIDE SUSPENSION(7YC) (B) 		8-98178-091-0 01 1 1203-
565 03.706 BRACKET; SENSOR,PRESSURE
4X4(TFS***) (B) 		8-98178-091-0 01 1 1203-
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98178-092-0 01 1 1203-
565 03.706 BRACKET; SENSOR,PRESSURE
4X2(TFB***) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98178-094-0 01 1 1203-
568 03.704 NUT; DPD
03.342 M10 FLANGE 		8-97309-942-0 03 1 1203-
610 03.704 BOLT; HANGER 8-98196-310-0 06 1 1203-
611 03.706 INSULATOR; HANGER 8-97289-169-0 03 1 1203-
613 03.603 HOSE; RUBBER
(A) 		8-98178-495-2 01 1 1203-
613 03.603 HOSE; RUBBER
(B) 		8-98178-496-2 01 1 1203-

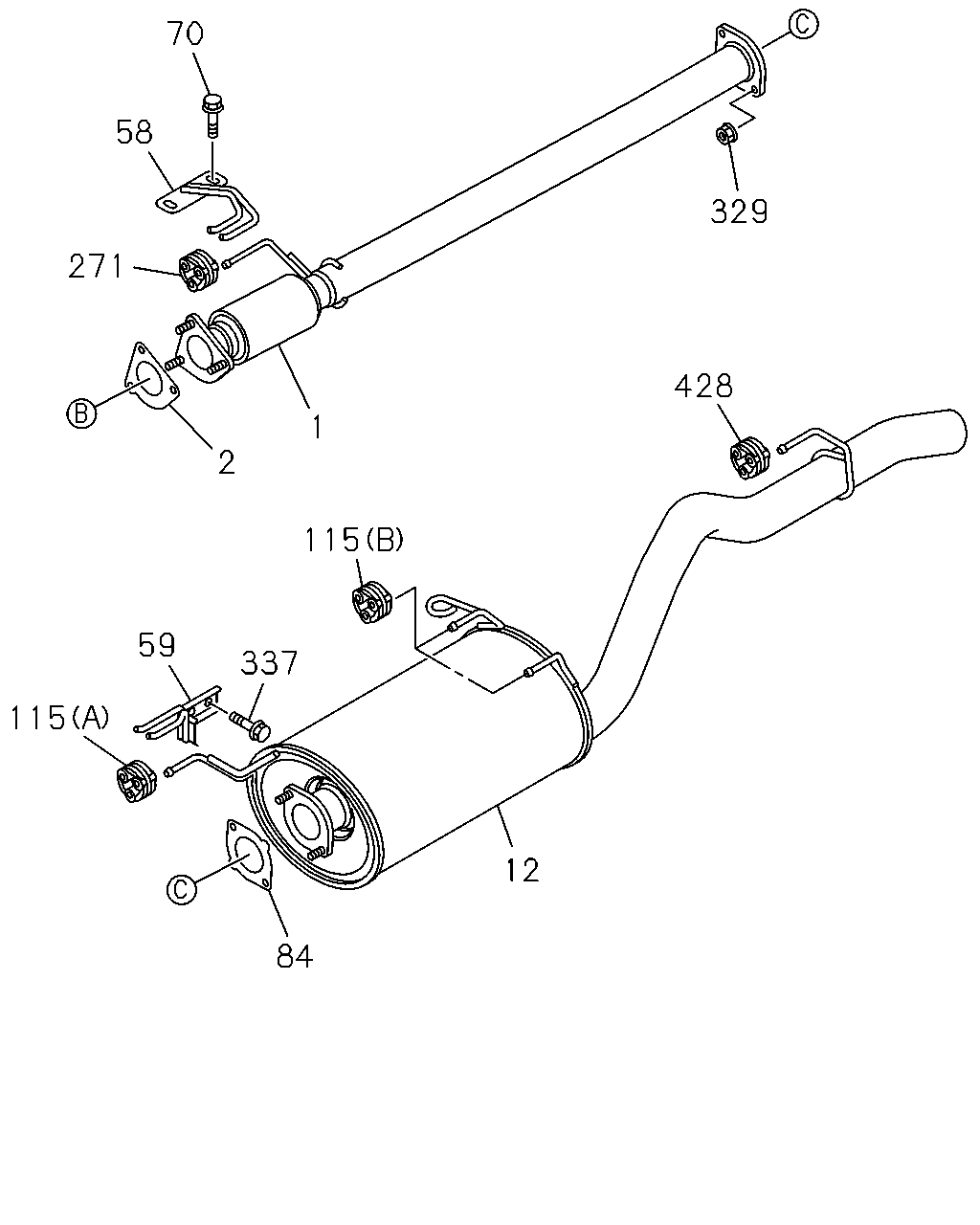

çizim 97384
70 58 329 271 428 1 2 115 59 337 115 12 84
BalonParca AdiParca NoAdetTipApplied Date
1 03.609 PIPE; EXH 8-98211-401-1 01 1 1203-
2 03.611 GASKET; PIPE TO MANIF 8-98151-231-0 01 1 1203-
12 03.701 SILENCER ASM; EXH 8-98140-590-2 01 1 1203-
58 03.613 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1203-
59 03.704 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1203-
70 03.706 BOLT; BRKT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1203-
84 03.611 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1203-
115 03.704 RUBBER; MTG,SILENCER
03.706 (A) 		8-97289-169-0 01 1 1203-
115 03.704 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 02 1 1203-
271 03.704 RUBBER; HANGER,RR PIPE
03.706 		8-97289-169-0 01 1 1203-
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1203-
337 03.706 BOLT; RUBBER,SUPPORT
01.267 M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1203-
428 03.704 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1203-

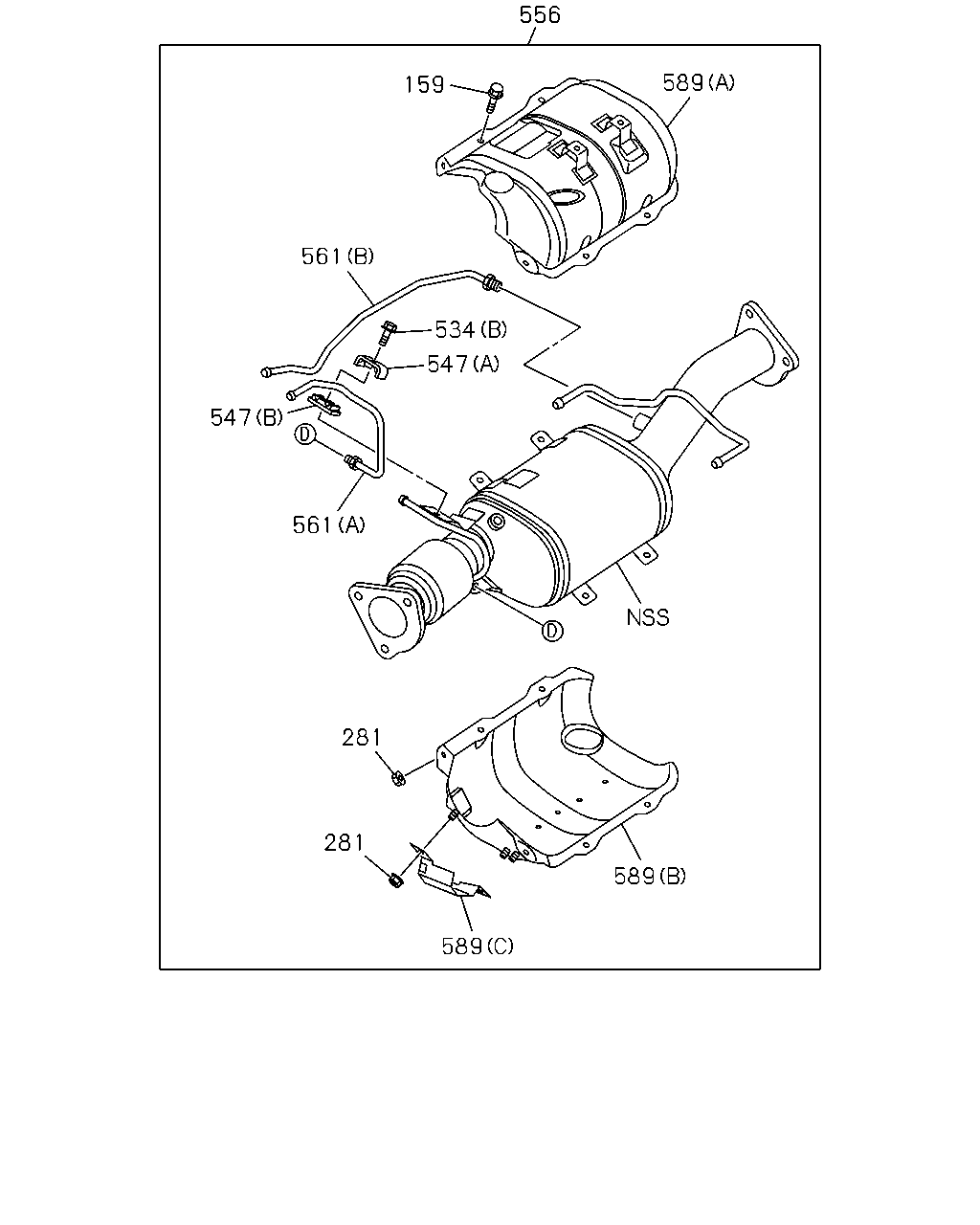

çizim 97572
556 589 159 561 534 547 547 561 281 281 589 589
BalonParca AdiParca NoAdetTipApplied Date
159 03.690 BOLT; HEAT PROTECTOR 8-98182-198-0 06 1 1203-
281 03.685 NUT; HEAT PROTECTOR
M6 FLANGE 		8-98194-567-0 09 1 1203-
534 03.704 BOLT; CLIP
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1203-
534 03.704 BOLT; CLIP
(B) 		8-98182-197-0 01 1 1203-
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1203-
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1203-
556 03.701 DPD ASM 8-98177-632-4 01 1 1203-
561 03.609 PIPE; DPD
(A) 		8-98181-832-0 01 1 1203-
561 03.609 PIPE; DPD
(B) 		8-98181-833-0 01 1 1203-
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98181-835-0 01 1 1203-
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98181-836-0 01 1 1203-
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-98194-566-0 01 1 1203-
