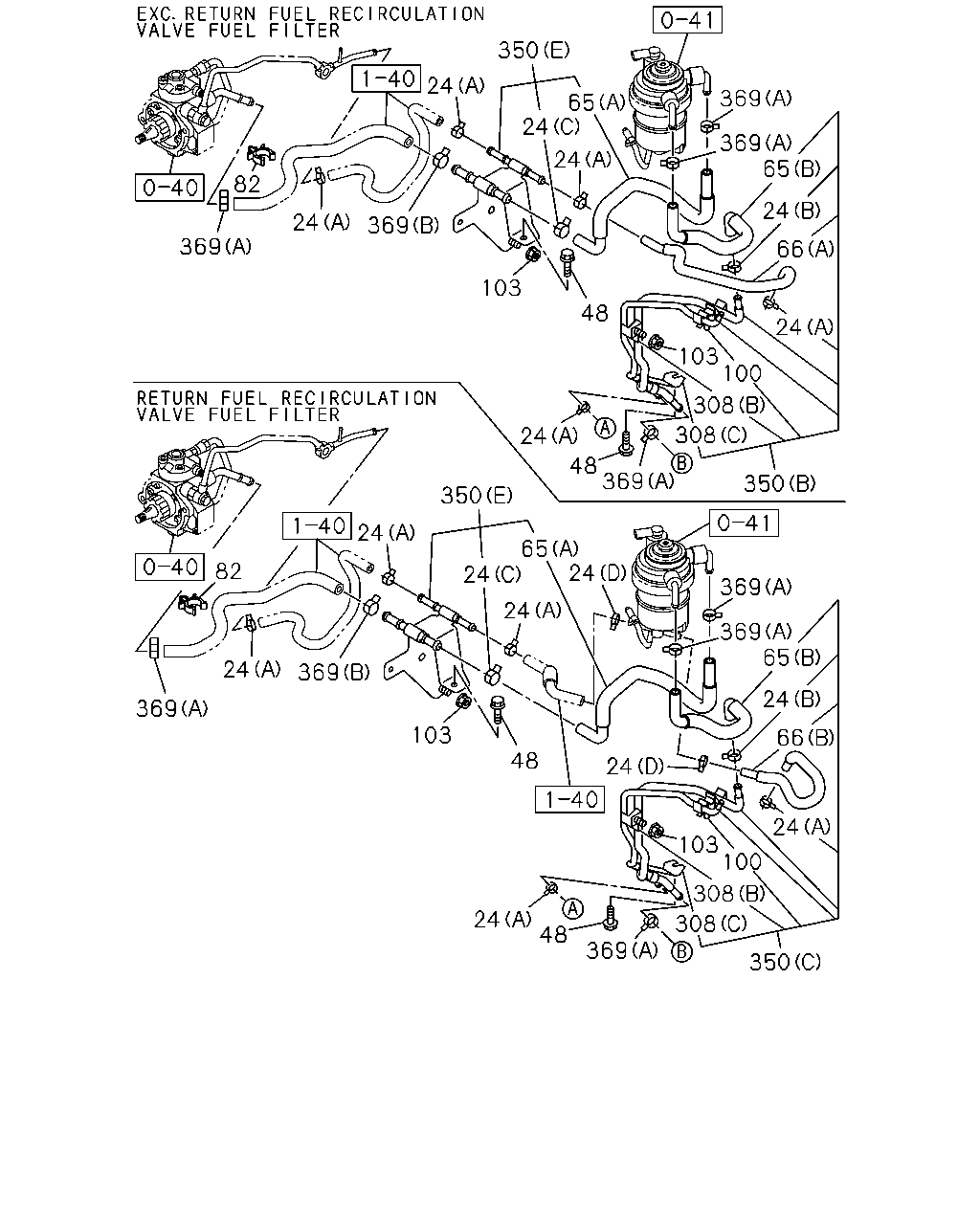

1-41 — FUEL PIPING; CHASSIS (#79433) — 94 parça

308 350 24 24 24 369 24 369 98 232 24 453 66 65 24 24 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1301-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1301-
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (D) ID=13	8-98150-357-0	02	1	1203-1303
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1203-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-278-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-280-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1203-1303
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-284-1	01	1	1203-1303
98	03.162 BOLT; BRKT,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1203-
232	03.162 BOLT; CLIP,PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1203-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET (E)	8-98206-138-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-146-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98206-142-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1203-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1203-
453	03.162 BAND; FLEX HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98233-888-0	01	1	1301-

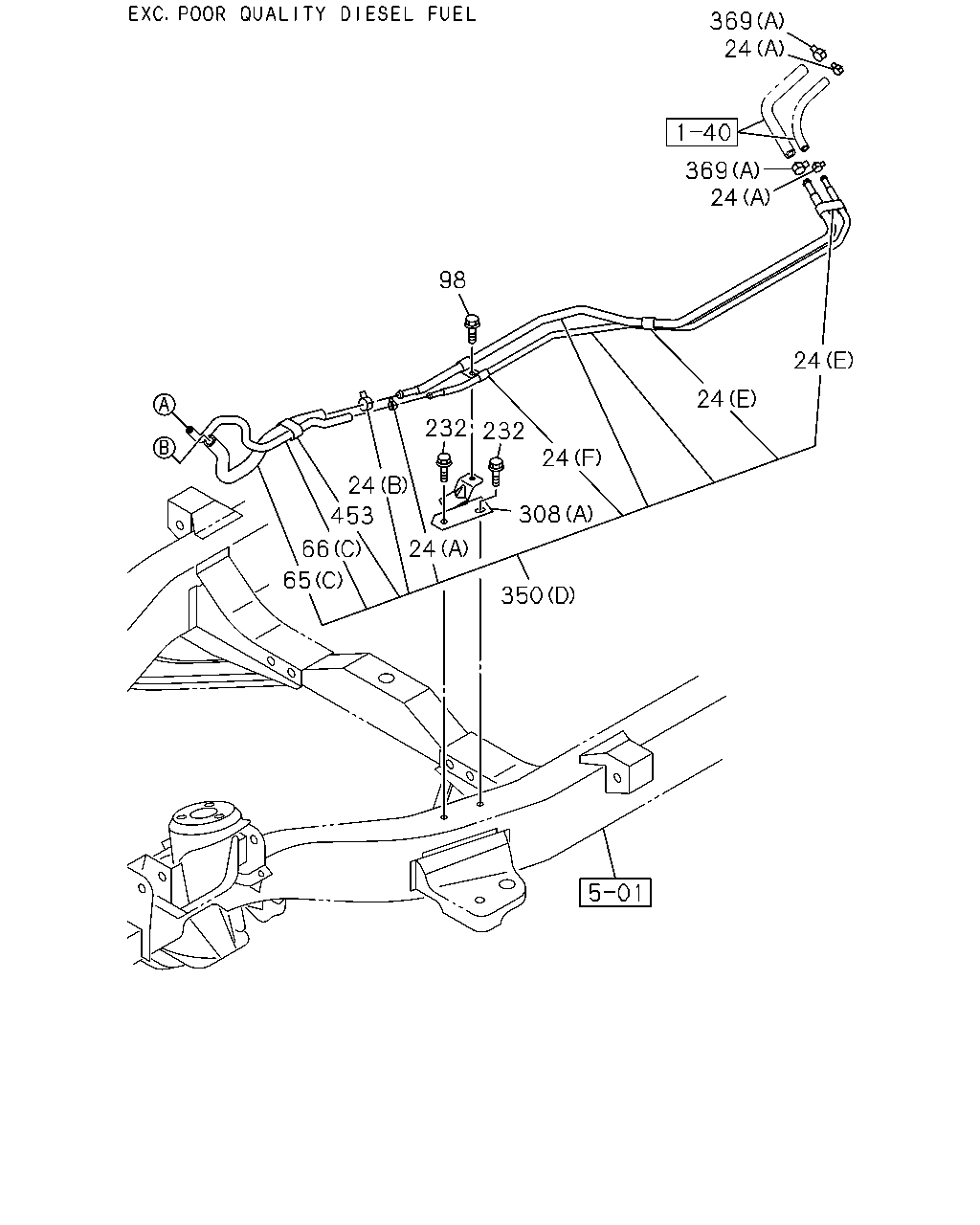

369 66 369 350 100 24 24 24 369 24 369 369 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1301-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1301-
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (D) ID=13	8-98150-357-0	02	1	1203-1303
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1203-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-280-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1203-1303
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-284-1	01	1	1203-1303
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1203-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET (E)	8-98206-138-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-146-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98206-142-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1203-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1203-

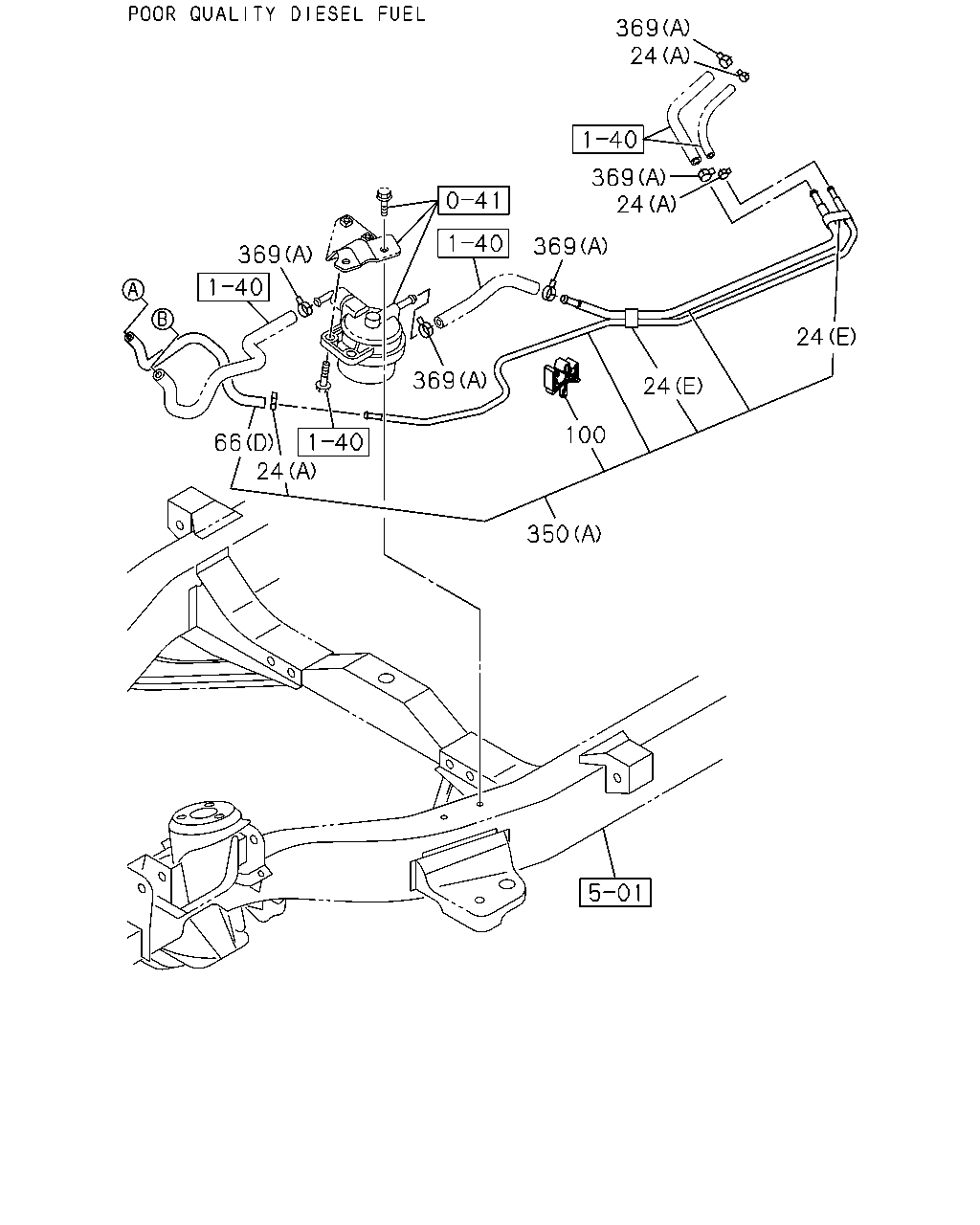

350 24 24 24 65 65 82 369 24 103 48 24 24 66 103 24 369 48 308 308 350 350 82 369 369 24 103 48 24 24 65 24 48 369 308 350 103 24 100 66 24 24 308 24 100 24 369 369 369 369 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1301-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1301-
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (D) ID=13	8-98150-357-0	02	1	1203-1303
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1203-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1203-
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1203-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-278-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-280-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1203-1303
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1203-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-284-1	01	1	1203-1303
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1203-
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1203-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1203-
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1203-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1301-
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET (E)	8-98206-138-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98206-146-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1203-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98206-142-3	01	1	1203-1303
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1203-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1203-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1203-
