Isuzu WW
▶
PICKUP
▶
TFR
▶
51374 - TFR/TFS(EUROPE)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

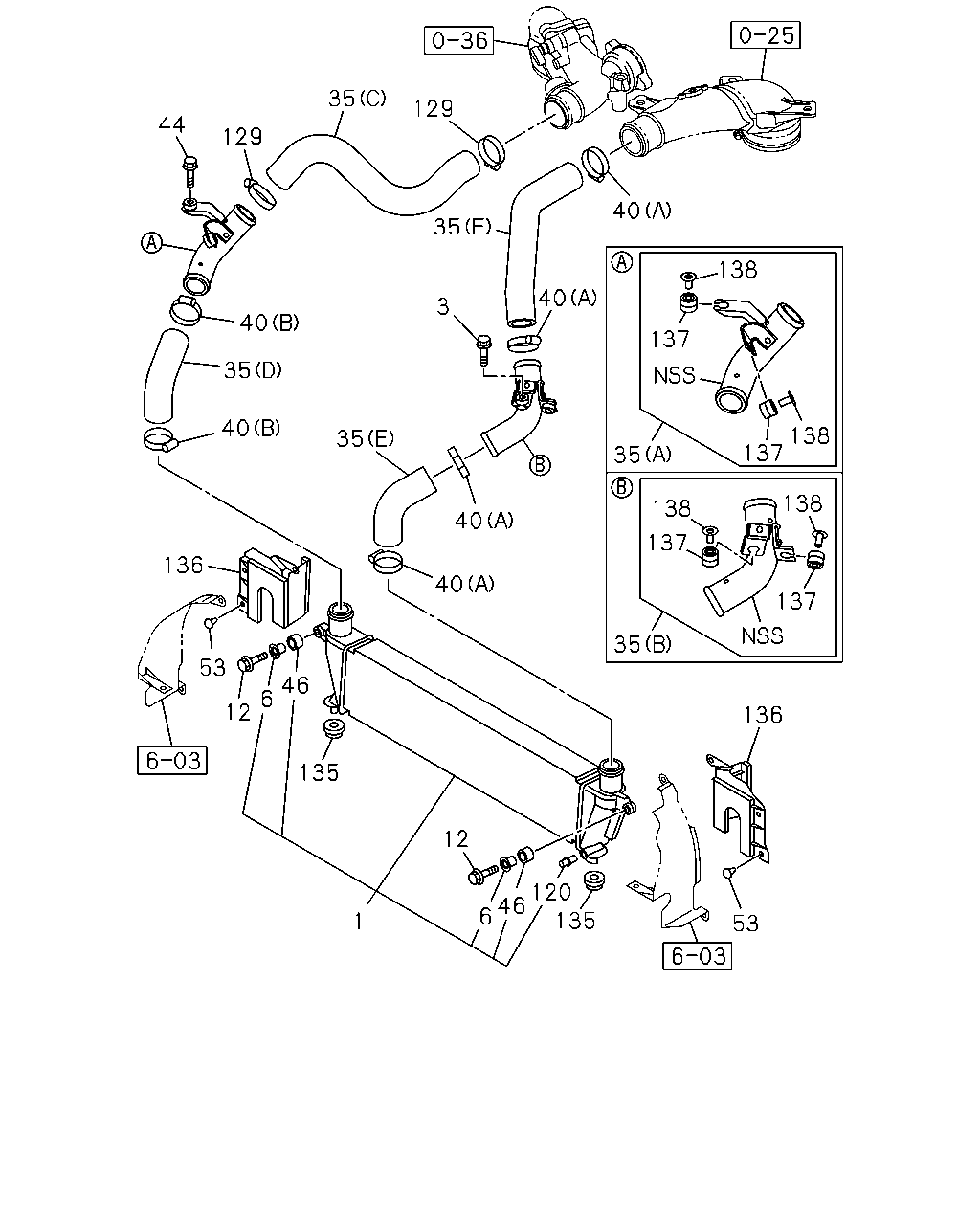

1-35 — CHARGE AIR COOLER
(#79431) — 24 parça
44
129
35
129
35
40
35
40
136
53
12
135
6
46
35
40
40
3
40
40
138
137
138
137
138
137
137
138
35
136
53
135
120
46
6
12
1
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.374 COOLER; CHARGE AIR
8-98194-004-3
01
1
1203-
3
01.540 BOLT; CHARGE AIR COOLER
16.063 M6X33 W/PL WASHER
8-98048-997-0
02
1
1203-
6
01.540 COLLAR; MTG,CHARGE AIR COOLER
03.405
8-97942-932-0
02
1
1203-
12
01.540 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER
8-98136-077-0
02
1
1203-
35
01.540 HOSE; CONNECTING
(C)
8-98194-509-1
01
1
1203-
35
01.540 HOSE; CONNECTING
(B)
8-98065-554-1
01
1
1203-
35
01.540 HOSE; CONNECTING
(E)
8-98065-697-2
01
1
1203-
35
01.540 HOSE; CONNECTING
(F)
8-98065-698-2
01
1
1203-
35
01.540 HOSE; CONNECTING
(D)
8-98194-510-1
01
1
1203-
35
01.540 HOSE; CONNECTING
(A)
8-98203-333-1
01
1
1203-
40
03.162 CLIP; RUBBER HOSE
(A) ID=45-65
8-98133-396-0
04
1
1203-
40
03.162 CLIP; RUBBER HOSE
(B) ID=60-65
8-98194-605-0
02
1
1203-
44
01.540 BOLT; PIPE
16.063 M6X33 W/PL WASHER
8-98048-997-0
02
1
1203-
46
01.540 RUBBER; MTG,CHARGE AIR COOLER
03.406
8-97942-930-0
02
1
1203-
53
01.540 CLIP; AIR DUCT
08.154 OD=22 L=10.7
8-94215-211-0
06
1
1203-
120
01.540 PIPE; WATER DRAIN
8-98189-894-0
01
1
1203-
129
01.159 CLAMP; HOSE
03.162 ID=60-65
8-98194-605-0
02
1
1203-
135
01.540 RUBBER; CUSHION
01.270
8-97249-541-1
02
1
1203-
136
01.540 SEAL; CHARGE AIR COOLER
8-98166-396-0
01
1
1203-
136
01.540 SEAL; CHARGE AIR COOLER
8-98166-398-0
01
1
1203-
137
01.540 RUBBER; PIPE
8-98137-144-0
02
1
1203-
137
01.540 RUBBER; PIPE
8-98137-144-0
02
1
1203-
138
01.540 COLLAR; RUBBER,PIPE
8-98137-143-0
02
1
1203-
138
01.540 COLLAR; RUBBER,PIPE
8-98137-143-0
02
1
1203-
