Isuzu WW
▶
PICKUP
▶
TFR
▶
51374 - TFR/TFS(EUROPE)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

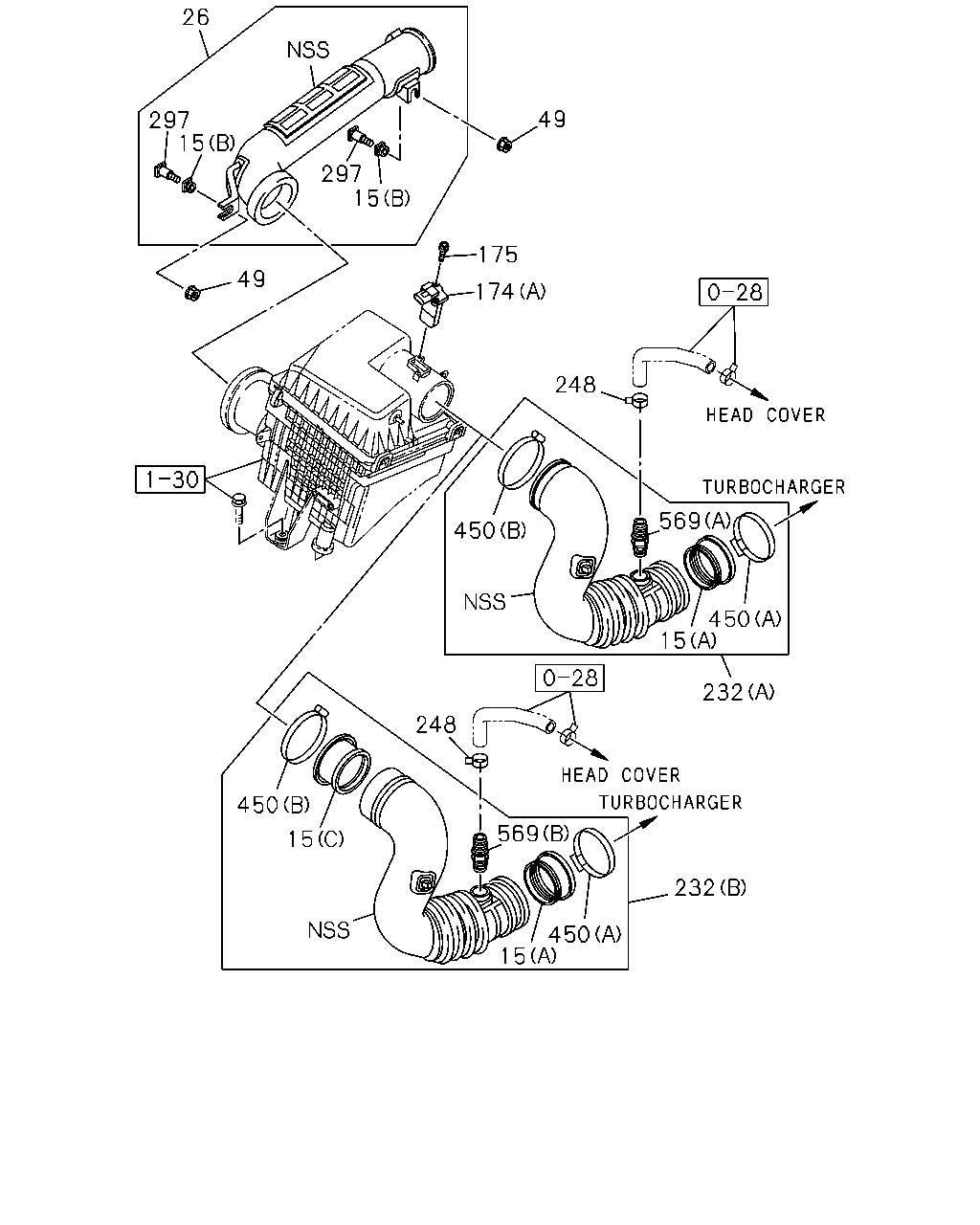

1-31 — AIR DUCT
(#79430) — 19 parça
◀
[131A] DUCT (17 parça)
[131A] SENSOR (2 parça)
▶
49
297
26
15
49
15
297
175
174
248
450
569
450
15
232
248
232
569
450
15
15
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
03.417 INSULATOR
(C)
8-98214-036-0
01
1
1207-
15
03.417 INSULATOR
(A)
8-98137-140-0
01
1
1203-
15
03.417 INSULATOR
(B)
8-98203-901-0
02
1
1203-
26
03.417 DUCT; AIR INT
8-98104-472-1
01
1
1203-
49
03.417 NUT; AIR DUCT
01.062 M6 FLANGE
0-91180-106-0
02
1
1203-
174
03.682 SENSOR; AIR FLOW CONT
(A)
8-97601-967-0
01
1
1203-
174
03.682 SENSOR; AIR FLOW CONT
(B)
8-98191-248-0
01
1
1203-
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1203-
232
03.417 HOSE; CONN
(A)
8-98196-498-0
01
1
1203-1206
232
03.417 HOSE; CONN
(B)
8-98212-081-0
01
1
1207-
248
03.417 CLIP; RUBBER HOSE
03.342 ID=26.2
8-98202-540-0
01
1
1203-
297
03.417 BOLT; DUCT
8-98203-900-0
01
1
1203-1209
297
03.417 BOLT; DUCT
8-98203-900-0
02
1
1210-
450
03.417 CLAMP; HOSE
(B)
8-98136-623-0
01
1
1203-
450
03.417 CLAMP; HOSE
(A)
8-98136-624-0
01
1
1203-
569
03.417 HEATER; PCV
(A)
8-98192-224-0
01
1
1203-1206
569
03.417 HEATER; PCV
(B)
8-98192-467-0
01
1
1207-
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
174
03.682 SENSOR; AIR FLOW CONT
(A)
8-97601-967-0
01
1
1203-
174
03.682 SENSOR; AIR FLOW CONT
(B)
8-98191-248-0
01
1
1203-
