Sayfa 0-15 - Isuzu EPC

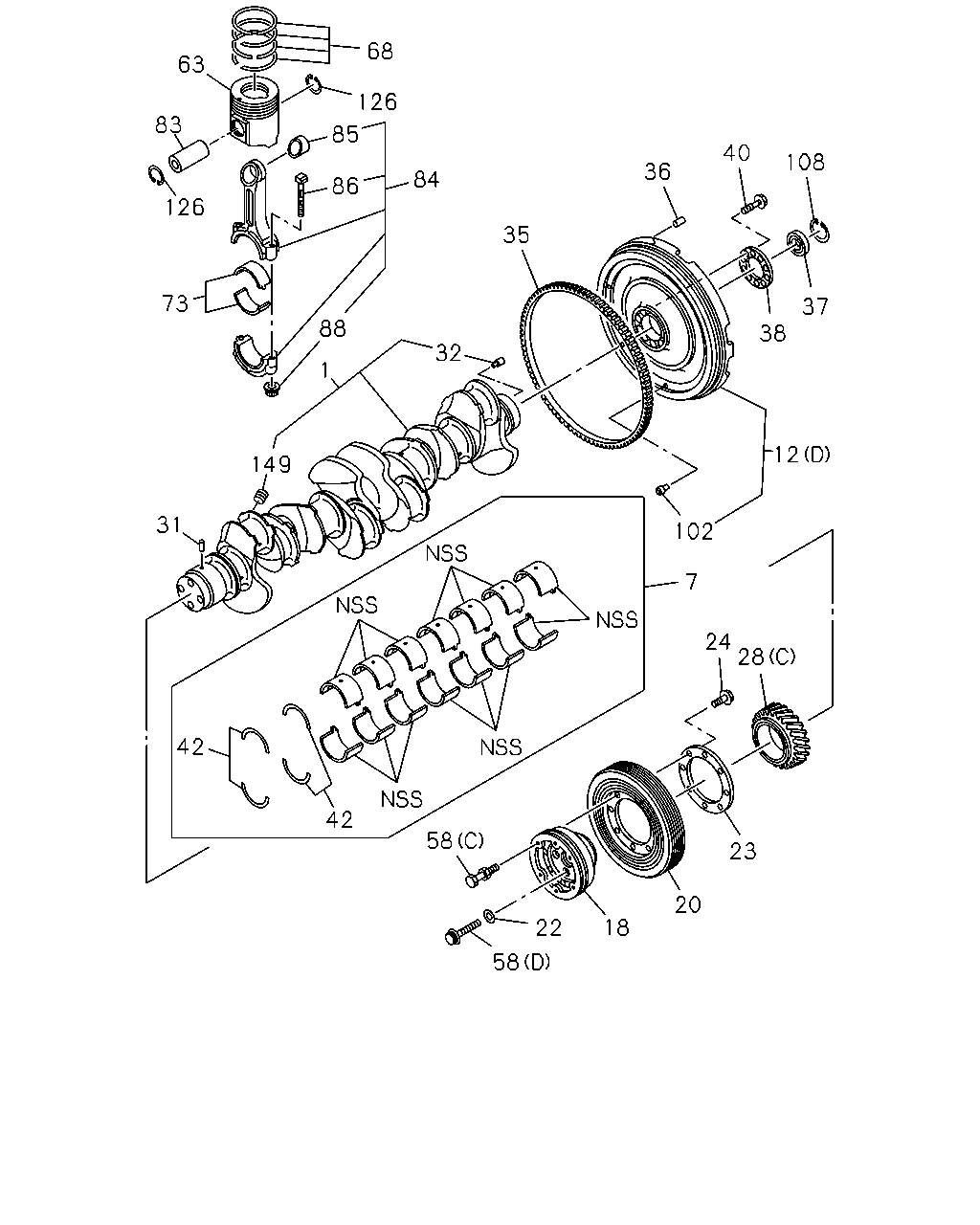

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#7943) — 292 parça

68 63 126 83 85 40 108 36 84 86 126 35 73 37 88 38 32 1 12 149 31 102 7 24 28 42 42 58 23 20 18 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-668-0	01	1	0012-0210	●
1	CRANKSHAFT	1-12310-668-0	01	1	0211-	●	●
1	CRANKSHAFT	1-12310-625-9	01	1	0204-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-0	01	1	0012-0210	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-3	01	1	0211-	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-093-5	01	1	0204-			●

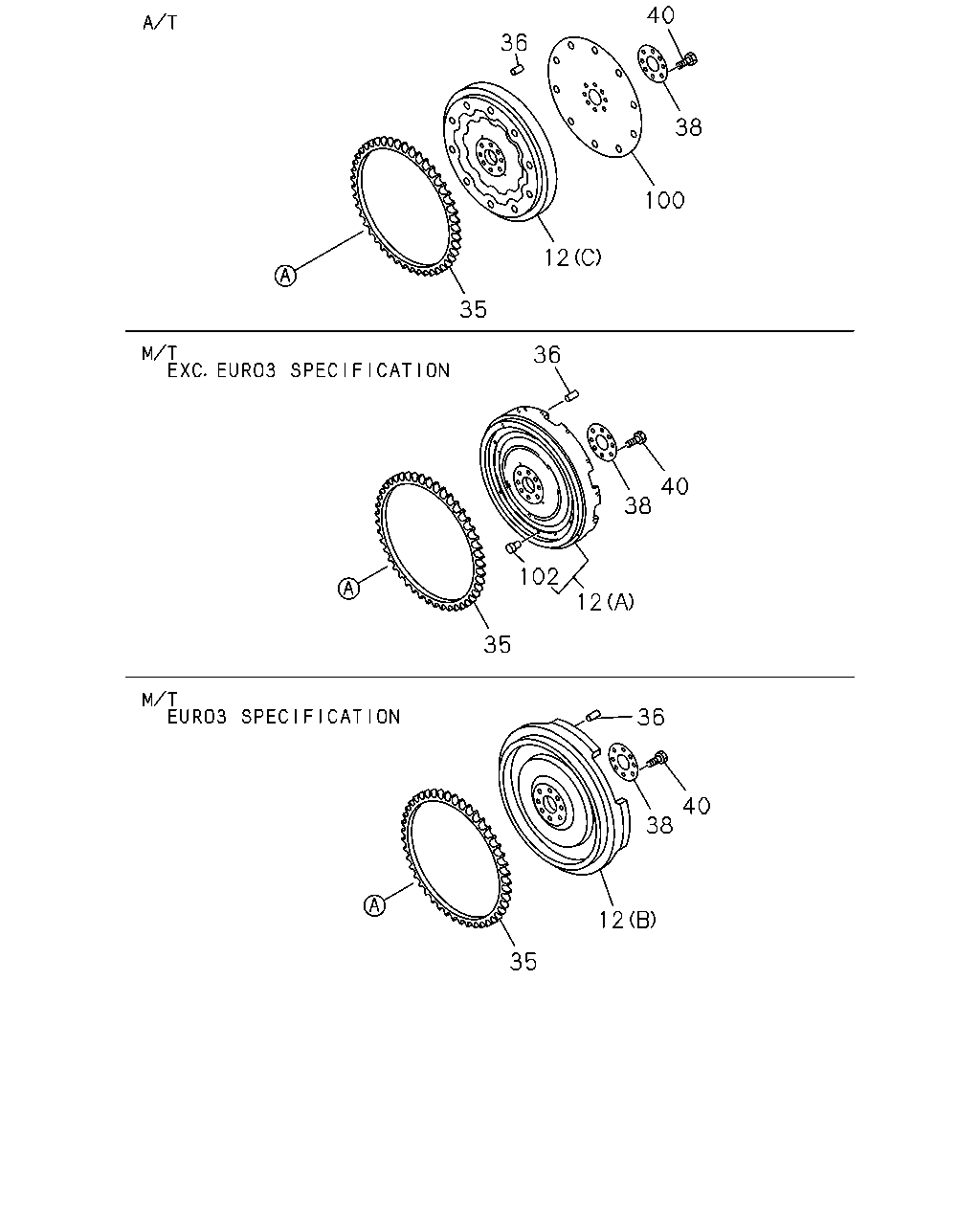

12	FLYWHEEL (A)	1-12330-333-1	01	1	0012-0106	●
12	FLYWHEEL EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0107-0203	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0204-0210	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0211-	●
12	FLYWHEEL (A)	1-12330-333-1	01	1	0211-		●
12	FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) (C)	1-12331-358-0	01	1	0204-	●
12	FLYWHEEL EURO3 SPECIFICATION(NJX) (B)	1-12331-319-0	01	1	0107-	●
12	FLYWHEEL (D)	1-12330-400-1	01	1	0204-			●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-440-0	01	1	0012-0210	●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-440-0	01	1	0211-	●	●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-463-1	01	1	0204-			●
20	DAMPER; CR/SHF	1-12375-201-0	01	1	0012-0210	●
20	DAMPER; CR/SHF	1-12375-201-1	01	1	0211-	●	●
20	DAMPER; CR/SHF	1-12375-214-1	01	1	0204-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	08	1	0012-0210	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	08	1	0211-	●	●
22	PLATE; PULLEY ID=18	9-09851-862-0	04	1	0204-			●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0012-0210	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0211-	●	●
23	WASHER; DAMPER	1-12379-039-1	01	1	0204-			●
24	BOLT; DAMPER	9-02361-220-0	08	1	0012-0210	●
24	BOLT; DAMPER	9-02361-220-0	08	1	0211-	●	●
24	BOLT; DAMPER M12X30 FLANGE	0-28791-230-0	08	1	0204-0512			●
24	BOLT; DAMPER M12X30 FLANGE	0-28761-230-0	08	1	0601-			●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0012-0210	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0211-	●	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-0	01	1	0012-0210	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	0211-	●	●
28	GEAR; CR/SHF (C) Z=48	1-12521-068-0	01	1	0204-0401			●
28	GEAR; CR/SHF (C) Z=48	1-12521-061-2	01	1	0402-			●
31	KEY; FEATHER,CR/SHF OD=5 L=6	9-09878-626-0	01	1	0204-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0012-0203	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0204-0210	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0211-	●	●	●
35	GEAR; RING Z=160	1-12333-011-1	01	1	0012-0210	●
35	GEAR; RING Z=160	1-12333-011-3	01	1	0211-	●	●
35	GEAR; RING Z=139	1-12333-013-1	01	1	0204-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0012-0203	●
36	PIN; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) ID=6 L=12	9-08160-612-0	01	1	0204-	●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	0204-0210	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0204-0210			●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	0211-	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0012-0203	●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-257-0	01	1	0204-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0204-0210			●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-257-0	01	1	0211-	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0211-		●	●
38	WASHER; FLYWHEEL	1-12336-006-0	01	1	0012-0203	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	1-12336-006-0	01	1	0204-0210	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	1-12336-006-0	01	1	0211-	●
38	WASHER; FLYWHEEL	1-12336-006-0	01	1	0211-		●
38	WASHER; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-12336-020-0	01	1	0204-	●
38	WASHER; FLYWHEEL	1-12336-011-0	01	1	0204-			●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	0012-0203	●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	1-09000-183-1	08	1	0204-0905	●
40	BOLT; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-09070-149-0	08	1	0204-	●
40	BOLT; FLYWHEEL	1-09070-017-1	10	1	0204-			●
40	BOLT; FLYWHEEL	1-09070-146-0	08	1	0211-0905		●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	1-09070-146-1	08	1	0906-	●
40	BOLT; FLYWHEEL	1-09070-146-1	08	1	0906-		●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	02	1	0012-0210	●
42	WASHER; THRUST,CR/SHF	1-11599-007-1	02	1	0211-	●	●
42	WASHER; THRUST,CR/SHF	1-11599-009-0	02	1	0204-1006			●
42	WASHER; THRUST,CR/SHF	8-98151-850-0	02	1	1007-			●
58	BOLT; CR/SHF PULLEY (A) M10X47 W/NUT	1-09029-073-0	08	1	0012-0210	●
58	BOLT; CR/SHF PULLEY (A) M10X47 W/NUT	1-09029-073-0	08	1	0211-	●	●
58	BOLT; CR/SHF PULLEY (B) M16X45	9-92061-645-0	08	1	0012-0210	●
58	BOLT; CR/SHF PULLEY (B) M16X45	9-92061-645-0	08	1	0211-	●	●
58	BOLT; CR/SHF PULLEY (C)	1-09029-073-0	06	1	0204-			●
58	BOLT; CR/SHF PULLEY (D)	1-09070-017-1	04	1	0204-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	0012-0106	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12111-842-0	06	1	0107-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	0012-0106	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12111-843-0	06	1	0107-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12111-985-0	06	1	0107-0309	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12112-013-0	06	1	0310-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12111-986-0	06	1	0107-0309	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12112-014-0	06	1	0310-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-908-1	06	1	0204-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-959-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-011-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-960-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-012-0	06	1	0310-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	0012-0106	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12121-137-1	06	1	0107-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12121-149-0	06	1	0107-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-141-0	06	1	0204-			●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0012-0210	●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0211-	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-072-1	06	1	0204-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0012-0106	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12211-022-0	06	1	0107-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12211-037-0	06	1	0107-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-029-1	06	1	0204-			●
84	ROD ASM; CONN	1-12230-097-0	06	1	0012-0106	●
84	ROD ASM; CONN EXC. EURO3 SPECIFICATION(NJX)	1-12230-097-1	06	1	0107-	●
84	ROD ASM; CONN EURO3 SPECIFICATION(NJX)	1-12230-180-0	06	1	0107-0210	●
84	ROD ASM; CONN EURO3 SPECIFICATION(NJX)	1-12230-180-1	06	1	0211-	●
84	ROD ASM; CONN	1-12230-180-1	06	1	0211-		●
84	ROD ASM; CONN	1-12230-176-2	06	1	0204-1004			●
84	ROD ASM; CONN	8-98115-948-0	06	1	1005-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0012-0106	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12251-021-1	06	1	0107-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12251-043-0	06	1	0107-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-037-4	06	1	0204-1004			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98115-959-0	06	1	1005-			●
86	BOLT; CONNROD	1-12235-025-1	12	1	0012-0210	●
86	BOLT; CONNROD	1-12235-025-1	12	1	0211-	●	●
86	BOLT; CONNROD	1-12235-036-3	12	1	0204-			●
88	NUT; CONNROD	1-09840-003-1	12	1	0012-0210	●
88	NUT; CONNROD	1-09840-003-1	12	1	0211-	●	●
88	NUT; CONNROD	1-12239-005-1	12	1	0204-			●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0012-0106	●
102	PIN; TIMING SENSOR EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0107-0203	●
102	PIN; TIMING SENSOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0204-0210	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0204-0210			●
102	PIN; TIMING SENSOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0211-	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0211-		●	●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0012-0203	●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=67.2	9-09180-163-0	01	1	0204-0210	●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0204-0210			●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=67.2	9-09180-163-0	01	1	0211-	●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0211-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0012-0106	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-09587-065-0	12	1	0107-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-09587-099-0	12	1	0107-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-082-0	12	1	0204-			●
149	PLUG PT1	1-09605-021-1	06	1	0204-			●

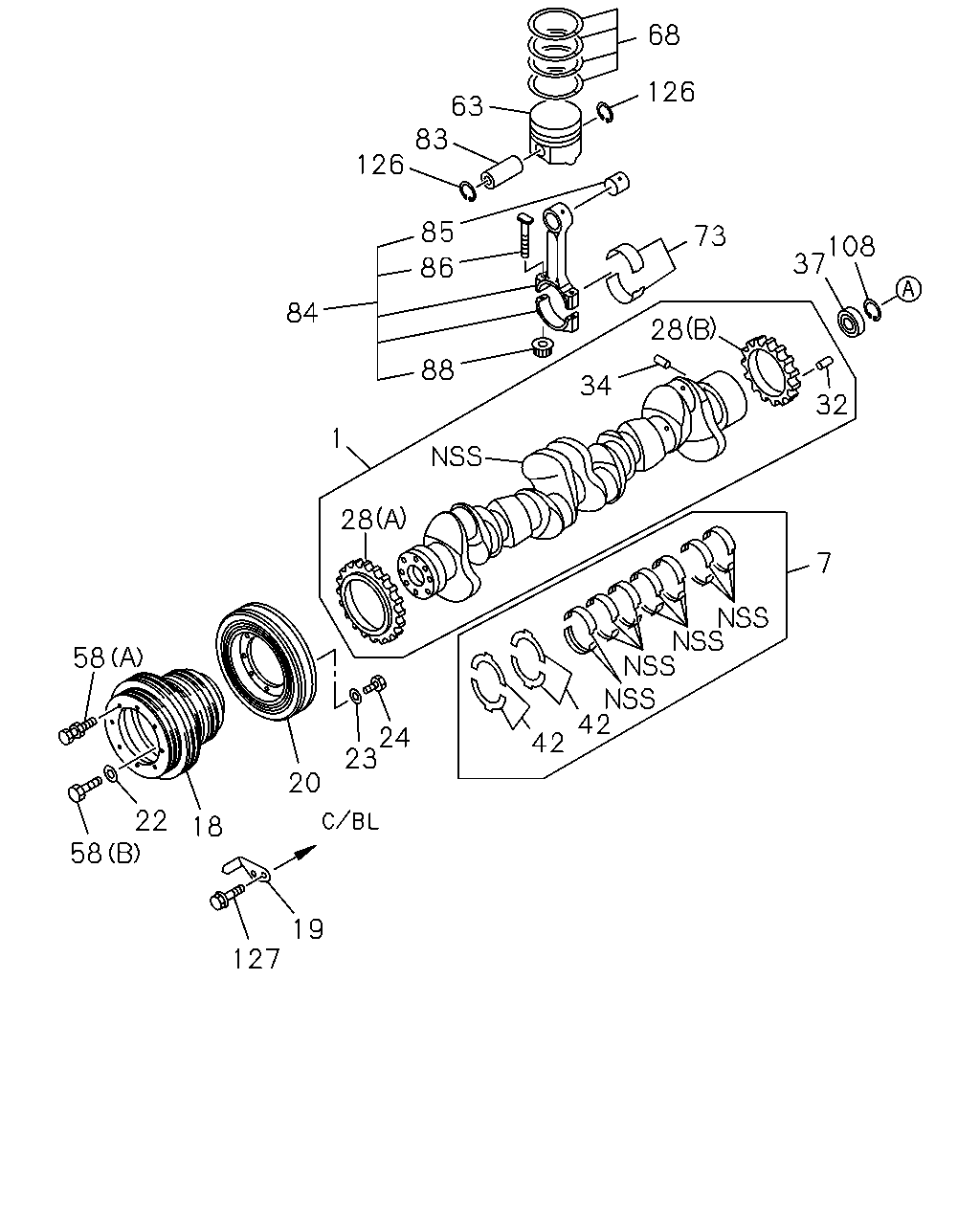

68 126 63 83 126 85 73 108 37 86 84 28 88 34 32 1 28 7 42 58 24 23 42 20 22 58 18 19 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT	1-12310-668-0	01	1	0012-0210	●
1	CRANKSHAFT	1-12310-668-0	01	1	0211-	●	●
1	CRANKSHAFT	1-12310-625-9	01	1	0204-			●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-0	01	1	0012-0210	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-108-3	01	1	0211-	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-093-5	01	1	0204-			●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-440-0	01	1	0012-0210	●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-440-0	01	1	0211-	●	●
18	PULLEY; CR/SHF 8-GROOVE	1-12371-463-1	01	1	0204-			●
19	POINTER; TIMING	1-11327-026-0	01	1	0012-0210	●
19	POINTER; TIMING	1-11327-026-0	01	1	0211-	●	●
20	DAMPER; CR/SHF	1-12375-201-0	01	1	0012-0210	●
20	DAMPER; CR/SHF	1-12375-201-1	01	1	0211-	●	●
20	DAMPER; CR/SHF	1-12375-214-1	01	1	0204-			●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	08	1	0012-0210	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	08	1	0211-	●	●
22	PLATE; PULLEY ID=18	9-09851-862-0	04	1	0204-			●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0012-0210	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	0211-	●	●
23	WASHER; DAMPER	1-12379-039-1	01	1	0204-			●
24	BOLT; DAMPER	9-02361-220-0	08	1	0012-0210	●
24	BOLT; DAMPER	9-02361-220-0	08	1	0211-	●	●
24	BOLT; DAMPER M12X30 FLANGE	0-28791-230-0	08	1	0204-0512			●
24	BOLT; DAMPER M12X30 FLANGE	0-28761-230-0	08	1	0601-			●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0012-0210	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	0211-	●	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-0	01	1	0012-0210	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	0211-	●	●
28	GEAR; CR/SHF (C) Z=48	1-12521-068-0	01	1	0204-0401			●
28	GEAR; CR/SHF (C) Z=48	1-12521-061-2	01	1	0402-			●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0012-0203	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0204-0210	●		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	0211-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0012-0210	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0012-0203	●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-257-0	01	1	0204-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0204-0210			●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-257-0	01	1	0211-	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-257-0	01	1	0211-		●	●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	02	1	0012-0210	●
42	WASHER; THRUST,CR/SHF	1-11599-007-1	02	1	0211-	●	●
42	WASHER; THRUST,CR/SHF	1-11599-009-0	02	1	0204-1006			●
42	WASHER; THRUST,CR/SHF	8-98151-850-0	02	1	1007-			●
58	BOLT; CR/SHF PULLEY (A) M10X47 W/NUT	1-09029-073-0	08	1	0012-0210	●
58	BOLT; CR/SHF PULLEY (A) M10X47 W/NUT	1-09029-073-0	08	1	0211-	●	●
58	BOLT; CR/SHF PULLEY (B) M16X45	9-92061-645-0	08	1	0012-0210	●
58	BOLT; CR/SHF PULLEY (B) M16X45	9-92061-645-0	08	1	0211-	●	●
58	BOLT; CR/SHF PULLEY (C)	1-09029-073-0	06	1	0204-			●
58	BOLT; CR/SHF PULLEY (D)	1-09070-017-1	04	1	0204-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	0012-0106	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12111-842-0	06	1	0107-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	0012-0106	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12111-843-0	06	1	0107-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12111-985-0	06	1	0107-0309	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=AX	1-12112-013-0	06	1	0310-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12111-986-0	06	1	0107-0309	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) GRADE=CX	1-12112-014-0	06	1	0310-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-908-1	06	1	0204-			●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-959-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12112-011-0	06	1	0310-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-960-0	06	1	0211-0309		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12112-012-0	06	1	0310-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	0012-0106	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12121-137-1	06	1	0107-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12121-149-0	06	1	0107-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-149-0	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-141-0	06	1	0204-			●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0012-0210	●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0211-	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-072-1	06	1	0204-			●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0012-0106	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12211-022-0	06	1	0107-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12211-037-0	06	1	0107-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-037-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-029-1	06	1	0204-			●
84	ROD ASM; CONN	1-12230-097-0	06	1	0012-0106	●
84	ROD ASM; CONN EXC. EURO3 SPECIFICATION(NJX)	1-12230-097-1	06	1	0107-	●
84	ROD ASM; CONN EURO3 SPECIFICATION(NJX)	1-12230-180-0	06	1	0107-0210	●
84	ROD ASM; CONN EURO3 SPECIFICATION(NJX)	1-12230-180-1	06	1	0211-	●
84	ROD ASM; CONN	1-12230-180-1	06	1	0211-		●
84	ROD ASM; CONN	1-12230-176-2	06	1	0204-1004			●
84	ROD ASM; CONN	8-98115-948-0	06	1	1005-			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0012-0106	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-12251-021-1	06	1	0107-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-12251-043-0	06	1	0107-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-043-0	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-037-4	06	1	0204-1004			●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98115-959-0	06	1	1005-			●
86	BOLT; CONNROD	1-12235-025-1	12	1	0012-0210	●
86	BOLT; CONNROD	1-12235-025-1	12	1	0211-	●	●
86	BOLT; CONNROD	1-12235-036-3	12	1	0204-			●
88	NUT; CONNROD	1-09840-003-1	12	1	0012-0210	●
88	NUT; CONNROD	1-09840-003-1	12	1	0211-	●	●
88	NUT; CONNROD	1-12239-005-1	12	1	0204-			●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0012-0203	●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=67.2	9-09180-163-0	01	1	0204-0210	●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0204-0210			●
108	RING; SNAP,BRG SET ISUZU M/T<X9A> OD=67.2	9-09180-163-0	01	1	0211-	●
108	RING; SNAP,BRG SET OD=67.2	9-09180-163-0	01	1	0211-		●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0012-0106	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX)	1-09587-065-0	12	1	0107-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX)	1-09587-099-0	12	1	0107-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-099-0	12	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-082-0	12	1	0204-			●
127	BOLT; POINTER M6X12 FLANGE	0-28080-612-0	02	1	0012-0210	●
127	BOLT; POINTER M6X12 FLANGE	0-28080-612-0	02	1	0211-0512	●	●
127	BOLT; POINTER M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●

40 36 38 100 12 35 36 40 38 102 12 35 36 40 38 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	FLYWHEEL (A)	1-12330-333-1	01	1	0012-0106	●
12	FLYWHEEL EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0107-0203	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0204-0210	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A)	1-12330-333-1	01	1	0211-	●
12	FLYWHEEL (A)	1-12330-333-1	01	1	0211-		●
12	FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) (C)	1-12331-358-0	01	1	0204-	●
12	FLYWHEEL EURO3 SPECIFICATION(NJX) (B)	1-12331-319-0	01	1	0107-	●
12	FLYWHEEL (D)	1-12330-400-1	01	1	0204-			●
35	GEAR; RING Z=160	1-12333-011-1	01	1	0012-0210	●
35	GEAR; RING Z=160	1-12333-011-3	01	1	0211-	●	●
35	GEAR; RING Z=139	1-12333-013-1	01	1	0204-			●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0012-0203	●
36	PIN; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) ID=6 L=12	9-08160-612-0	01	1	0204-	●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	0204-0210	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0204-0210			●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	0211-	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●	●
38	WASHER; FLYWHEEL	1-12336-006-0	01	1	0012-0203	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	1-12336-006-0	01	1	0204-0210	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	1-12336-006-0	01	1	0211-	●
38	WASHER; FLYWHEEL	1-12336-006-0	01	1	0211-		●
38	WASHER; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-12336-020-0	01	1	0204-	●
38	WASHER; FLYWHEEL	1-12336-011-0	01	1	0204-			●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	0012-0203	●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	1-09000-183-1	08	1	0204-0905	●
40	BOLT; FLYWHEEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-09070-149-0	08	1	0204-	●
40	BOLT; FLYWHEEL	1-09070-017-1	10	1	0204-			●
40	BOLT; FLYWHEEL	1-09070-146-0	08	1	0211-0905		●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	1-09070-146-1	08	1	0906-	●
40	BOLT; FLYWHEEL	1-09070-146-1	08	1	0906-		●
100	PLATE; FLEX A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN)	1-32213-070-0	04	1	0204-	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0012-0106	●
102	PIN; TIMING SENSOR EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0107-0203	●
102	PIN; TIMING SENSOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0204-0210	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0204-0210			●
102	PIN; TIMING SENSOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-12339-013-0	06	1	0211-	●
102	PIN; TIMING SENSOR	1-12339-013-0	06	1	0211-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
