Sayfa 0-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51374 - TFR/TFS(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#79422) — 74 parça

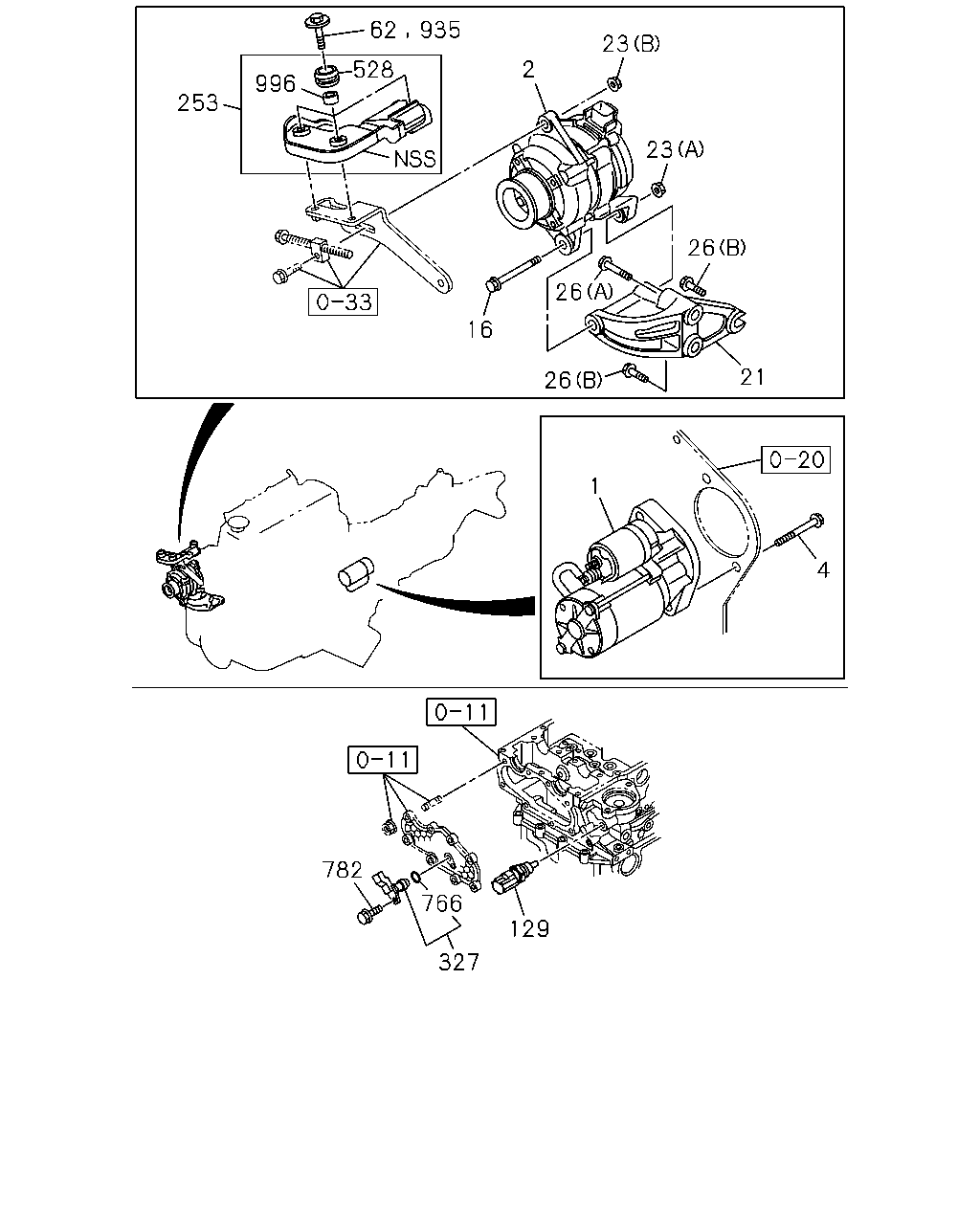

253 996 528 935 62 2 23 23 26 21 26 26 16 4 1 782 766 327 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98183-655-0	01	1	1203-
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A	8-98196-585-0	01	1	1203-1211
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A	8-98229-071-1	01	1	1212-
4	02.042 BOLT; STARTER IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE	8-98183-142-0	01	1	1311-1311
4	02.042 BOLT; STARTER A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE	0-28051-260-0	02	1	1303-1311
4	02.042 BOLT; STARTER IDENTIFICATION LABEL FOR KD<6UT> M12X60 FLANGE	0-28051-260-0	02	1	1312-
4	02.042 BOLT; STARTER M12X70 FLANGE	8-98183-142-0	02	1	1203-1310
4	02.042 BOLT; STARTER EXC. IDENTIFICATION LABEL FOR KD<6UT> M12X70 FLANGE	8-98183-142-0	02	1	1311-
16	02.277 BOLT; GEN M10X125 FLANGE	8-97226-470-1	01	1	1203-
21	02.277 BRACKET; GEN	8-98169-084-0	01	1	1203-
23	02.277 NUT; GEN IDENTIFICATION LABEL FOR KD<6UT> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1311-
23	02.277 NUT; GEN 04.085 (A) M10 FLANGE	0-91180-210-0	01	1	1203-
26	02.277 BOLT; GEN BRKT 00.685 (A) M10X60 FLANGE	0-28051-060-0	01	1	1203-
26	02.277 BOLT; GEN BRKT 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1203-
62	02.277 BOLT; PROTECTOR EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97383-407-0	03	1	1203-
129	01.150 SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1203-1412
129	01.150 SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1501-
253	02.277 PROTECTOR; HEAT,GEN	8-98157-835-2	01	1	1203-
327	02.361 SENSOR; CAMSHAFT POSITION	8-97312-108-1	01	1	1203-
528	02.270 BUSHING	8-98158-298-0	03	1	1203-
766	02.363 GASKET; SENSOR 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1203-
782	02.510 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1203-
935	02.042 BOLT; PROTECTOR IDENTIFICATION LABEL FOR KD<6UT> 02.277	8-97383-407-0	03	1	1311-
996	02.042 MOUNT; PROTECTOR	8-98158-299-0	03	1	1203-

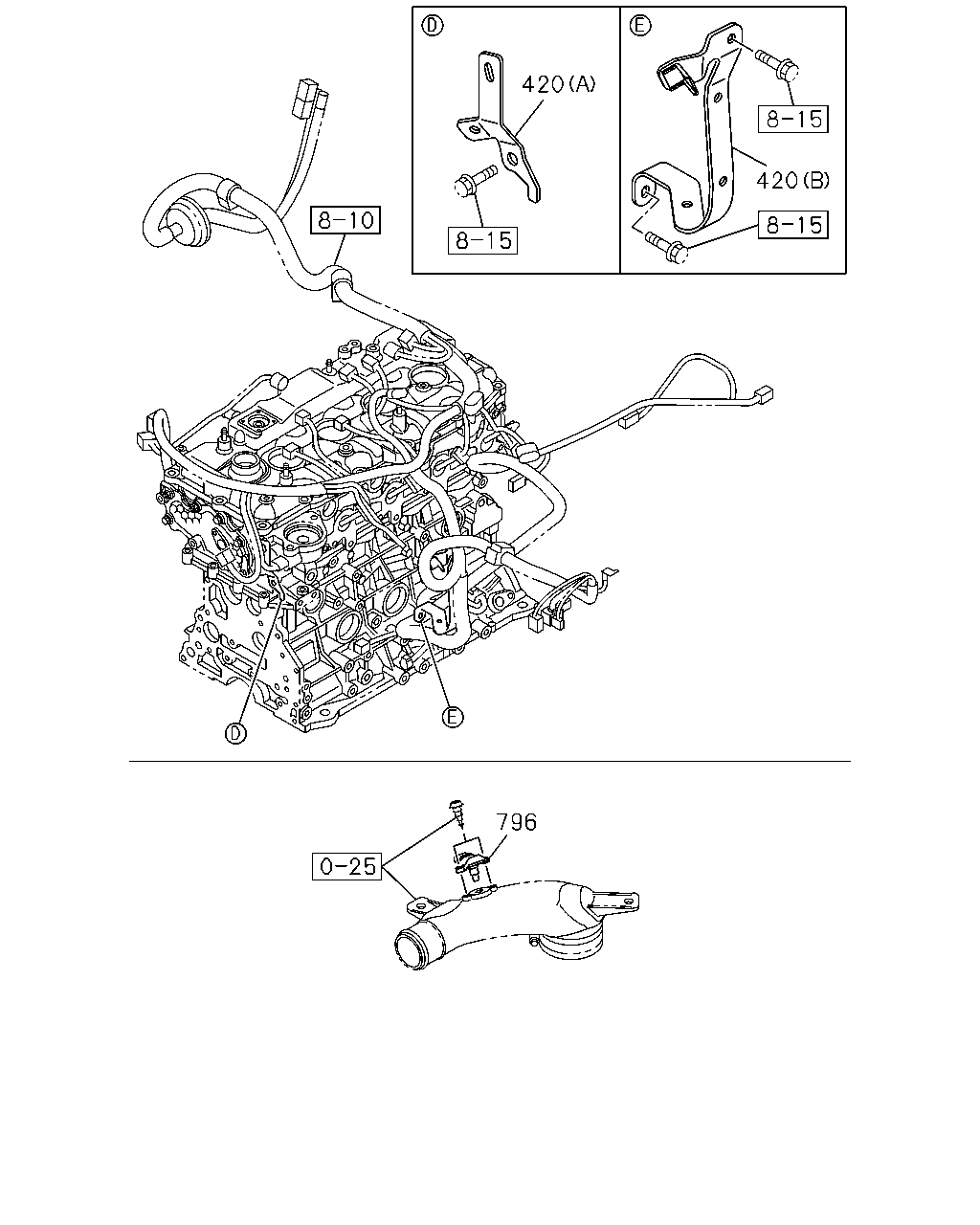

420 420 796

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
420	02.183 BRACKET; HARNESS (A)	8-98132-062-1	01	1	1203-
420	02.183 BRACKET; HARNESS (B)	8-98166-379-0	01	1	1203-
796	01.150 SENSOR; MAP	8-98009-418-0	01	1	1203-

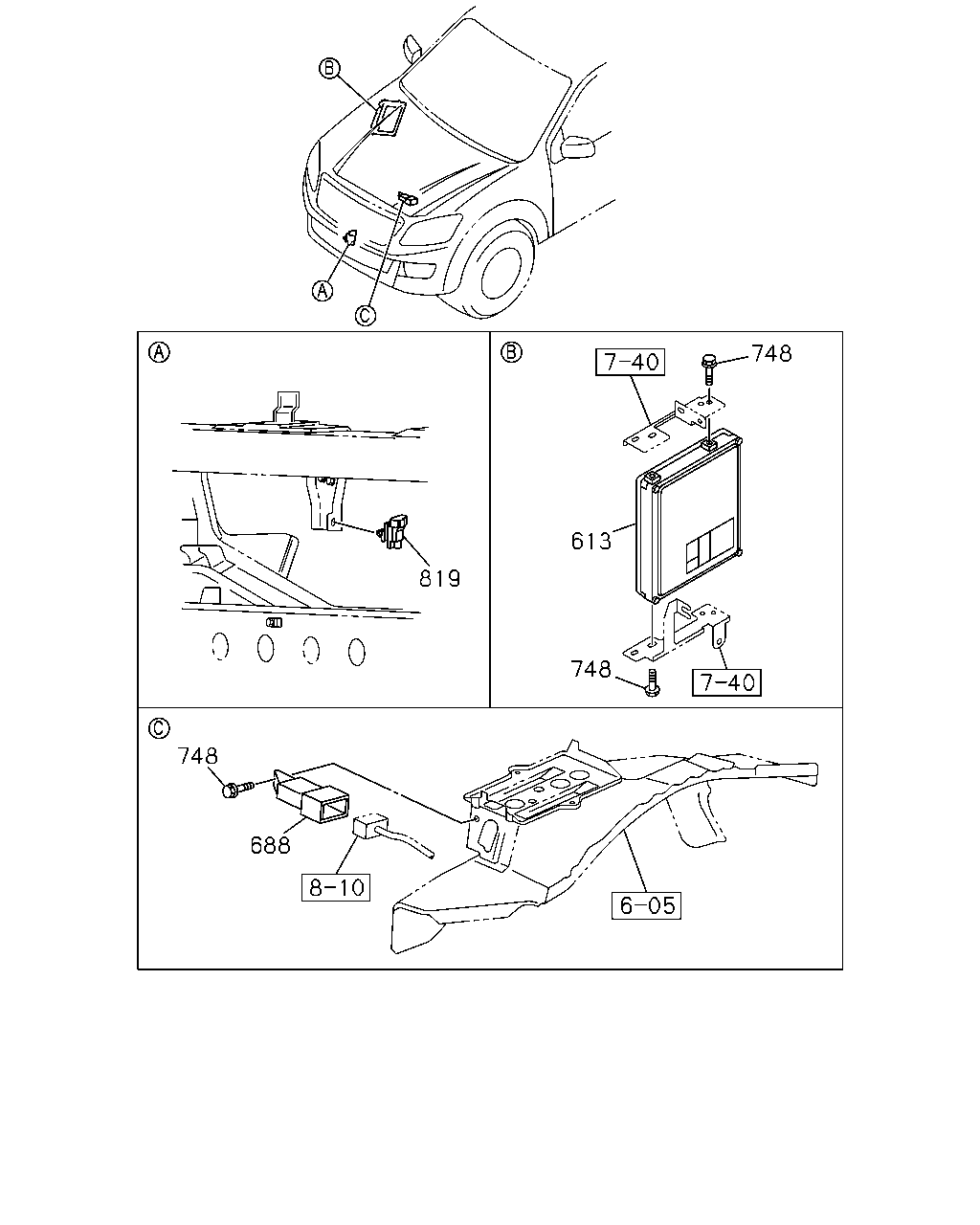

748 613 819 748 748 688

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) IDENTIFICATION LABEL FOR KD<6UT> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,FRIGID ZONE<YL3>	8-98224-139-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>,FRIGID ZONE<YL3>	8-98224-139-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>,FRIGID ZONE<YL3>,HIGH RIDE SUSPENSION(7YC)	8-98224-138-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> IDENTIFICATION LABEL FOR KD<6UT> EXC. FRIGID ZONE<YL3>	8-98224-142-3	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>,FRIGID ZONE<YL3>	8-98224-141-3	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> IDENTIFICATION LABEL FOR KD<6UT> EXC. FRIGID ZONE<YL3>	8-98224-140-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC)	8-98171-350-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30>	8-98171-350-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC)	8-98234-570-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30>	8-98234-570-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC)	8-98250-656-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30>	8-98250-656-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98250-656-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K30> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98250-656-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>	8-98171-348-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>	8-98171-348-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>	8-98234-569-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>	8-98234-569-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>	8-98250-655-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>	8-98250-655-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) FRIGID ZONE<YL3> IDENTIFICATION LABEL FOR KD<6UT> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>	8-98250-655-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) FRIGID ZONE<YL3> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>	8-98250-655-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,IDENTIFICATION LABEL FOR KD<6UT>	8-98250-655-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,IDENTIFICATION LABEL FOR KD<6UT>	8-98250-655-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC)	8-98171-347-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC)	8-98234-568-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC)	8-98250-654-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) EXC. AUTO CRUISE CONT<K30>,IDENTIFICATION LABEL FOR KD<6UT>,HIGH RIDE SUSPENSION(7YC)	8-98250-654-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T AISIN 6 SPEED(RNU) FRIGID ZONE<YL3> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>,HIGH RIDE SUSPENSION(7YC)	8-98250-654-1	01	1	1312-
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30>	8-98171-354-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30>	8-98234-572-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30>	8-98250-658-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> HIGH RIDE SUSPENSION(7YC) EXC. FRIGID ZONE<YL3>	8-98250-658-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K30> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98250-658-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>	8-98171-352-7	01	1	1203-1212
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>	8-98234-571-1	01	1	1301-1310
613	03.670 CONTROL UNIT; ENG A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>	8-98250-657-0	01	1	1311-1311
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K30>,FRIGID ZONE<YL3>	8-98250-657-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30>,IDENTIFICATION LABEL FOR KD<6UT>	8-98250-657-2	01	1	1312-
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) FRIGID ZONE<YL3> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUTO CRUISE CONT<K30>	8-98250-657-2	01	1	1312-
688	02.510 CONTROLLER; GLOW PLUG	8-98176-474-0	01	1	1203-
748	02.500 BOLT; CONT UNIT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1203-
748	02.500 BOLT; CONT UNIT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1203-
819	01.150 SENSOR; MASS AIR FLOW (MAF) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTE R<UCA>	8-98008-687-0	01	1	1203-

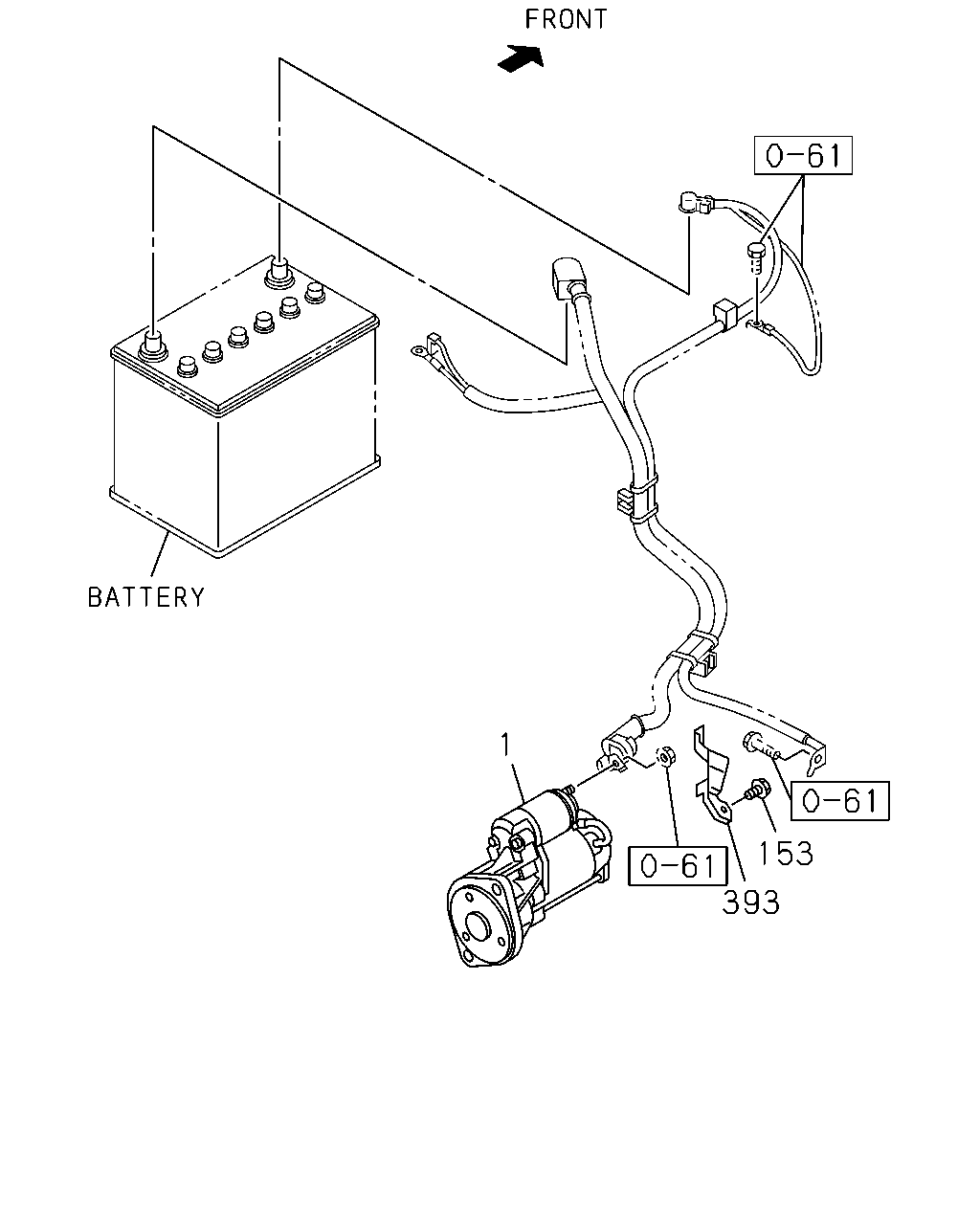

1 153 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW	8-98183-655-0	01	1	1203-
153	02.510 BOLT; BRKT FIX 03.604 M6X10 FLANGE	8-98043-527-0	01	1	1203-
393	02.343 BRACKET; HARNESS TO BODY	8-98102-992-4	01	1	1203-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
