0-14 — CAMSHAFT AND VALVE (#7942) — 215 parça

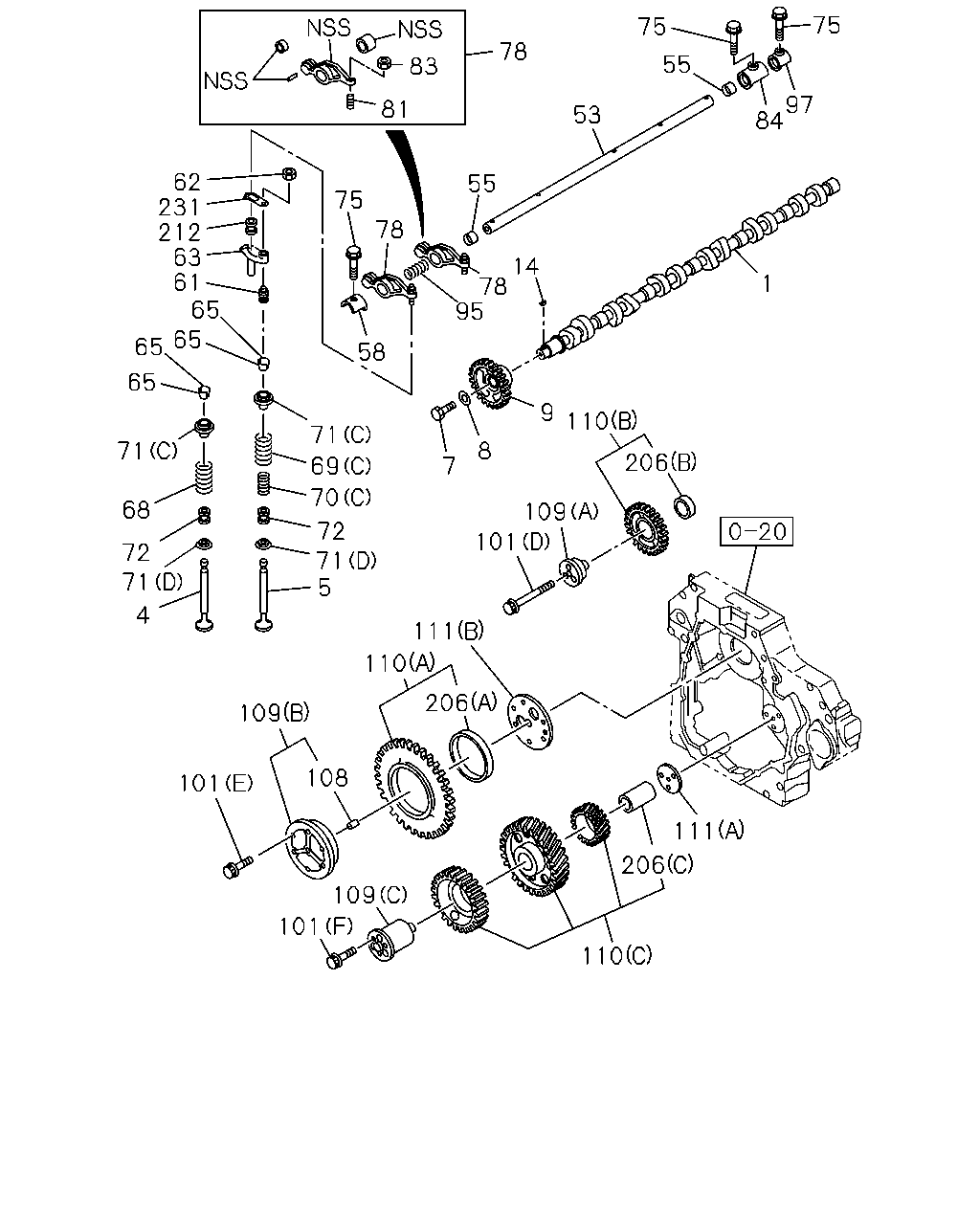

75 75 78 55 83 97 84 81 53 62 231 212 63 61 65 55 75 78 14 78 95 1 65 65 58 65 9 110 71 71 8 206 7 69 70 68 109 72 71 5 101 72 71 4 111 110 206 109 108 101 111 206 109 101 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	1-12511-249-1	01	1	0012-0106	●
1	CAMSHAFT EXC. EURO3 SPECIFICATION(NJX)	1-12511-249-1	01	1	0107-	●
1	CAMSHAFT EURO3 SPECIFICATION(NJX)	1-12511-274-1	01	1	0107-0210	●
1	CAMSHAFT EURO3 SPECIFICATION(NJX)	1-12511-274-1	01	1	0211-	●
1	CAMSHAFT	1-12511-274-1	01	1	0211-		●
1	CAMSHAFT	1-12511-255-2	01	1	0204-			●
4	VALVE; INL	1-12551-126-1	06	1	0012-0106	●
4	VALVE; INL EXC. EURO3 SPECIFICATION(NJX)	1-12551-126-1	06	1	0107-0204	●
4	VALVE; INL EURO3 SPECIFICATION(NJX)	1-12551-161-1	06	1	0107-0204	●
4	VALVE; INL	1-12551-161-2	06	1	0205-0210	●
4	VALVE; INL	1-12551-161-4	06	1	0211-	●	●
4	VALVE; INL	1-12551-145-6	12	1	0204-			●
5	VALVE; EXH	1-12552-108-1	06	1	0012-0106	●
5	VALVE; EXH EXC. EURO3 SPECIFICATION(NJX)	1-12552-108-2	06	1	0107-	●
5	VALVE; EXH EURO3 SPECIFICATION(NJX)	1-12552-099-1	06	1	0107-0210	●
5	VALVE; EXH EURO3 SPECIFICATION(NJX)	1-12552-099-1	06	1	0211-	●
5	VALVE; EXH	1-12552-099-1	06	1	0211-		●
5	VALVE; EXH	1-12552-102-1	12	1	0204-			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0012-0203	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0204-0210	●		●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0211-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0012-0203	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0204-0210	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-	●	●	●
9	GEAR; CM/SHF Z=36	1-12522-037-1	01	1	0012-0210	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0211-	●	●
9	GEAR; CM/SHF Z=54	1-12522-060-1	01	1	0204-			●
14	KEY; CM/SHF	9-08055-516-0	01	1	0204-			●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0012-0210	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0211-	●	●
53	SHAFT; ROCKER ARM	1-12621-098-0	01	1	0204-			●
55	PLUG; ROCKER SHAFT END OD=18	9-11129-082-0	02	1	0204-			●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-071-0	01	1	0204-			●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0204-			●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	0204-			●
63	BRIDGE	1-12611-281-0	12	1	0204-			●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0012-0210	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0211-	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0204-			●
68	SPRING; VLV	1-12561-092-0	12	1	0204-0505			●
68	SPRING; VLV	8-97603-305-0	12	1	0506-			●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0012-0210	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0211-	●	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0012-0210	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0211-	●	●
69	SPRING; VLV,OUTER (C)	1-12561-093-0	12	1	0204-			●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	0012-0210	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	0211-	●	●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	0012-0210	●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	0211-	●	●
70	SPRING; VLV,INNER (C)	1-12562-060-0	12	1	0204-			●
71	SEAT; SPR (B) UPPER	1-12563-059-1	12	1	0012-0210	●
71	SEAT; SPR (B) UPPER	1-12563-059-1	12	1	0211-0401	●	●
71	SEAT; SPR (B) UPPER	8-97603-239-0	12	1	0402-	●	●
71	SEAT; SPR (A) LOWER	9-12563-231-0	12	1	0012-0210	●
71	SEAT; SPR (A) LOWER	9-12563-231-1	12	1	0211-	●	●
71	SEAT; SPR (D) LOWER	1-12563-056-2	24	1	0204-			●
71	SEAT; SPR (C) UPPER	1-12563-060-0	24	1	0204-			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0012-0210	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0211-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0204-			●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	0012-0210	●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	0211-	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0204-			●
78	ARM; ROCKER	1-12610-045-2	12	1	0012-0210	●
78	ARM; ROCKER	1-12610-045-2	12	1	0211-	●	●
78	ARM; ROCKER	1-12610-080-0	12	1	0204-			●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0012-0210	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0211-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0204-			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0012-0210	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0211-	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	0204-0512			●
83	NUT; ADJ SCREW,LK M12	0-91110-512-0	12	1	0601-			●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-069-0	05	1	0204-			●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0012-0210	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0211-	●	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0204-			●
97	BRACKET; ROCKER SHAFT,RR	1-12628-073-0	01	1	0204-			●
101	BOLT; THRUST COLLAR (C) M8X14 FLANGE	0-28080-814-0	03	1	0012-0210	●
101	BOLT; THRUST COLLAR (C) M8X14 FLANGE	0-28080-814-0	03	1	0211-	●	●
101	BOLT; THRUST COLLAR (B) M14X16	1-09000-284-0	01	1	0012-0210	●
101	BOLT; THRUST COLLAR (B) M14X16	1-09000-284-0	01	1	0211-	●	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0012-0210	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0211-	●	●
101	BOLT; THRUST COLLAR (D) M10X40 FLANGE	0-28181-040-0	03	1	0204-0512			●
101	BOLT; THRUST COLLAR (D) M10X40 FLANGE	0-28151-040-0	03	1	0601-			●
101	BOLT; THRUST COLLAR (E) M10X60 FLANGE	0-28181-060-0	06	1	0204-0512			●
101	BOLT; THRUST COLLAR (E) M10X60 FLANGE	0-28151-060-0	06	1	0601-			●
101	BOLT; THRUST COLLAR (F) M12X114	1-09070-087-2	03	1	0204-			●
108	DOWEL; SHAFT OD=12 L=32	9-08161-232-0	01	1	0204-			●
109	SHAFT; IDLE GEAR (B)	1-12531-076-2	01	1	0204-			●
109	SHAFT; IDLE GEAR (C)	1-12531-092-2	01	1	0204-			●
109	SHAFT; IDLE GEAR (A)	1-12531-093-1	01	1	0204-			●
110	GEAR ASM; IDLE (C)	1-12523-232-7	01	1	0204-			●
110	GEAR ASM; IDLE (A)	1-12523-369-1	01	1	0204-			●
110	GEAR ASM; IDLE (B)	1-12523-371-1	01	1	0204-			●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	0012-0210	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	0211-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0204-			●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0204-			●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	0204-0705			●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-98081-168-0	01	1	0706-			●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	0204-0706			●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-98081-167-0	01	1	0707-			●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-1	01	1	0204-			●
212	CAP; ADJ SCREW	1-12616-037-0	12	1	0204-			●
231	PLATE; CAP	1-12619-004-0	12	1	0204-			●

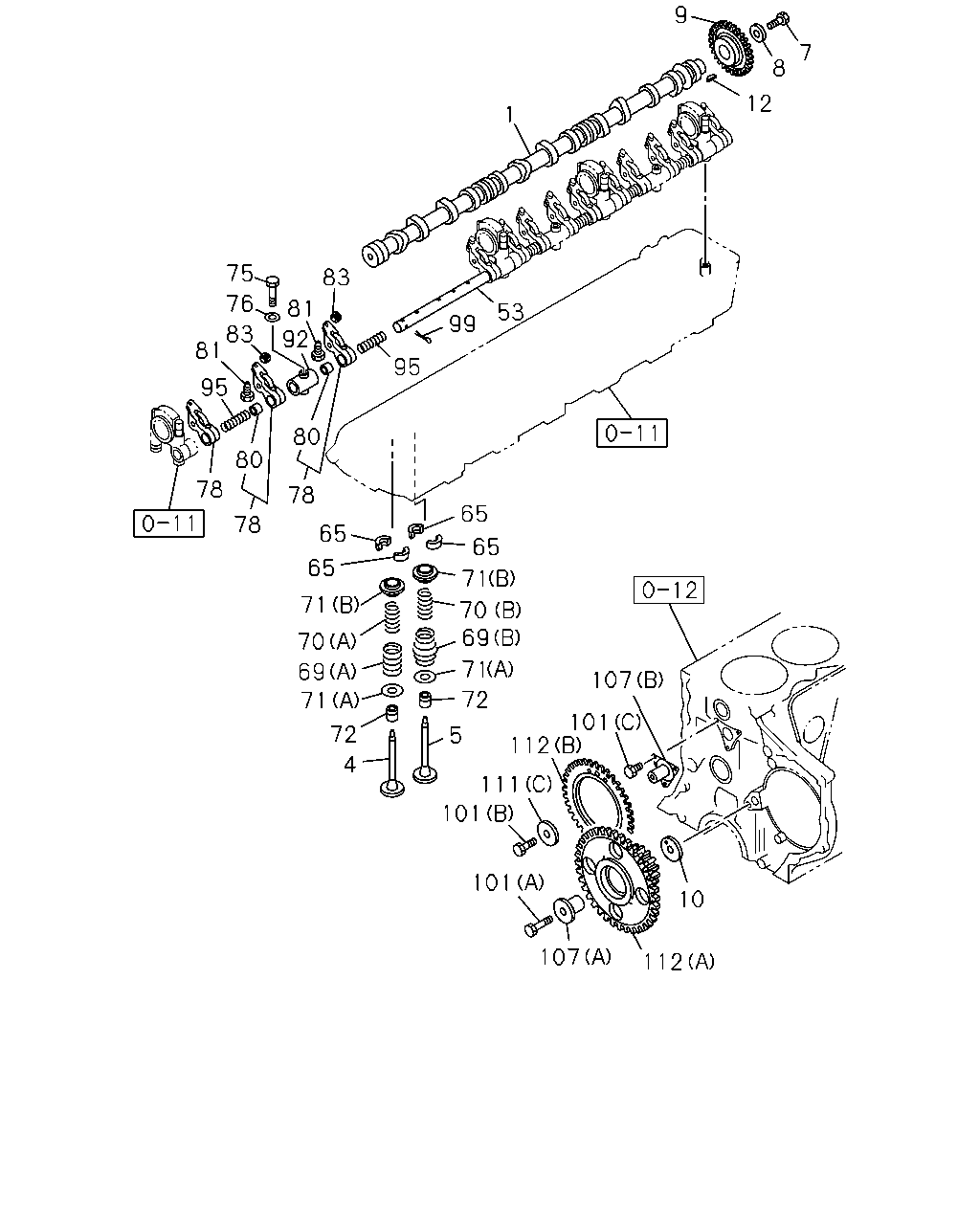

9 7 8 12 1 75 83 76 81 92 53 99 83 81 95 95 80 80 78 78 65 78 65 65 65 71 71 70 69 70 71 69 107 72 71 101 112 72 5 4 111 101 101 10 107 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAMSHAFT	1-12511-249-1	01	1	0012-0106	●
1	CAMSHAFT EXC. EURO3 SPECIFICATION(NJX)	1-12511-249-1	01	1	0107-	●
1	CAMSHAFT EURO3 SPECIFICATION(NJX)	1-12511-274-1	01	1	0107-0210	●
1	CAMSHAFT EURO3 SPECIFICATION(NJX)	1-12511-274-1	01	1	0211-	●
1	CAMSHAFT	1-12511-274-1	01	1	0211-		●
1	CAMSHAFT	1-12511-255-2	01	1	0204-			●
4	VALVE; INL	1-12551-126-1	06	1	0012-0106	●
4	VALVE; INL EXC. EURO3 SPECIFICATION(NJX)	1-12551-126-1	06	1	0107-0204	●
4	VALVE; INL EURO3 SPECIFICATION(NJX)	1-12551-161-1	06	1	0107-0204	●
4	VALVE; INL	1-12551-161-2	06	1	0205-0210	●
4	VALVE; INL	1-12551-161-4	06	1	0211-	●	●
4	VALVE; INL	1-12551-145-6	12	1	0204-			●
5	VALVE; EXH	1-12552-108-1	06	1	0012-0106	●
5	VALVE; EXH EXC. EURO3 SPECIFICATION(NJX)	1-12552-108-2	06	1	0107-	●
5	VALVE; EXH EURO3 SPECIFICATION(NJX)	1-12552-099-1	06	1	0107-0210	●
5	VALVE; EXH EURO3 SPECIFICATION(NJX)	1-12552-099-1	06	1	0211-	●
5	VALVE; EXH	1-12552-099-1	06	1	0211-		●
5	VALVE; EXH	1-12552-102-1	12	1	0204-			●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0012-0203	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0204-0210	●		●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0211-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0012-0203	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0204-0210	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0211-	●	●	●
9	GEAR; CM/SHF Z=36	1-12522-037-1	01	1	0012-0210	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	0211-	●	●
9	GEAR; CM/SHF Z=54	1-12522-060-1	01	1	0204-			●
10	PLATE; THRUST	1-12535-021-0	01	1	0012-0210	●
10	PLATE; THRUST	1-12535-021-1	01	1	0211-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	0012-0210	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	0211-	●	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0012-0210	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	0211-	●	●
53	SHAFT; ROCKER ARM	1-12621-098-0	01	1	0204-			●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0012-0210	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	0211-	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0204-			●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0012-0210	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-051-0	06	1	0211-	●	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0012-0210	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-072-0	06	1	0211-	●	●
69	SPRING; VLV,OUTER (C)	1-12561-093-0	12	1	0204-			●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	0012-0210	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12561-073-0	06	1	0211-	●	●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	0012-0210	●
70	SPRING; VLV,INNER (A) INLET	1-12562-032-0	06	1	0211-	●	●
70	SPRING; VLV,INNER (C)	1-12562-060-0	12	1	0204-			●
71	SEAT; SPR (B) UPPER	1-12563-059-1	12	1	0012-0210	●
71	SEAT; SPR (B) UPPER	1-12563-059-1	12	1	0211-0401	●	●
71	SEAT; SPR (B) UPPER	8-97603-239-0	12	1	0402-	●	●
71	SEAT; SPR (A) LOWER	9-12563-231-0	12	1	0012-0210	●
71	SEAT; SPR (A) LOWER	9-12563-231-1	12	1	0211-	●	●
71	SEAT; SPR (D) LOWER	1-12563-056-2	24	1	0204-			●
71	SEAT; SPR (C) UPPER	1-12563-060-0	24	1	0204-			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0012-0210	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	0211-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0204-			●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	0012-0210	●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	0211-	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0204-			●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	0012-0210	●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	0211-	●	●
78	ARM; ROCKER	1-12610-045-2	12	1	0012-0210	●
78	ARM; ROCKER	1-12610-045-2	12	1	0211-	●	●
78	ARM; ROCKER	1-12610-080-0	12	1	0204-			●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	0012-0210	●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	0211-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0012-0210	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	0211-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0204-			●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0012-0210	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	0211-	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	0204-0512			●
83	NUT; ADJ SCREW,LK M12	0-91110-512-0	12	1	0601-			●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	0012-0210	●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	0211-	●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0012-0210	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	0211-	●	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0204-			●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	0012-0210	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	0211-0606	●	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	0-81122-025-0	02	1	0607-	●	●
101	BOLT; THRUST COLLAR (C) M8X14 FLANGE	0-28080-814-0	03	1	0012-0210	●
101	BOLT; THRUST COLLAR (C) M8X14 FLANGE	0-28080-814-0	03	1	0211-	●	●
101	BOLT; THRUST COLLAR (B) M14X16	1-09000-284-0	01	1	0012-0210	●
101	BOLT; THRUST COLLAR (B) M14X16	1-09000-284-0	01	1	0211-	●	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0012-0210	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	0211-	●	●
101	BOLT; THRUST COLLAR (D) M10X40 FLANGE	0-28181-040-0	03	1	0204-0512			●
101	BOLT; THRUST COLLAR (D) M10X40 FLANGE	0-28151-040-0	03	1	0601-			●
101	BOLT; THRUST COLLAR (E) M10X60 FLANGE	0-28181-060-0	06	1	0204-0512			●
101	BOLT; THRUST COLLAR (E) M10X60 FLANGE	0-28151-060-0	06	1	0601-			●
101	BOLT; THRUST COLLAR (F) M12X114	1-09070-087-2	03	1	0204-			●
107	SHAFT; IDLE GEAR (B)	1-12531-097-2	01	1	0012-0210	●
107	SHAFT; IDLE GEAR (B)	1-12531-097-2	01	1	0211-	●	●
107	SHAFT; IDLE GEAR (A)	1-12531-099-0	01	1	0012-0210	●
107	SHAFT; IDLE GEAR (A)	1-12531-099-0	01	1	0211-	●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	0012-0210	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-94370-688-0	01	1	0211-0306	●	●
111	COLLAR; THRUST,IDLE GEAR (C) ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0204-			●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0204-			●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-0210	●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0211-	●	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-0210	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
