Isuzu WW
▶
PICKUP
▶
TFR
▶
51374 - TFR/TFS(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶

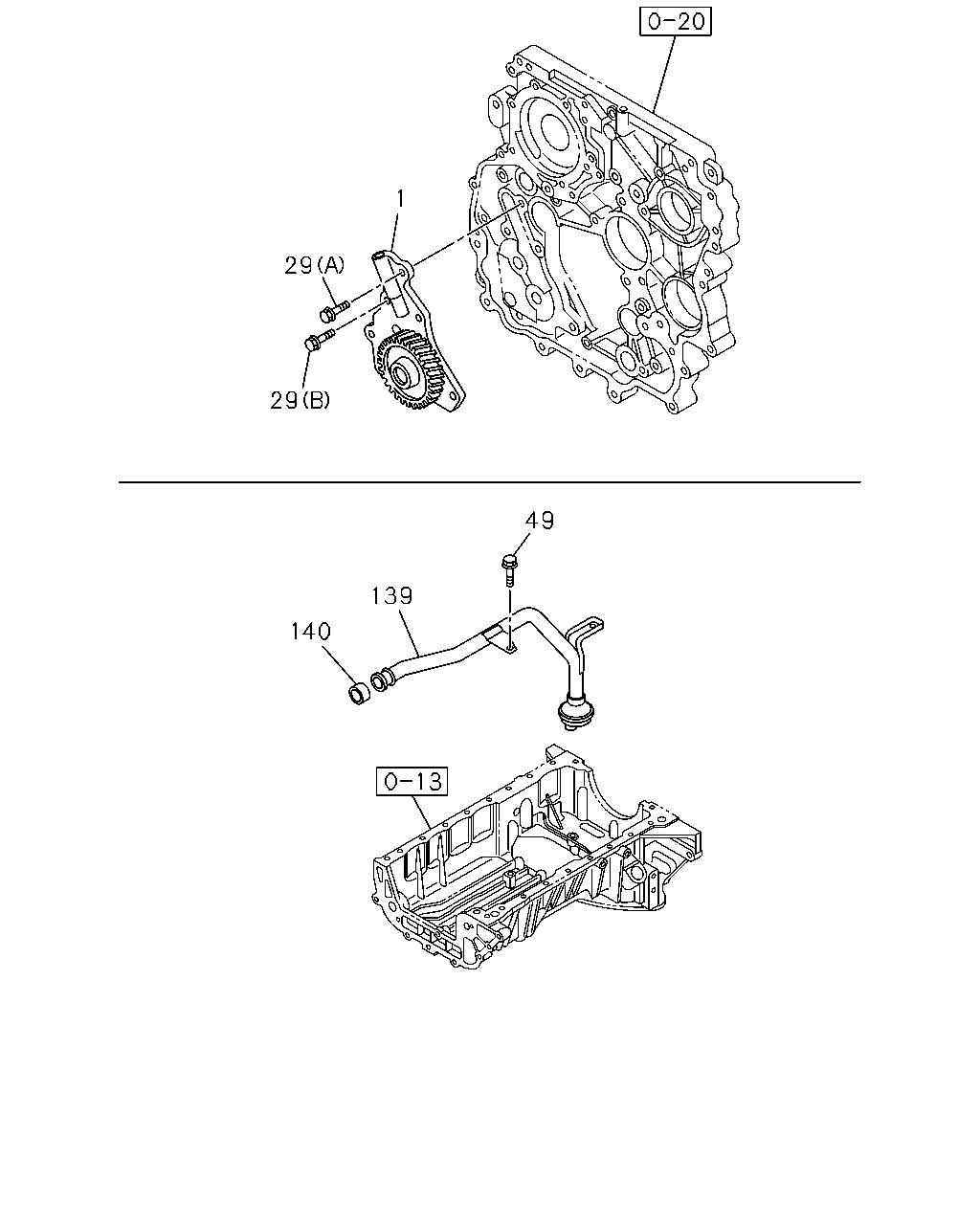

0-51 - OIL PUMP AND OIL STRAINER
▶
0-51 — OIL PUMP AND OIL STRAINER
(#79418) — 9 parça
1
29
29
49
139
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.652 PUMP ASM; OIL
8-98128-134-0
01
1
1203-1303
1
01.652 PUMP ASM; OIL
8-98232-624-1
01
1
1304-
29
01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE
0-28050-830-0
04
1
1203-
29
01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE
0-28050-845-0
02
1
1203-
49
01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1203-1405
49
01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1406-
139
01.639 PIPE; OIL STRAINER
4X2(TFB***)
8-98127-247-0
01
1
1203-
139
01.639 PIPE; OIL STRAINER
4X4(TFS***)
8-98132-012-0
01
1
1203-
140
01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-150-0
01
1
1203-
