Isuzu WW
▶
PICKUP
▶
TFR
▶
51374 - TFR/TFS(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

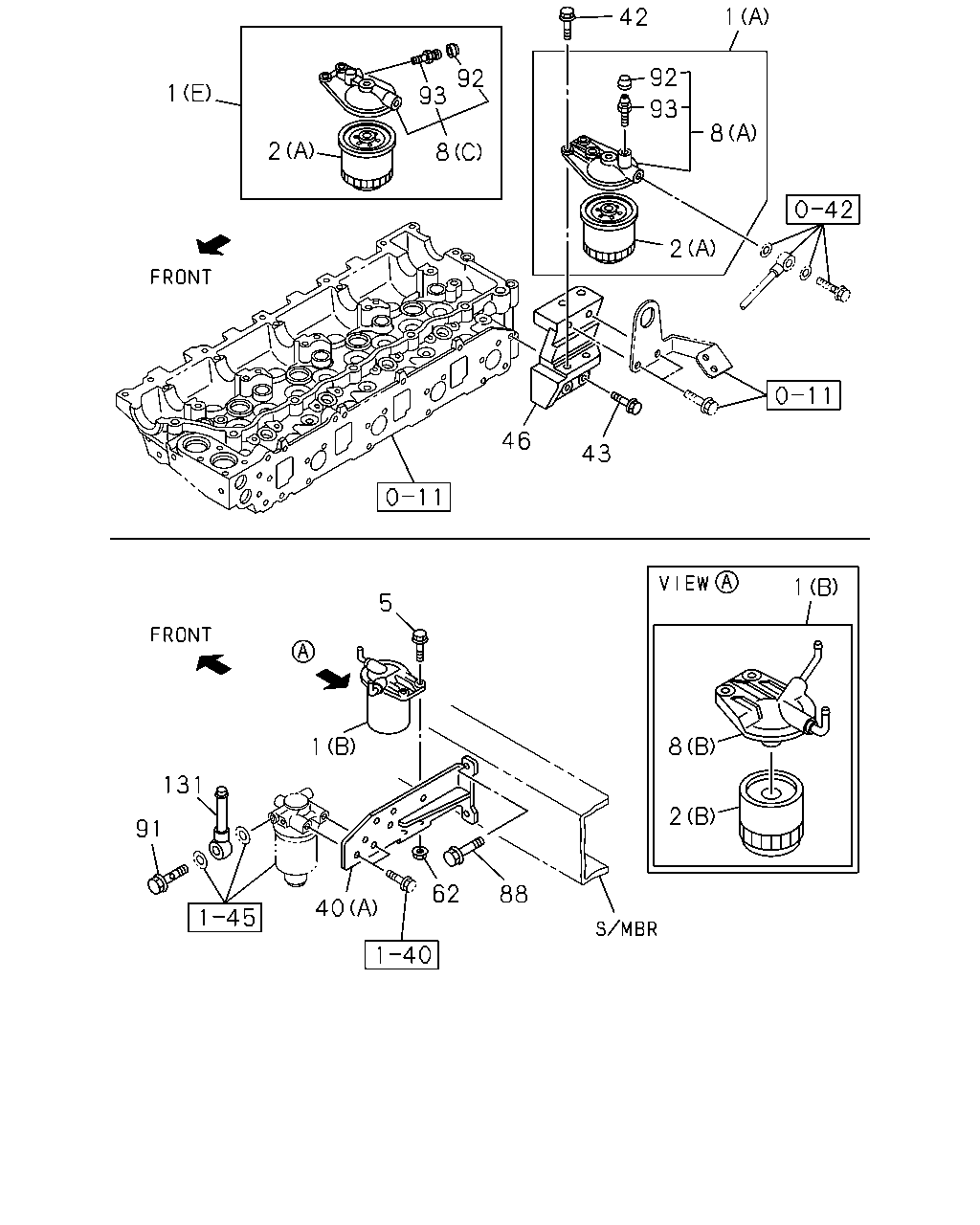

0-41 — FUEL FILTER AND BRACKET
(#79416) — 34 parça
◀
[041A] FUEL FILTER (15 parça)
[041A] PRE FUEL FILTER (19 parça)
▶
42
93
92
8
2
43
46
1
2
8
93
92
5
1
131
91
40
88
62
2
8
1
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B)
8-98182-445-0
01
1
1203-
1
03.890 FILTER ASM; FUEL
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A)
8-98101-749-3
01
1
1203-1301
1
03.890 FILTER ASM; FUEL
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A)
8-98239-983-0
01
1
1302-1303
1
03.890 FILTER ASM; FUEL
(A)
8-98239-983-0
01
1
1304-
1
03.890 FILTER ASM; FUEL
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)
8-98067-761-3
01
1
1203-1303
2
03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B)
8-98194-119-0
01
1
1203-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98159-693-0
01
1
1203-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1203-
40
03.890 BRACKET; FUEL FILTER
4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (B)
8-98197-461-0
01
1
1203-1206
40
03.890 BRACKET; FUEL FILTER
(A)
8-98177-496-0
01
1
1203-
40
03.890 BRACKET; FUEL FILTER
4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (C)
8-97947-677-0
01
1
1203-1206
88
03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 07.068 (B) M10X30 FLANGE
0-28661-030-0
02
1
1203-1206
88
03.895 BOLT; BRKT,FUEL FILTER
(A) M8X16 FLANGE
8-98076-109-0
03
1
1203-1309
88
03.895 BOLT; BRKT,FUEL FILTER
(A) M8X16 FLANGE
8-97948-261-0
03
1
1310-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1203-
1
2
47
88
40
41
1
41
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B)
8-98182-445-0
01
1
1203-
1
03.890 FILTER ASM; FUEL
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A)
8-98101-749-3
01
1
1203-1301
1
03.890 FILTER ASM; FUEL
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A)
8-98239-983-0
01
1
1302-1303
1
03.890 FILTER ASM; FUEL
(A)
8-98239-983-0
01
1
1304-
1
03.890 FILTER ASM; FUEL
EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)
8-98067-761-3
01
1
1203-1303
2
03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> (B)
8-98194-119-0
01
1
1203-
2
03.890 ELEMENT KIT; FUEL FILTER
(A)
8-98159-693-0
01
1
1203-
39
03.890 GASKET; DRAIN PLUG
8-98188-943-0
01
1
1203-
40
03.890 BRACKET; FUEL FILTER
4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (B)
8-98197-461-0
01
1
1203-1206
40
03.890 BRACKET; FUEL FILTER
(A)
8-98177-496-0
01
1
1203-
40
03.890 BRACKET; FUEL FILTER
4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (C)
8-97947-677-0
01
1
1203-1206
41
03.890 BRACKET; FUEL FILTER
4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)
8-98197-461-0
01
1
1207-
41
03.890 BRACKET; FUEL FILTER
4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (B)
8-97947-677-0
01
1
1207-
47
03.890 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 07.068 M10X30 FLANGE
0-28661-030-0
02
1
1207-1406
47
03.890 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> M10X30 FLANGE
8-98276-856-0
02
1
1407-
88
03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL<KF0> 07.068 (B) M10X30 FLANGE
0-28661-030-0
02
1
1203-1206
88
03.895 BOLT; BRKT,FUEL FILTER
(A) M8X16 FLANGE
8-98076-109-0
03
1
1203-1309
88
03.895 BOLT; BRKT,FUEL FILTER
(A) M8X16 FLANGE
8-97948-261-0
03
1
1310-
119
03.890 PLUG; DRAIN,FUEL FILTER
8-98188-941-0
01
1
1203-
