Sayfa 0-13 - Isuzu EPC

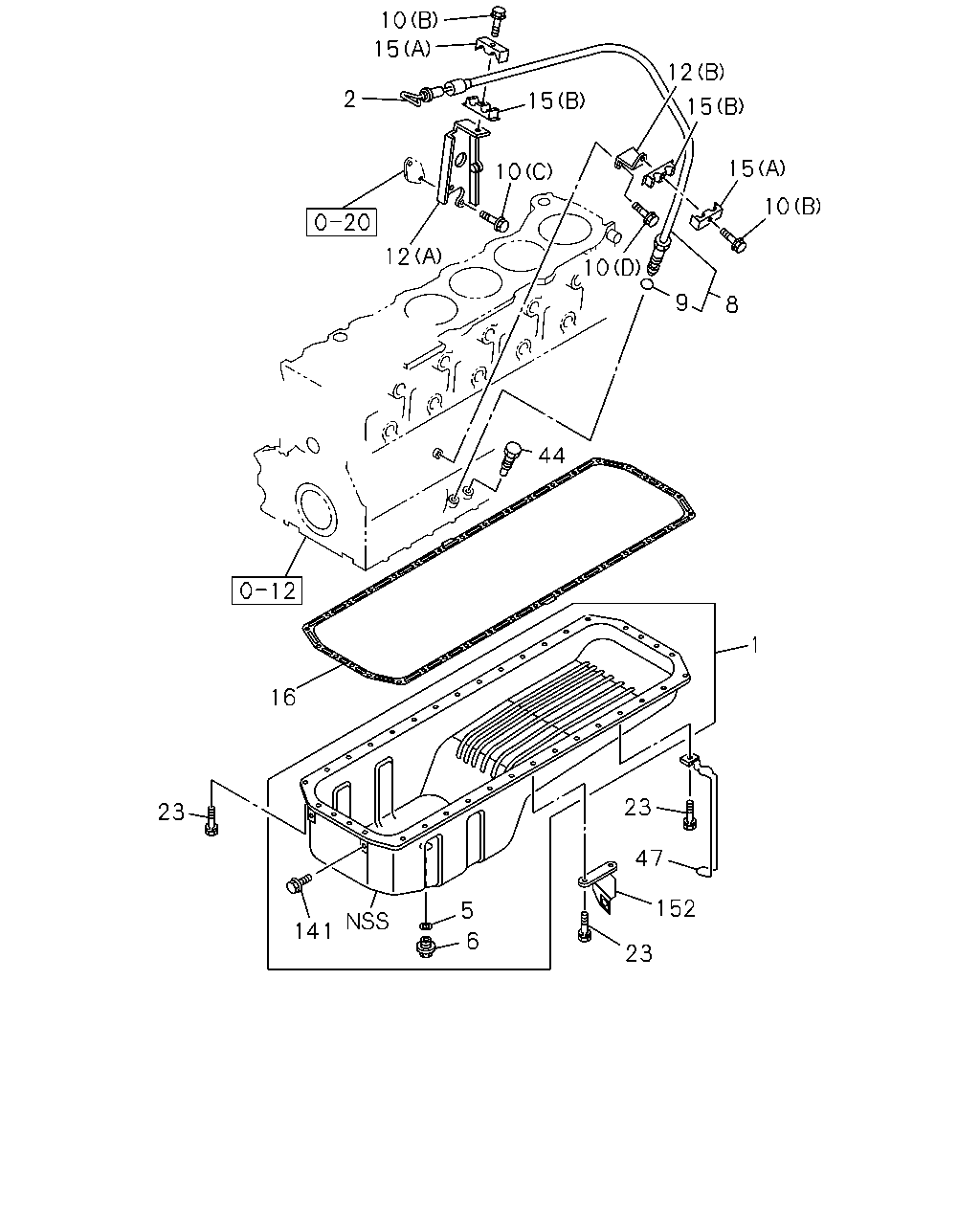

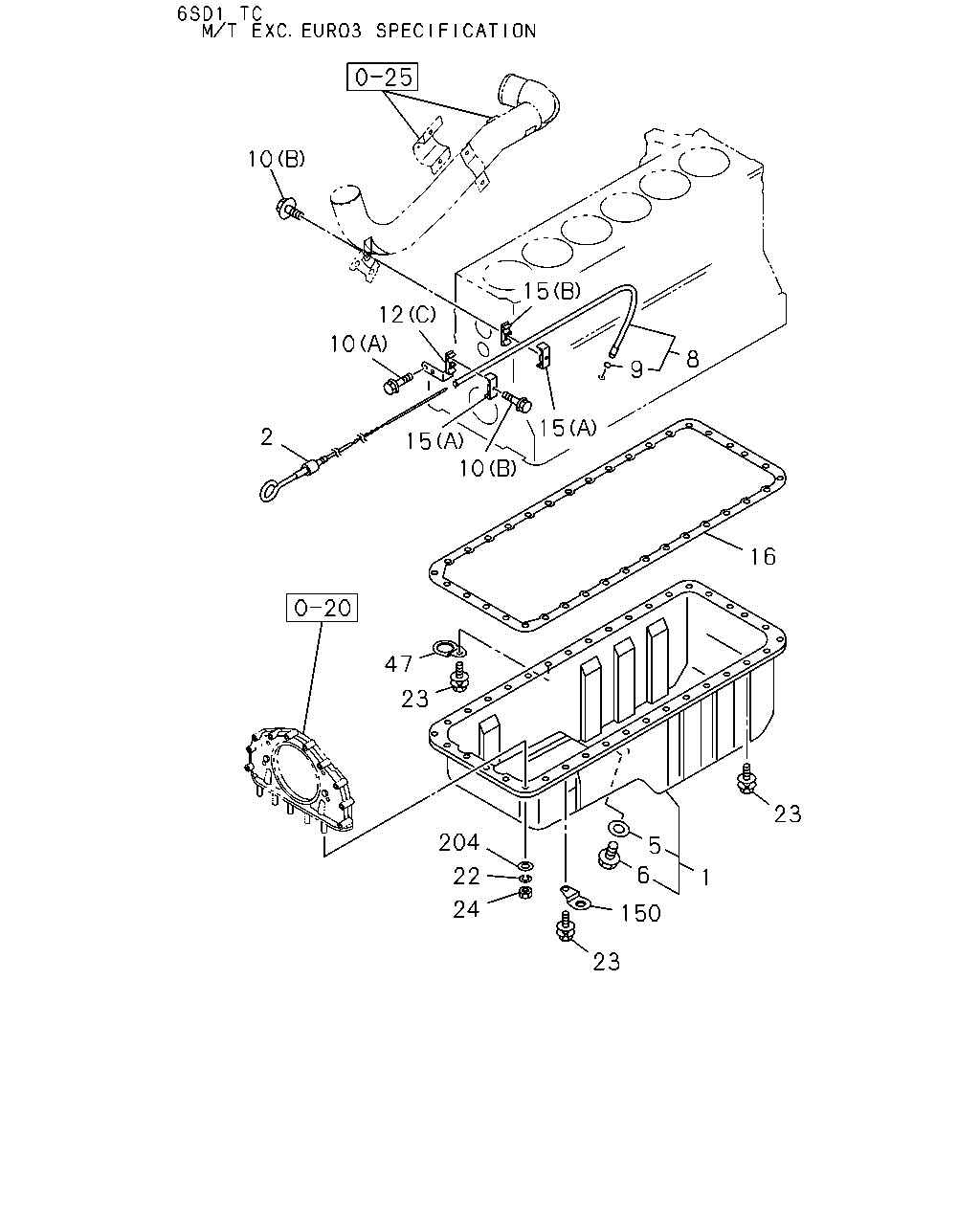

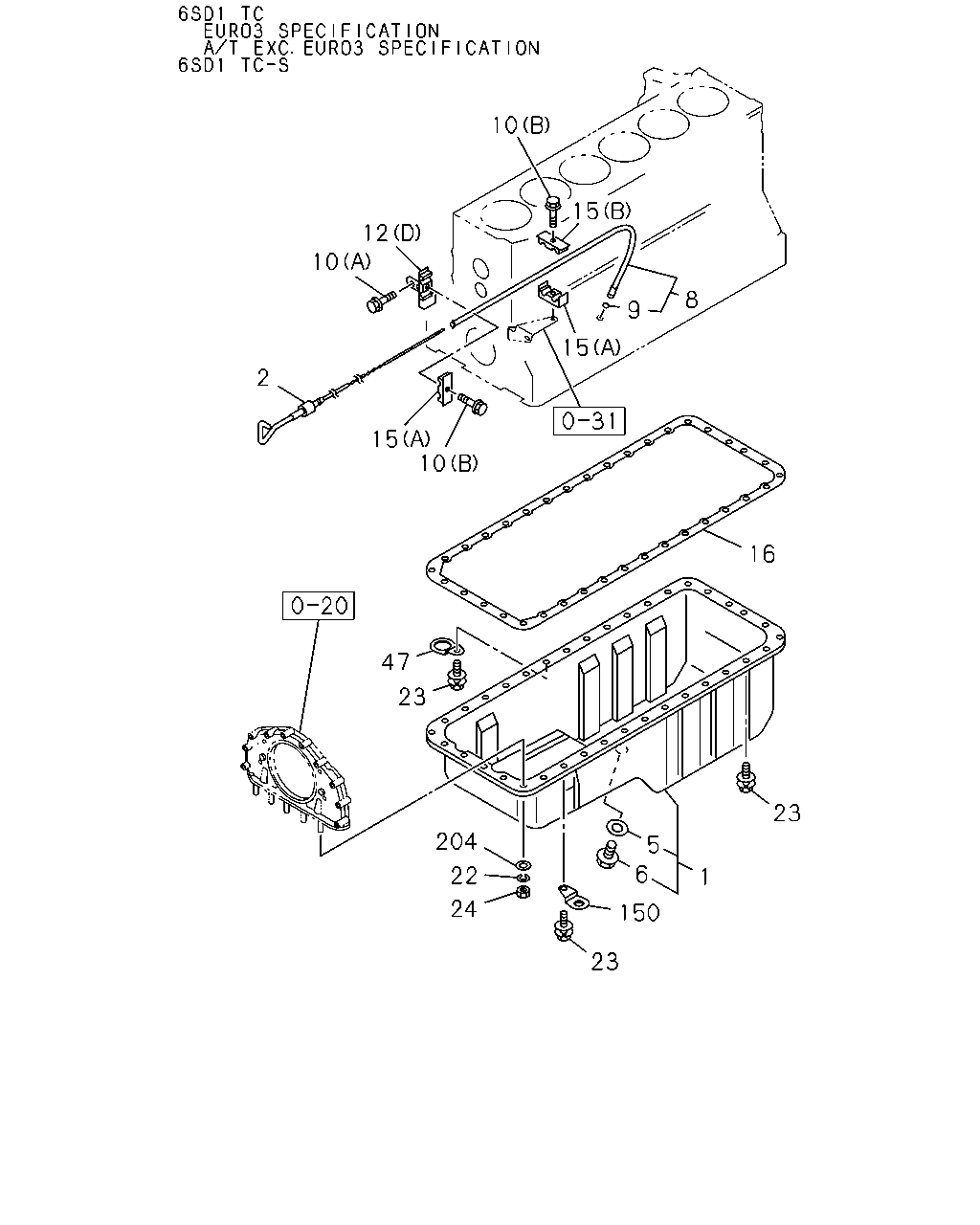

0-13 — OIL PAN AND LEVEL GAUGE (#7941) — 276 parça

10 15 12 10 8 9 15 2 15 10 16 47 23 23 204 5 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-708-3	01	1	0012-0210	●
1	PAN ASM; OIL	1-11360-708-3	01	1	0211-	●	●
1	PAN ASM; OIL	1-11360-862-0	01	1	0204-0309			●
1	PAN ASM; OIL	1-11360-912-0	01	1	0310-			●
2	GAUGE; OIL LEVEL	1-11760-414-0	01	1	0012-0106	●
2	GAUGE; OIL LEVEL EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0204-	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL	1-11760-438-0	01	1	0211-		●
2	GAUGE; OIL LEVEL	1-11760-424-0	01	1	0204-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0012-0210	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0211-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0204-0309			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0310-			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0012-0111	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-0210	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0211-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0204-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-509-0	01	1	0012-0106	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0204-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-592-0	01	1	0211-0502		●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97607-462-0	01	1	0503-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-569-0	01	1	0204-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0012-0210	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0211-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-496-0	01	1	0204-			●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0012-0203	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0204-0210	●		●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0211-0512	●	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●	●	●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	1-11769-178-0	01	1	0012-0106	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0204-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (D)	1-11769-195-0	01	1	0211-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-190-0	01	1	0204-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-197-0	01	1	0204-			●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0012-0203	●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0204-0210	●		●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0211-	●	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-0	01	1	0012-0210	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	01	1	0211-	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	02	1	0204-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0012-0210	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0211-1103	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-130-0	01	1	0204-			●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	0012-0210	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	0211-0603	●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-	●	●
23	BOLT; OIL PAN M10X30 FLANGE	0-28151-030-0	02	1	1001-			●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0012-0210	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0211-0906	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-	●	●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50151-028-0	36	1	0204-0906			●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50651-028-0	36	1	0907-0909			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	36	1	0910-0912			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	34	1	1001-			●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0012-0210	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0211-0512	●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0012-0210	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0211-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-155-0	01	1	0204-			●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	9-11229-070-0	01	1	0012-0210	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0211-	●	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0012-0106	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0107-0210	●
150	CLIP; WATER,OIL DRAIN EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0107-0210	●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	0211-	●	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	0012-0210	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	0211-0605	●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-	●	●

10 15 12 10 8 9 15 2 15 10 16 47 23 23 204 5 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-708-3	01	1	0012-0210	●
1	PAN ASM; OIL	1-11360-708-3	01	1	0211-	●	●
1	PAN ASM; OIL	1-11360-862-0	01	1	0204-0309			●
1	PAN ASM; OIL	1-11360-912-0	01	1	0310-			●
2	GAUGE; OIL LEVEL	1-11760-414-0	01	1	0012-0106	●
2	GAUGE; OIL LEVEL EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0204-	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL	1-11760-438-0	01	1	0211-		●
2	GAUGE; OIL LEVEL	1-11760-424-0	01	1	0204-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0012-0210	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0211-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0204-0309			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0310-			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0012-0111	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-0210	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0211-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0204-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-509-0	01	1	0012-0106	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0204-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-592-0	01	1	0211-0502		●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97607-462-0	01	1	0503-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-569-0	01	1	0204-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0012-0210	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0211-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-496-0	01	1	0204-			●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0012-0203	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0204-0210	●		●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0211-0512	●	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●	●	●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	1-11769-178-0	01	1	0012-0106	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0204-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (D)	1-11769-195-0	01	1	0211-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-190-0	01	1	0204-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-197-0	01	1	0204-			●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0012-0203	●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0204-0210	●		●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0211-	●	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-0	01	1	0012-0210	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	01	1	0211-	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	02	1	0204-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0012-0210	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0211-1103	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-130-0	01	1	0204-			●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	0012-0210	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	0211-0603	●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-	●	●
23	BOLT; OIL PAN M10X30 FLANGE	0-28151-030-0	02	1	1001-			●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0012-0210	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0211-0906	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-	●	●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50151-028-0	36	1	0204-0906			●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50651-028-0	36	1	0907-0909			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	36	1	0910-0912			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	34	1	1001-			●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0012-0210	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	0211-0512	●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0012-0210	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0211-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-155-0	01	1	0204-			●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN)	9-11229-070-0	01	1	0012-0210	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0211-	●	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0012-0106	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0107-0210	●
150	CLIP; WATER,OIL DRAIN EURO3 SPECIFICATION(NJX)	9-11229-070-0	02	1	0107-0210	●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	0211-	●	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	0012-0210	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	0211-0605	●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-	●	●

10 15 12 2 15 15 15 10 10 12 10 9 8 44 1 16 23 23 47 152 5 141 6 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL	1-11360-708-3	01	1	0012-0210	●
1	PAN ASM; OIL	1-11360-708-3	01	1	0211-	●	●
1	PAN ASM; OIL	1-11360-862-0	01	1	0204-0309			●
1	PAN ASM; OIL	1-11360-912-0	01	1	0310-			●
2	GAUGE; OIL LEVEL	1-11760-414-0	01	1	0012-0106	●
2	GAUGE; OIL LEVEL EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11760-414-0	01	1	0204-	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0107-0203	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0204-0210	●
2	GAUGE; OIL LEVEL EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11760-438-0	01	1	0211-	●
2	GAUGE; OIL LEVEL	1-11760-438-0	01	1	0211-		●
2	GAUGE; OIL LEVEL	1-11760-424-0	01	1	0204-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0012-0210	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	0211-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0204-0309			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0310-			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	0012-0111	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-0210	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0211-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	0204-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-509-0	01	1	0012-0106	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-11766-509-0	01	1	0204-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0107-0203	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0204-0210	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	1-11766-592-0	01	1	0211-0502	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-592-0	01	1	0211-0502		●
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX)	8-97607-462-0	01	1	0503-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	8-97607-462-0	01	1	0503-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-569-0	01	1	0204-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0012-0210	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0211-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-496-0	01	1	0204-			●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
10	BOLT; GUIDE TUBE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0012-0203	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0204-0210	●		●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28680-635-0	02	1	0211-0512	●	●	●
10	BOLT; GUIDE TUBE (B) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●	●	●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28181-020-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (D) M10X20 FLANGE	0-28151-020-0	02	1	0601-			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
10	BOLT; GUIDE TUBE (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (C)	1-11769-178-0	01	1	0012-0106	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C)	1-11769-178-0	01	1	0204-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0107-0203	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0204-0210	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) (D)	1-11769-195-0	01	1	0211-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (D)	1-11769-195-0	01	1	0211-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-190-0	01	1	0204-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-197-0	01	1	0204-			●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0012-0203	●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0204-0210	●		●
15	CLIP; GUIDE TUBE (A)	1-09701-193-1	02	1	0211-	●	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-0	01	1	0012-0210	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	01	1	0211-	●	●
15	CLIP; GUIDE TUBE (B)	1-09701-194-1	02	1	0204-			●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0012-0210	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0211-1103	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-130-0	01	1	0204-			●
23	BOLT; OIL PAN M10X30 FLANGE	0-28151-030-0	02	1	1001-			●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0012-0210	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	0211-0906	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-	●	●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50151-028-0	36	1	0204-0906			●
23	BOLT; OIL PAN M10X28 W/LK&PL WASHER	0-50651-028-0	36	1	0907-0909			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	36	1	0910-0912			●
23	BOLT; OIL PAN M10X20 FLANGE	0-28151-020-0	34	1	1001-			●
44	PLUG	1-09604-098-0	01	1	0204-			●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0012-0210	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	0211-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11369-155-0	01	1	0204-			●
141	BOLT; BRKT TO OIL PAN FIX M10X20 FLANGE	0-28081-020-0	02	1	0204-0309			●
152	BRACKET; CLIP POWER STRG PIPE	1-21119-130-1	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
