Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#7940) — 283 parça

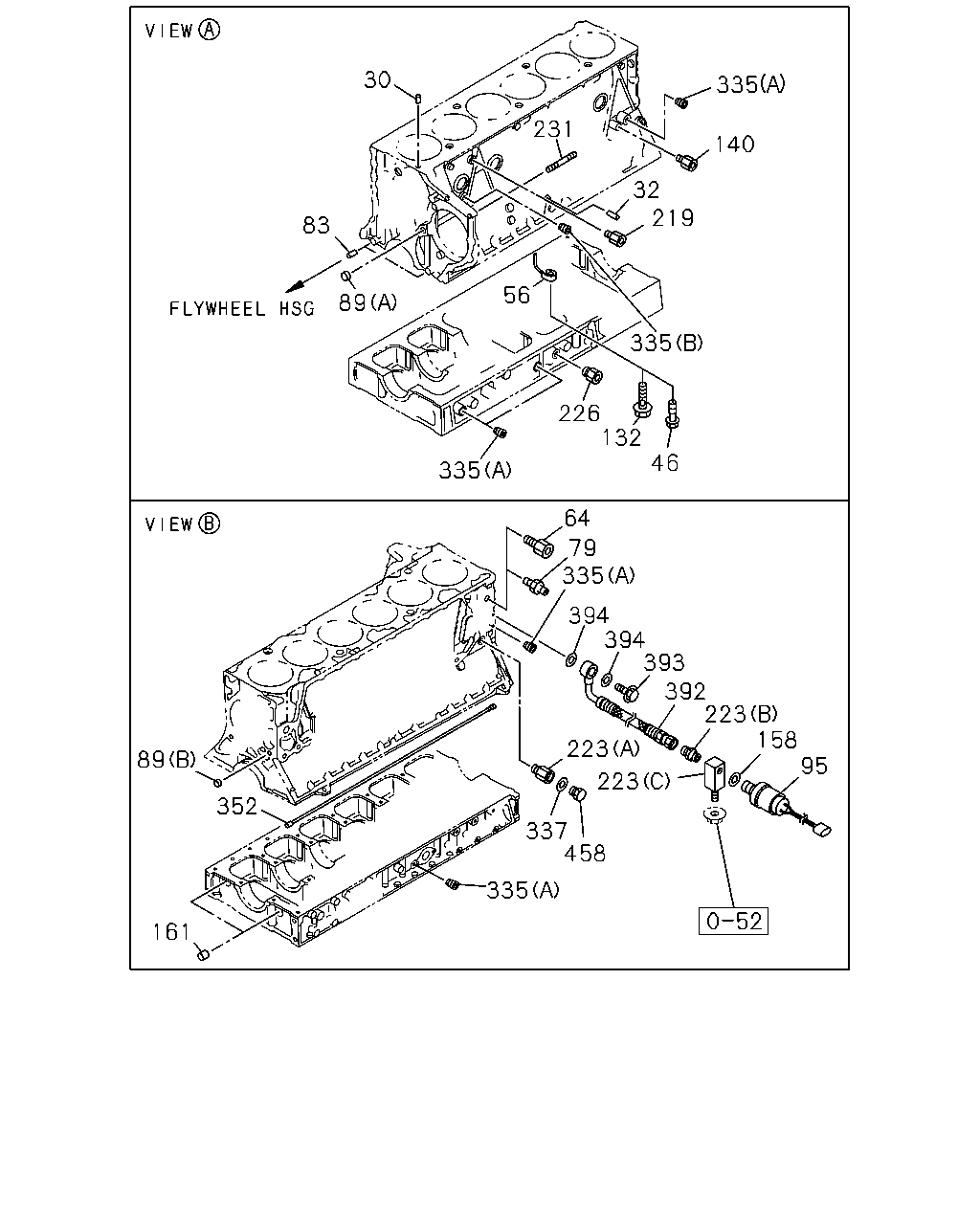

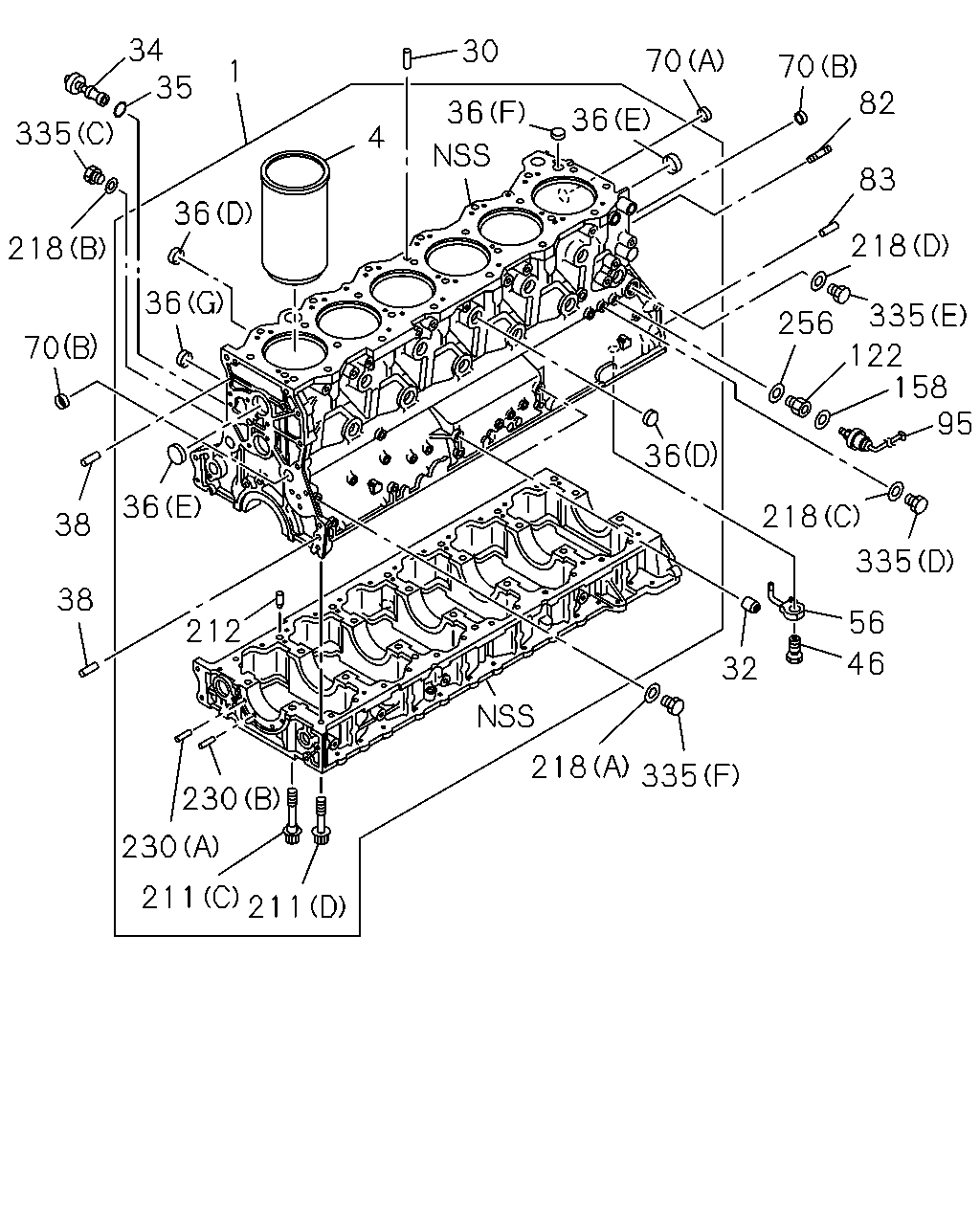

34 35 30 70 70 82 1 36 36 335 4 83 36 218 218 36 36 335 256 70 122 158 95 36 212 218 38 335 38 56 230 46 32 218 335 230 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0012-0106	●
1	BLOCK ASM; CYL EXC. EURO3 SPECIFICATION(NJX)	1-11210-620-4	01	1	0107-	●
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NJX)	1-11210-682-0	01	1	0107-0210	●
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NJX)	1-11210-682-1	01	1	0211-	●
1	BLOCK ASM; CYL	1-11210-682-1	01	1	0211-		●
1	BLOCK ASM; CYL	1-11210-664-5	01	1	0204-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-368-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-369-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-370-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-371-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0204-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0204-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0012-0210	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0211-	●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0204-0807			●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	0808-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0012-0210	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0211-	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0204-			●
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	0204-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0712-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0204-0508			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0204-			●
36	CUP; SEALING,WATER JACKET (F) OD=25	1-09600-016-0	01	1	0204-			●
36	CUP; SEALING,WATER JACKET (G) OD=40	1-09600-065-1	02	1	0204-			●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0204-			●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0204-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0012-0106	●
46	BOLT; JOINT,OIL JET,PISTON COOLING EXC. EURO3 SPECIFICATION(NJX)	1-09675-105-1	06	1	0107-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0204-			●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0012-0106	●
56	JET; OIL,PISTON COOLING EXC. EURO3 SPECIFICATION(NJX)	1-13342-127-1	06	1	0107-	●
56	JET; OIL,PISTON COOLING EURO3 SPECIFICATION(NJX)	1-13342-140-0	06	1	0107-0210	●
56	JET; OIL,PISTON COOLING EURO3 SPECIFICATION(NJX)	1-13342-140-1	06	1	0211-	●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-		●
56	JET; OIL,PISTON COOLING	1-13342-125-4	06	1	0204-			●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0204-			●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	0204-			●
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	0204-0604			●
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	0605-			●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0012-0210	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0211-	●	●
83	PIN; FLYWHEEL HSG OD=14 L=28	9-08161-428-0	02	1	0204-			●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0012-0203	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0204-0210	●		●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0211-	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0204-			●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0012-0203	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●	●	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0012-0210	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0211-	●	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0012-0210	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0211-	●	●
211	BOLT; CRANKCASE (D) M12X114	1-09070-087-2	28	1	0204-			●
211	BOLT; CRANKCASE (C) M18X150	1-09070-151-0	14	1	0204-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0012-0210	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0211-	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	0204-			●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-			●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0204-			●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=14.2 OD=19.2	1-09630-085-0	01	1	0204-			●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) RH SIDE ID=22	1-09630-089-0	01	1	0204-			●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0012-0203	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0204-0210	●		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0211-	●	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0012-0203	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0204-0210	●		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0211-	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0204-			●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0012-0210	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0211-	●	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0012-0210	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0211-	●	●
335	PLUG; C/BL,SIDE (E) M22X12	1-09604-035-0	01	1	0204-			●
335	PLUG; C/BL,SIDE (F) M10X7	1-09604-094-0	01	1	0204-			●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	0204-0805			●
335	PLUG; C/BL,SIDE (C) M12X9	8-98047-054-0	01	1	0806-			●
335	PLUG; C/BL,SIDE (D) M14X9	9-99202-314-0	01	1	0204-0805			●
335	PLUG; C/BL,SIDE (D) M14X9	8-98042-944-0	01	1	0806-			●

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0012-0106	●
2	LINER SET; ENG CYL EXC. EURO3 SPECIFICATION(NJX) GRADE=1X	1-87811-426-2	06	1	0107-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0012-0106	●
2	LINER SET; ENG CYL EXC. EURO3 SPECIFICATION(NJX) GRADE=3X	1-87811-427-2	06	1	0107-	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=1X	1-87812-160-0	06	1	0107-0309	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=1X	1-87812-631-2	06	1	0310-	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=3X	1-87812-161-0	06	1	0107-0309	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=3X	1-87812-632-2	06	1	0310-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-4	06	1	0204-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-4	06	1	0204-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-996-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-629-2	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-997-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-630-2	06	1	0310-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-368-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-369-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-370-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-371-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0204-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0204-			●

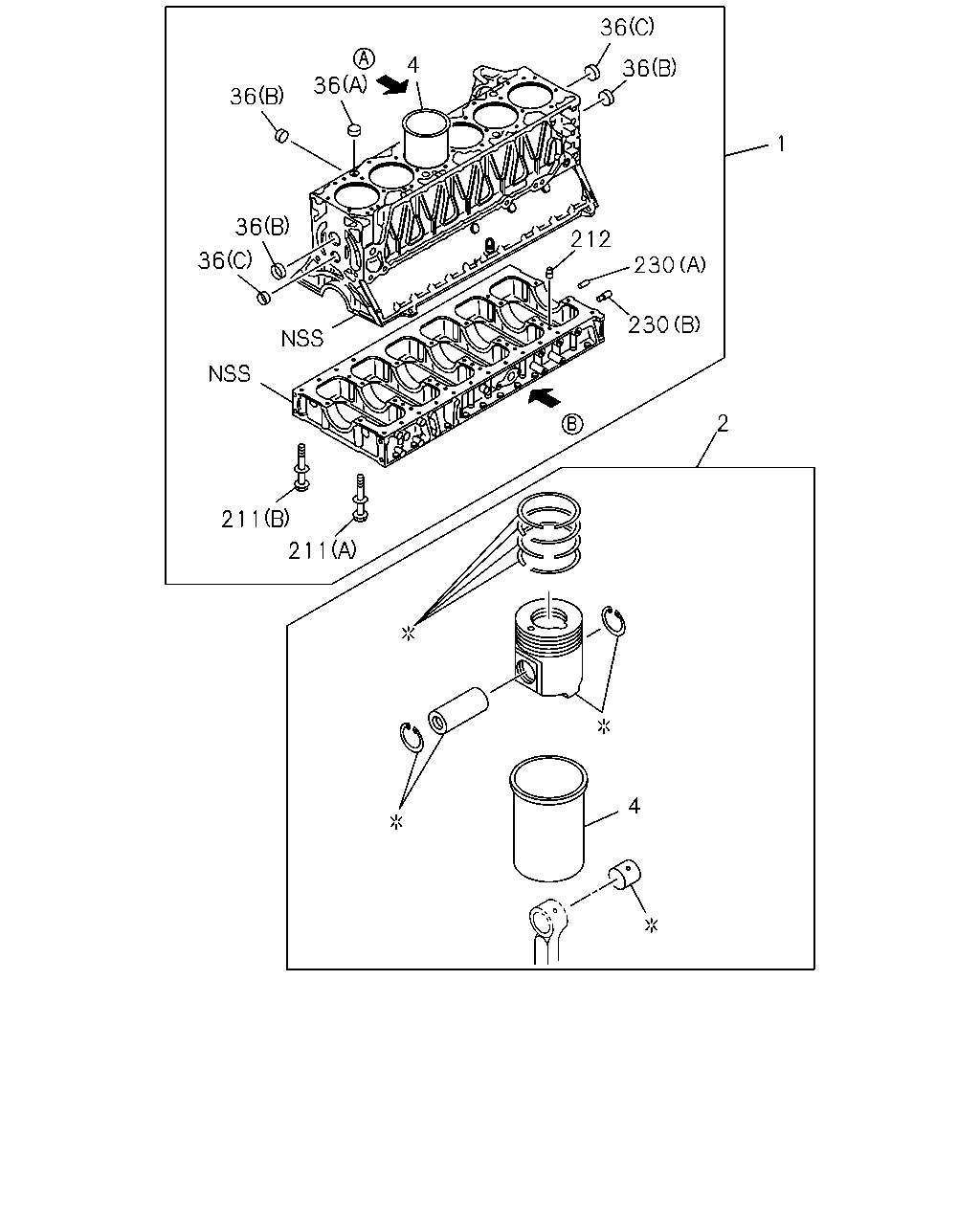

36 4 36 36 36 1 36 212 36 230 230 2 211 211 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-620-3	01	1	0012-0106	●
1	BLOCK ASM; CYL EXC. EURO3 SPECIFICATION(NJX)	1-11210-620-4	01	1	0107-	●
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NJX)	1-11210-682-0	01	1	0107-0210	●
1	BLOCK ASM; CYL EURO3 SPECIFICATION(NJX)	1-11210-682-1	01	1	0211-	●
1	BLOCK ASM; CYL	1-11210-682-1	01	1	0211-		●
1	BLOCK ASM; CYL	1-11210-664-5	01	1	0204-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	0012-0106	●
2	LINER SET; ENG CYL EXC. EURO3 SPECIFICATION(NJX) GRADE=1X	1-87811-426-2	06	1	0107-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	0012-0106	●
2	LINER SET; ENG CYL EXC. EURO3 SPECIFICATION(NJX) GRADE=3X	1-87811-427-2	06	1	0107-	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=1X	1-87812-160-0	06	1	0107-0309	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=1X	1-87812-631-2	06	1	0310-	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=3X	1-87812-161-0	06	1	0107-0309	●
2	LINER SET; ENG CYL EURO3 SPECIFICATION(NJX) GRADE=3X	1-87812-632-2	06	1	0310-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-4	06	1	0204-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-4	06	1	0204-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-996-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=1X	1-87812-629-2	06	1	0310-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-997-0	06	1	0211-0309		●
2	LINER SET; ENG CYL GRADE=3X	1-87812-630-2	06	1	0310-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-298-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-299-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-300-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	0012-0106	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-301-1	06	1	0107-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=AX	1-11261-368-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-368-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=1X,ID GRADE=CX	1-11261-369-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-369-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=AX	1-11261-370-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-370-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) OD GRADE=3X,ID GRADE=CX	1-11261-371-0	06	1	0107-0210	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-371-2	06	1	0211-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0204-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0204-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-1	07	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	0012-0210	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-1	02	1	0211-	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-005-2	04	1	0204-			●
36	CUP; SEALING,WATER JACKET (F) OD=25	1-09600-016-0	01	1	0204-			●
36	CUP; SEALING,WATER JACKET (G) OD=40	1-09600-065-1	02	1	0204-			●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0204-			●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0012-0210	●
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	0211-	●	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0012-0210	●
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	0211-	●	●
211	BOLT; CRANKCASE (D) M12X114	1-09070-087-2	28	1	0204-			●
211	BOLT; CRANKCASE (C) M18X150	1-09070-151-0	14	1	0204-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0012-0210	●
212	PIN; CRANKCASE	1-09740-031-0	02	1	0211-	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	0204-			●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0012-0203	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0204-0210	●		●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	0211-	●	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0012-0203	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0204-0210	●		●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	0211-	●	●	●

30 335 231 140 32 219 83 56 89 335 226 132 46 335 64 79 335 394 394 393 392 223 158 95 223 89 223 352 337 458 335 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0012-0210	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	0211-	●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0204-0807			●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	0808-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0012-0210	●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	0211-	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0204-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	0012-0106	●
46	BOLT; JOINT,OIL JET,PISTON COOLING EXC. EURO3 SPECIFICATION(NJX)	1-09675-105-1	06	1	0107-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0204-			●
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	0012-0106	●
56	JET; OIL,PISTON COOLING EXC. EURO3 SPECIFICATION(NJX)	1-13342-127-1	06	1	0107-	●
56	JET; OIL,PISTON COOLING EURO3 SPECIFICATION(NJX)	1-13342-140-0	06	1	0107-0210	●
56	JET; OIL,PISTON COOLING EURO3 SPECIFICATION(NJX)	1-13342-140-1	06	1	0211-	●
56	JET; OIL,PISTON COOLING	1-13342-140-1	06	1	0211-		●
56	JET; OIL,PISTON COOLING	1-13342-125-4	06	1	0204-			●
64	CONNECTOR; TURBOCHARGER OIL FEED EURO3 SPECIFICATION(NJX)	1-09660-526-0	01	1	0107-0210	●
64	CONNECTOR; TURBOCHARGER OIL FEED EURO3 SPECIFICATION(NJX)	1-09660-526-0	01	1	0211-	●
64	CONNECTOR; TURBOCHARGER OIL FEED	1-09660-526-0	01	1	0211-		●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0012-0106	●
79	NIPPLE; OIL FEED,TURBOCHARGER EXC. EURO3 SPECIFICATION(NJX) M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	0107-	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0012-0210	●
83	PIN; FLYWHEEL HSG	9-08161-025-0	02	1	0211-	●	●
83	PIN; FLYWHEEL HSG OD=14 L=28	9-08161-428-0	02	1	0204-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0012-0210	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	0211-0301	●	●
89	CUP; SEALING,OIL GALLERY (A) OD=16	5-11129-006-0	01	1	0302-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0012-0210	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	0211-0909	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11129-128-0	02	1	0910-	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0012-0203	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0204-0210	●		●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0211-	●	●	●
132	VALVE; CHECK,OIL EURO3 SPECIFICATION(NJX)	1-13161-025-1	06	1	0107-0210	●
132	VALVE; CHECK,OIL EURO3 SPECIFICATION(NJX)	1-13161-025-2	06	1	0211-	●
132	VALVE; CHECK,OIL	1-13161-025-2	06	1	0211-		●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0012-0210	●
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	0211-	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0012-0203	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-0210	●		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0211-	●	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0012-0210	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	0211-	●	●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0012-0210	●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	0211-	●	●
223	CONNECTOR; OIL PRESSURE (B) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	0012-0210	●
223	CONNECTOR; OIL PRESSURE (B) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	0211-	●	●
223	CONNECTOR; OIL PRESSURE (A)	1-09660-526-0	01	1	0012-0210	●
223	CONNECTOR; OIL PRESSURE (A)	1-09660-526-0	01	1	0211-	●	●
223	CONNECTOR; OIL PRESSURE (C)	1-09664-236-0	01	1	0012-0210	●
223	CONNECTOR; OIL PRESSURE (C)	1-09664-236-0	01	1	0211-	●	●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0012-0210	●
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	0211-	●	●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0012-0210	●
231	STUD; AIR CMPR M12X140 L=160	1-09302-169-0	02	1	0211-	●	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0012-0210	●
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	0211-	●	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0012-0210	●
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	0211-	●	●
335	PLUG; C/BL,SIDE (E) M22X12	1-09604-035-0	01	1	0204-			●
335	PLUG; C/BL,SIDE (F) M10X7	1-09604-094-0	01	1	0204-			●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	0204-0805			●
335	PLUG; C/BL,SIDE (C) M12X9	8-98047-054-0	01	1	0806-			●
335	PLUG; C/BL,SIDE (D) M14X9	9-99202-314-0	01	1	0204-0805			●
335	PLUG; C/BL,SIDE (D) M14X9	8-98042-944-0	01	1	0806-			●
337	GASKET; PLUG ID=14.2 OD=25	1-09630-141-0	01	1	0012-0210	●
337	GASKET; PLUG ID=14.2 OD=25	1-09630-141-0	01	1	0211-	●	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	0012-0210	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	0211-	●	●
392	HOSE; FLEX,OIL PRESS UNIT	1-09364-720-0	01	1	0012-0210	●
392	HOSE; FLEX,OIL PRESS UNIT	1-09364-720-0	01	1	0211-	●	●
393	BOLT; EYE,FLEX HOSE M14X27 FLANGE	1-09675-086-0	01	1	0012-0210	●
393	BOLT; EYE,FLEX HOSE M14X27 FLANGE	1-09675-086-0	01	1	0211-	●	●
394	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0012-0210	●
394	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-	●	●
458	PLUG; CONNECTOR M14X9	9-99202-314-0	01	1	0012-0210	●
458	PLUG; CONNECTOR M14X9	9-99202-314-0	01	1	0211-0805	●	●
458	PLUG; CONNECTOR M14X9	8-98042-944-0	01	1	0806-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
