9-33 — REAR BODY; GATE AND SIDE GUARD (#79397) — 885 parça

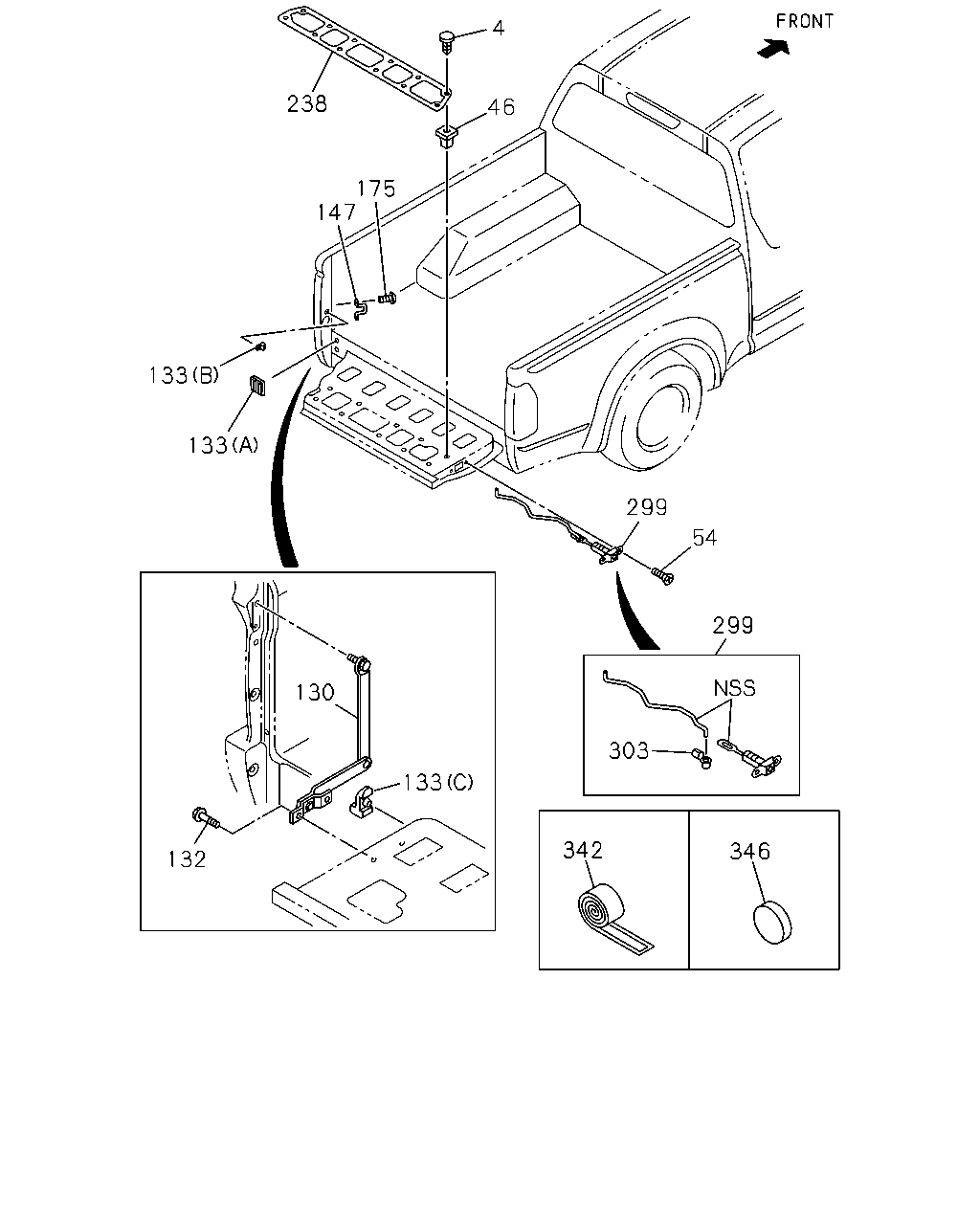

çizim 147328
132 133 130 133 133 147 175 238 46 4 299 299 303 346 342 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 SCREW; PANEL,RR GATE
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> M4X10 THA 		8-97043-528-0 12 1 1212-1505 ● ● ●
4 SCREW; PANEL,RR GATE
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> M4X10 THA 		8-97043-528-0 12 1 1212-1505 ●
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 1506- ● ● ● ●
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 1109-1109 ● ●
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 1110-1211 ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98165-002-2 12 1 1212-1505 ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98165-002-2 12 1 1212-1505 ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
THA 		8-98165-002-2 12 1 1506- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
THA 		8-98165-002-2 12 1 1109-1109 ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
THA 		8-98165-002-2 12 1 1110-1211 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 THA 		8-97247-699-0 04 1 1109-1109 ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 THA 		8-97247-699-0 04 1 1110- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1212-1505 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1212-1505 ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1506- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1506- ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1212-1505 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1212-1505 ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1506- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1506- ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1109-1109 ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-461-1 01 1 1110-1211 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-461-1 01 1 1110-1211 ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1109-1109 ● ●
130 LINK ASM; TAIL GATE,RR BODY
THA 		8-98180-462-1 01 1 1110-1211 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-462-1 01 1 1110-1211 ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1212-1505 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1212-1505 ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1506- ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1506- ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1109-1109 ● ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE THA 		0-28650-820-0 04 1 1110-1211 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> M8X20 FLANGE THA 		0-28650-820-0 04 1 1110-1211 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1212-1505 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1212-1505 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1506- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1506- ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1212-1505 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1212-1505 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1506- ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1506- ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1109-1109 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-185-2 02 1 1110-1211 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (C) THA 		8-97302-185-2 02 1 1110-1211 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1109-1109 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-98110-231-2 02 1 1110-1211 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98110-231-2 02 1 1110-1211 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> (A) THA 		8-98134-726-1 01 1 1109-1109 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-726-1 01 1 1109-1109 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> (A) THA 		8-98134-726-1 01 1 1110-1211 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-726-1 01 1 1110-1211 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-726-1 01 1 1212- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-726-1 01 1 1212- ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> (A) THA 		8-98134-727-1 01 1 1109-1109 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-727-1 01 1 1109-1109 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> (A) THA 		8-98134-727-1 01 1 1110-1211 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-727-1 01 1 1110-1211 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43>,SALES PACKAGE SPORTY<XK0> (A) THA 		8-98134-727-1 01 1 1212- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-98134-727-1 01 1 1212- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-088-1 01 1 1110- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98126-089-1 01 1 1110- ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1109-1109 ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1110- ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1109-1109 ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1110- ● ● ● ●
238 COVER; RR GATE
INTERIOR DELUXE<RBB>,INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98181-076-2 01 1 1212-1505 ● ● ●
238 COVER; RR GATE
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98181-076-2 01 1 1212-1505 ●
238 COVER; RR GATE
THA 		8-98181-076-2 01 1 1506- ● ● ● ●
238 COVER; RR GATE
THA 		8-98181-076-2 01 1 1109-1109 ● ●
238 COVER; RR GATE
THA 		8-98181-076-2 01 1 1110-1211 ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-971-3 01 1 1109-1109 ● ●
299 LATCH; END GATE
THA 		8-98102-971-3 01 1 1110- ● ● ● ●
299 LATCH; END GATE
THA 		8-98102-972-3 01 1 1109-1109 ● ●
299 LATCH; END GATE
THA 		8-98102-972-3 01 1 1110- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 1109-1109 ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 1110- ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 1109-1109 ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 1110- ● ● ● ●
342 TAPE
HIGH RIDE SUSPENSION<7YC> THA 		8-98139-776-2 01 1 1109-1109 ●
342 TAPE
THA 		8-98139-776-2 01 1 1109-1109 ●
342 TAPE
HIGH RIDE SUSPENSION<7YC> THA 		8-98139-776-4 01 1 1110- ● ●
342 TAPE
THA 		8-98139-776-4 01 1 1110- ● ●
342 TAPE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98139-775-2 01 1 1109-1109 ●
342 TAPE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98139-775-4 01 1 1110- ● ●
342 TAPE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98139-775-4 01 1 1110- ●
346 SEAL; PANEL,GATE
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1212- ● ● ●
346 SEAL; PANEL,GATE
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1109-1109 ● ●
346 SEAL; PANEL,GATE
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1110-1211 ● ● ●
346 SEAL; PANEL,GATE
RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1110-1211 ●

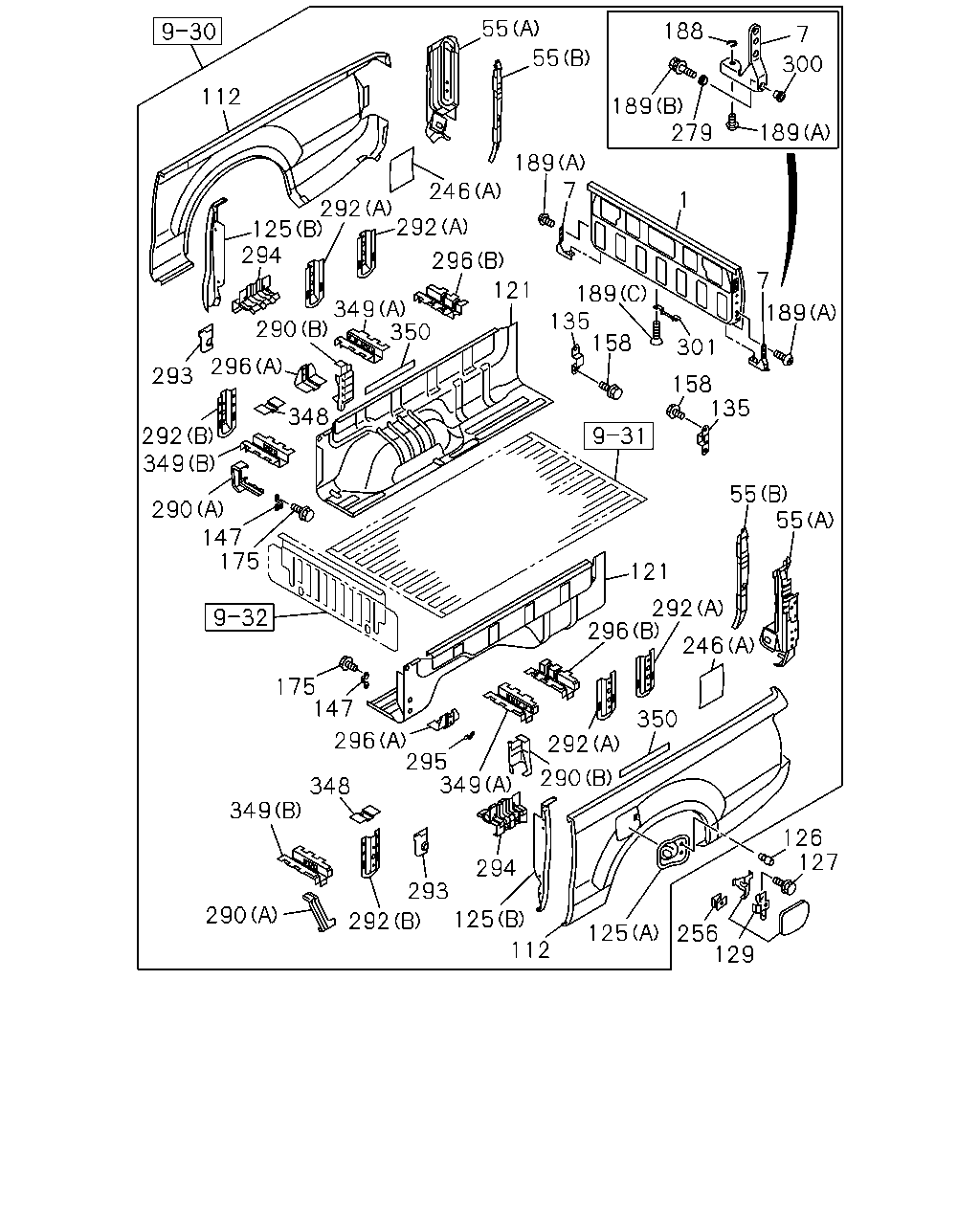

çizim 147332
129 256 126 127 125 112 125 294 290 290 350 246 292 296 121 55 55 293 292 290 349 296 348 175 147 295 349 175 147 290 158 135 301 189 7 1 158 135 189 121 296 350 349 290 296 348 292 349 293 294 125 292 246 292 189 189 300 7 188 189 279 55 55 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO DELETE<UL5> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98203-926-2 01 1 1212- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1110- ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98183-096-2 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98183-096-3 01 1 1212- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1110- ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1110- ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-262-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-264-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-380-4 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-381-4 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1109- ●

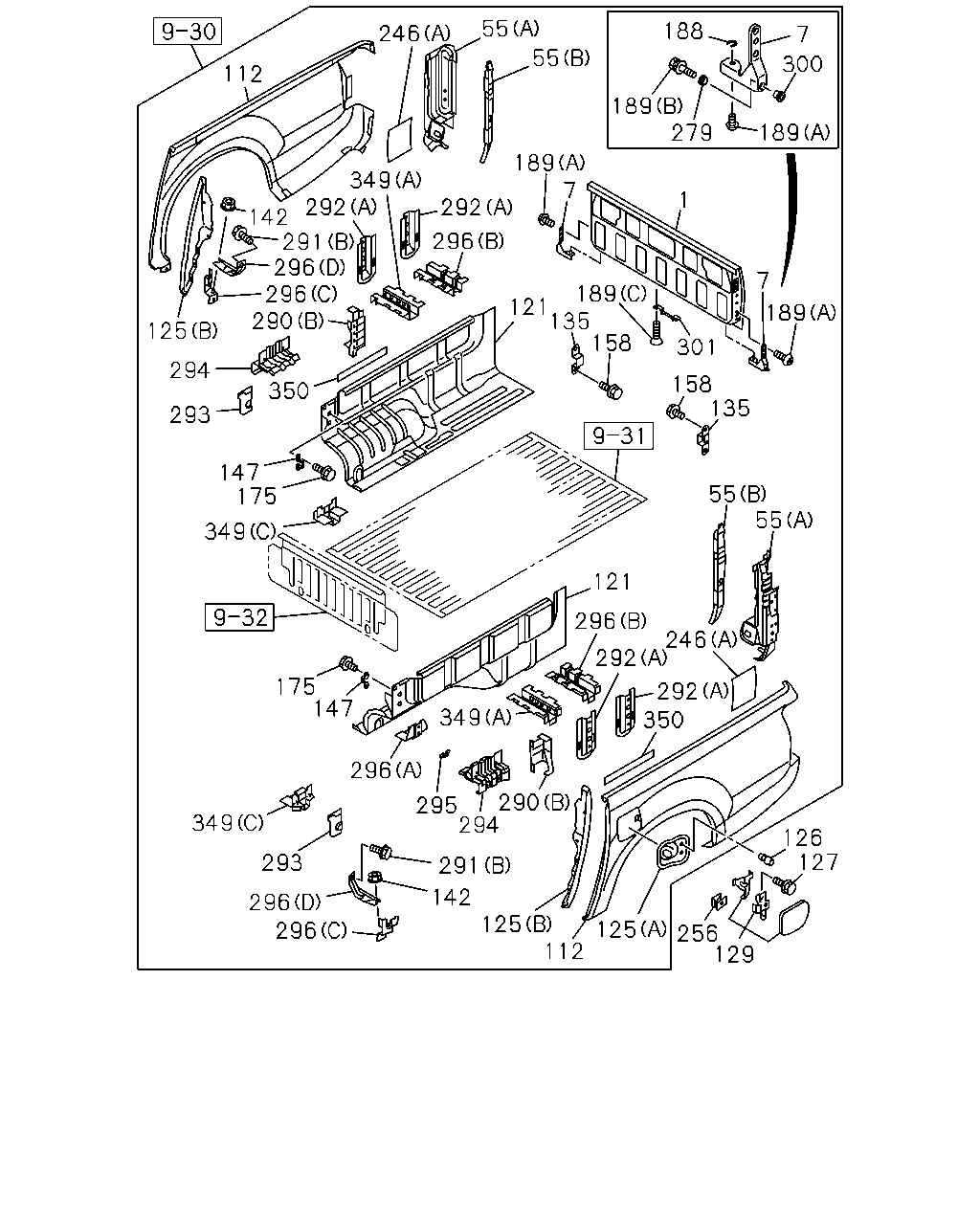

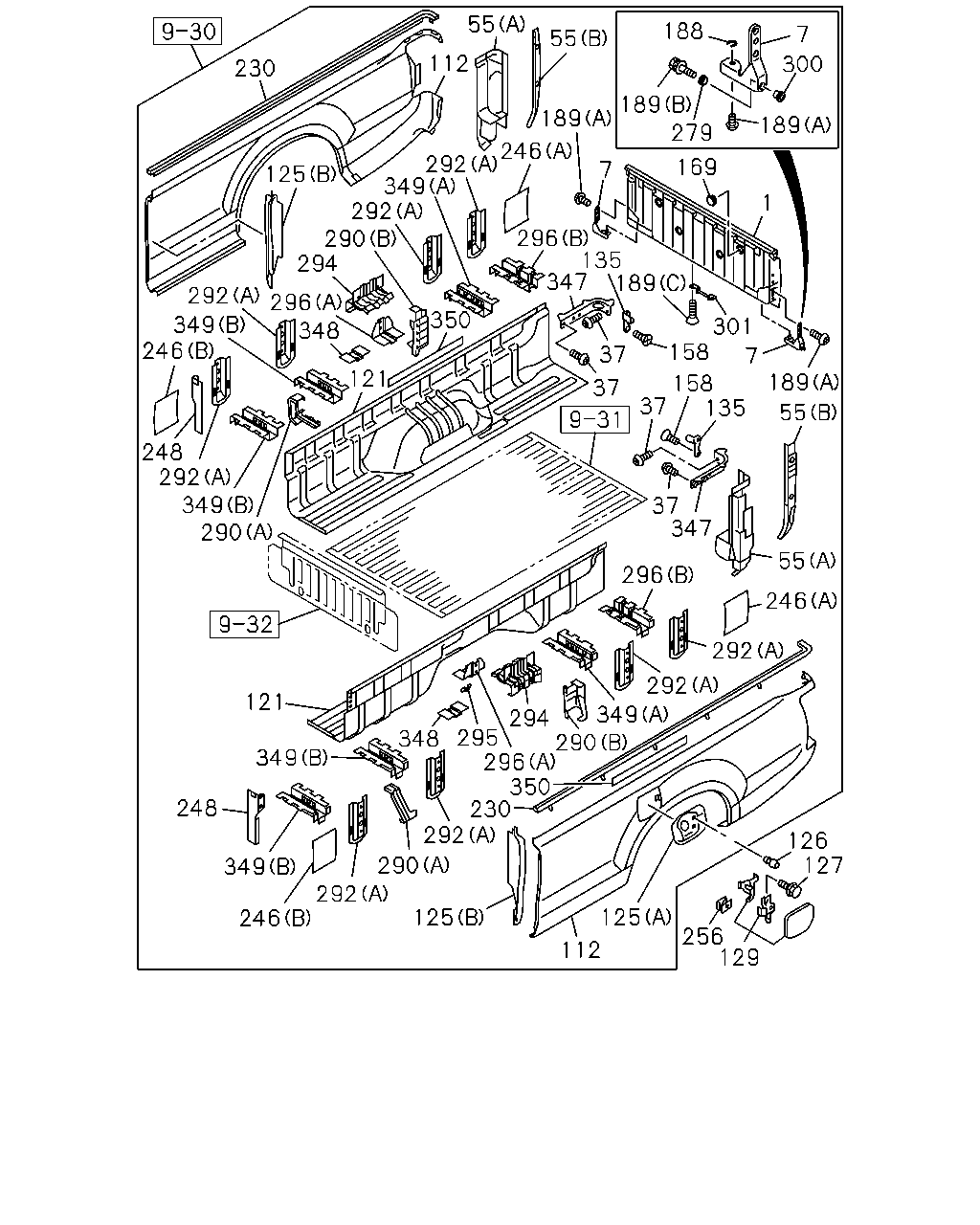

112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1109- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-553-8 01 1 1110- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-555-6 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-927-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-928-5 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1110- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-233-7 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-180-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-181-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1110- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1109-1109 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1110- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1110- ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1109-1109 ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1110- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1110- ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1110- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1110-1211 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1110-1211 ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1109-1109 ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1110- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1212- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1109-1109 ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1110- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1110-1211 ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1109-1109 ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1110- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1109-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1110-1408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1110-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1110- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1110- ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1109-1109 ● ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1110- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98184-275-1 02 1 1110- ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98189-421-1 02 1 1110-1210 ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1109-1109 ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1110- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1110- ●
279 SPACER
THA 		8-97357-403-0 02 1 1212-1505 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1212-1505 ●
279 SPACER
THA 		8-97357-403-0 02 1 1506- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1506- ●
279 SPACER
THA 		8-97357-403-0 02 1 1109-1109 ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1110-1211 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1110-1211 ●

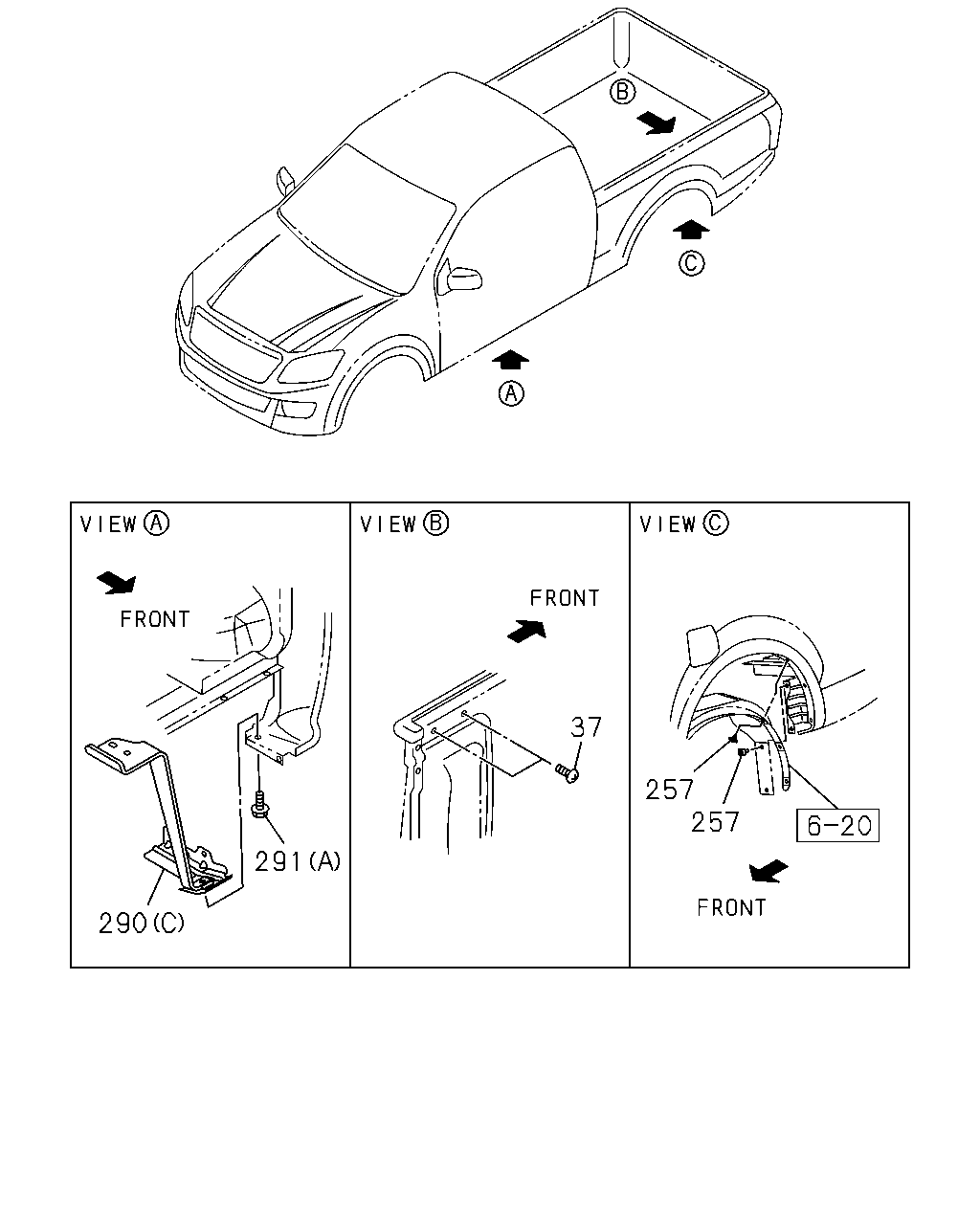

290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-062-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-063-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1110- ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1109- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1109- ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1109-1109 ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1110- ● ● ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-156-0 08 1 1110- ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1109- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1109- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1110- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-392-2 01 1 1110- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-393-2 01 1 1110- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1109-1109 ● ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1110- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-666-1 01 1 1110- ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-649-0 02 1 1110- ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-665-1 02 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1110- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1212-1505 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1212-1505 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1506- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1506- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1109-1109 ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1110-1211 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1110-1211 ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1109-1109 ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1110- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1110- ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1109-1109 ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1110- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-619-0 02 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1109- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1109-1109 ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1110- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-614-2 02 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-613-2 04 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1110- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1110- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> UPPER THA 		8-98192-937-0 02 1 1110- ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> LOWER THA 		8-98192-940-0 02 1 1110- ●

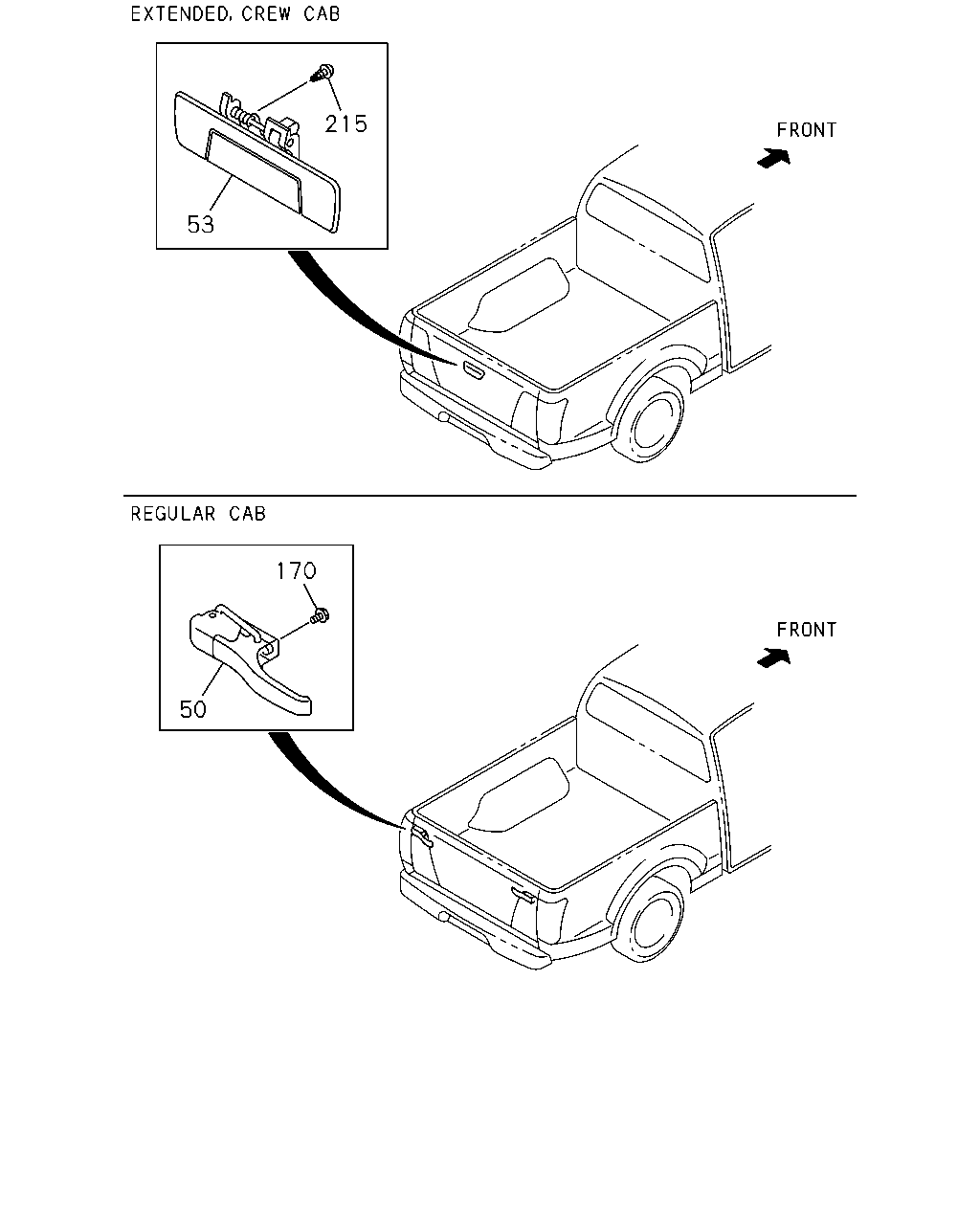

çizim 147334
170 50 53 215
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 1212- ●
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98061-099-0 02 1 1110-1211 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98202-618-1 01 1 1212- ● ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> THA 		8-98102-968-2 01 1 1109-1109 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> THA 		8-98102-968-2 01 1 1110-1211 ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-98102-968-2 01 1 1110-1211 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98102-968-3 01 1 1212- ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98102-968-3 01 1 1212- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97416-516-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> DARK GRAY THA 		8-97416-516-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NEBULA GRAY MICA<520> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> DARK GRAY THA 		8-97416-516-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97416-517-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> DARK BLUE THA 		8-97416-517-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA<521> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> DARK BLUE THA 		8-97416-517-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97416-519-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97416-519-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA<523> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> BLACK THA 		8-97416-519-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97416-521-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97416-521-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE<527> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> WHITE THA 		8-97416-521-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA 		8-97416-522-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> DARK RED THA 		8-97416-522-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GARNET RED MICA<528> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> DARK RED THA 		8-97416-522-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97416-523-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97416-523-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET<529> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> SILVER THA 		8-97416-523-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97416-524-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97416-524-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET<530> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> GRAY THA 		8-97416-524-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97416-525-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97416-525-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL<531> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> WHITE THA 		8-97416-525-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97421-143-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BEIGE THA 		8-97421-143-2 01 1 1110-1211 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET<541> HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> LIGHT BEIGE THA 		8-97421-143-3 01 1 1212- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> THA 		8-98102-967-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98102-967-2 01 1 1109-1109 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/SDOOR CHROME<E20> THA 		8-98102-967-2 01 1 1110- ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR CHROME<E20> THA 		8-98102-967-2 01 1 1110- ● ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/WASHER THA 		8-98056-282-0 04 1 1212- ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL<E63> M6X20 W/WASHER THA 		8-98056-282-0 04 1 1110-1211 ●
215 BOLT; HANDLE TO GUARD FRAME
M6X8 FLANGE THA 		8-98048-996-0 02 1 1109-1109 ● ●
215 BOLT; HANDLE TO GUARD FRAME
M6X8 FLANGE THA 		8-98048-996-0 02 1 1110- ● ● ● ●
çizim 147337
257 257 37 291 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1109-1109 ● ●
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1110-1408 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409- ●
257 RIVET
HIGH RIDE SUSPENSION<7YC> THA 		8-98057-864-0 04 1 1109-1109 ●
257 RIVET
THA 		8-98057-864-0 04 1 1109-1109 ●
257 RIVET
HIGH RIDE SUSPENSION<7YC> THA 		8-98057-864-0 04 1 1110- ● ●
257 RIVET
THA 		8-98057-864-0 04 1 1110- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-062-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-063-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1110- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1109-1109 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1109-1109 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1110- ● ●
çizim 147338
112 246 55 189 55 188 7 189 300 189 279 7 1 7 189 158 135 301 158 189 135 121 296 292 349 292 291 296 142 125 290 296 294 350 293 147 349 175 55 55 121 296 246 292 292 350 126 127 129 256 125 112 125 142 294 295 291 296 296 349 293 296 147 175 349 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO DELETE<UL5> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98203-926-2 01 1 1212- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1110- ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98183-096-2 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98183-096-3 01 1 1212- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1110- ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1110- ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-262-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-264-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-380-4 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-381-4 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1109- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1109- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-553-8 01 1 1110- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-555-6 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-927-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-928-5 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1110- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-233-7 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-180-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-181-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1110- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1109-1109 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1110- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1110- ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1109-1109 ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1110- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1110- ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1110- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1110-1211 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1110-1211 ●
142 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1110- ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1109-1109 ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-98202-587-0 04 1 1110- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1212- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1109-1109 ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1110- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1110-1211 ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1109-1109 ● ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 08 1 1110- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1109-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1110-1408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1110-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1110- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1110- ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1109-1109 ● ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1110- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98184-275-1 02 1 1110- ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98189-421-1 02 1 1110-1210 ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1109-1109 ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1110- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1110- ●
279 SPACER
THA 		8-97357-403-0 02 1 1212-1505 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1212-1505 ●
279 SPACER
THA 		8-97357-403-0 02 1 1506- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1506- ●
279 SPACER
THA 		8-97357-403-0 02 1 1109-1109 ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1110-1211 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1110-1211 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-062-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-063-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1110- ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1109-1109 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1109-1109 ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1110-1306 ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ● ● ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 02 1 1307-1505 ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ● ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ● ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 02 1 1506- ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1110- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1109- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1109- ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1109-1109 ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1110- ● ● ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-156-0 08 1 1110- ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-610-1 01 1 1109- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98144-611-1 01 1 1109- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-611-2 01 1 1110- ● ●
293 REINFORCEMENT; RR BODY
THA 		8-98104-612-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-392-2 01 1 1110- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-393-2 01 1 1110- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1109-1109 ● ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1110- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-666-1 01 1 1110- ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-649-0 02 1 1110- ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-665-1 02 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1110- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1212-1505 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1212-1505 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1506- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1506- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1109-1109 ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1110-1211 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1110-1211 ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1109-1109 ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1110- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1109- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1109-1109 ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1110- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-614-2 02 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-613-2 04 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1110- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1110- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> UPPER THA 		8-98192-937-0 02 1 1110- ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> LOWER THA 		8-98192-940-0 02 1 1110- ●
çizim 147339
129 256 112 127 126 125 125 292 246 349 248 349 121 348 295 296 350 230 292 290 290 294 292 349 292 296 246 347 55 37 135 37 55 189 37 158 158 7 301 189 347 135 296 37 350 121 169 7 1 189 300 7 188 189 279 246 189 55 55 112 292 349 292 125 290 294 296 292 246 248 349 292 290 349 348 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-8 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA 		8-98104-362-9 01 1 1212- ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
RADIO DELETE<UL5> THA 		8-98203-926-1 01 1 1110-1211 ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98203-926-2 01 1 1212- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98198-539-2 01 1 1110- ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-8 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA 		8-98104-332-9 01 1 1212- ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA 		8-98183-096-2 01 1 1109-1211 ● ●
1 GATE ASM; RR
INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA 		8-98183-096-3 01 1 1212- ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-948-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-948-0 01 1 1110- ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1109-1109 ● ●
7 HINGE ASM; RR GATE
THA 		8-98180-949-0 01 1 1110- ● ● ● ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98180-949-0 01 1 1110- ●
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1109-1109 ● ●
37 SCREW
M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 04 1 1110-1408 ● ● ● ●
37 SCREW
M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 04 1 1409- ● ● ● ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110-1408 ●
37 SCREW
REAR BODY DBL WALL CTR PULL<E63> M8X16.5 HEXALOBULAR SOCKET THA 		8-98290-484-0 06 1 1409- ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-259-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(A) THA 		8-98104-261-6 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-378-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-6 01 1 1109-1109 ● ●
55 PANEL; RR CORNER
(B) THA 		8-98104-379-7 01 1 1110- ● ● ● ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-262-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-264-5 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-380-4 01 1 1110- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-381-4 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
THA 		8-98104-556-9 01 1 1109-1109 ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98205-935-1 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-558-9 01 1 1109- ●
112 PANEL; SIDE GATE
THA 		8-98104-558-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-548-9 01 1 1109- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-549-7 01 1 1109- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-553-8 01 1 1110- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-555-6 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-560-9 01 1 1110- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
THA 		8-98104-561-7 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-551-8 01 1 1110- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-552-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-608-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98144-609-4 01 1 1109- ● ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-927-6 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-928-5 01 1 1110- ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-294-7 01 1 1110- ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98104-296-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-868-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98153-869-4 01 1 1109- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) THA 		8-98104-234-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1109-1109 ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98104-233-7 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-233-7 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-180-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-181-1 01 1 1110- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-189-4 01 1 1110- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) THA 		8-98104-192-4 01 1 1110- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1109-1109 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-98144-635-1 03 1 1110- ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98144-635-1 03 1 1110- ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1109-1109 ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 1110- ● ● ● ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL<E63> M6X16 THA 		8-98056-287-0 02 1 1110- ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-98103-298-7 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1109-1109 ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98103-297-6 01 1 1110- ● ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98103-297-6 01 1 1110- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1212- ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1109-1109 ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 1110- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-656-2 01 1 1110-1211 ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98115-657-2 01 1 1110-1211 ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1212- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1109-1109 ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1110- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> M8X22 THA 		8-98050-437-0 04 1 1110-1211 ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97166-110-0 04 1 1110- ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1109-1408 ● ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 1409- ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 AR 1 1409- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97329-277-1 02 1 1110-1408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 02 1 1110-1408 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1212-1505 ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1506- ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(C) M8X22 THA 		8-98050-437-0 02 1 1110- ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (C) M8X22 THA 		8-98050-437-0 02 1 1110- ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (A) M8X20.5 HEXALOBULAR SOCKET THA 		8-98152-995-2 06 1 1110- ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1109-1109 ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ● ● ● ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL<E63> (B) M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 1110-1211 ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-565-2 01 1 1110- ●
230 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-566-2 01 1 1110- ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1109-1109 ● ●
246 STIFFENER
(A) THA 		8-98184-275-1 02 1 1110- ● ● ● ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98184-275-1 02 1 1110- ●
246 STIFFENER
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98189-421-1 02 1 1110-1210 ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-333-0 01 1 1110- ●
248 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-336-0 01 1 1110- ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1109-1109 ● ●
256 SPRING; LID,FUEL FILLER
THA 		8-98141-610-3 01 1 1110- ● ● ● ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98141-610-3 01 1 1110- ●
279 SPACER
THA 		8-97357-403-0 02 1 1212-1505 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1212-1505 ●
279 SPACER
THA 		8-97357-403-0 02 1 1506- ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1506- ●
279 SPACER
THA 		8-97357-403-0 02 1 1109-1109 ● ●
279 SPACER
THA 		8-97357-403-0 02 1 1110-1211 ● ● ● ●
279 SPACER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-97357-403-0 02 1 1110-1211 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-117-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
(C) THA 		8-98187-118-0 01 1 1109- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-244-2 01 1 1110- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1109-1109 ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
(B) THA 		8-98113-245-2 01 1 1110- ● ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-062-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-062-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-062-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1110-1211 ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (B) THA 		8-98104-063-2 01 1 1110-1211 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98104-063-2 01 1 1212- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-063-2 01 1 1212- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-543-0 01 1 1110- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1109-1109 ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-98126-544-0 01 1 1110- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> (A) THA 		8-98126-544-0 01 1 1110- ●
292 EXTENSION; RR BODY
(B) THA 		8-98104-134-1 01 1 1109- ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98156-912-0 01 1 1109- ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1109-1109 ● ●
292 EXTENSION; RR BODY
(A) THA 		8-98104-156-0 04 1 1110- ● ● ● ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-156-0 08 1 1110- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-405-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-2 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-98104-406-3 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-392-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-392-2 01 1 1110- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-1 01 1 1109-1109 ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98104-393-2 01 1 1110- ● ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-393-2 01 1 1110- ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1109-1109 ● ●
295 BRACKET; FILLER
THA 		8-98104-666-1 01 1 1110- ● ● ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-666-1 01 1 1110- ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(A) THA 		8-98104-649-0 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-649-0 02 1 1110- ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1109-1109 ● ●
296 BRACKET; RR BODY
(B) THA 		8-98104-665-1 02 1 1110- ● ● ● ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-665-1 02 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-642-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
(C) THA 		8-98138-643-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-648-3 01 1 1110- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
(D) THA 		8-98138-649-3 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-640-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98138-641-5 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-646-2 01 1 1110- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98138-647-2 01 1 1110- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1212-1505 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1212-1505 ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1506- ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1506- ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1109-1109 ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 1110-1211 ● ● ● ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98057-114-0 02 1 1110-1211 ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1109-1109 ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 1110- ● ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98053-899-0 01 1 1110- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-603-1 01 1 1110- ●
347 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-604-1 01 1 1110- ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1109-1109 ● ●
348 REINFORCEMENT; RR BODY,INRL
THA 		8-98104-619-0 02 1 1110- ● ●
348 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98104-619-0 02 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(B) THA 		8-98104-613-2 02 1 1109- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1109-1109 ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) THA 		8-98104-614-2 02 1 1110- ● ● ● ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-98104-614-2 02 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98104-613-2 04 1 1110- ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-650-1 01 1 1110- ● ●
349 REINFORCEMENT; RR BODY,SILL
(C) THA 		8-98139-651-1 01 1 1110- ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
UPPER THA 		8-98192-937-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> UPPER THA 		8-98192-937-0 02 1 1110- ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1109-1109 ● ●
350 SEAL; TAPE
LOWER THA 		8-98192-940-0 02 1 1110- ● ● ● ●
350 SEAL; TAPE
REAR BODY DBL WALL CTR PULL<E63> LOWER THA 		8-98192-940-0 02 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
