9-32 — REAR BODY; GUARD FRAME (#79396) — 59 parça

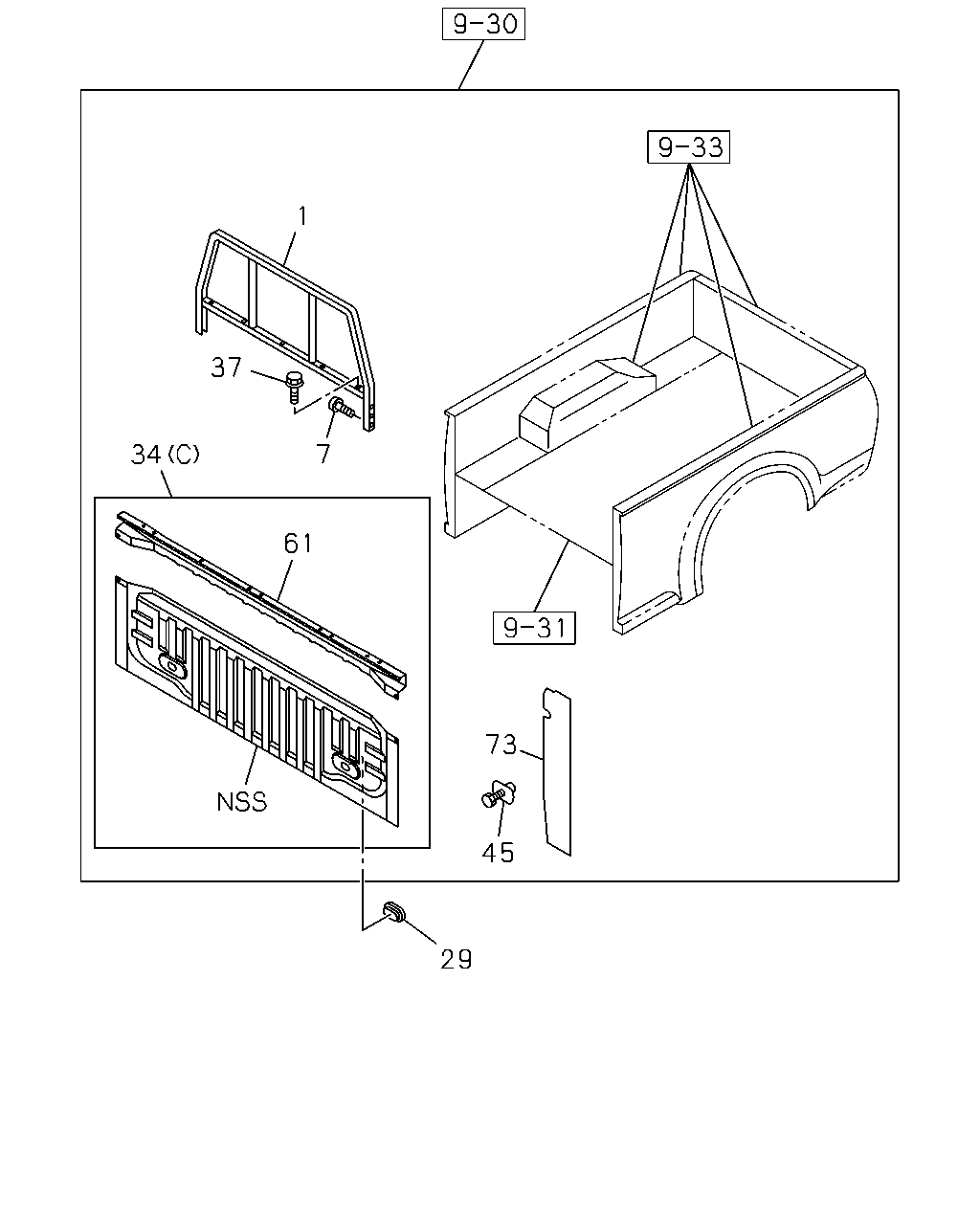

37 1 7 61 34 73 45 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	FRAME; GUARD,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98103-983-3	01	1	1110-	●
7	BOLT; GUARD FRAME STOPPER,RR BODY M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	02	1	1409-		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	04	1	1109-1109		●		●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	04	1	1110-1408		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	02	1	1409-1505		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY M8X20 THA	8-98294-857-0	02	1	1506-		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY REAR BODY DBL WALL CTR PULL<E63> SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	06	1	1110-	●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1109-1109		●		●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1110-1505		●	●	●	●
29	COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA	8-97918-416-0	02	1	1110-1505	●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1506-		●	●	●	●
29	COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL<E63> THA	8-97918-416-0	02	1	1506-	●
34	PANEL; FRT,RR BODY (A) THA	8-98103-277-6	01	1	1109-		●		●
34	PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98103-280-7	01	1	1110-	●
34	PANEL; FRT,RR BODY (B) THA	8-98190-131-1	01	1	1110-			●		●
37	BOLT; GUARD FRAME REAR BODY DBL WALL CTR PULL<E63> M6X12 FLANGE THA	0-28050-612-0	05	1	1110-	●
45	RIVET; DUST SHIELD COVER,RR BODY THA	8-94221-150-0	13	1	1109-1109		●		●
45	RIVET; DUST SHIELD COVER,RR BODY THA	8-94221-150-0	13	1	1110-		●	●	●	●
45	RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-94221-150-0	13	1	1110-	●
61	BAR ASM THA	8-98104-396-5	01	1	1109-1109		●		●
61	BAR ASM THA	8-98104-396-5	01	1	1110-		●	●	●	●
61	BAR ASM REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-382-6	01	1	1110-	●
73	PROTECTOR; TAPE THA	8-98187-269-0	01	1	1109-1109		●		●
73	PROTECTOR; TAPE THA	8-98187-269-0	01	1	1110-1408		●		●
73	PROTECTOR; TAPE REAR BODY DBL WALL CTR PULL<E63> THA	8-98187-269-0	01	1	1110-1408	●
73	PROTECTOR; TAPE THA	8-98188-706-0	01	1	1109-1109		●		●
73	PROTECTOR; TAPE THA	8-98188-706-0	01	1	1110-1408		●		●
73	PROTECTOR; TAPE REAR BODY DBL WALL CTR PULL<E63> THA	8-98188-706-0	01	1	1110-1408	●
73	PROTECTOR; TAPE THA	8-98188-226-0	01	1	1110-			●		●
73	PROTECTOR; TAPE THA	8-98188-227-0	01	1	1110-			●		●

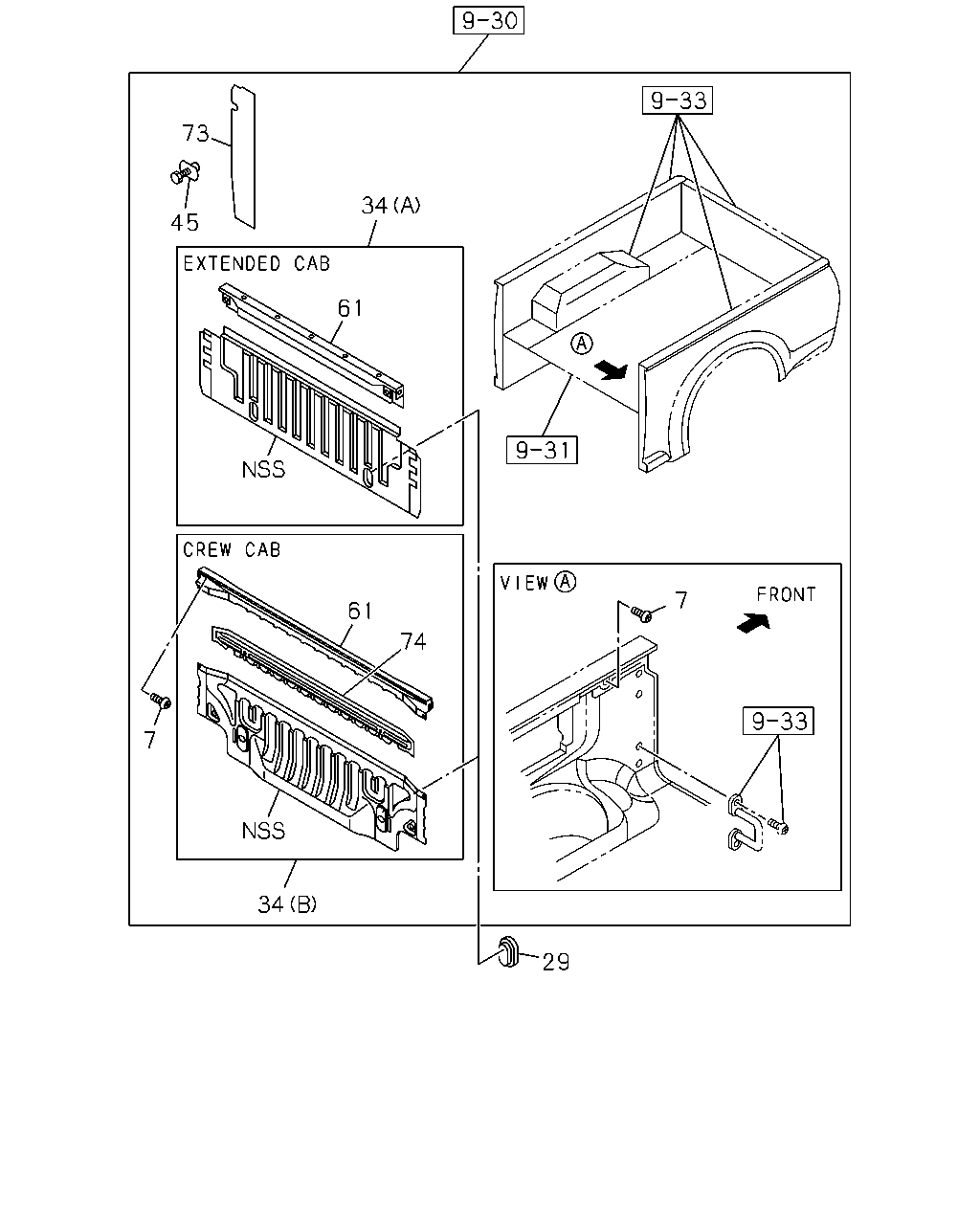

34 61 73 45 7 29 34 7 61 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	BOLT; GUARD FRAME STOPPER,RR BODY M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	02	1	1409-		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	04	1	1109-1109		●		●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	04	1	1110-1408		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	02	1	1409-1505		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY M8X20 THA	8-98294-857-0	02	1	1506-		●	●	●	●
7	BOLT; GUARD FRAME STOPPER,RR BODY REAR BODY DBL WALL CTR PULL<E63> SCREW M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	06	1	1110-	●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1109-1109		●		●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1110-1505		●	●	●	●
29	COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL<E63> GUARD FRAME BAR CARGO TIE DOWN<V89> OUTER ROPE HOOKS<7MZ> THA	8-97918-416-0	02	1	1110-1505	●
29	COVER; GUARD FRAME THA	8-97918-416-0	02	1	1506-		●	●	●	●
29	COVER; GUARD FRAME REAR BODY DBL WALL CTR PULL<E63> THA	8-97918-416-0	02	1	1506-	●
34	PANEL; FRT,RR BODY (A) THA	8-98103-277-6	01	1	1109-		●		●
34	PANEL; FRT,RR BODY REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98103-280-7	01	1	1110-	●
34	PANEL; FRT,RR BODY (B) THA	8-98190-131-1	01	1	1110-			●		●
45	RIVET; DUST SHIELD COVER,RR BODY THA	8-94221-150-0	13	1	1109-1109		●		●
45	RIVET; DUST SHIELD COVER,RR BODY THA	8-94221-150-0	13	1	1110-		●	●	●	●
45	RIVET; DUST SHIELD COVER,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-94221-150-0	13	1	1110-	●
61	BAR ASM THA	8-98104-396-5	01	1	1109-1109		●		●
61	BAR ASM THA	8-98104-396-5	01	1	1110-		●	●	●	●
61	BAR ASM REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-382-6	01	1	1110-	●
73	PROTECTOR; TAPE THA	8-98187-269-0	01	1	1109-1109		●		●
73	PROTECTOR; TAPE THA	8-98187-269-0	01	1	1110-1408		●		●
73	PROTECTOR; TAPE REAR BODY DBL WALL CTR PULL<E63> THA	8-98187-269-0	01	1	1110-1408	●
73	PROTECTOR; TAPE THA	8-98188-706-0	01	1	1109-1109		●		●
73	PROTECTOR; TAPE THA	8-98188-706-0	01	1	1110-1408		●		●
73	PROTECTOR; TAPE REAR BODY DBL WALL CTR PULL<E63> THA	8-98188-706-0	01	1	1110-1408	●
73	PROTECTOR; TAPE THA	8-98188-226-0	01	1	1110-			●		●
73	PROTECTOR; TAPE THA	8-98188-227-0	01	1	1110-			●		●
74	REINFORCEMENT THA	8-98187-068-2	01	1	1110-			●		●
