9-31 — REAR BODY; FLOOR AND FENDER (#79395) — 143 parça

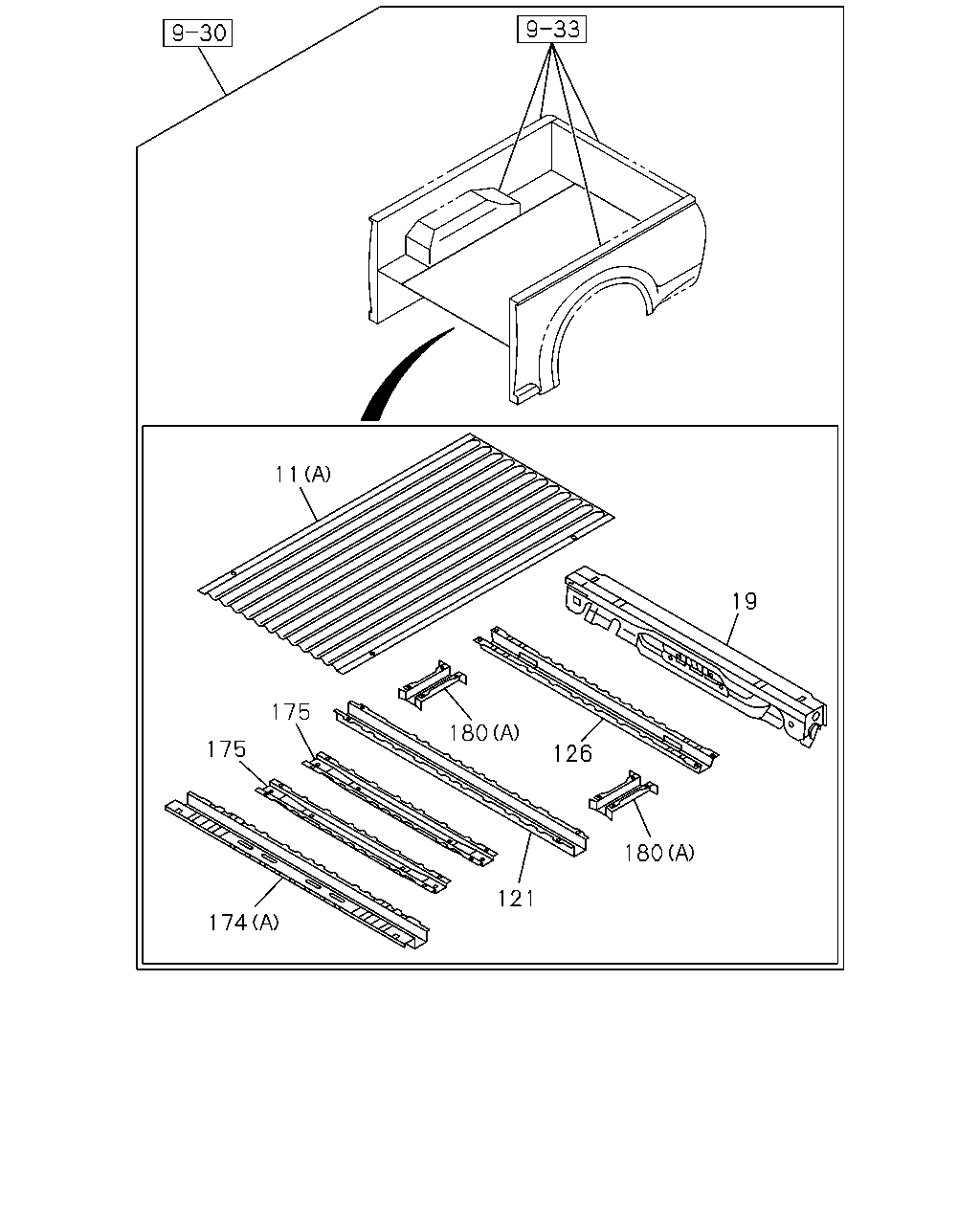

11 19 126 180 121 180 175 175 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	PANEL; FLOOR BOARD,RR BODY (A) THA	8-98104-154-1	01	1	1109-	●	●
11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-150-1	01	1	1110-			●
11	PANEL; FLOOR BOARD,RR BODY (B) THA	8-98104-159-2	01	1	1110-				●	●
19	BOLSTER; RR END,RR BODY REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98210-518-0	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY THA	8-98210-518-0	01	1	1207-					●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1109-1109	●	●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1110-1206	●	●		●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-6	01	1	1110-1206			●
19	BOLSTER; RR END,RR BODY EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98104-216-7	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-7	01	1	1207-			●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1109-1109	●	●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1110-	●	●		●	●
121	BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-194-2	01	1	1110-			●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1109-1109	●	●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1110-	●	●		●	●
126	BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-201-2	01	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (A) THA	8-98140-852-4	01	1	1109-	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-179-1	02	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (B) THA	8-98104-258-3	01	1	1110-				●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1109-1109	●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1110-	●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-191-2	02	1	1110-			●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	01	1	1110-				●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1109-1109	●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1110-	●	●		●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98104-197-0	02	1	1110-			●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98104-185-0	02	1	1110-			●

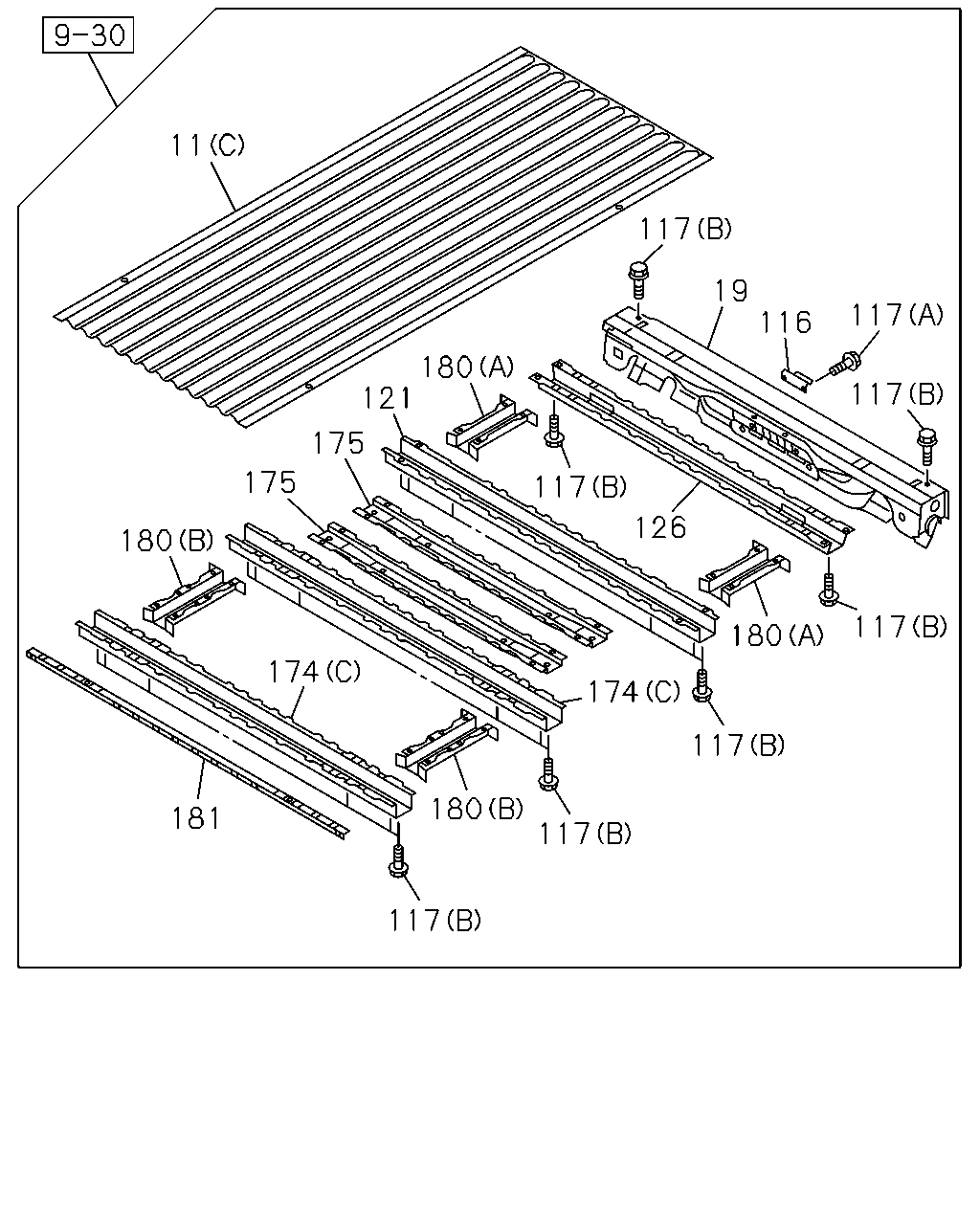

11 117 19 117 116 117 117 180 117 174 126 117 180 121 175 175 180 174 181 180 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	PANEL; FLOOR BOARD,RR BODY (A) THA	8-98104-154-1	01	1	1109-	●	●
11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-150-1	01	1	1110-			●
11	PANEL; FLOOR BOARD,RR BODY (B) THA	8-98104-159-2	01	1	1110-				●	●
19	BOLSTER; RR END,RR BODY REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98210-518-0	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY THA	8-98210-518-0	01	1	1207-					●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1109-1109	●	●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1110-1206	●	●		●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-6	01	1	1110-1206			●
19	BOLSTER; RR END,RR BODY EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98104-216-7	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-7	01	1	1207-			●
116	SUPPORT; RR BODY,SILL THA	8-98104-017-1	01	1	1109-1109	●	●
116	SUPPORT; RR BODY,SILL THA	8-98104-017-1	01	1	1110-	●	●
116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-017-1	01	1	1110-			●
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	06	1	1109-1411	●	●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	06	1	1412-	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1109-1109	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1110-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA	8-98050-437-0	02	1	1110-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1109-1109	●	●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411			●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	08	1	1412-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	08	1	1412-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	12	1	1110-1411			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	12	1	1412-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	02	1	1110-1505				●	●
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	02	1	1506-				●	●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1109-1109	●	●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1110-	●	●		●	●
121	BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-194-2	01	1	1110-			●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1109-1109	●	●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1110-	●	●		●	●
126	BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-201-2	01	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (A) THA	8-98140-852-4	01	1	1109-	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-179-1	02	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (B) THA	8-98104-258-3	01	1	1110-				●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1109-1109	●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1110-	●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-191-2	02	1	1110-			●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	01	1	1110-				●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1109-1109	●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1110-	●	●		●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98104-197-0	02	1	1110-			●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98104-185-0	02	1	1110-			●
181	EXTENSION; PUBX,SILL REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-171-1	01	1	1110-			●

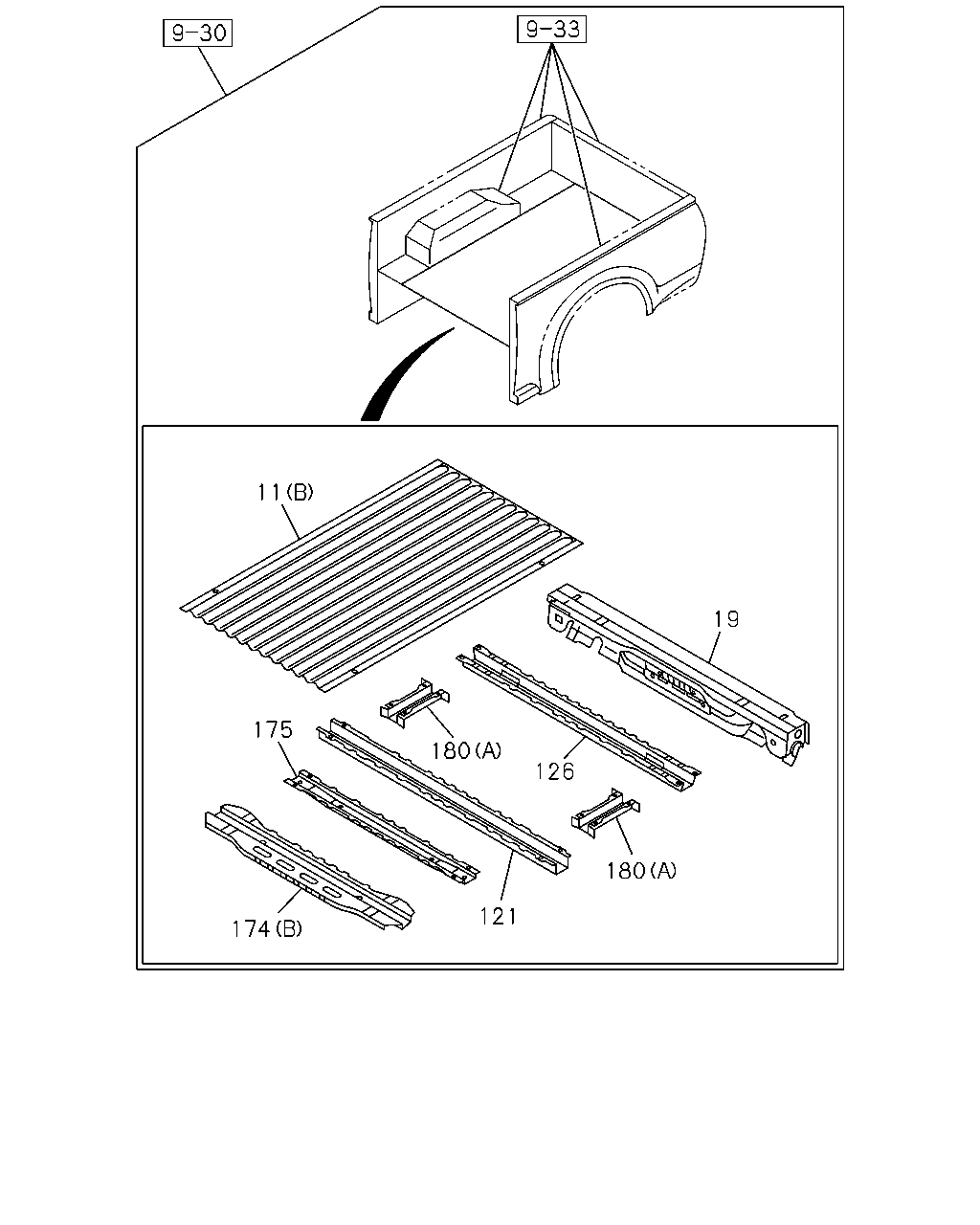

11 19 180 126 180 121 174 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	PANEL; FLOOR BOARD,RR BODY (A) THA	8-98104-154-1	01	1	1109-	●	●
11	PANEL; FLOOR BOARD,RR BODY REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-150-1	01	1	1110-			●
11	PANEL; FLOOR BOARD,RR BODY (B) THA	8-98104-159-2	01	1	1110-				●	●
19	BOLSTER; RR END,RR BODY REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98210-518-0	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY THA	8-98210-518-0	01	1	1207-					●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1109-1109	●	●
19	BOLSTER; RR END,RR BODY THA	8-98104-216-6	01	1	1110-1206	●	●		●	●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-6	01	1	1110-1206			●
19	BOLSTER; RR END,RR BODY EXC. REAR STEP BUMPER CHROME<V42>,REAR STEP BUMPER PAINTED<V43> THA	8-98104-216-7	01	1	1207-	●	●		●
19	BOLSTER; RR END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-216-7	01	1	1207-			●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1109-1109	●	●
121	BOLSTER; RR BODY THA	8-98104-194-2	01	1	1110-	●	●		●	●
121	BOLSTER; RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-194-2	01	1	1110-			●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1109-1109	●	●
126	BOLSTER; FRT END,RR BODY THA	8-98104-201-2	01	1	1110-	●	●		●	●
126	BOLSTER; FRT END,RR BODY REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-201-2	01	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (A) THA	8-98140-852-4	01	1	1109-	●	●
174	SILL; RR BODY CROSS NO.1 REAR BODY DBL WALL CTR PULL<E63> (C) THA	8-98104-179-1	02	1	1110-			●
174	SILL; RR BODY CROSS NO.1 (B) THA	8-98104-258-3	01	1	1110-				●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1109-1109	●	●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	02	1	1110-	●	●
175	SILL; RR BODY CROSS NO.2 REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-191-2	02	1	1110-			●
175	SILL; RR BODY CROSS NO.2 THA	8-98104-191-2	01	1	1110-				●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1109-1109	●	●
180	REINFORCEMENT; SILL (A) THA	8-98104-197-0	02	1	1110-	●	●		●	●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) THA	8-98104-197-0	02	1	1110-			●
180	REINFORCEMENT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) THA	8-98104-185-0	02	1	1110-			●

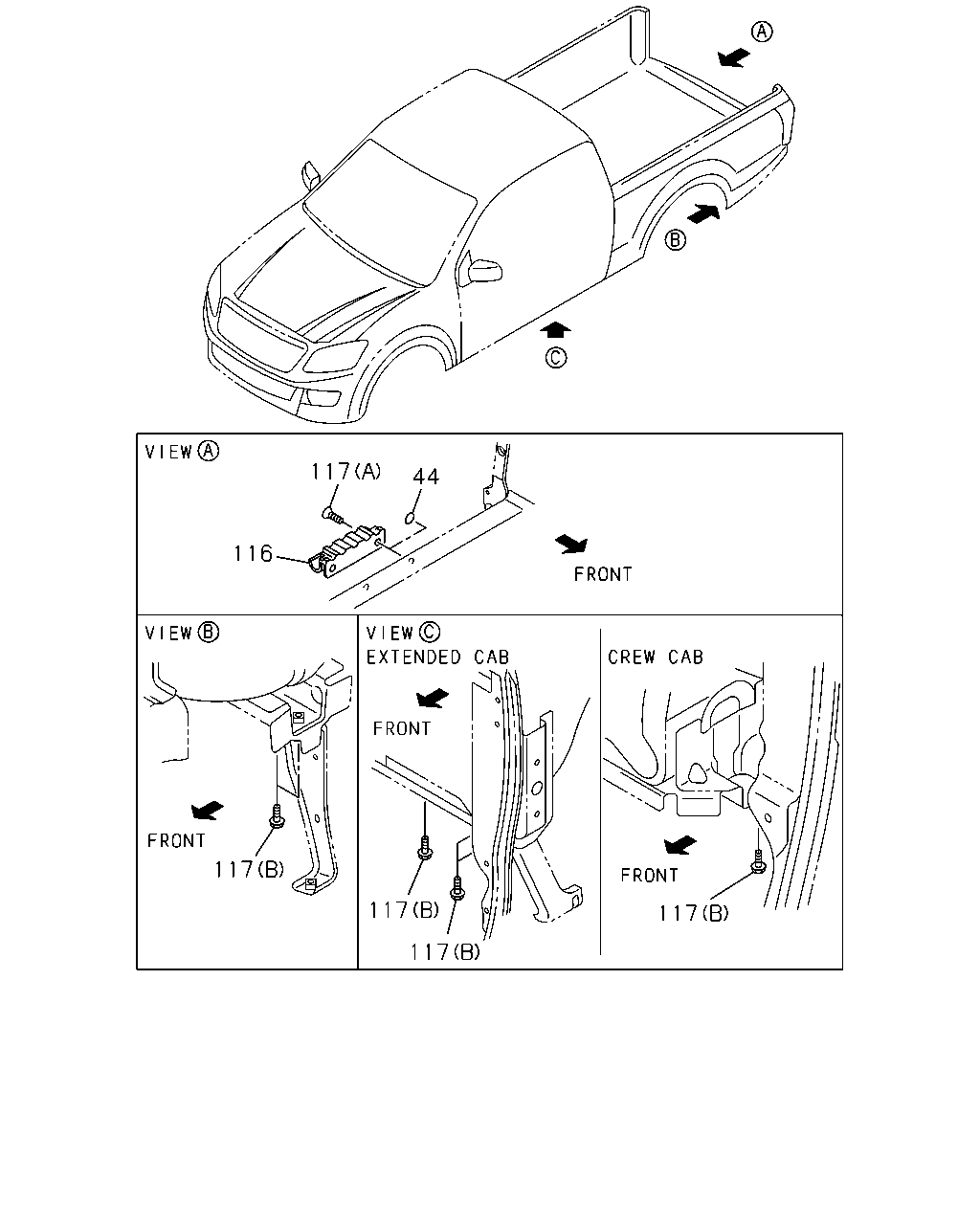

117 44 116 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
44	SEAL; RR POST,RR BODY OD=25 BLACK THA	1-76798-019-0	02	1	1110-				●	●
116	SUPPORT; RR BODY,SILL THA	8-98104-017-1	01	1	1109-1109	●	●
116	SUPPORT; RR BODY,SILL THA	8-98104-017-1	01	1	1110-	●	●
116	SUPPORT; RR BODY,SILL REAR BODY DBL WALL CTR PULL<E63> THA	8-98104-017-1	01	1	1110-			●
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	06	1	1109-1411	●	●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	06	1	1412-	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1109-1109	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1110-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA	8-98050-437-0	02	1	1110-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1109-1109	●	●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411			●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	08	1	1412-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	08	1	1412-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	12	1	1110-1411			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	12	1	1412-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	02	1	1110-1505				●	●
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	02	1	1506-				●	●

117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	10	1	1409-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	06	1	1109-1411	●	●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	06	1	1412-	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1109-1109	●	●
117	BOLT; SILL (A) M8X22 THA	8-98050-437-0	02	1	1110-	●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (A) M8X22 THA	8-98050-437-0	02	1	1110-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1109-1109	●	●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	18	1	1110-1408			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	08	1	1409-1411			●
117	BOLT; SILL (B) M8X20 THA	8-98294-857-0	08	1	1412-	●	●		●	●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	08	1	1412-			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	12	1	1110-1411			●
117	BOLT; SILL REAR BODY DBL WALL CTR PULL<E63> (B) M8X20 THA	8-98294-857-0	12	1	1412-			●
117	BOLT; SILL (B) M8X20.5 HEXALOBULAR SOCKET THA	8-98152-995-2	02	1	1110-1505				●	●
117	BOLT; SILL (B) M8X16.5 HEXALOBULAR SOCKET THA	8-98290-484-0	02	1	1506-				●	●
