Sayfa 9-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶

9-30 — REAR BODY ASM AND MOUNTING (#79394) — 42 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

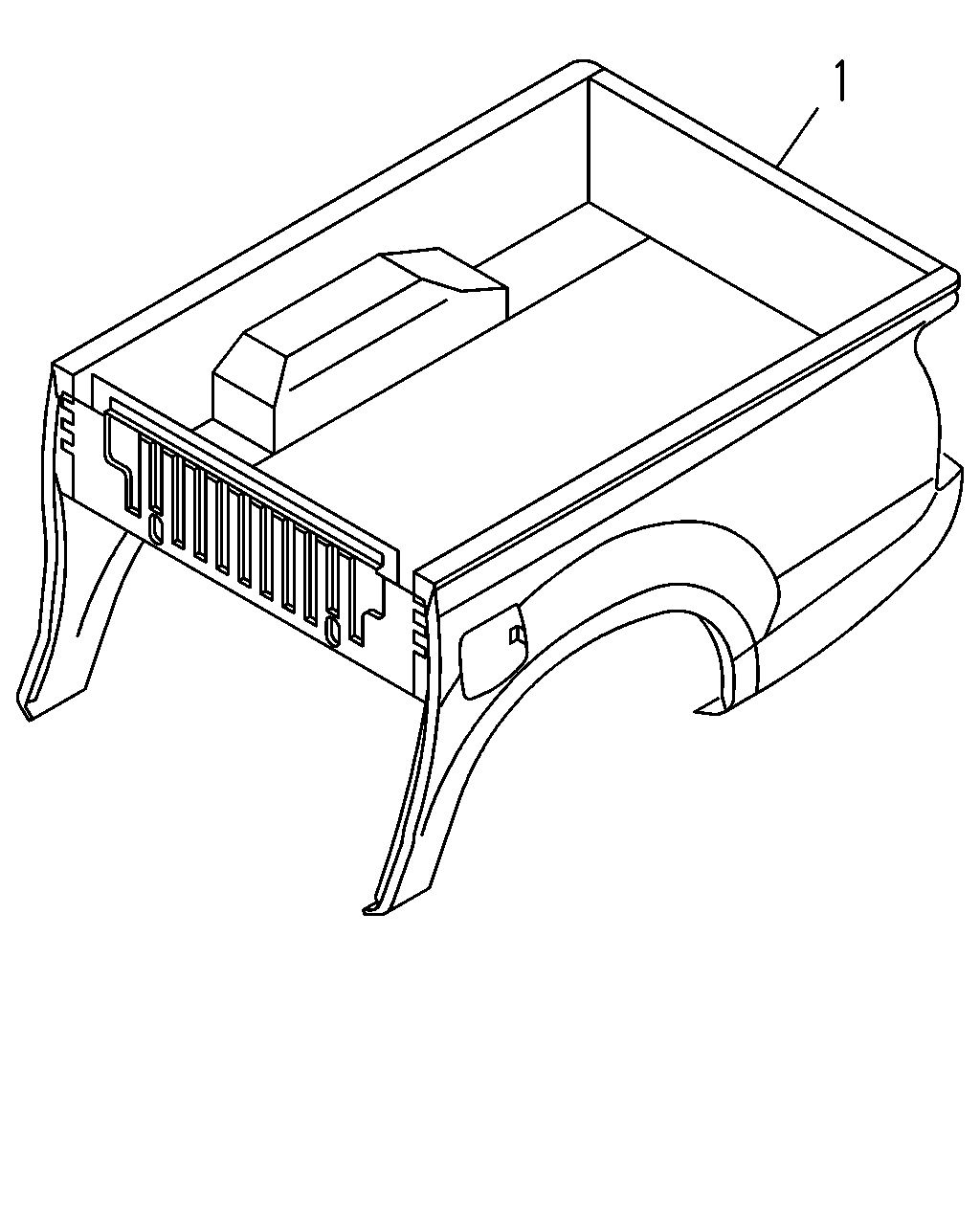

1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-764-0	01	1	1109-1211	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-764-0	01	1	1109-1211	●
1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-764-0	01	1	1212-	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-764-0	01	1	1212-	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> THA	8-98193-766-0	01	1	1109-1211	●
1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98193-766-0	01	1	1109-1211		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98193-766-0	01	1	1109-1211		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> THA	8-98193-766-0	01	1	1212-	●
1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98193-766-0	01	1	1212-		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> THA	8-98193-766-0	01	1	1212-		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> HIGH RIDE SUSPENSION<7YC> THA	8-98193-767-0	01	1	1109-1211	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> THA	8-98193-767-0	01	1	1109-1211		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> HIGH RIDE SUSPENSION<7YC> THA	8-98193-767-0	01	1	1212-	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> THA	8-98193-767-0	01	1	1212-		●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-765-0	01	1	1109-1211	●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-765-0	01	1	1212-	●
1	BODY ASM; REAR INTERIOR BASIC<RBA>,INTERIOR DELUXE<RBB> REAR BODY DBL WALL CTR PULL<E63> RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> OUTER ROPE HOOKS<7MZ> THA	8-98193-763-0	01	1	1110-			●
1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3,DVD,C LOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-768-0	01	1	1110-1211				●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-768-0	01	1	1110-1211				●
1	BODY ASM; REAR INTERIOR DELUXE<RBB> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-768-0	01	1	1212-				●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-768-0	01	1	1212-				●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> THA	8-98193-770-0	01	1	1110-1211				●
1	BODY ASM; REAR RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA	8-98193-770-0	01	1	1110-1211					●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM W/CD,W/CLOCK<U1C> HIGH RIDE SUSPENSION<7YC> THA	8-98193-770-0	01	1	1212-				●
1	BODY ASM; REAR RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> THA	8-98193-770-0	01	1	1212-					●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> HIGH RIDE SUSPENSION<7YC> THA	8-98193-771-0	01	1	1110-1211				●
1	BODY ASM; REAR RADIO DELETE<UL5> THA	8-98193-771-0	01	1	1110-1211					●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> HIGH RIDE SUSPENSION<7YC> THA	8-98193-771-0	01	1	1212-				●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO DELETE<UL5>,RADIO AM/FM STEREO,CD,MP3, DVD,CLOCK,ETR,RDS<UVA> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-769-0	01	1	1110-1211				●
1	BODY ASM; REAR INTERIOR CUSTOM<RBD> RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98193-769-0	01	1	1212-				●

13 13 71 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

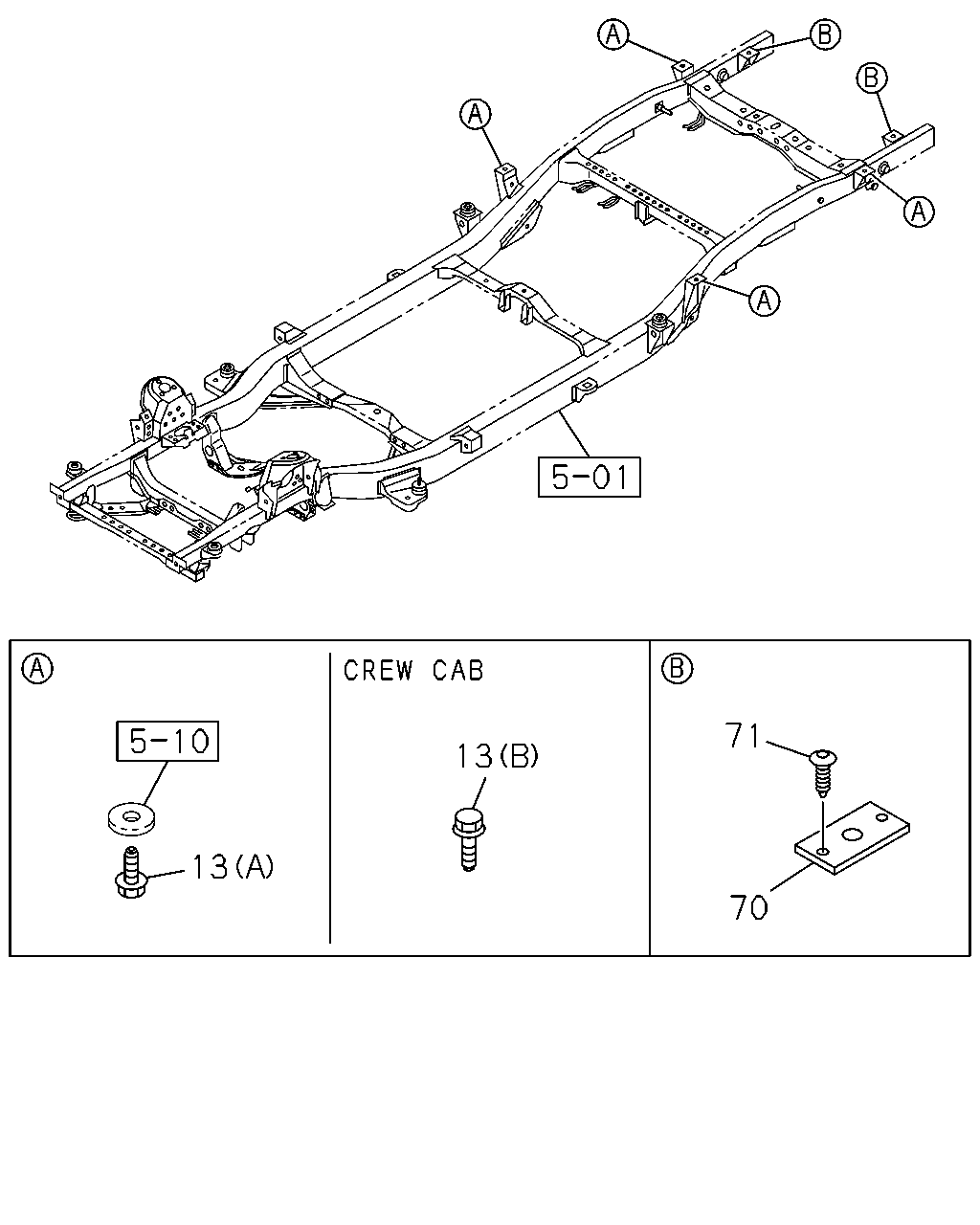

13	BOLT; RR BODY MTG (A) M12X35 FLANGE THA	0-28651-235-0	06	1	1109-	●	●
13	BOLT; RR BODY MTG REAR BODY DBL WALL CTR PULL<E63> (A) M12X35 FLANGE THA	0-28651-235-0	08	1	1110-			●
13	BOLT; RR BODY MTG (A) M12X35 FLANGE THA	0-28651-235-0	04	1	1110-				●	●
13	BOLT; RR BODY MTG (B) M12X35 FLANGE THA	8-98176-522-0	02	1	1110-				●	●
70	CUSHION; RR BODY MTG THA	8-98090-512-0	04	1	1109-1109	●	●
70	CUSHION; RR BODY MTG THA	8-98090-512-0	04	1	1110-	●	●
70	CUSHION; RR BODY MTG REAR BODY DBL WALL CTR PULL<E63> THA	8-98090-512-0	04	1	1110-			●
70	CUSHION; RR BODY MTG THA	8-98090-512-0	02	1	1110-				●	●
71	CLIP; CUSHION ID=6 OD=16 L=18 IMA	8-94178-705-0	08	1	1109-1109	●	●
71	CLIP; CUSHION ID=6 OD=16 L=18 IMA	8-94178-705-0	08	1	1110-	●	●
71	CLIP; CUSHION REAR BODY DBL WALL CTR PULL<E63> ID=6 OD=16 L=18 IMA	8-94178-705-0	08	1	1110-			●
71	CLIP; CUSHION ID=6 OD=16 L=18 IMA	8-94178-705-0	04	1	1110-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
