◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#79393) — 27 parça

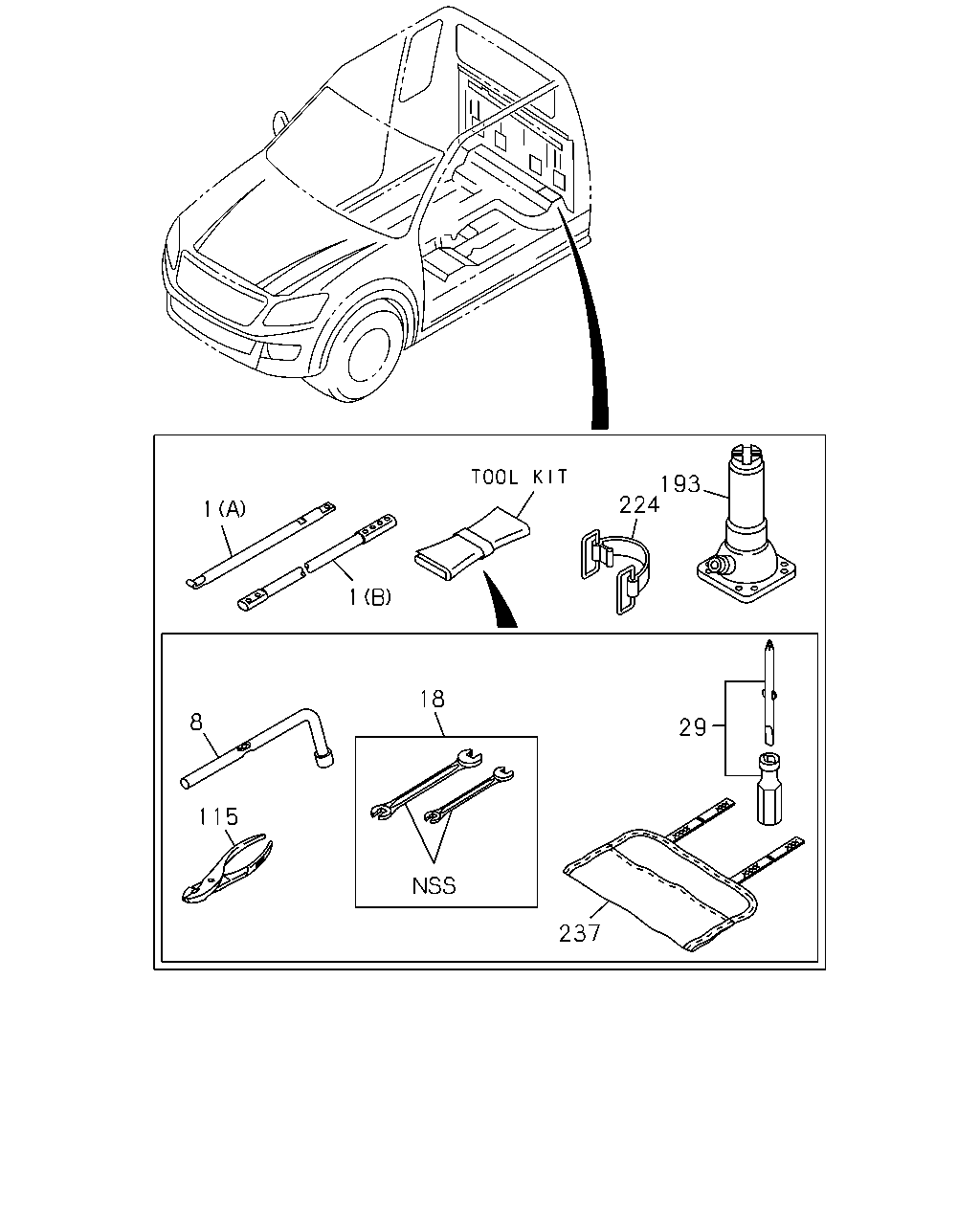

çizim 147322
193 224 1 1 8 115 18 29 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-98153-978-0 01 1 1109-1109 ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-98153-978-0 01 1 1110- ● ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-98153-999-0 03 1 1109-1109 ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-98153-999-0 03 1 1110- ● ● ● ● ●
8 WRENCH; WHEEL
L=19 THA 		8-98027-834-0 01 1 1109-1109 ● ●
8 WRENCH; WHEEL
L=19 THA 		8-98027-834-0 01 1 1110- ● ● ● ● ●
18 WRENCH KIT
8X10,12X14 THA 		8-97945-273-0 01 1 1109-1109 ● ●
18 WRENCH KIT
8X10,12X14 THA 		8-97945-273-0 01 1 1110- ● ● ● ● ●
29 DRIVER; SCREW
THA 		8-98027-833-0 01 1 1109-1109 ● ●
29 DRIVER; SCREW
THA 		8-98027-833-0 01 1 1110- ● ● ● ● ●
115 PLIER
THA 		8-98099-659-0 01 1 1109-1109 ● ●
115 PLIER
THA 		8-98099-659-0 01 1 1110- ● ● ● ● ●
193 JACK ASM
HIGH RIDE SUSPENSION<7YC> THA 		8-98162-092-1 01 1 1109-1109 ●
193 JACK ASM
THA 		8-98162-092-1 01 1 1109-1109 ●
193 JACK ASM
HIGH RIDE SUSPENSION<7YC> THA 		8-98162-092-1 01 1 1110-1402 ● ●
193 JACK ASM
THA 		8-98162-092-1 01 1 1110-1402 ● ●
193 JACK ASM
HIGH RIDE SUSPENSION<7YC> THA 		8-98269-209-0 01 1 1403- ● ●
193 JACK ASM
THA 		8-98269-209-0 01 1 1403- ● ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98154-177-1 01 1 1109-1109 ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98154-177-1 01 1 1110-1402 ● ●
193 JACK ASM
THA 		8-98154-177-1 01 1 1110-1402 ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98269-208-0 01 1 1403- ● ●
193 JACK ASM
THA 		8-98269-208-0 01 1 1403- ●
224 BAND; RUBBER,JACK
THA 		8-98178-626-0 01 1 1109-1109 ● ●
224 BAND; RUBBER,JACK
THA 		8-98178-626-0 01 1 1110- ● ● ● ● ●
237 BAG; TOOL
THA 		8-97945-395-0 01 1 1109-1109 ● ●
237 BAG; TOOL
THA 		8-97945-395-0 01 1 1110- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
