◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#79392) — 170 parça

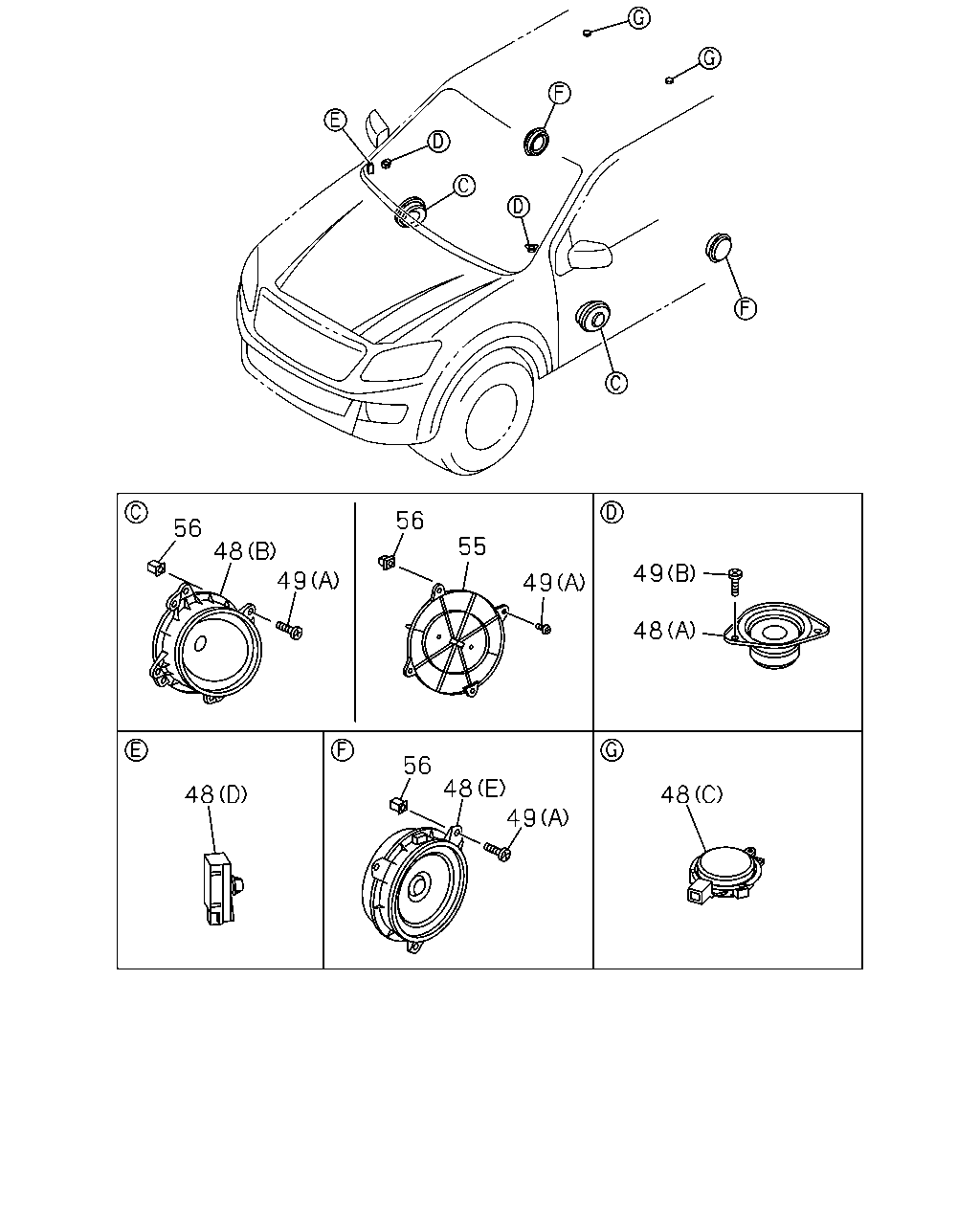

çizim 147307
56 48 49 56 55 49 49 48 48 49 48 56 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA 		8-98052-940-0 02 1 1109-1109 ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (A) THA 		8-98052-940-0 02 1 1110- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A) THA 		8-98052-940-0 02 1 1110- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) THA 		8-98052-937-0 02 1 1109-1109 ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B) THA 		8-98052-937-0 02 1 1110- ● ●
48 SPEAKER; AUDIO
(B) THA 		8-98052-937-0 02 1 1110- ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> (B) THA 		8-98052-937-0 02 1 1110- ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) THA 		8-98052-937-0 02 1 1110- ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C) THA 		8-98052-942-0 02 1 1109-1109 ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (C) THA 		8-98052-942-0 02 1 1110- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (C) THA 		8-98052-942-0 02 1 1110- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D) THA 		8-98064-704-0 01 1 1109-1109 ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6> (D) THA 		8-98064-704-0 01 1 1110- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (D) THA 		8-98064-704-0 01 1 1110- ● ●
48 SPEAKER; AUDIO
8-SPEAKER SYSTEM CUSTOM<U87> (E) THA 		8-98052-941-0 02 1 1110- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1109-1109 ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1110- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1110- ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1109-1109 ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1110-1211 ● ● ● ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1212- ● ● ● ● ●
49 SCREW; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA 		8-98184-363-0 06 1 1110- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1109-1109 ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1110- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1110- ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98102-183-0 02 1 1110- ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1109-1109 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1110-1211 ● ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1212- ● ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98163-895-0 06 1 1110- ● ●
çizim 147308
141 298 141 80 244
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) DARK GRAY THA 		8-97423-673-2 01 1 1212-1507 ● ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-011-0 01 1 1508- ● ●
80 ANTENNA
ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1109-1109 ● ●
80 ANTENNA
ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1110-1211 ● ● ●
80 ANTENNA
(A) THA 		8-98053-048-0 01 1 1110-1211 ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1212- ● ● ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1212- ●
80 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1109-1109 ● ●
80 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1110-1211 ● ● ●
80 ANTENNA
(B) THA 		8-98053-047-2 01 1 1110-1211 ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1212- ● ● ●
80 ANTENNA
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-047-2 01 1 1212- ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1212- ●
141 CLIP; ANTENNA CABLE
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98219-154-0 02 1 1212- ● ● ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) THA 		8-98192-896-2 01 1 1212- ● ● ● ●
244 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1109-1109 ● ●
244 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1110-1211 ● ● ●
244 CABLE; FEEDER
(A) THA 		8-98063-228-0 01 1 1110-1211 ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1212- ● ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1212- ●
244 CABLE; FEEDER
(B) THA 		8-98053-051-1 01 1 1109-1109 ● ●
244 CABLE; FEEDER
(B) THA 		8-98053-051-1 01 1 1110-1211 ● ● ● ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-051-1 01 1 1212- ● ● ●
244 CABLE; FEEDER
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-051-1 01 1 1212- ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (B) THA 		8-98053-051-1 01 1 1212- ●
298 NUT; ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98219-125-0 01 1 1212- ● ● ● ●

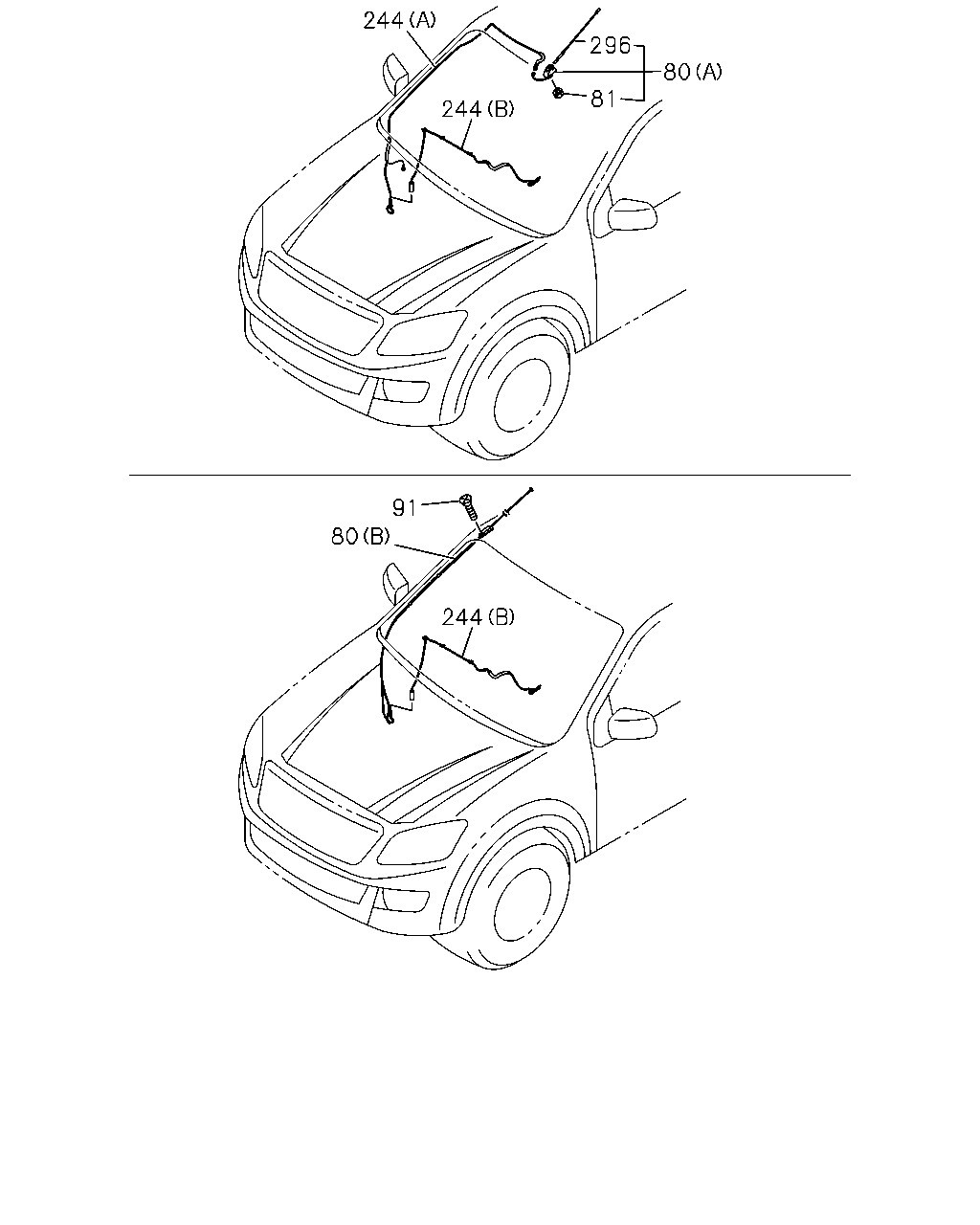

çizim 147311
244 80 91 244 244 296 81 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) SILVER THA 		8-97423-670-2 01 1 1212-1505 ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> EXC. SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR SPLASH WHITE<527>,BODY COLOR GARNET RED MICA<528>,BODY COLOR MINERAL GRAY MET<530>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR NEBULA GRAY MICA<520>,BODY COLOR NAUTILUS BLUE MICA<521>,BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR SPLASH WHITE<527>,BODY COLORGARNET RED MICA<528>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR MINERAL GRAY MET<530>,BOD Y COLOR SILKY WHITE PEARL<531>,BODY COLOR ASH BEIGE MET<541> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) THA 		8-97466-010-0 01 1 1506- ● ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) DARK GRAY THA 		8-97423-673-2 01 1 1212-1507 ● ●
80 ANTENNA
BODY COLOR COSMIC BLACK MICA<523>,BODY COLOR TITANIUM SILVER MET<529>,BODY COLOR SILKY WHITE PEARL<531> RADIO AM/FM STEREO,DVD NAVIGATION<UCY> SALES PACKAGE SPORTY<XK0> (C) THA 		8-97466-011-0 01 1 1508- ● ●
80 ANTENNA
ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1109-1109 ● ●
80 ANTENNA
ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1110-1211 ● ● ●
80 ANTENNA
(A) THA 		8-98053-048-0 01 1 1110-1211 ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1212- ● ● ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> (A) THA 		8-98053-048-0 01 1 1212- ●
80 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1109-1109 ● ●
80 ANTENNA
EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1110-1211 ● ● ●
80 ANTENNA
(B) THA 		8-98053-047-2 01 1 1110-1211 ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1212- ● ● ●
80 ANTENNA
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-047-2 01 1 1212- ●
80 ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ROOF RADIO ANTENNA<U71> (B) THA 		8-98053-047-2 01 1 1212- ●
81 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71> THA 		8-98165-971-0 01 1 1109-1109 ● ●
81 NUT; ANTENNA POLE
ROOF RADIO ANTENNA<U71> THA 		8-98165-971-0 01 1 1110-1211 ● ● ●
81 NUT; ANTENNA POLE
THA 		8-98165-971-0 01 1 1110-1211 ●
81 NUT; ANTENNA POLE
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> THA 		8-98165-971-0 01 1 1212- ● ● ●
81 NUT; ANTENNA POLE
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> THA 		8-98165-971-0 01 1 1212- ●
91 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA 		8-97375-569-0 02 1 1109-1109 ● ●
91 BOLT; ANTENNA
EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA 		8-97375-569-0 02 1 1110-1211 ● ● ●
91 BOLT; ANTENNA
M5X16 IMA 		8-97375-569-0 02 1 1110-1211 ●
91 BOLT; ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM W/CD,W/CLOCK<U1C> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA 		8-97375-569-0 02 1 1212- ● ● ●
91 BOLT; ANTENNA
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> M5X16 IMA 		8-97375-569-0 02 1 1212- ●
91 BOLT; ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> EXC. ROOF RADIO ANTENNA<U71> M5X16 IMA 		8-97375-569-0 02 1 1212- ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> (C) THA 		8-98192-896-2 01 1 1212- ● ● ● ●
244 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1109-1109 ● ●
244 CABLE; FEEDER
ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1110-1211 ● ● ●
244 CABLE; FEEDER
(A) THA 		8-98063-228-0 01 1 1110-1211 ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1212- ● ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> (A) THA 		8-98063-228-0 01 1 1212- ●
244 CABLE; FEEDER
(B) THA 		8-98053-051-1 01 1 1109-1109 ● ●
244 CABLE; FEEDER
(B) THA 		8-98053-051-1 01 1 1110-1211 ● ● ● ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-051-1 01 1 1212- ● ● ●
244 CABLE; FEEDER
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (B) THA 		8-98053-051-1 01 1 1212- ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (B) THA 		8-98053-051-1 01 1 1212- ●
296 ROD; ANTENNA
ROOF RADIO ANTENNA<U71> THA 		8-98165-969-0 01 1 1109-1109 ● ●
296 ROD; ANTENNA
ROOF RADIO ANTENNA<U71> THA 		8-98165-969-0 01 1 1110-1211 ● ● ●
296 ROD; ANTENNA
THA 		8-98165-969-0 01 1 1110-1211 ●
296 ROD; ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA>, RADIO AM/FM W/CD,W/CLOCK<U1C> ROOF RADIO ANTENNA<U71> THA 		8-98165-969-0 01 1 1212- ● ● ●
296 ROD; ANTENNA
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> ROOF RADIO ANTENNA<U71> THA 		8-98165-969-0 01 1 1212- ●

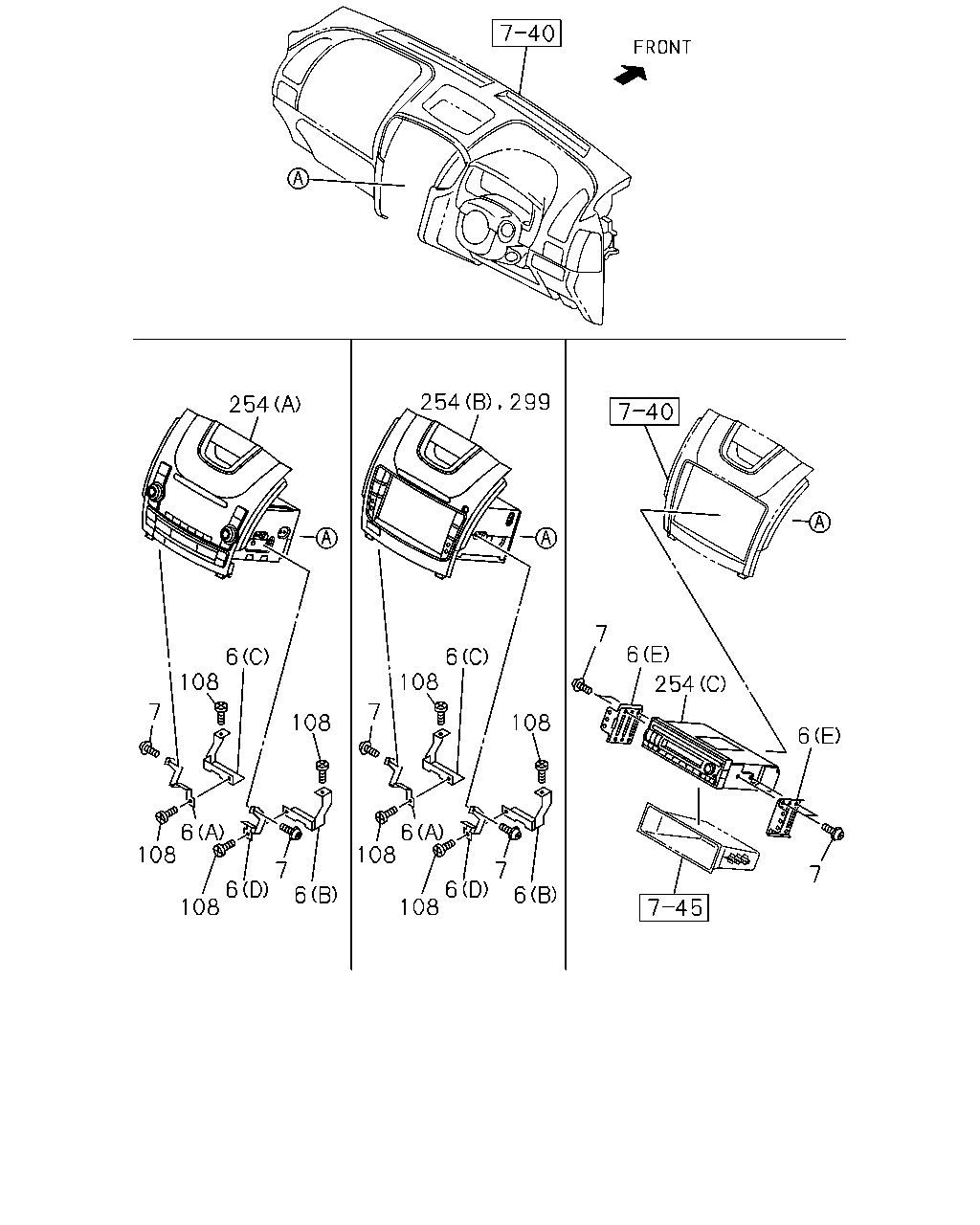

çizim 147329
254 6 108 7 108 6 7 6 108 108 6 6 108 7 108 299 254 7 6 254 6 7 108 6 6 6 108 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (A) THA 		8-98102-186-2 01 1 1109-1109 ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (A) THA 		8-98102-186-2 01 1 1110-1211 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (A) THA 		8-98102-186-2 01 1 1110-1211 ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (A) THA 		8-98102-186-2 01 1 1212- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (A) THA 		8-98102-186-2 01 1 1212- ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (B) THA 		8-98102-187-3 01 1 1109-1109 ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (B) THA 		8-98102-187-3 01 1 1110-1211 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (B) THA 		8-98102-187-3 01 1 1110-1211 ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (B) THA 		8-98102-187-3 01 1 1212- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (B) THA 		8-98102-187-3 01 1 1212- ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (C) THA 		8-98106-390-3 01 1 1109-1109 ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (C) THA 		8-98106-390-3 01 1 1110-1211 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (C) THA 		8-98106-390-3 01 1 1110-1211 ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (C) THA 		8-98106-390-3 01 1 1212- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (C) THA 		8-98106-390-3 01 1 1212- ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (D) THA 		8-98109-822-2 01 1 1109-1109 ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (D) THA 		8-98109-822-2 01 1 1110-1211 ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (D) THA 		8-98109-822-2 01 1 1110-1211 ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> (D) THA 		8-98109-822-2 01 1 1212- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (D) THA 		8-98109-822-2 01 1 1212- ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (E) THA 		8-98102-188-2 02 1 1109-1109 ● ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (E) THA 		8-98102-188-2 02 1 1110-1211 ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE<UL5> (E) THA 		8-98102-188-2 02 1 1110-1211 ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CD,W/CLOCK<U1C> (E) THA 		8-98102-188-2 02 1 1212- ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE<UL5>,RADIO AM/FM W/CD,W/CLOCK<U1C> (E) THA 		8-98102-188-2 02 1 1212- ●
7 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1109-1109 ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1110-1211 ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1110-1211 ●
7 SCREW; RADIO
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1212- ● ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 02 1 1212- ●
7 SCREW; RADIO
RADIO AM/FM W/CD,W/CLOCK<U1C> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 04 1 1109-1109 ● ●
7 SCREW; RADIO
RADIO AM/FM W/CD,W/CLOCK<U1C> M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 04 1 1110- ● ● ● ●
108 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X16 TAPPING THA 		8-98167-449-0 04 1 1109-1109 ● ●
108 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>, RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X16 TAPPING THA 		8-98167-449-0 04 1 1110-1211 ● ● ●
108 SCREW; BRKT
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> M5X16 TAPPING THA 		8-98167-449-0 04 1 1110-1211 ●
108 SCREW; BRKT
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ>,RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR,RDS<UVA> M5X16 TAPPING THA 		8-98167-449-0 04 1 1212- ● ● ●
108 SCREW; BRKT
RADIO AM/FM STEREO,DVD NAVIGATION<UCY>,RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> M5X16 TAPPING THA 		8-98167-449-0 04 1 1212- ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (A) THA 		8-98052-935-3 01 1 1109-1109 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS<UGQ> (A) THA 		8-98052-935-3 01 1 1110- ● ● ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> (B) THA 		8-98052-936-2 01 1 1109-1109 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,CD,MP3,DVD,CLOCK,ETR, RDS<UVA> (B) THA 		8-98052-936-2 01 1 1110- ● ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) THA 		8-98052-934-1 01 1 1109-1109 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/CLOCK<U1C> (C) THA 		8-98052-934-1 01 1 1110- ● ● ● ●
299 DISPLAY; MULTI
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98182-420-2 01 1 1212-1407 ● ● ● ●
299 DISPLAY; MULTI
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98287-430-0 01 1 1408-1504 ● ● ● ●
299 DISPLAY; MULTI
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98309-240-0 01 1 1505-1508 ● ● ● ●
299 DISPLAY; MULTI
RADIO AM/FM STEREO,DVD NAVIGATION<UCY> THA 		8-98322-820-0 01 1 1509- ● ● ● ●

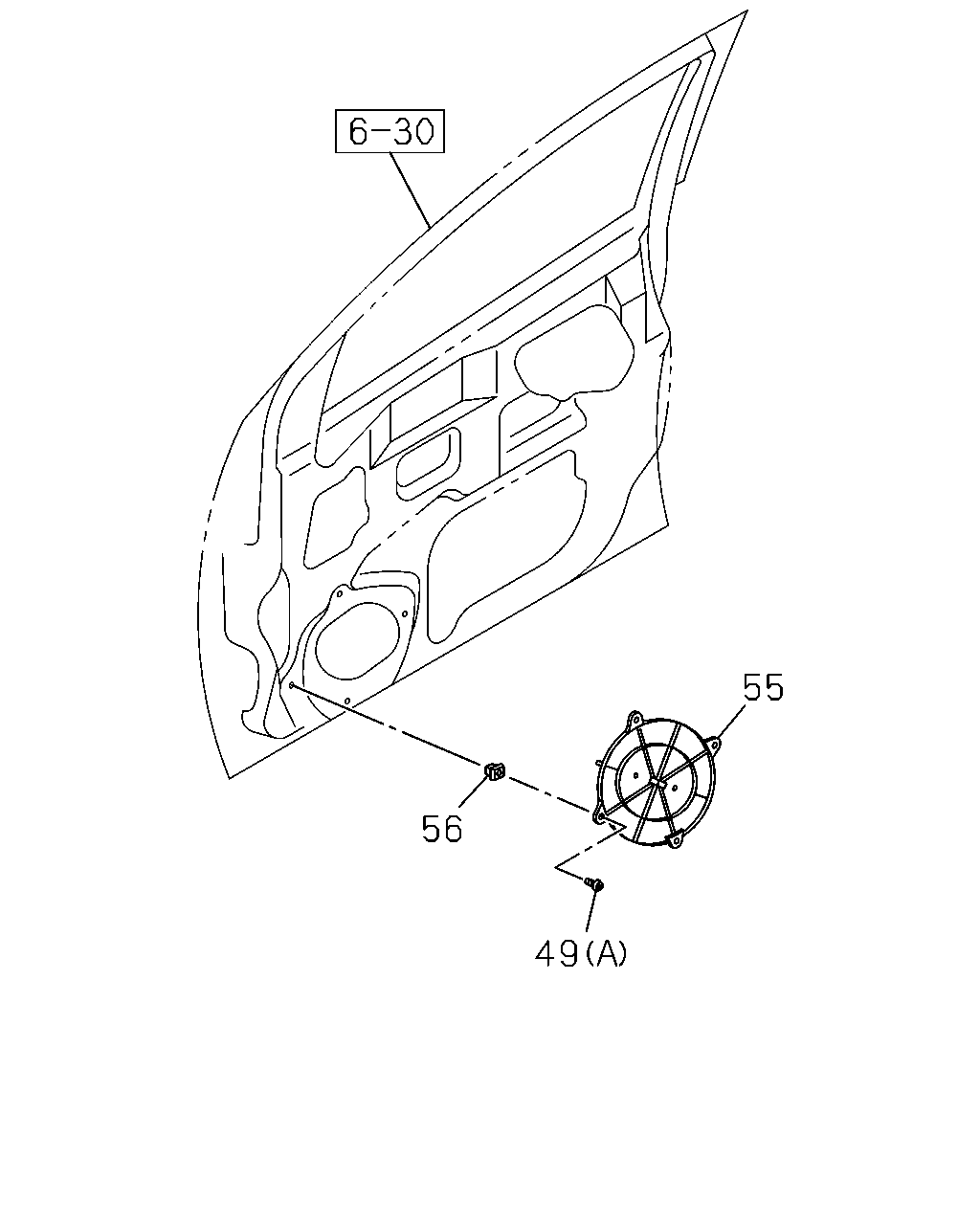

çizim 320085
49 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1109-1109 ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1110- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (B) M5X16 TAPPING THA 		8-98167-449-0 04 1 1110- ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1109-1109 ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1110-1211 ● ● ● ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING THA 		8-98184-363-0 08 1 1212- ● ● ● ● ●
49 SCREW; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87> (A) M5X14 TAPPING THA 		8-98184-363-0 06 1 1110- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1109-1109 ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1110- ● ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87>,2-SPEAKER SYSTEM BASE<U95> THA 		8-98102-183-0 02 1 1110- ●
55 COVER; SPEAKER HOLE
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98102-183-0 02 1 1110- ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1109-1109 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1110-1211 ● ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-98163-895-0 08 1 1212- ● ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-98163-895-0 06 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
