8-75 — CONDENSER (#79390) — 26 parça

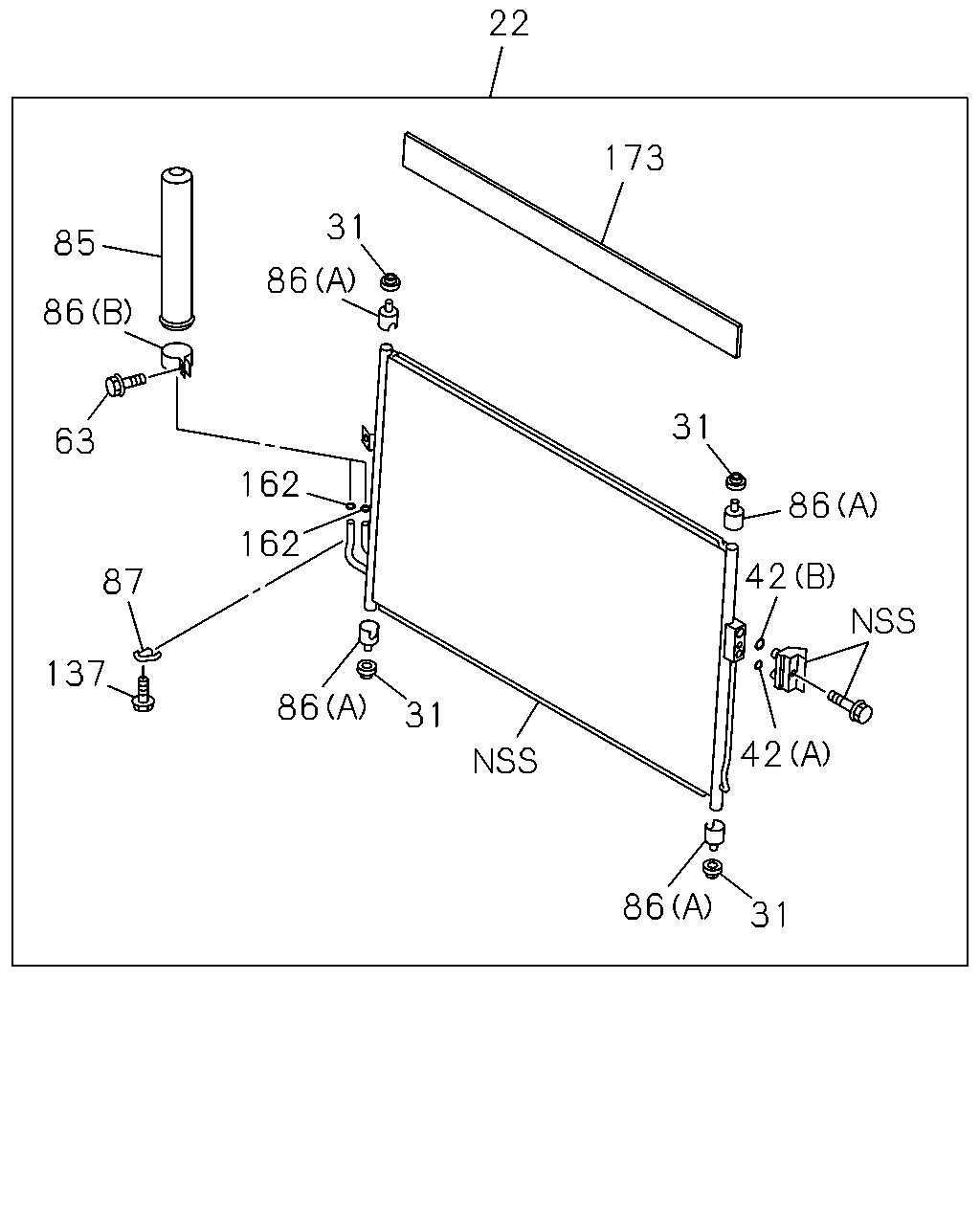

çizim 147323
31 86 42 42 86 31 173 22 31 86 85 86 63 162 162 87 137 86 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 CONDENSER ASM; A/C
THA 		8-98052-634-2 01 1 1109-1109 ● ●
22 CONDENSER ASM; A/C
THA 		8-98052-634-3 01 1 1110- ● ● ● ● ●
31 RUBBER; MTG,CONDENSER
THA 		8-98193-616-0 04 1 1109-1109 ● ●
31 RUBBER; MTG,CONDENSER
THA 		8-98193-616-0 04 1 1110- ● ● ● ● ●
42 GASKET; CONDENSER
(A) ID=8 THA 		8-98193-614-0 01 1 1109-1109 ● ●
42 GASKET; CONDENSER
(A) ID=8 THA 		8-98193-614-0 01 1 1110- ● ● ● ● ●
42 GASKET; CONDENSER
(B) ID=12 THA 		8-98193-615-0 01 1 1109-1109 ● ●
42 GASKET; CONDENSER
(B) ID=12 THA 		8-98193-615-0 01 1 1110- ● ● ● ● ●
63 BOLT; RECEIVER TANK
M5X16 THA 		8-98193-604-0 01 1 1109-1109 ● ●
63 BOLT; RECEIVER TANK
M5X16 THA 		8-98193-604-0 01 1 1110- ● ● ● ● ●
85 DRYER; RECEIVER
THA 		8-98193-597-0 01 1 1109-1109 ● ●
85 DRYER; RECEIVER
THA 		8-98193-597-0 01 1 1110-1211 ● ● ● ● ●
85 DRYER; RECEIVER
THA 		8-98233-381-0 01 1 1212- ● ● ● ● ●
86 BRACKET; RECEIVER DRYER
(B) THA 		8-98193-599-0 01 1 1109-1109 ● ●
86 BRACKET; RECEIVER DRYER
(B) THA 		8-98193-599-0 01 1 1110- ● ● ● ● ●
86 BRACKET; RECEIVER DRYER
(A) THA 		8-98193-618-0 04 1 1109-1109 ● ●
86 BRACKET; RECEIVER DRYER
(A) THA 		8-98193-618-0 04 1 1110- ● ● ● ● ●
87 BRACKET; RECEIVER DRYER
THA 		8-98193-602-0 01 1 1109-1109 ● ●
87 BRACKET; RECEIVER DRYER
THA 		8-98193-602-0 01 1 1110- ● ● ● ● ●
137 BOLT; BRKT,DRYER
M6X12 THA 		8-98193-603-0 01 1 1109-1109 ● ●
137 BOLT; BRKT,DRYER
M6X12 THA 		8-98193-603-0 01 1 1110- ● ● ● ● ●
162 GASKET; PIPE TO DRYER
ID=8 THA 		8-98193-614-0 02 1 1109-1109 ● ●
162 GASKET; PIPE TO DRYER
ID=8 THA 		8-98193-614-0 02 1 1110- ● ● ● ● ●
173 INSULATOR; CONDENSER
THA 		8-98193-620-0 01 1 1109-1109 ● ●
173 INSULATOR; CONDENSER
THA 		8-98193-620-0 01 1 1110-1211 ● ● ● ● ●
173 INSULATOR; CONDENSER
THA 		8-98233-382-0 01 1 1212- ● ● ● ● ●
