Sayfa 0-11 - Isuzu EPC

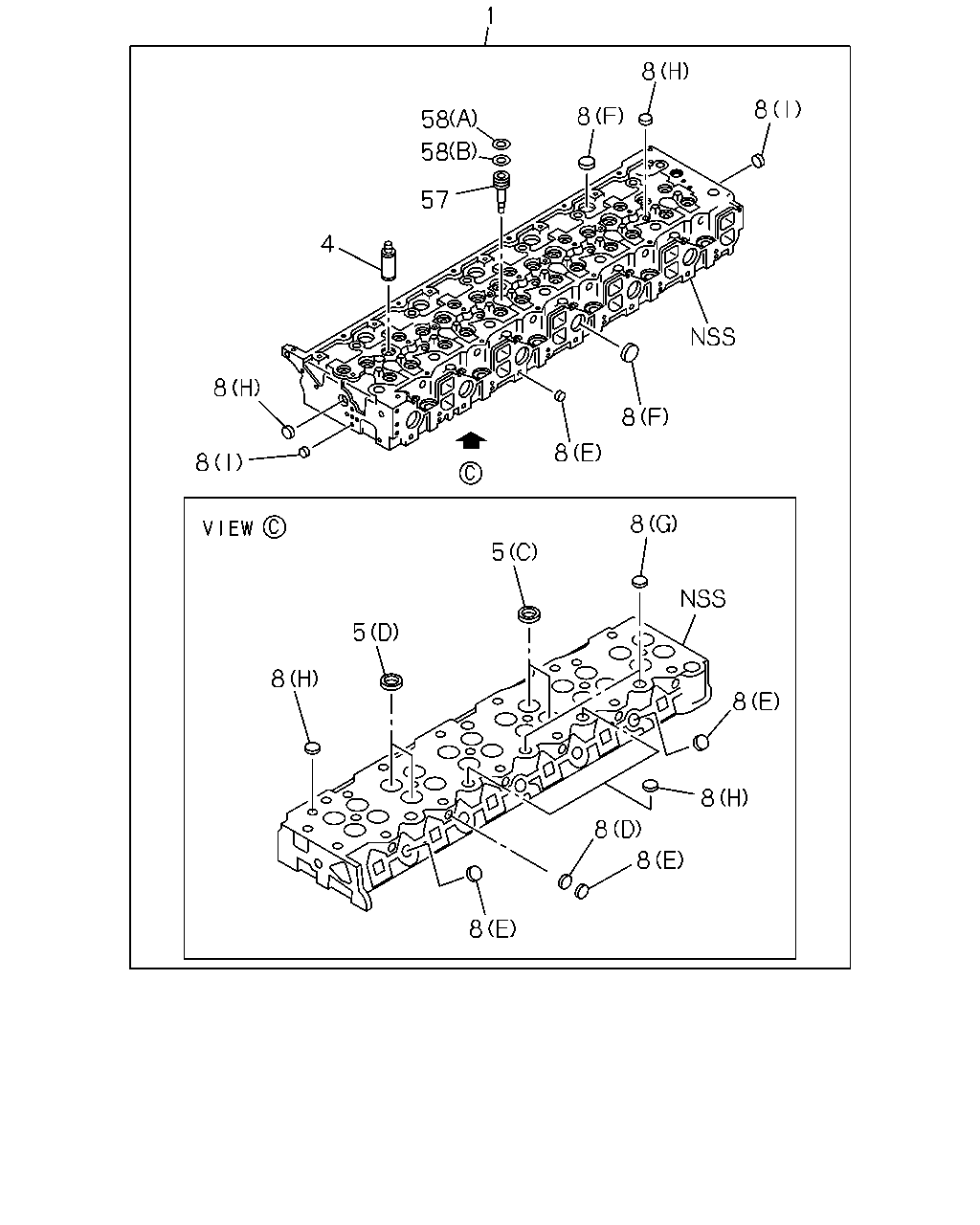

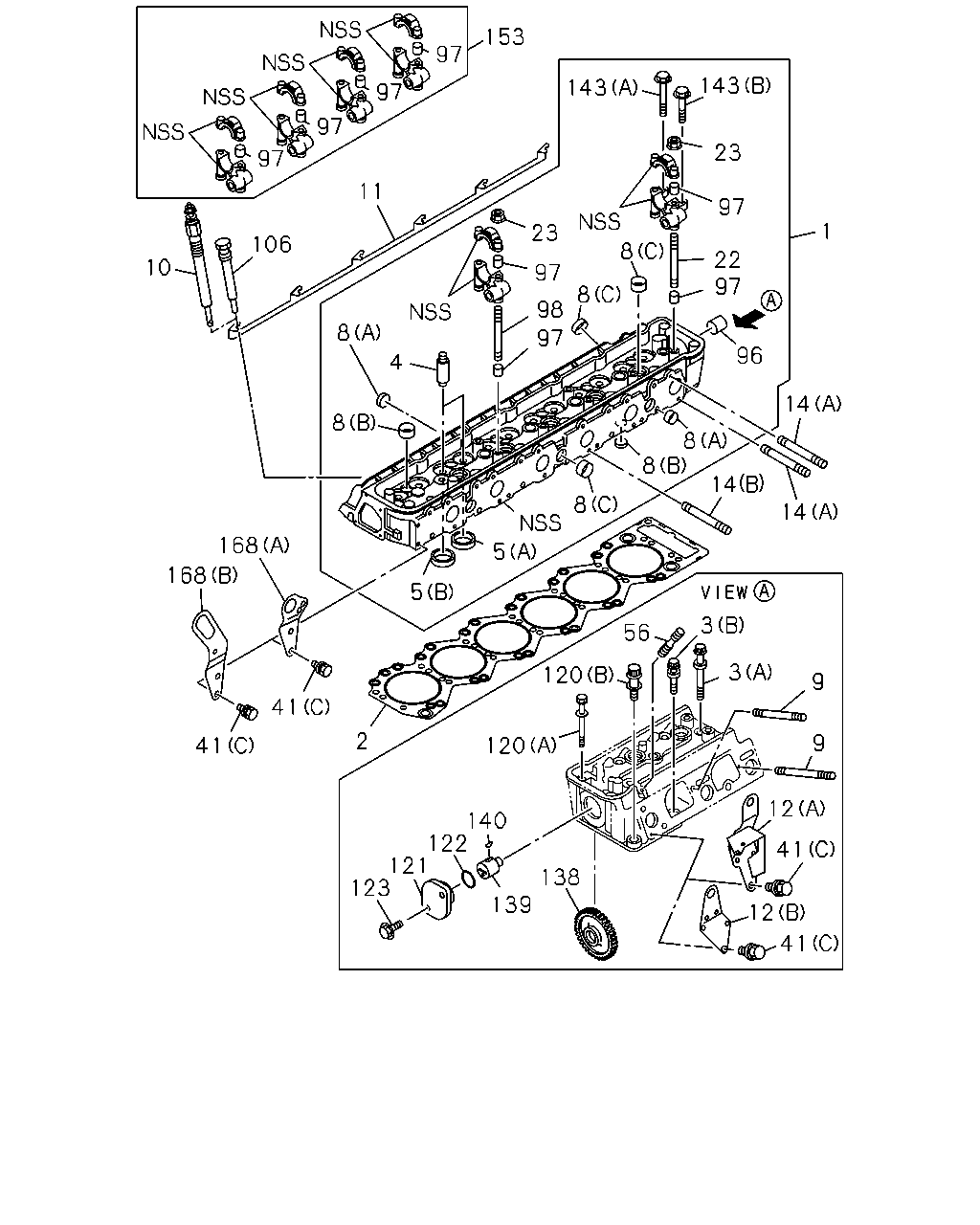

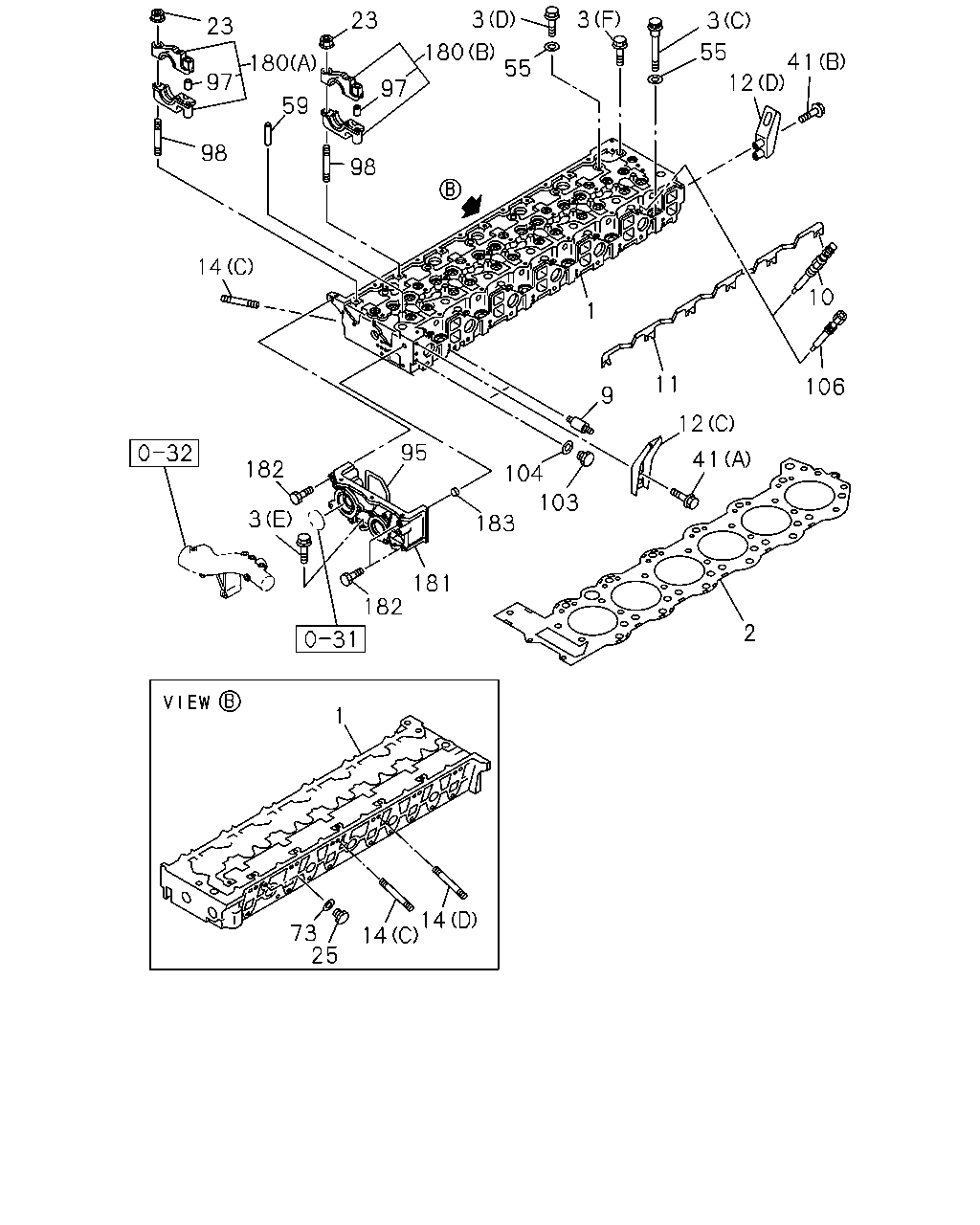

0-11 — CYLINDER HEAD (#7939) — 382 parça

153 97 143 143 97 97 23 97 11 97 1 23 106 8 22 97 10 97 8 98 8 97 96 4 14 8 8 8 14 8 14 168 5 168 5 3 56 3 120 9 41 2 9 41 120 12 140 122 121 123 41 138 139 12 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	1-11110-856-2	01	1	0012-0106	●
1	HEAD ASM; CYL EXC. EURO3 SPECIFICATION(NJX)	1-11110-856-2	01	1	0107-	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-2	01	1	0107-0210	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-4	01	1	0211-	●
1	HEAD ASM; CYL	1-11110-924-4	01	1	0211-		●
1	HEAD ASM; CYL	1-11110-902-5	01	1	0204-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-216-2	01	1	0012-0106	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX)	1-11141-216-4	01	1	0107-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX)	1-11141-278-1	01	1	0107-0210	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-278-2	01	1	0211-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-278-2	01	1	0211-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-2	01	1	0204-			●
3	BOLT; CYL HD TO BLOCK (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	20	1	0012-0106	●
3	BOLT; CYL HD TO BLOCK EXC. EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	20	1	0107-	●
3	BOLT; CYL HD TO BLOCK (B) M14X67 FLANGE W/PL WASHER	1-09070-044-1	06	1	0012-0106	●
3	BOLT; CYL HD TO BLOCK EXC. EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-044-1	06	1	0107-	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0107-0210	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0211-	●
3	BOLT; CYL HD TO BLOCK (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0211-		●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0107-0210	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0211-	●
3	BOLT; CYL HD TO BLOCK (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0211-		●
3	BOLT; CYL HD TO BLOCK (E) M10X35 FLANGE	0-28181-035-0	02	1	0204-0512			●
3	BOLT; CYL HD TO BLOCK (E) M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
3	BOLT; CYL HD TO BLOCK (F) M12X120 FLANGE	0-28186-212-0	01	1	0204-0512			●
3	BOLT; CYL HD TO BLOCK (F) M12X120 FLANGE	0-28156-212-0	01	1	0601-			●
3	BOLT; CYL HD TO BLOCK (C) M18X115 FLANGE	1-09070-141-0	06	1	0204-			●
3	BOLT; CYL HD TO BLOCK (D) M18X159	1-09070-142-0	20	1	0204-			●
4	GUIDE; VLV	1-11721-008-0	12	1	0012-0210	●
4	GUIDE; VLV	1-11721-008-0	12	1	0211-	●	●
4	GUIDE; VLV	1-11721-012-0	24	1	0204-			●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-051-0	06	1	0012-0106	●
5	SEAT; VLV INSERT EXC. EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-051-0	06	1	0107-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-122-0	06	1	0012-0106	●
5	SEAT; VLV INSERT EXC. EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-122-0	06	1	0107-	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-078-0	06	1	0107-0108	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-085-0	06	1	0109-0210	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-085-0	06	1	0211-	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-085-0	06	1	0211-		●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-115-0	06	1	0107-0108	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-118-0	06	1	0109-0210	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-118-0	06	1	0211-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-118-0	06	1	0211-		●
5	SEAT; VLV INSERT (D) EXHAUST	1-11711-076-0	12	1	0204-			●
5	SEAT; VLV INSERT (C) INLET	1-11715-111-0	12	1	0204-			●
8	CUP; SEALING,WATER JACKET EURO3 SPECIFICATION(NJX) (A) OD=12	1-09600-010-1	06	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0407-0502		●
8	CUP; SEALING,WATER JACKET EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	09	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0407-0502		●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0012-0210	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0211-0406	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (A) OD=12	1-09600-010-1	12	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-2	06	1	0503-	●	●
8	CUP; SEALING,WATER JACKET (B) OD=22	1-09600-011-2	11	1	0012-0210	●
8	CUP; SEALING,WATER JACKET (B) OD=22	1-09600-011-2	11	1	0211-	●	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	14	1	0012-0105	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	09	1	0106-0106	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0107-0210	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0211-0406	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	18	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-2	09	1	0503-	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=30	8-94241-638-0	05	1	0106-0106	●
8	CUP; SEALING,WATER JACKET (C) OD=30	8-94241-638-0	05	1	0107-0210	●
8	CUP; SEALING,WATER JACKET (C) OD=30	8-94241-638-0	05	1	0211-	●	●
8	CUP; SEALING,WATER JACKET (G) OD=32	1-09600-012-2	03	1	0204-			●
8	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	09	1	0204-			●
8	CUP; SEALING,WATER JACKET (I) OD=12.3	5-09600-013-0	02	1	0204-			●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	0204-			●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	0204-			●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	0204-			●
9	STUD; INL MANIF M8X86 L=99	9-09630-026-0	04	1	0012-0106	●
9	STUD; INL MANIF EXC. EURO3 SPECIFICATION(NJX) M8X86 L=99	9-09630-026-0	04	1	0107-	●
9	STUD; INL MANIF EURO3 SPECIFICATION(NJX) M8X12,M8X17 L=96	1-09309-020-0	12	1	0107-0210	●
9	STUD; INL MANIF EURO3 SPECIFICATION(NJX) M8X12,M8X17 L=96	1-09309-020-1	12	1	0211-	●
9	STUD; INL MANIF M8X12,M8X17 L=96	1-09309-020-1	12	1	0211-		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	0204-			●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-0	06	1	0012-0106	●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-0	06	1	0107-0203	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-0	06	1	0107-0203	●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-1	06	1	0204-0210	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-1	06	1	0204-0210	●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-1	06	1	0204-0210			●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-2	06	1	0211-	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-2	06	1	0211-	●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-2	06	1	0211-			●
10	PLUG; GLOW GLOW PLUG<KM5>	1-82513-043-2	06	1	0211-		●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2>	1-19732-011-0	01	1	0012-0106	●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-19732-011-0	01	1	0107-0210	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-19732-011-0	01	1	0107-0210	●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-19732-011-1	01	1	0211-	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-19732-011-1	01	1	0211-	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5>	1-19732-011-1	01	1	0211-		●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2>	1-19732-030-2	01	1	0204-			●
12	HANGER; ENG,RR (A)	1-11777-099-0	01	1	0012-0106	●
12	HANGER; ENG,RR EXC. EURO3 SPECIFICATION(NJX) (A)	1-11777-099-0	01	1	0107-	●
12	HANGER; ENG,RR EURO3 SPECIFICATION(NJX) (B)	1-11777-222-0	01	1	0107-0210	●
12	HANGER; ENG,RR EURO3 SPECIFICATION(NJX) (B)	1-11777-222-0	01	1	0211-	●
12	HANGER; ENG,RR (B)	1-11777-222-0	01	1	0211-		●
12	HANGER; ENG,RR (C)	1-11777-216-2	01	1	0204-			●
12	HANGER; ENG,RR (D)	1-11777-263-0	01	1	0204-			●
12	HANGER; ENG,RR (D)	1-11777-239-1	01	1	0204-			●
14	STUD; EXH MANIF (B) M10X104 L=119	1-09302-104-1	08	1	0012-0106	●
14	STUD; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) M10X104 L=119	1-09302-104-1	08	1	0107-	●
14	STUD; EXH MANIF (A) M10X130 L=145	1-09302-107-0	04	1	0012-0106	●
14	STUD; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A) M10X130 L=145	1-09302-107-0	04	1	0107-	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X95 L=110	1-09302-063-0	03	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X95 L=110	1-09302-063-0	03	1	0211-	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	03	1	0211-		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (B) M10X135 L=150	1-09302-159-0	08	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (B) M10X135 L=150	1-09302-159-0	08	1	0211-	●
14	STUD; EXH MANIF (B) M10X135 L=150	1-09302-159-0	08	1	0211-		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	9-04321-045-0	01	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	9-04321-045-0	01	1	0211-0604	●
14	STUD; EXH MANIF (A) M10X45 L=65	9-04321-045-0	01	1	0211-0604		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	0-43211-045-0	01	1	0605-	●
14	STUD; EXH MANIF (A) M10X45 L=65	0-43211-045-0	01	1	0605-		●
14	STUD; EXH MANIF (C) M10X95 L=110	1-09302-063-0	15	1	0204-			●
14	STUD; EXH MANIF (D) M10X130 L=145	1-09302-107-0	03	1	0204-			●
22	STUD; CAM BRKT M8X124 L=142	1-09300-033-1	02	1	0012-0210	●
22	STUD; CAM BRKT M8X124 L=142	1-09300-033-1	02	1	0211-	●	●
23	NUT; CAM BRKT M8 FLANGE	9-09844-190-0	08	1	0012-0210	●
23	NUT; CAM BRKT M8 FLANGE	9-09844-190-0	08	1	0211-0809	●	●
23	NUT; CAM BRKT M8 FLANGE	8-98053-188-0	08	1	0810-	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	0204-			●
41	BOLT; ENG HANGER (C) M10X20 W/LK WASHER	0-50051-020-0	05	1	0012-0106	●
41	BOLT; ENG HANGER EXC. EURO3 SPECIFICATION(NJX) (C) M10X20 W/LK WASHER	0-50051-020-0	05	1	0107-0512	●
41	BOLT; ENG HANGER EXC. EURO3 SPECIFICATION(NJX) (C) M10X20 W/LK WASHER	0-50551-020-0	05	1	0601-	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28781-025-0	02	1	0107-0210	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28781-025-0	02	1	0211-0512	●
41	BOLT; ENG HANGER (C) M10X25 FLANGE	0-28781-025-0	02	1	0211-0512		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
41	BOLT; ENG HANGER (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28791-040-0	03	1	0107-0210	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28791-040-0	03	1	0211-0512	●
41	BOLT; ENG HANGER (C) M10X40 FLANGE	0-28791-040-0	03	1	0211-0512		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28761-040-0	03	1	0601-	●
41	BOLT; ENG HANGER (C) M10X40 FLANGE	0-28761-040-0	03	1	0601-		●
41	BOLT; ENG HANGER (B) M12X120 FLANGE	0-28186-212-0	01	1	0204-0512			●
41	BOLT; ENG HANGER (B) M12X120 FLANGE	0-28156-212-0	01	1	0601-			●
41	BOLT; ENG HANGER (A) M12X25 FLANGE	0-28191-225-0	02	1	0204-0512			●
41	BOLT; ENG HANGER (A) M12X25 FLANGE	0-28161-225-0	02	1	0601-			●
41	BOLT; ENG HANGER (B) M12X30 FLANGE	0-28191-230-0	02	1	0204-0512			●
41	BOLT; ENG HANGER (B) M12X30 FLANGE	0-28161-230-0	02	1	0601-			●
41	BOLT; ENG HANGER (B) M14X120 FLANGE	0-28986-412-0	01	1	0204-0512			●
41	BOLT; ENG HANGER (B) M14X120 FLANGE	0-28956-412-0	01	1	0601-			●
56	STUD; NOZZLE HOLDER M8X40 L=58	1-09300-018-0	12	1	0012-0210	●
56	STUD; NOZZLE HOLDER M8X40 L=58	1-09300-018-0	12	1	0211-	●	●
96	BUSHING; IDLE SHAFT	1-12528-007-0	01	1	0012-0210	●
96	BUSHING; IDLE SHAFT	1-12528-007-0	01	1	0211-	●	●
97	DOWEL; CAM BRKT SET	1-11229-012-1	16	1	0012-0210	●
97	DOWEL; CAM BRKT SET	1-11229-012-1	16	1	0211-	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	0204-0907			●
97	DOWEL; CAM BRKT SET OD=16	8-98143-037-0	28	1	0908-			●
98	STUD; CAM BRKT M8X114 L=132	1-09300-028-1	06	1	0012-0210	●
98	STUD; CAM BRKT M8X114 L=132	1-09300-028-1	06	1	0211-	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	0204-			●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0012-0106	●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0107-0203	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0107-0203	●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0204-0210	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0204-0210	●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0204-0210			●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0211-	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0211-	●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0211-			●
106	PLUG; GLOW PLUG HOLE EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0211-		●
120	BOLT; CYL HD TO HSG (B) M10X34 FLANGE W/PL WASHER	1-09070-059-0	01	1	0012-0210	●
120	BOLT; CYL HD TO HSG (B) M10X34 FLANGE W/PL WASHER	1-09070-059-0	01	1	0211-	●	●
120	BOLT; CYL HD TO HSG (A) M10X122 FLANGE W/PL WASHER	1-09070-060-0	02	1	0012-0210	●
120	BOLT; CYL HD TO HSG (A) M10X122 FLANGE W/PL WASHER	1-09070-060-0	02	1	0211-	●	●
121	COVER; IDLE GEAR,CYL HD	1-11321-100-0	01	1	0012-0210	●
121	COVER; IDLE GEAR,CYL HD	1-11321-100-0	01	1	0211-	●	●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-208-0	01	1	0012-0210	●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-208-0	01	1	0211-	●	●
123	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0012-0210	●
123	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0211-0512	●	●
123	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
138	GEAR; IDLE Z=48	1-12523-246-0	01	1	0012-0210	●
138	GEAR; IDLE Z=48	1-12523-246-1	01	1	0211-	●	●
139	SHAFT; IDLE GEAR	1-12531-098-0	01	1	0012-0210	●
139	SHAFT; IDLE GEAR	1-12531-098-0	01	1	0211-	●	●
140	KEY; IDLE GEAR	9-08055-522-0	01	1	0012-0210	●
140	KEY; IDLE GEAR	9-08055-522-0	01	1	0211-	●	●
143	BOLT; FIX (A) M8X100 FLANGE	0-28080-800-0	01	1	0012-0210	●
143	BOLT; FIX (A) M8X100 FLANGE	0-28080-800-0	01	1	0211-0512	●	●
143	BOLT; FIX (A) M8X100 FLANGE	0-28050-800-0	01	1	0601-	●	●
143	BOLT; FIX (B) M8X60 FLANGE	0-28090-860-0	01	1	0012-0210	●
143	BOLT; FIX (B) M8X60 FLANGE	0-28090-860-0	01	1	0211-0512	●	●
143	BOLT; FIX (B) M8X60 FLANGE	0-28060-860-0	01	1	0601-	●	●
153	BRACKET KIT; CAM,CYL HD	1-12516-180-0	AR	1	0012-0210	●
153	BRACKET KIT; CAM,CYL HD	1-12516-180-0	AR	1	0211-	●	●
168	HANGER; ENG,FRT (A)	1-11777-207-0	01	1	0012-0106	●
168	HANGER; ENG,FRT EXC. EURO3 SPECIFICATION(NJX) (A)	1-11777-207-0	01	1	0107-	●
168	HANGER; ENG,FRT EURO3 SPECIFICATION(NJX) (B)	1-11777-247-0	01	1	0107-0210	●
168	HANGER; ENG,FRT EURO3 SPECIFICATION(NJX) (B)	1-11777-247-0	01	1	0211-	●
168	HANGER; ENG,FRT (B)	1-11777-247-0	01	1	0211-		●

3 3 23 3 23 180 55 41 12 55 97 97 59 98 98 14 10 1 11 106 9 12 95 41 182 104 103 3 183 181 182 2 1 14 14 73 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	1-11110-856-2	01	1	0012-0106	●
1	HEAD ASM; CYL EXC. EURO3 SPECIFICATION(NJX)	1-11110-856-2	01	1	0107-	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-2	01	1	0107-0210	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-4	01	1	0211-	●
1	HEAD ASM; CYL	1-11110-924-4	01	1	0211-		●
1	HEAD ASM; CYL	1-11110-902-5	01	1	0204-			●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-216-2	01	1	0012-0106	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION(NJX)	1-11141-216-4	01	1	0107-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX)	1-11141-278-1	01	1	0107-0210	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NJX) ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-278-2	01	1	0211-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-278-2	01	1	0211-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-2	01	1	0204-			●
3	BOLT; CYL HD TO BLOCK (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	20	1	0012-0106	●
3	BOLT; CYL HD TO BLOCK EXC. EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	20	1	0107-	●
3	BOLT; CYL HD TO BLOCK (B) M14X67 FLANGE W/PL WASHER	1-09070-044-1	06	1	0012-0106	●
3	BOLT; CYL HD TO BLOCK EXC. EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-044-1	06	1	0107-	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0107-0210	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0211-	●
3	BOLT; CYL HD TO BLOCK (A) M14X125 FLANGE W/PL WASHER	1-09070-143-0	20	1	0211-		●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0107-0210	●
3	BOLT; CYL HD TO BLOCK EURO3 SPECIFICATION(NJX) (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0211-	●
3	BOLT; CYL HD TO BLOCK (B) M14X67 FLANGE W/PL WASHER	1-09070-144-0	06	1	0211-		●
3	BOLT; CYL HD TO BLOCK (E) M10X35 FLANGE	0-28181-035-0	02	1	0204-0512			●
3	BOLT; CYL HD TO BLOCK (E) M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
3	BOLT; CYL HD TO BLOCK (F) M12X120 FLANGE	0-28186-212-0	01	1	0204-0512			●
3	BOLT; CYL HD TO BLOCK (F) M12X120 FLANGE	0-28156-212-0	01	1	0601-			●
3	BOLT; CYL HD TO BLOCK (C) M18X115 FLANGE	1-09070-141-0	06	1	0204-			●
3	BOLT; CYL HD TO BLOCK (D) M18X159	1-09070-142-0	20	1	0204-			●
9	STUD; INL MANIF M8X86 L=99	9-09630-026-0	04	1	0012-0106	●
9	STUD; INL MANIF EXC. EURO3 SPECIFICATION(NJX) M8X86 L=99	9-09630-026-0	04	1	0107-	●
9	STUD; INL MANIF EURO3 SPECIFICATION(NJX) M8X12,M8X17 L=96	1-09309-020-0	12	1	0107-0210	●
9	STUD; INL MANIF EURO3 SPECIFICATION(NJX) M8X12,M8X17 L=96	1-09309-020-1	12	1	0211-	●
9	STUD; INL MANIF M8X12,M8X17 L=96	1-09309-020-1	12	1	0211-		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	0204-			●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-0	06	1	0012-0106	●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-0	06	1	0107-0203	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-0	06	1	0107-0203	●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-1	06	1	0204-0210	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-1	06	1	0204-0210	●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-1	06	1	0204-0210			●
10	PLUG; GLOW INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-82513-043-2	06	1	0211-	●
10	PLUG; GLOW GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-82513-043-2	06	1	0211-	●
10	PLUG; GLOW INTAKE HEATER<SL2>	1-82513-043-2	06	1	0211-			●
10	PLUG; GLOW GLOW PLUG<KM5>	1-82513-043-2	06	1	0211-		●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2>	1-19732-011-0	01	1	0012-0106	●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-19732-011-0	01	1	0107-0210	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-19732-011-0	01	1	0107-0210	●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2> EXC. EURO3 SPECIFICATION(NJX)	1-19732-011-1	01	1	0211-	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5> EURO3 SPECIFICATION(NJX)	1-19732-011-1	01	1	0211-	●
11	CONNECTOR; GLOW PLUG GLOW PLUG<KM5>	1-19732-011-1	01	1	0211-		●
11	CONNECTOR; GLOW PLUG INTAKE HEATER<SL2>	1-19732-030-2	01	1	0204-			●
12	HANGER; ENG,RR (A)	1-11777-099-0	01	1	0012-0106	●
12	HANGER; ENG,RR EXC. EURO3 SPECIFICATION(NJX) (A)	1-11777-099-0	01	1	0107-	●
12	HANGER; ENG,RR EURO3 SPECIFICATION(NJX) (B)	1-11777-222-0	01	1	0107-0210	●
12	HANGER; ENG,RR EURO3 SPECIFICATION(NJX) (B)	1-11777-222-0	01	1	0211-	●
12	HANGER; ENG,RR (B)	1-11777-222-0	01	1	0211-		●
12	HANGER; ENG,RR (C)	1-11777-216-2	01	1	0204-			●
12	HANGER; ENG,RR (D)	1-11777-263-0	01	1	0204-			●
12	HANGER; ENG,RR (D)	1-11777-239-1	01	1	0204-			●
14	STUD; EXH MANIF (B) M10X104 L=119	1-09302-104-1	08	1	0012-0106	●
14	STUD; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (B) M10X104 L=119	1-09302-104-1	08	1	0107-	●
14	STUD; EXH MANIF (A) M10X130 L=145	1-09302-107-0	04	1	0012-0106	●
14	STUD; EXH MANIF EXC. EURO3 SPECIFICATION(NJX) (A) M10X130 L=145	1-09302-107-0	04	1	0107-	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X95 L=110	1-09302-063-0	03	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X95 L=110	1-09302-063-0	03	1	0211-	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	03	1	0211-		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (B) M10X135 L=150	1-09302-159-0	08	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (B) M10X135 L=150	1-09302-159-0	08	1	0211-	●
14	STUD; EXH MANIF (B) M10X135 L=150	1-09302-159-0	08	1	0211-		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	9-04321-045-0	01	1	0107-0210	●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	9-04321-045-0	01	1	0211-0604	●
14	STUD; EXH MANIF (A) M10X45 L=65	9-04321-045-0	01	1	0211-0604		●
14	STUD; EXH MANIF EURO3 SPECIFICATION(NJX) (A) M10X45 L=65	0-43211-045-0	01	1	0605-	●
14	STUD; EXH MANIF (A) M10X45 L=65	0-43211-045-0	01	1	0605-		●
14	STUD; EXH MANIF (C) M10X95 L=110	1-09302-063-0	15	1	0204-			●
14	STUD; EXH MANIF (D) M10X130 L=145	1-09302-107-0	03	1	0204-			●
23	NUT; CAM BRKT M8 FLANGE	9-09844-190-0	08	1	0012-0210	●
23	NUT; CAM BRKT M8 FLANGE	9-09844-190-0	08	1	0211-0809	●	●
23	NUT; CAM BRKT M8 FLANGE	8-98053-188-0	08	1	0810-	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	0204-			●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	0204-0805			●
25	PLUG; CYL HD M14X9	8-98042-944-0	01	1	0806-			●
41	BOLT; ENG HANGER (C) M10X20 W/LK WASHER	0-50051-020-0	05	1	0012-0106	●
41	BOLT; ENG HANGER EXC. EURO3 SPECIFICATION(NJX) (C) M10X20 W/LK WASHER	0-50051-020-0	05	1	0107-0512	●
41	BOLT; ENG HANGER EXC. EURO3 SPECIFICATION(NJX) (C) M10X20 W/LK WASHER	0-50551-020-0	05	1	0601-	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28781-025-0	02	1	0107-0210	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28781-025-0	02	1	0211-0512	●
41	BOLT; ENG HANGER (C) M10X25 FLANGE	0-28781-025-0	02	1	0211-0512		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
41	BOLT; ENG HANGER (C) M10X25 FLANGE	0-28751-025-0	02	1	0601-		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28791-040-0	03	1	0107-0210	●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28791-040-0	03	1	0211-0512	●
41	BOLT; ENG HANGER (C) M10X40 FLANGE	0-28791-040-0	03	1	0211-0512		●
41	BOLT; ENG HANGER EURO3 SPECIFICATION(NJX) (C) M10X40 FLANGE	0-28761-040-0	03	1	0601-	●
41	BOLT; ENG HANGER (C) M10X40 FLANGE	0-28761-040-0	03	1	0601-		●
41	BOLT; ENG HANGER (B) M12X120 FLANGE	0-28186-212-0	01	1	0204-0512			●
41	BOLT; ENG HANGER (B) M12X120 FLANGE	0-28156-212-0	01	1	0601-			●
41	BOLT; ENG HANGER (A) M12X25 FLANGE	0-28191-225-0	02	1	0204-0512			●
41	BOLT; ENG HANGER (A) M12X25 FLANGE	0-28161-225-0	02	1	0601-			●
41	BOLT; ENG HANGER (B) M12X30 FLANGE	0-28191-230-0	02	1	0204-0512			●
41	BOLT; ENG HANGER (B) M12X30 FLANGE	0-28161-230-0	02	1	0601-			●
41	BOLT; ENG HANGER (B) M14X120 FLANGE	0-28986-412-0	01	1	0204-0512			●
41	BOLT; ENG HANGER (B) M14X120 FLANGE	0-28956-412-0	01	1	0601-			●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	0204-			●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	0204-0407			●
59	GUIDE; BRIDGE	8-97378-021-1	12	1	0408-			●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0204-			●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	0204-			●
97	DOWEL; CAM BRKT SET	1-11229-012-1	16	1	0012-0210	●
97	DOWEL; CAM BRKT SET	1-11229-012-1	16	1	0211-	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	0204-0907			●
97	DOWEL; CAM BRKT SET OD=16	8-98143-037-0	28	1	0908-			●
98	STUD; CAM BRKT M8X114 L=132	1-09300-028-1	06	1	0012-0210	●
98	STUD; CAM BRKT M8X114 L=132	1-09300-028-1	06	1	0211-	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	0204-			●
103	PLUG; HD M10X7	1-09604-094-0	01	1	0204-			●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0204-			●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0012-0106	●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0107-0203	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0107-0203	●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0204-0210	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0204-0210	●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0204-0210			●
106	PLUG; GLOW PLUG HOLE EXC. EURO3 SPECIFICATION(NJX),INTAKE HEATER<SL2>	1-11119-018-0	06	1	0211-	●
106	PLUG; GLOW PLUG HOLE EURO3 SPECIFICATION(NJX) EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0211-	●
106	PLUG; GLOW PLUG HOLE EXC. INTAKE HEATER<SL2>	1-11119-018-0	06	1	0211-			●
106	PLUG; GLOW PLUG HOLE EXC. GLOW PLUG<KM5>	1-11119-018-0	06	1	0211-		●
180	BRACKET SET; CAM,CYL HD (A)	1-12516-148-1	01	1	0204-0504			●
180	BRACKET SET; CAM,CYL HD (A)	8-97608-785-3	01	1	0505-			●
180	BRACKET SET; CAM,CYL HD (B) INNER	1-12516-152-1	06	1	0204-0504			●
180	BRACKET SET; CAM,CYL HD (B) INNER	8-97608-791-3	06	1	0505-			●
181	CASE; HEAD GEAR	1-11310-055-1	01	1	0204-			●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	0204-			●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	0204-			●

1 8 8 8 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HEAD ASM; CYL	1-11110-856-2	01	1	0012-0106	●
1	HEAD ASM; CYL EXC. EURO3 SPECIFICATION(NJX)	1-11110-856-2	01	1	0107-	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-2	01	1	0107-0210	●
1	HEAD ASM; CYL EURO3 SPECIFICATION(NJX)	1-11110-924-4	01	1	0211-	●
1	HEAD ASM; CYL	1-11110-924-4	01	1	0211-		●
1	HEAD ASM; CYL	1-11110-902-5	01	1	0204-			●
4	GUIDE; VLV	1-11721-008-0	12	1	0012-0210	●
4	GUIDE; VLV	1-11721-008-0	12	1	0211-	●	●
4	GUIDE; VLV	1-11721-012-0	24	1	0204-			●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-051-0	06	1	0012-0106	●
5	SEAT; VLV INSERT EXC. EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-051-0	06	1	0107-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-122-0	06	1	0012-0106	●
5	SEAT; VLV INSERT EXC. EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-122-0	06	1	0107-	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-078-0	06	1	0107-0108	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-085-0	06	1	0109-0210	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (A) EXHAUST	1-11711-085-0	06	1	0211-	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-085-0	06	1	0211-		●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-115-0	06	1	0107-0108	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-118-0	06	1	0109-0210	●
5	SEAT; VLV INSERT EURO3 SPECIFICATION(NJX) (B) INLET	1-11715-118-0	06	1	0211-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-118-0	06	1	0211-		●
5	SEAT; VLV INSERT (D) EXHAUST	1-11711-076-0	12	1	0204-			●
5	SEAT; VLV INSERT (C) INLET	1-11715-111-0	12	1	0204-			●
8	CUP; SEALING,WATER JACKET EURO3 SPECIFICATION(NJX) (A) OD=12	1-09600-010-1	06	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0407-0502		●
8	CUP; SEALING,WATER JACKET EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	09	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0407-0502		●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0012-0210	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-1	06	1	0211-0406	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (A) OD=12	1-09600-010-1	12	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (A) OD=12	1-09600-010-2	06	1	0503-	●	●
8	CUP; SEALING,WATER JACKET (B) OD=22	1-09600-011-2	11	1	0012-0210	●
8	CUP; SEALING,WATER JACKET (B) OD=22	1-09600-011-2	11	1	0211-	●	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	14	1	0012-0105	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	09	1	0106-0106	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0107-0210	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	09	1	0211-0406	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=32	1-09600-012-1	18	1	0407-0502	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-2	09	1	0503-	●	●
8	CUP; SEALING,WATER JACKET EXC. EURO3 SPECIFICATION(NJX) (C) OD=30	8-94241-638-0	05	1	0106-0106	●
8	CUP; SEALING,WATER JACKET (C) OD=30	8-94241-638-0	05	1	0107-0210	●
8	CUP; SEALING,WATER JACKET (C) OD=30	8-94241-638-0	05	1	0211-	●	●
8	CUP; SEALING,WATER JACKET (G) OD=32	1-09600-012-2	03	1	0204-			●
8	CUP; SEALING,WATER JACKET (H) OD=25	1-09600-016-0	09	1	0204-			●
8	CUP; SEALING,WATER JACKET (I) OD=12.3	5-09600-013-0	02	1	0204-			●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	0204-			●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	0204-			●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	0204-			●
57	SLEEVE; NOZZLE HOLDER	1-11129-058-0	06	1	0204-0303			●
57	SLEEVE; NOZZLE HOLDER	1-11129-067-0	06	1	0304-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK	8-97233-126-0	06	1	0204-			●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED	8-97233-127-0	06	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
