Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#79389) — 202 parça

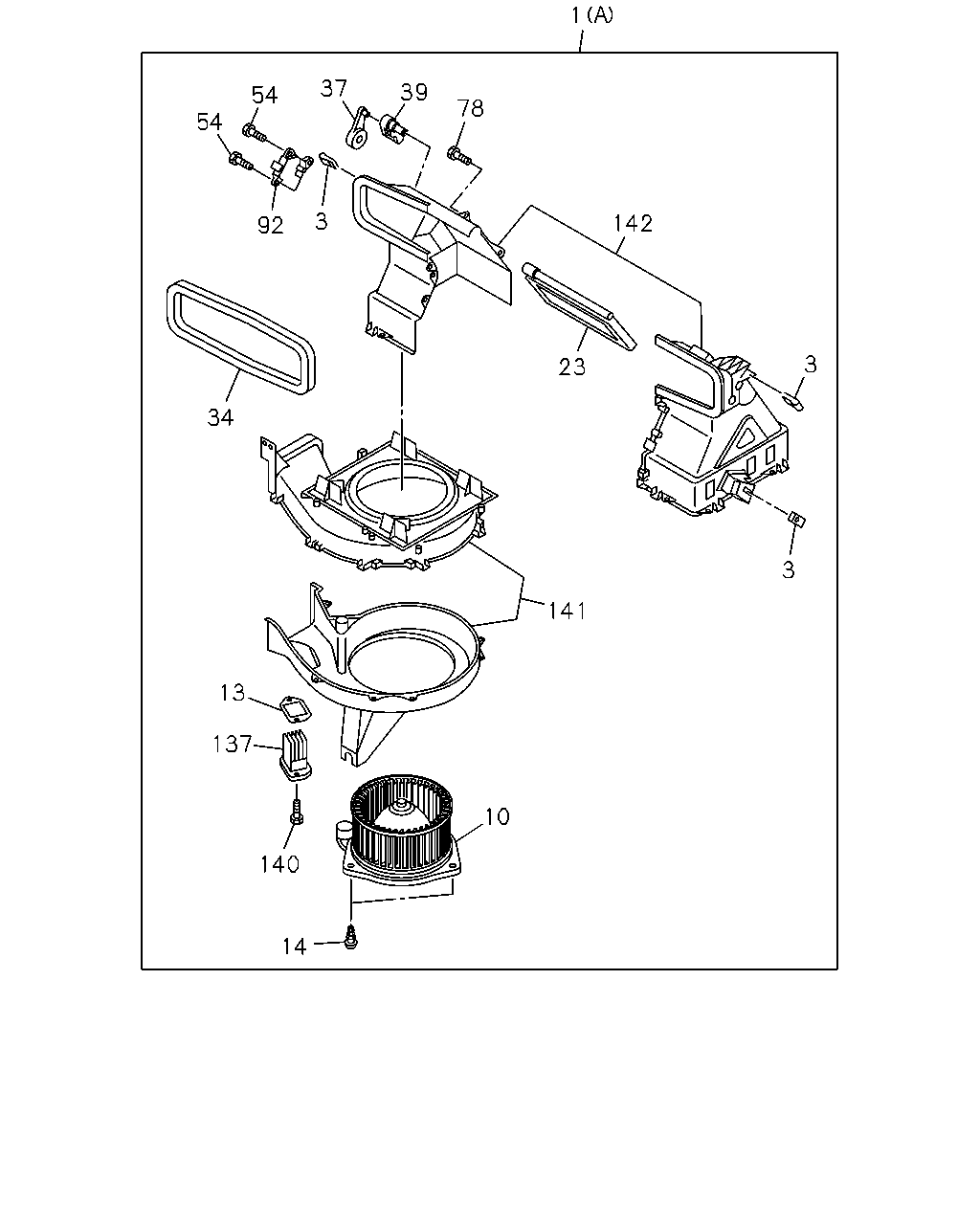

1 78 39 37 54 54 92 3 142 23 3 3 141 10 140 14 137 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98052-631-4	01	1	1110-1211	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98233-041-1	01	1	1212-	●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1109-1109			●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1110-1211			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98052-630-4	01	1	1110-1211	●	●			●
1	BLOWER ASM (B) THA	8-98233-040-1	01	1	1212-			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98233-040-1	01	1	1212-	●	●			●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98103-513-4	01	1	1110-1211					●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98233-044-0	01	1	1212-					●
3	NUT; CASE THA	8-98139-394-0	03	1	1109-1109			●	●
3	NUT; CASE THA	8-98139-394-1	03	1	1110-			●	●
3	NUT; CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-394-1	03	1	1110-					●
3	NUT; CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-394-1	03	1	1110-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1109-1109			●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1110-			●	●
10	MOTOR ASM; FAN,BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-427-0	01	1	1110-					●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-427-0	01	1	1110-	●	●
13	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98157-116-1	01	1	1110-	●	●
14	SCREW; COVER TO CASE THA	8-98139-395-0	03	1	1109-1109			●	●
14	SCREW; COVER TO CASE THA	8-98139-395-1	03	1	1110-			●	●
14	SCREW; COVER TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	03	1	1110-					●
14	SCREW; COVER TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	03	1	1110-	●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1109-1109			●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1110-1410			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410	●	●
23	SHUTTER; BLOWER UNIT THA	8-98294-586-0	01	1	1411-			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-	●	●
34	LINING; BLOWER UNIT THA	8-98139-426-0	01	1	1109-1109			●	●
34	LINING; BLOWER UNIT THA	8-98139-426-1	01	1	1110-			●	●
34	LINING; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-426-1	01	1	1110-					●
34	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-426-1	01	1	1110-	●	●
37	LEVER; MODE LEVER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98195-045-0	01	1	1110-	●	●
37	LEVER; MODE LEVER THA	8-98139-417-0	01	1	1109-1109			●	●
37	LEVER; MODE LEVER THA	8-98139-417-0	01	1	1110-			●	●
37	LEVER; MODE LEVER COOLER W/FRESH AIR<C65> THA	8-98139-417-0	01	1	1110-	●	●			●
39	LEVER; SHUTTER,BLOWER UNIT THA	8-98139-416-0	01	1	1109-1109			●	●
39	LEVER; SHUTTER,BLOWER UNIT THA	8-98139-416-0	01	1	1110-			●	●
39	LEVER; SHUTTER,BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-416-0	01	1	1110-					●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-416-0	01	1	1110-	●	●
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98139-395-1	02	1	1110-	●	●
78	SCREW; CASE TO CASE THA	8-98139-395-0	01	1	1109-1109			●	●
78	SCREW; CASE TO CASE THA	8-98139-395-1	01	1	1110-			●	●
78	SCREW; CASE TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	01	1	1110-					●
78	SCREW; CASE TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	01	1	1110-	●	●
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98139-424-0	01	1	1110-	●	●
137	MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98139-431-1	01	1	1110-	●	●
140	SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98139-421-0	02	1	1110-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-559-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-641-0	01	1	1212-	●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1109-1109			●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1110-1211			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98193-558-0	01	1	1110-1211					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98193-558-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT THA	8-98233-640-0	01	1	1212-			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98233-640-0	01	1	1212-					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98233-640-0	01	1	1212-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-563-0	01	1	1110-1211	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-643-0	01	1	1212-	●	●
142	CASE ASM THA	8-98193-562-0	01	1	1109-1109			●	●
142	CASE ASM THA	8-98193-562-0	01	1	1110-1211			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98193-562-0	01	1	1110-1211	●	●			●
142	CASE ASM THA	8-98233-642-0	01	1	1212-			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98233-642-0	01	1	1212-	●	●			●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98193-564-0	01	1	1110-1211					●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98233-644-0	01	1	1212-					●

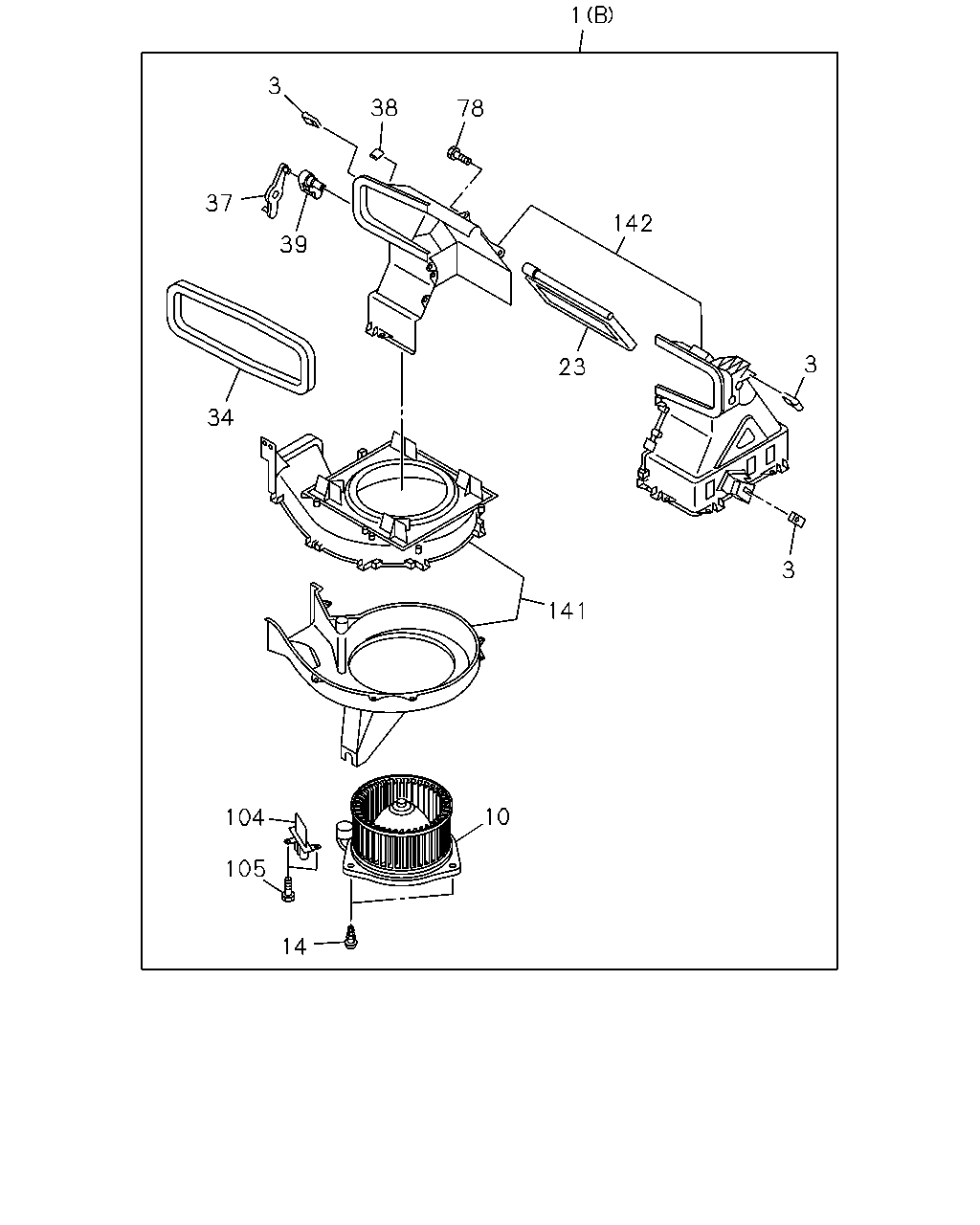

3 3 142 1 78 38 3 37 39 34 104 105 14 10 141 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98052-631-4	01	1	1110-1211	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98233-041-1	01	1	1212-	●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1109-1109			●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1110-1211			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98052-630-4	01	1	1110-1211	●	●			●
1	BLOWER ASM (B) THA	8-98233-040-1	01	1	1212-			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98233-040-1	01	1	1212-	●	●			●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98103-513-4	01	1	1110-1211					●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98233-044-0	01	1	1212-					●
3	NUT; CASE THA	8-98139-394-0	03	1	1109-1109			●	●
3	NUT; CASE THA	8-98139-394-1	03	1	1110-			●	●
3	NUT; CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-394-1	03	1	1110-					●
3	NUT; CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-394-1	03	1	1110-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1109-1109			●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1110-			●	●
10	MOTOR ASM; FAN,BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-427-0	01	1	1110-					●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-427-0	01	1	1110-	●	●
14	SCREW; COVER TO CASE THA	8-98139-395-0	03	1	1109-1109			●	●
14	SCREW; COVER TO CASE THA	8-98139-395-1	03	1	1110-			●	●
14	SCREW; COVER TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	03	1	1110-					●
14	SCREW; COVER TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	03	1	1110-	●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1109-1109			●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1110-1410			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410	●	●
23	SHUTTER; BLOWER UNIT THA	8-98294-586-0	01	1	1411-			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-	●	●
34	LINING; BLOWER UNIT THA	8-98139-426-0	01	1	1109-1109			●	●
34	LINING; BLOWER UNIT THA	8-98139-426-1	01	1	1110-			●	●
34	LINING; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-426-1	01	1	1110-					●
34	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-426-1	01	1	1110-	●	●
37	LEVER; MODE LEVER AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98195-045-0	01	1	1110-	●	●
37	LEVER; MODE LEVER THA	8-98139-417-0	01	1	1109-1109			●	●
37	LEVER; MODE LEVER THA	8-98139-417-0	01	1	1110-			●	●
37	LEVER; MODE LEVER COOLER W/FRESH AIR<C65> THA	8-98139-417-0	01	1	1110-	●	●			●
38	CLIP; BLOWER UNIT THA	8-98139-422-0	01	1	1109-1109			●	●
38	CLIP; BLOWER UNIT THA	8-98139-422-1	01	1	1110-			●	●
38	CLIP; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-422-1	01	1	1110-	●	●			●
39	LEVER; SHUTTER,BLOWER UNIT THA	8-98139-416-0	01	1	1109-1109			●	●
39	LEVER; SHUTTER,BLOWER UNIT THA	8-98139-416-0	01	1	1110-			●	●
39	LEVER; SHUTTER,BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-416-0	01	1	1110-					●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-416-0	01	1	1110-	●	●
78	SCREW; CASE TO CASE THA	8-98139-395-0	01	1	1109-1109			●	●
78	SCREW; CASE TO CASE THA	8-98139-395-1	01	1	1110-			●	●
78	SCREW; CASE TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	01	1	1110-					●
78	SCREW; CASE TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	01	1	1110-	●	●
104	RESISTOR; BLOWER UNIT THA	8-98183-234-0	01	1	1109-1109			●	●
104	RESISTOR; BLOWER UNIT THA	8-98183-234-0	01	1	1110-			●	●
104	RESISTOR; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98183-234-0	01	1	1110-					●
104	RESISTOR; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98183-234-0	01	1	1110-	●	●
105	SCREW; RESISTOR THA	8-98139-395-0	02	1	1109-1109			●	●
105	SCREW; RESISTOR THA	8-98139-395-1	02	1	1110-			●	●
105	SCREW; RESISTOR COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	02	1	1110-					●
105	SCREW; RESISTOR COOLER W/FRESH AIR<C65> THA	8-98139-395-1	02	1	1110-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-559-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-641-0	01	1	1212-	●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1109-1109			●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1110-1211			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98193-558-0	01	1	1110-1211					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98193-558-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT THA	8-98233-640-0	01	1	1212-			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98233-640-0	01	1	1212-					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98233-640-0	01	1	1212-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-563-0	01	1	1110-1211	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-643-0	01	1	1212-	●	●
142	CASE ASM THA	8-98193-562-0	01	1	1109-1109			●	●
142	CASE ASM THA	8-98193-562-0	01	1	1110-1211			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98193-562-0	01	1	1110-1211	●	●			●
142	CASE ASM THA	8-98233-642-0	01	1	1212-			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98233-642-0	01	1	1212-	●	●			●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98193-564-0	01	1	1110-1211					●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98233-644-0	01	1	1212-					●

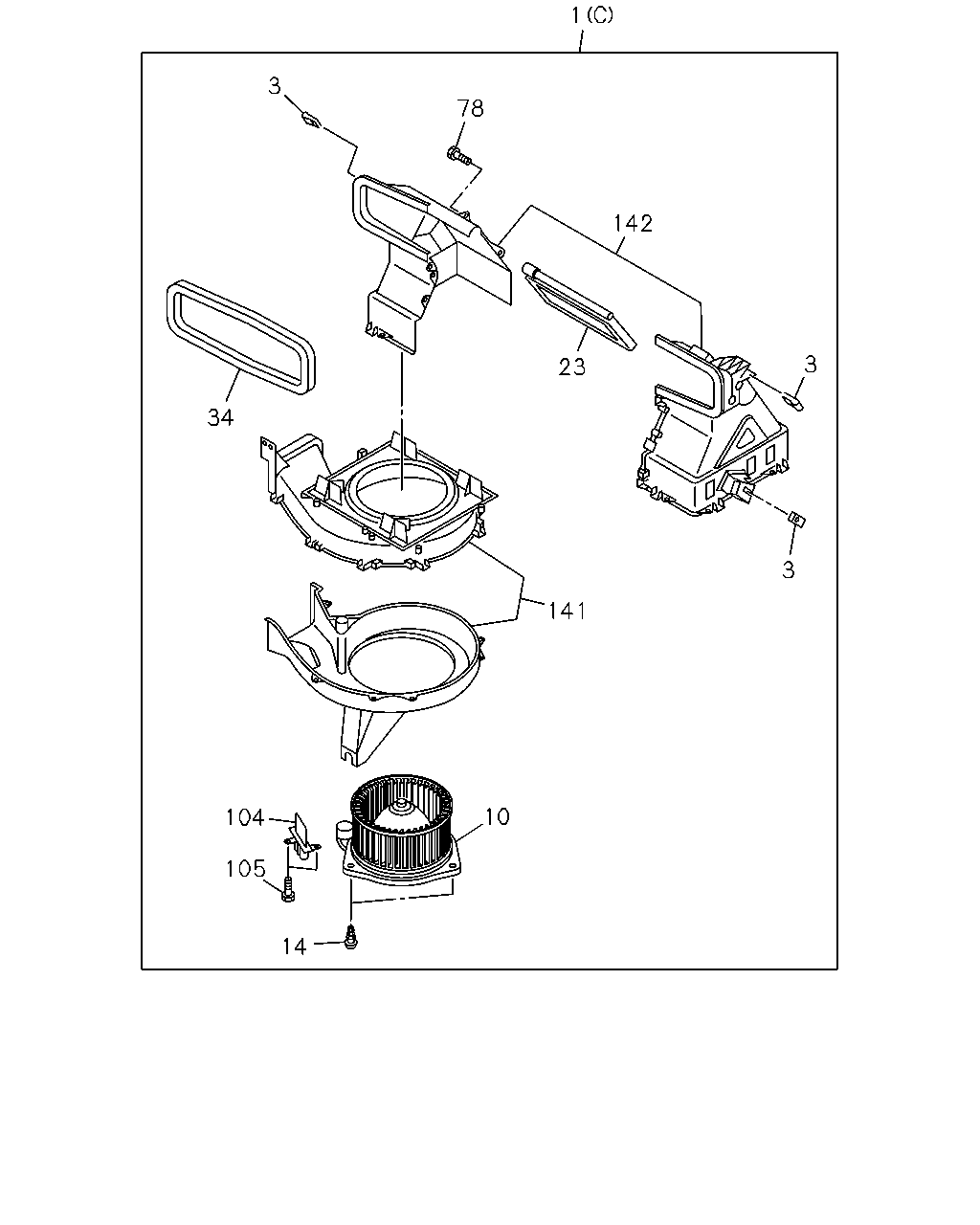

3 3 142 1 78 3 23 141 10 104 105 14 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98052-631-4	01	1	1110-1211	●	●
1	BLOWER ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA	8-98233-041-1	01	1	1212-	●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1109-1109			●	●
1	BLOWER ASM (B) THA	8-98052-630-4	01	1	1110-1211			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98052-630-4	01	1	1110-1211	●	●			●
1	BLOWER ASM (B) THA	8-98233-040-1	01	1	1212-			●	●
1	BLOWER ASM COOLER W/FRESH AIR<C65> (B) THA	8-98233-040-1	01	1	1212-	●	●			●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98103-513-4	01	1	1110-1211					●
1	BLOWER ASM COOLER WO/FRESH AIR<8NF> (C) THA	8-98233-044-0	01	1	1212-					●
3	NUT; CASE THA	8-98139-394-0	03	1	1109-1109			●	●
3	NUT; CASE THA	8-98139-394-1	03	1	1110-			●	●
3	NUT; CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-394-1	03	1	1110-					●
3	NUT; CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-394-1	03	1	1110-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1109-1109			●	●
10	MOTOR ASM; FAN,BLOWER UNIT THA	8-98139-427-0	01	1	1110-			●	●
10	MOTOR ASM; FAN,BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-427-0	01	1	1110-					●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-427-0	01	1	1110-	●	●
14	SCREW; COVER TO CASE THA	8-98139-395-0	03	1	1109-1109			●	●
14	SCREW; COVER TO CASE THA	8-98139-395-1	03	1	1110-			●	●
14	SCREW; COVER TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	03	1	1110-					●
14	SCREW; COVER TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	03	1	1110-	●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1109-1109			●	●
23	SHUTTER; BLOWER UNIT THA	8-98139-413-0	01	1	1110-1410			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-413-0	01	1	1110-1410	●	●
23	SHUTTER; BLOWER UNIT THA	8-98294-586-0	01	1	1411-			●	●
23	SHUTTER; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-					●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98294-586-0	01	1	1411-	●	●
34	LINING; BLOWER UNIT THA	8-98139-426-0	01	1	1109-1109			●	●
34	LINING; BLOWER UNIT THA	8-98139-426-1	01	1	1110-			●	●
34	LINING; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-426-1	01	1	1110-					●
34	LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-426-1	01	1	1110-	●	●
78	SCREW; CASE TO CASE THA	8-98139-395-0	01	1	1109-1109			●	●
78	SCREW; CASE TO CASE THA	8-98139-395-1	01	1	1110-			●	●
78	SCREW; CASE TO CASE COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	01	1	1110-					●
78	SCREW; CASE TO CASE AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA	8-98139-395-1	01	1	1110-	●	●
104	RESISTOR; BLOWER UNIT THA	8-98183-234-0	01	1	1109-1109			●	●
104	RESISTOR; BLOWER UNIT THA	8-98183-234-0	01	1	1110-			●	●
104	RESISTOR; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98183-234-0	01	1	1110-					●
104	RESISTOR; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98183-234-0	01	1	1110-	●	●
105	SCREW; RESISTOR THA	8-98139-395-0	02	1	1109-1109			●	●
105	SCREW; RESISTOR THA	8-98139-395-1	02	1	1110-			●	●
105	SCREW; RESISTOR COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98139-395-1	02	1	1110-					●
105	SCREW; RESISTOR COOLER W/FRESH AIR<C65> THA	8-98139-395-1	02	1	1110-	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-559-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-641-0	01	1	1212-	●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1109-1109			●	●
141	CASE ASM; BLOWER UNIT THA	8-98193-558-0	01	1	1110-1211			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98193-558-0	01	1	1110-1211					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98193-558-0	01	1	1110-1211	●	●
141	CASE ASM; BLOWER UNIT THA	8-98233-640-0	01	1	1212-			●	●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA	8-98233-640-0	01	1	1212-					●
141	CASE ASM; BLOWER UNIT COOLER W/FRESH AIR<C65> THA	8-98233-640-0	01	1	1212-	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98193-563-0	01	1	1110-1211	●	●
142	CASE ASM AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA	8-98233-643-0	01	1	1212-	●	●
142	CASE ASM THA	8-98193-562-0	01	1	1109-1109			●	●
142	CASE ASM THA	8-98193-562-0	01	1	1110-1211			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98193-562-0	01	1	1110-1211	●	●			●
142	CASE ASM THA	8-98233-642-0	01	1	1212-			●	●
142	CASE ASM COOLER W/FRESH AIR<C65> THA	8-98233-642-0	01	1	1212-	●	●			●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98193-564-0	01	1	1110-1211					●
142	CASE ASM COOLER WO/FRESH AIR<8NF> THA	8-98233-644-0	01	1	1212-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
