◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#79386) — 233 parça

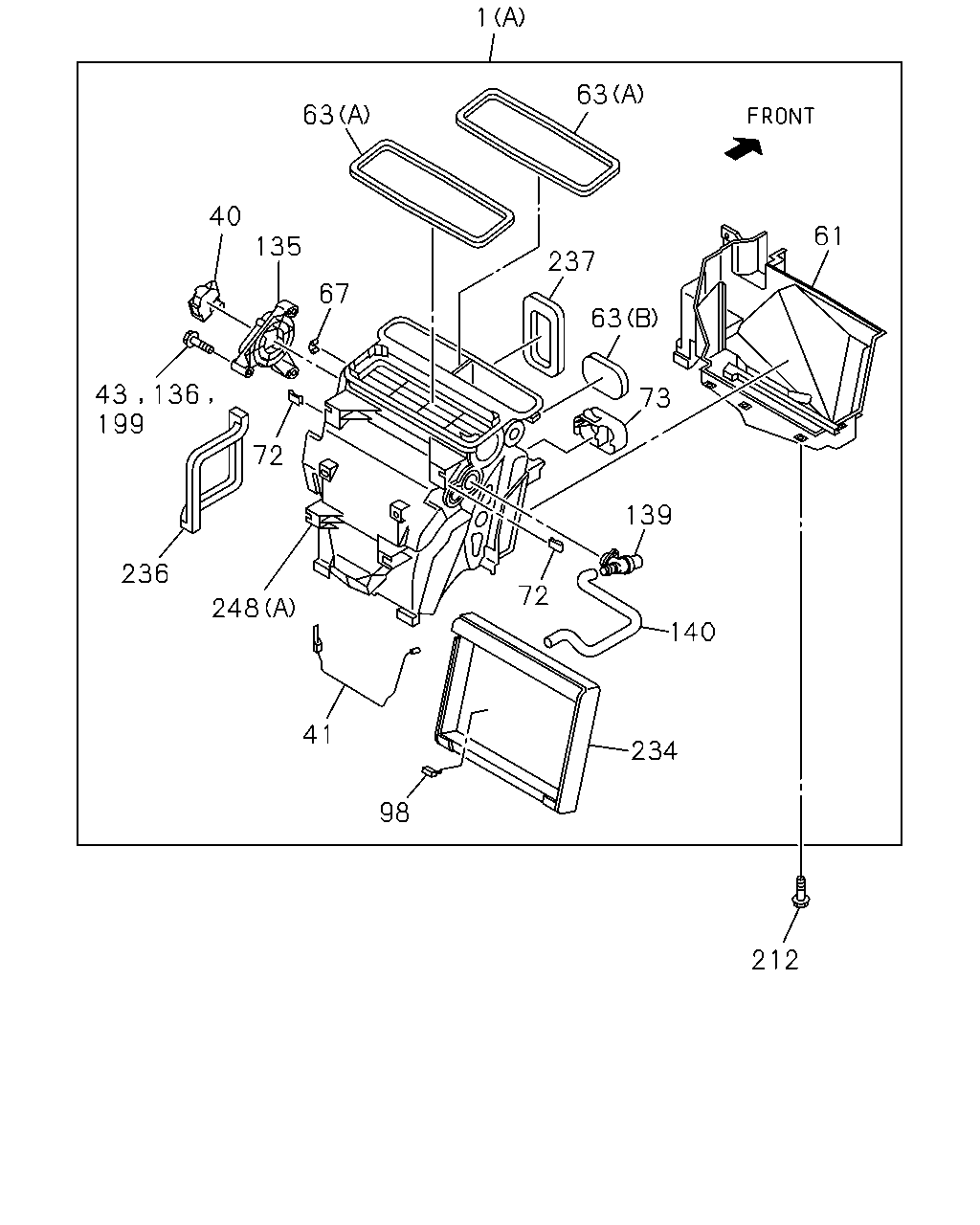

çizim 147283
212 234 98 41 248 236 199 43 136 40 63 135 72 237 63 1 61 139 72 140 73 63 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1301- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1301- ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98103-551-6 01 1 1110-1209 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98230-207-0 01 1 1210-1211 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-035-1 01 1 1212- ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1109-1109 ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1110-1209 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98052-622-5 01 1 1110-1209 ● ● ●
1 HEATER UNIT
(B) THA 		8-98230-197-0 01 1 1210-1211 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98230-197-0 01 1 1210-1211 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-0 01 1 1212-1212 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-0 01 1 1212-1212 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1301- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-621-3 01 1 1110-1209 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98230-196-0 01 1 1210-1211 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-0 01 1 1212-1212 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1301- ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-385-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-382-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1109-1109 ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1110- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1110- ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1109-1109 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ●
43 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1212- ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
COOLER WO/FRESH AIR<8NF> THA 		8-98139-395-0 15 1 1110-1211 ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1109-1109 ● ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1110-1211 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1212- ● ● ● ● ●
63 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98139-358-0 02 1 1110- ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1110- ● ● ● ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1110- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1110- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1110- ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1109-1109 ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1110- ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-0 03 1 1109-1109 ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1110- ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1109-1109 ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1110-1211 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1212- ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1109-1109 ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1110- ● ● ● ● ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1109-1109 ● ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1110- ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1110- ●
135 COVER; HTR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1110- ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1109-1109 ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1110-1211 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1212- ● ● ● ● ●
139 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-392-1 01 1 1110- ● ●
140 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-393-1 01 1 1110- ● ●
199 SCREW; ACTUATOR
THA 		8-98233-593-0 03 1 1212- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1212- ● ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98233-593-0 02 1 1212- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1109-1109 ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1110- ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-0 01 1 1109-1109 ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1110- ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1109-1109 ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1110- ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-0 01 1 1109-1109 ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1110- ● ● ● ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98193-547-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-570-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1109-1109 ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98193-541-0 01 1 1110-1211 ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1212- ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98193-540-0 01 1 1110-1211 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1212- ●

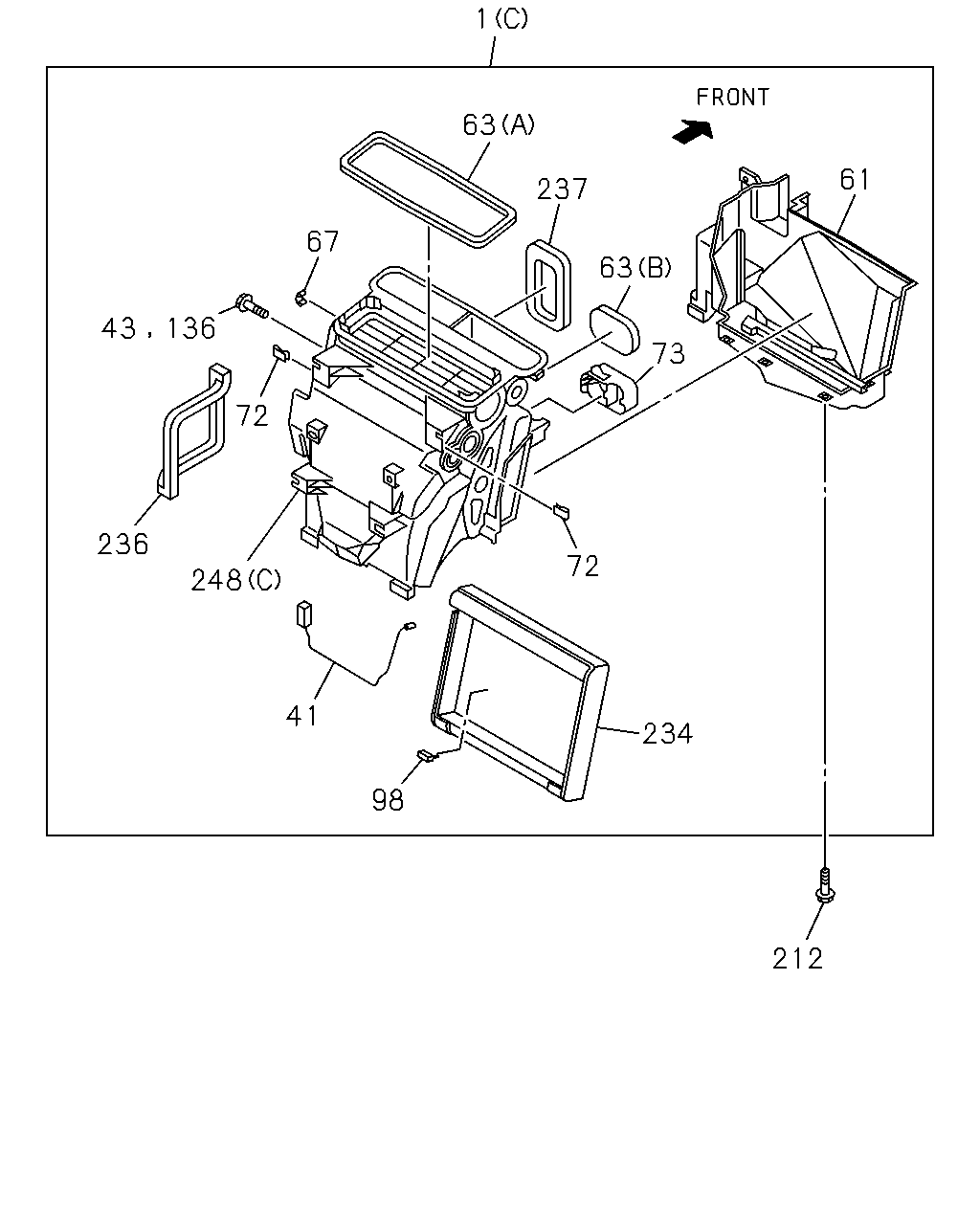

çizim 147320
212 1 63 61 63 73 237 67 136 43 236 248 41 72 98 234 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1301- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1301- ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98103-551-6 01 1 1110-1209 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98230-207-0 01 1 1210-1211 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-035-1 01 1 1212- ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1109-1109 ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1110-1209 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98052-622-5 01 1 1110-1209 ● ● ●
1 HEATER UNIT
(B) THA 		8-98230-197-0 01 1 1210-1211 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98230-197-0 01 1 1210-1211 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-0 01 1 1212-1212 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-0 01 1 1212-1212 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1301- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-621-3 01 1 1110-1209 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98230-196-0 01 1 1210-1211 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-0 01 1 1212-1212 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1301- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-382-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1109-1109 ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1110- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1110- ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1109-1109 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ●
43 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1212- ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
COOLER WO/FRESH AIR<8NF> THA 		8-98139-395-0 15 1 1110-1211 ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1109-1109 ● ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1110-1211 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1212- ● ● ● ● ●
63 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98139-358-0 02 1 1110- ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1110- ● ● ● ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1110- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1110- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1110- ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1109-1109 ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1110- ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-0 03 1 1109-1109 ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1110- ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1109-1109 ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1110-1211 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1212- ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1109-1109 ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1110- ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1109-1109 ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1110-1211 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1212- ● ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1109-1109 ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1110- ● ● ● ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-0 01 1 1109-1109 ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1110- ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1109-1109 ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1110- ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-0 01 1 1109-1109 ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1110- ● ● ● ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98193-547-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-570-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1109-1109 ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98193-541-0 01 1 1110-1211 ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1212- ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98193-540-0 01 1 1110-1211 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1212- ●

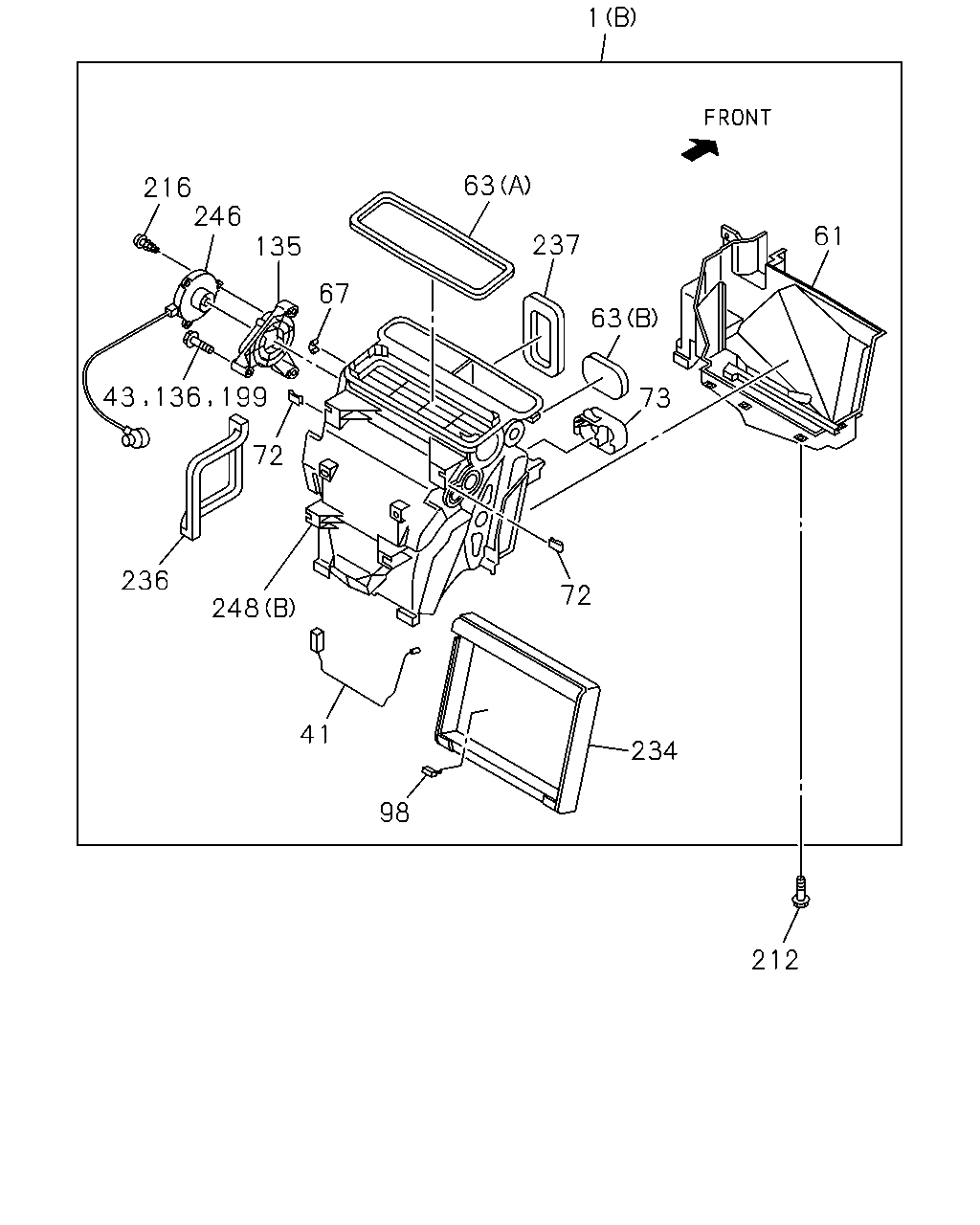

çizim 147326
212 234 98 41 248 236 43 136 199 67 135 246 216 63 63 237 73 72 1 61 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DELETE<8HH> (B) THA 		8-98233-009-1 01 1 1301- ●
1 HEATER UNIT
REAR BODY DELETE<8HH> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-008-1 01 1 1301- ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98103-551-6 01 1 1110-1209 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98230-207-0 01 1 1210-1211 ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-035-1 01 1 1212- ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1109-1109 ● ●
1 HEATER UNIT
(B) THA 		8-98052-622-5 01 1 1110-1209 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98052-622-5 01 1 1110-1209 ● ● ●
1 HEATER UNIT
(B) THA 		8-98230-197-0 01 1 1210-1211 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98230-197-0 01 1 1210-1211 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-0 01 1 1212-1212 ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-0 01 1 1212-1212 ● ● ●
1 HEATER UNIT
(B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> REAR BODY DBL WALL CTR PULL<E63> (B) THA 		8-98233-025-1 01 1 1301- ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-025-1 01 1 1301- ● ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98052-621-3 01 1 1110-1209 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98230-196-0 01 1 1210-1211 ●
1 HEATER UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-0 01 1 1212-1212 ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL<E63> COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-024-1 01 1 1301- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98139-382-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1109-1109 ● ●
41 THERMOSTAT; HTR UNIT
THA 		8-98157-121-0 01 1 1110- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> THA 		8-98157-121-0 01 1 1110- ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1110- ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1109-1109 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ●
43 SCREW; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 20 1 1110-1211 ● ●
43 SCREW; CASE,HTR UNIT
THA 		8-98233-593-0 15 1 1212- ● ● ● ● ●
43 SCREW; CASE,HTR UNIT
COOLER WO/FRESH AIR<8NF> THA 		8-98139-395-0 15 1 1110-1211 ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1109-1109 ● ●
61 CASE; HTR UNIT
THA 		8-98139-344-0 01 1 1110-1211 ● ● ● ● ●
61 CASE; HTR UNIT
THA 		8-98233-572-0 01 1 1212- ● ● ● ● ●
63 LINING; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98139-358-0 02 1 1110- ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(B) THA 		8-98157-118-1 01 1 1110- ● ● ● ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1109-1109 ● ●
63 LINING; HTR UNIT
(A) THA 		8-98139-358-0 01 1 1110- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65>,COOLER WO/FRESH AIR<8NF> (A) THA 		8-98139-358-0 01 1 1110- ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1110- ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1109-1109 ● ●
67 CLIP; HTR UNIT
THA 		8-98157-123-0 01 1 1110- ● ● ● ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-0 03 1 1109-1109 ● ●
72 NUT; CASE,HTR UNIT
THA 		8-98139-394-1 03 1 1110- ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1109-1109 ● ●
73 PLATE; HTR UNIT
THA 		8-98139-355-0 01 1 1110-1211 ● ● ● ● ●
73 PLATE; HTR UNIT
THA 		8-98233-591-0 01 1 1212- ● ● ● ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1109-1109 ● ●
98 CLIP; HTR UNIT
THA 		8-98157-122-0 01 1 1110- ● ● ● ● ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1109-1109 ● ●
135 COVER; HTR
THA 		8-98139-377-0 01 1 1110- ● ●
135 COVER; HTR
COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1110- ●
135 COVER; HTR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1110- ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1109-1109 ● ●
136 SCREW; PLATE
THA 		8-98139-395-0 02 1 1110-1211 ● ● ● ● ●
136 SCREW; PLATE
THA 		8-98233-593-0 02 1 1212- ● ● ● ● ●
199 SCREW; ACTUATOR
THA 		8-98233-593-0 03 1 1212- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1212- ● ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98233-593-0 02 1 1212- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1109-1109 ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE THA 		0-28650-620-0 05 1 1110- ● ● ● ● ●
216 SCREW; COVER,HEATER UNIT
THA 		8-98139-395-0 01 1 1109-1109 ● ●
216 SCREW; COVER,HEATER UNIT
THA 		8-98139-395-0 01 1 1110-1211 ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-395-0 01 1 1110-1211 ● ● ●
216 SCREW; COVER,HEATER UNIT
THA 		8-98233-593-0 03 1 1212- ● ●
216 SCREW; COVER,HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1212- ●
216 SCREW; COVER,HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1212- ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-0 01 1 1109-1109 ● ●
234 EVAPORATOR ASM; HEATER
THA 		8-98139-376-1 01 1 1110- ● ● ● ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1109-1109 ● ●
236 GASKET; HEATER
THA 		8-98139-357-0 01 1 1110- ● ● ● ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-0 01 1 1109-1109 ● ●
237 INSULATOR; EVAPORATOR
THA 		8-98139-360-1 01 1 1110- ● ● ● ● ●
246 ACTUATOR; MODE
THA 		8-98139-397-1 01 1 1109-1109 ● ●
246 ACTUATOR; MODE
THA 		8-98139-397-1 01 1 1110- ● ●
246 ACTUATOR; MODE
COOLER W/FRESH AIR<C65> THA 		8-98139-397-1 01 1 1110- ● ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98193-547-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98233-570-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1109-1109 ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98193-541-0 01 1 1110-1211 ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98193-541-0 01 1 1110-1211 ● ● ●
248 CASE ASM; HTR UNIT
(B) THA 		8-98233-564-0 01 1 1212- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-564-0 01 1 1212- ● ● ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98193-540-0 01 1 1110-1211 ●
248 CASE ASM; HTR UNIT
COOLER WO/FRESH AIR<8NF> (C) THA 		8-98233-563-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
