◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51373 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#79382) — 37 parça

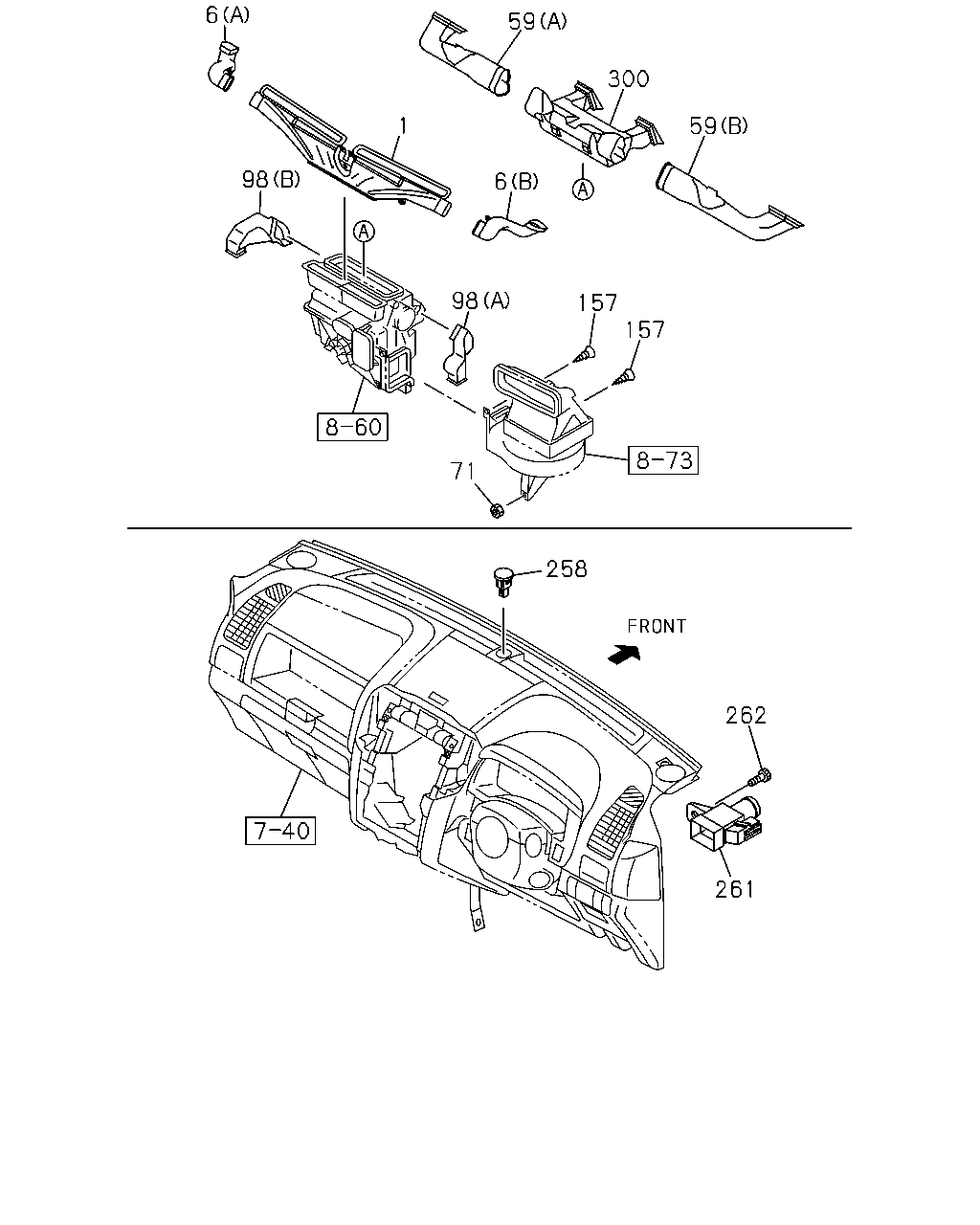

çizim 147280
6 98 1 59 6 300 59 157 157 98 71 258 262 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 NOZZLE; DEFROSTER,INST PNL
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98187-101-2 01 1 1110-1211 ●
1 NOZZLE; DEFROSTER,INST PNL
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98187-101-2 01 1 1110-1211 ●
1 NOZZLE; DEFROSTER,INST PNL
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98187-101-2 01 1 1212- ● ●
6 DUCT; SIDE DEFROSTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98187-102-0 01 1 1110-1211 ●
6 DUCT; SIDE DEFROSTER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98187-102-0 01 1 1110-1211 ●
6 DUCT; SIDE DEFROSTER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (A) THA 		8-98187-102-0 01 1 1212- ● ●
6 DUCT; SIDE DEFROSTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) THA 		8-98187-103-0 01 1 1110-1211 ●
6 DUCT; SIDE DEFROSTER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) THA 		8-98187-103-0 01 1 1110-1211 ●
6 DUCT; SIDE DEFROSTER
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> (B) THA 		8-98187-103-0 01 1 1212- ● ●
59 DUCT; VENT,ASSIST SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (A) THA 		8-98187-099-0 01 1 1109-1109 ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98187-099-0 01 1 1109-1109 ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98187-099-0 01 1 1110-1211 ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(A) THA 		8-98187-099-0 01 1 1212- ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> (B) THA 		8-98187-100-0 01 1 1109-1109 ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98187-100-0 01 1 1109-1109 ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98187-100-0 01 1 1110-1211 ● ● ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) THA 		8-98187-100-0 01 1 1212- ● ● ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-94279-514-0 01 1 1109-1109 ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-94279-514-0 01 1 1110- ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(A) THA 		8-98103-641-3 01 1 1109-1109 ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> (A) THA 		8-98103-641-3 01 1 1110-1211 ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> (A) THA 		8-98233-054-0 01 1 1212- ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(B) THA 		8-98103-642-3 01 1 1109-1109 ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> (B) THA 		8-98103-642-3 01 1 1110-1211 ● ● ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2>, COOLER W/FRESH AIR<C65> (B) THA 		8-98233-055-0 01 1 1212- ● ● ● ● ●
157 SCREW
M5X16 THA 		8-98167-220-0 02 1 1109-1109 ● ●
157 SCREW
M5X16 THA 		8-98167-220-0 02 1 1110- ● ● ● ● ●
258 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98103-691-0 01 1 1110- ●
258 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98103-691-0 01 1 1110- ●
261 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98103-694-0 01 1 1110- ●
261 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> THA 		8-98103-694-0 01 1 1110- ●
262 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> M5X16 TAPPING THA 		8-98167-449-0 01 1 1110- ●
262 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT WO/HEATER<CJ2> M5X16 TAPPING THA 		8-98167-449-0 01 1 1110- ●
300 DUCT; VENT,CENTER
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> THA 		8-98187-098-0 01 1 1109-1109 ●
300 DUCT; VENT,CENTER
THA 		8-98187-098-0 01 1 1109-1109 ●
300 DUCT; VENT,CENTER
THA 		8-98187-098-0 01 1 1110-1211 ● ● ● ● ●
300 DUCT; VENT,CENTER
THA 		8-98187-098-0 01 1 1212- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
