8-28 — CHASSIS ELECTRICAL (#79381) — 83 parça

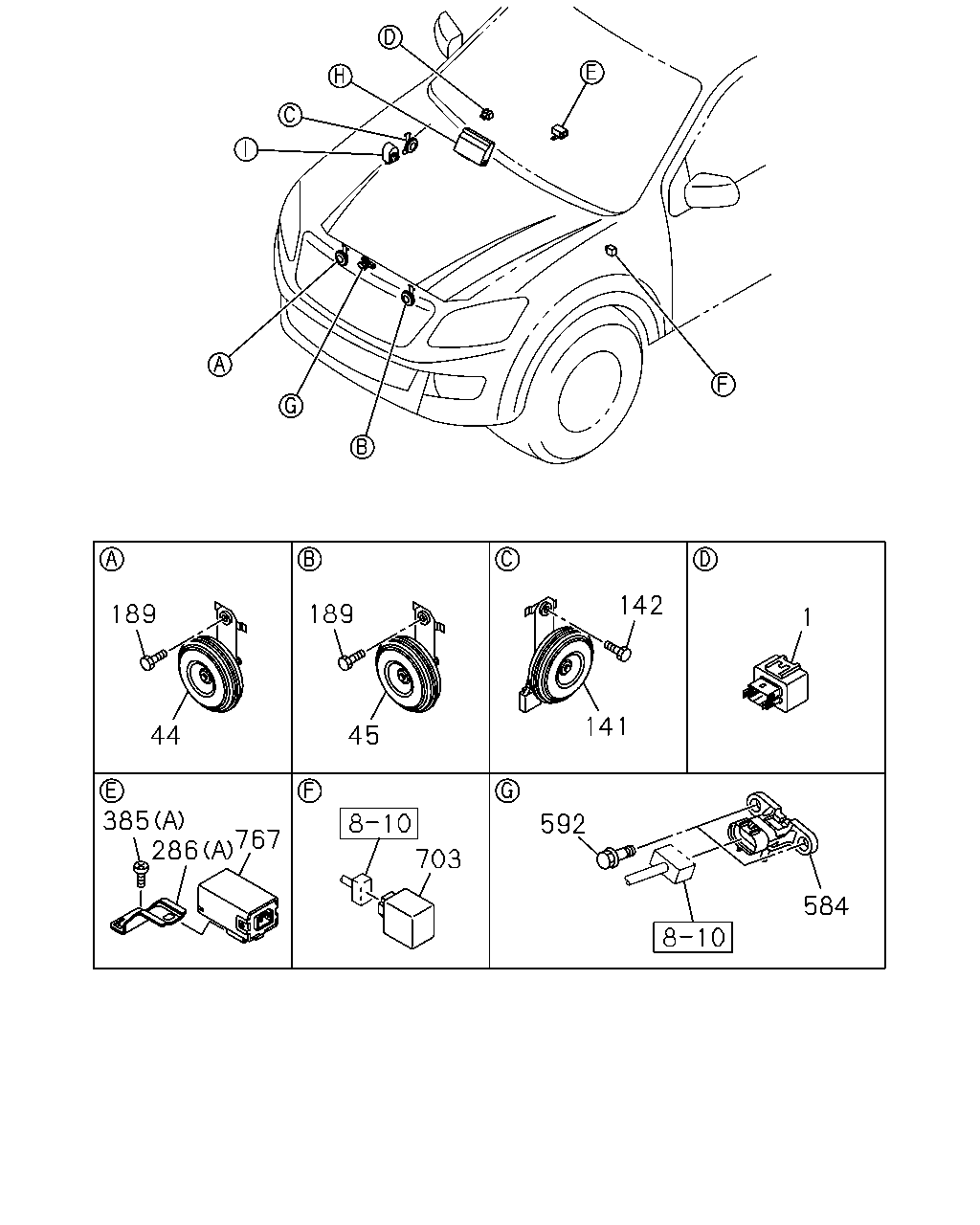

çizim 147291
189 189 44 45 141 142 703 592 584 1 286 385 767
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 UNIT; FLASHER
THA 		8-98080-978-0 01 1 1109-1109 ● ●
1 UNIT; FLASHER
THA 		8-98080-978-0 01 1 1110- ● ● ● ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> THA 		8-98084-022-0 01 1 1109-1109 ● ●
44 HORN; HIGH NOTE
DUAL TONE HORN<U05> THA 		8-98084-022-1 01 1 1110- ● ● ●
44 HORN; HIGH NOTE
THA 		8-98084-022-1 01 1 1110- ●
45 HORN; LOW NOTE
THA 		8-98084-023-0 01 1 1109-1109 ● ●
45 HORN; LOW NOTE
THA 		8-98084-023-0 01 1 1110- ● ● ● ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98164-588-0 01 1 1109-1109 ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA 		8-98164-588-0 01 1 1110- ● ● ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1109-1109 ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1110-1501 ● ● ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ● ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1109-1109 ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1109-1109 ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1110-1501 ● ● ● ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1110-1501 ● ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER THA 		8-97086-822-0 01 1 1110-1501 ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ● ● ● ●
189 BOLT; HORN
DUAL TONE HORN<U05> M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER IMA 		8-98164-836-0 01 1 1502- ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98102-502-2 01 1 1212- ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1109-1109 ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1110-1211 ● ● ●
286 BRACKET
(A) THA 		8-98102-503-0 01 1 1110-1211 ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1212- ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1212- ●
286 BRACKET
(A) THA 		8-98102-503-0 01 1 1212- ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 02 1 1212- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1109-1109 ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1110-1211 ● ● ●
385 BOLT; CONT UNIT
(A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1110-1211 ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ●
385 BOLT; CONT UNIT
(A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1109-1109 ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1110-1411 ● ● ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1412- ● ● ● ●
584 SENSOR; PRESSURE
IMA 		8-98020-514-0 01 1 1109-1109 ● ●
584 SENSOR; PRESSURE
IMA 		8-98020-514-0 01 1 1110- ● ● ● ● ●
592 BOLT; SENSOR
M6X16 FLANGE THA 		0-28650-616-0 02 1 1109-1109 ● ●
592 BOLT; SENSOR
M6X16 FLANGE THA 		0-28650-616-0 02 1 1110- ● ● ● ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> 12V THA 		8-97301-600-0 01 1 1109-1109 ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> 12V THA 		8-97301-600-0 01 1 1110-1211 ● ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 12V THA 		8-97301-600-0 01 1 1212- ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> 12V THA 		8-97301-600-0 01 1 1212- ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98076-337-1 01 1 1212-1506 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98306-421-0 01 1 1507- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98076-338-1 01 1 1109-1109 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98076-338-1 01 1 1110- ● ● ●
767 RECEIVER ASM; KEYLESS ENTRY
THA 		8-98076-338-1 01 1 1110- ●

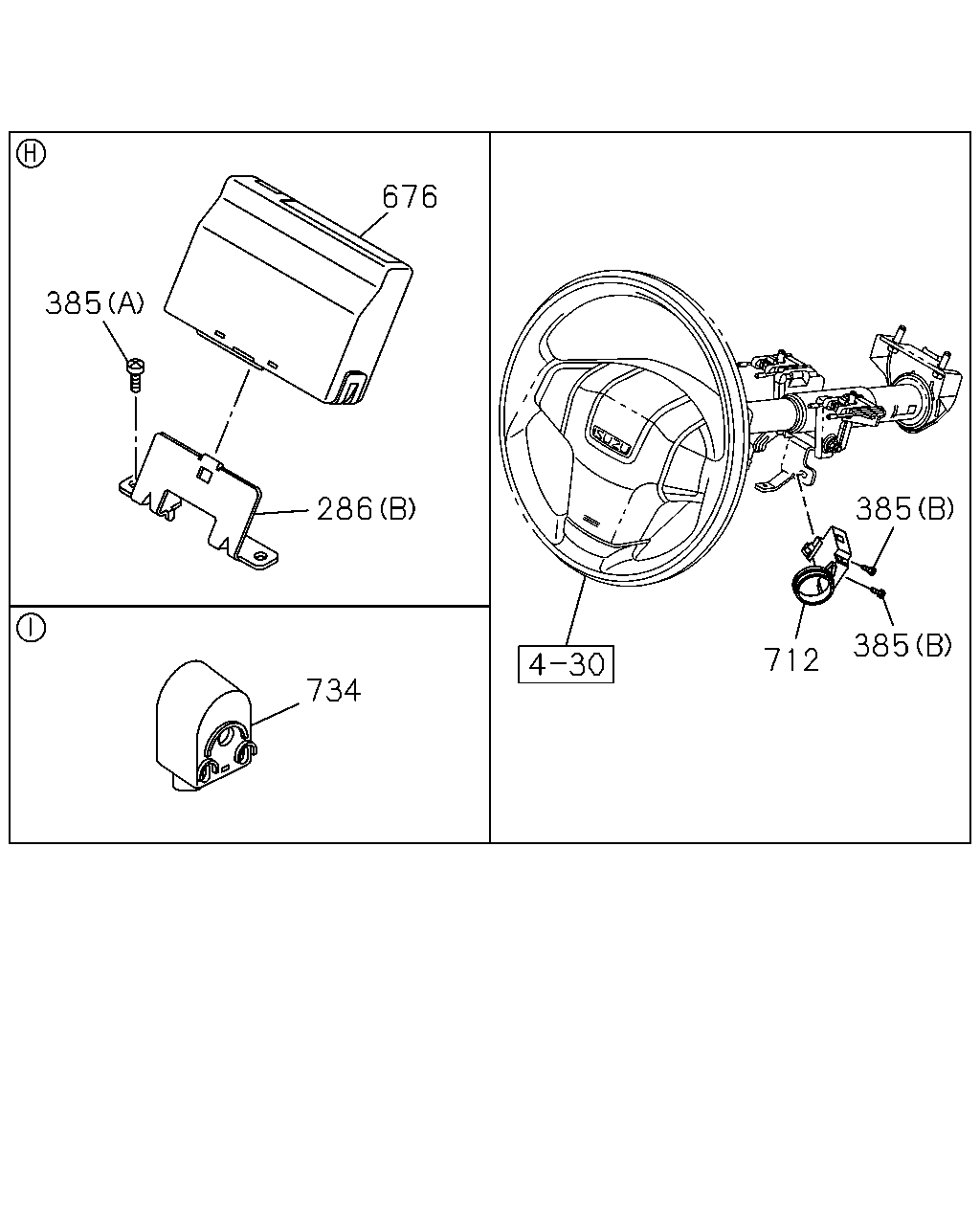

çizim 320138
385 286 734 385 712 385 676
BalonParca AdiParca NoAdetTipApplied Date A B C D E
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98102-502-2 01 1 1212- ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1109-1109 ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1110-1211 ● ● ●
286 BRACKET
(A) THA 		8-98102-503-0 01 1 1110-1211 ●
286 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1212- ● ●
286 BRACKET
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) THA 		8-98102-503-0 01 1 1212- ●
286 BRACKET
(A) THA 		8-98102-503-0 01 1 1212- ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 02 1 1212- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1109-1109 ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1110-1211 ● ● ●
385 BOLT; CONT UNIT
(A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1110-1211 ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ●
385 BOLT; CONT UNIT
(A) SCREW M5X16 TAPPING THA 		8-98167-449-0 01 1 1212- ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1109-1109 ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1110-1411 ● ● ● ●
385 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONTDOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1412- ● ● ● ●
676 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98076-331-4 01 1 1212- ● ●
712 CONTROL UNIT; ANTI THEFT
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA 		8-98154-224-0 01 1 1212- ●
712 CONTROL UNIT; ANTI THEFT
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98154-224-0 01 1 1212- ●
712 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-4 01 1 1109-1109 ● ●
712 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-4 01 1 1110-1211 ● ● ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-4 01 1 1110-1211 ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-5 01 1 1212-1411 ● ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98123-260-5 01 1 1212-1411 ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH B CM<AP5> THA 		8-98123-260-5 01 1 1212-1411 ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98123-260-5 01 1 1212-1411 ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTECONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98123-260-5 01 1 1212-1411 ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-5 01 1 1212-1411 ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-5 01 1 1412- ● ●
712 CONTROL UNIT; ANTI THEFT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> THA 		8-98123-260-5 01 1 1412- ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> IMMOBILIZER SYSTEM<7KC> THA 		8-98123-260-5 01 1 1412- ●
734 ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3> IMA 		8-98192-897-0 01 1 1212- ● ●
