Isuzu WW
▶
TRUCKS
▶
NLR
▶
51284 - NLR/NMR55,71,85(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#79380) — 42 parça
Tümü
A - 4JJ1-TCC ENG
B - 4JB1-TC ENG
C - 4JB1 ENG
D - 4HG1-T ENG
E - 4HG1 ENG
◀
[032A] 4JJ1 (10 parça)
[032A] 4JB1-TC (10 parça)
[032A] 4JB1-TC,4JB1 (15 parça)
[032A] 4HG1 (7 parça)
▶

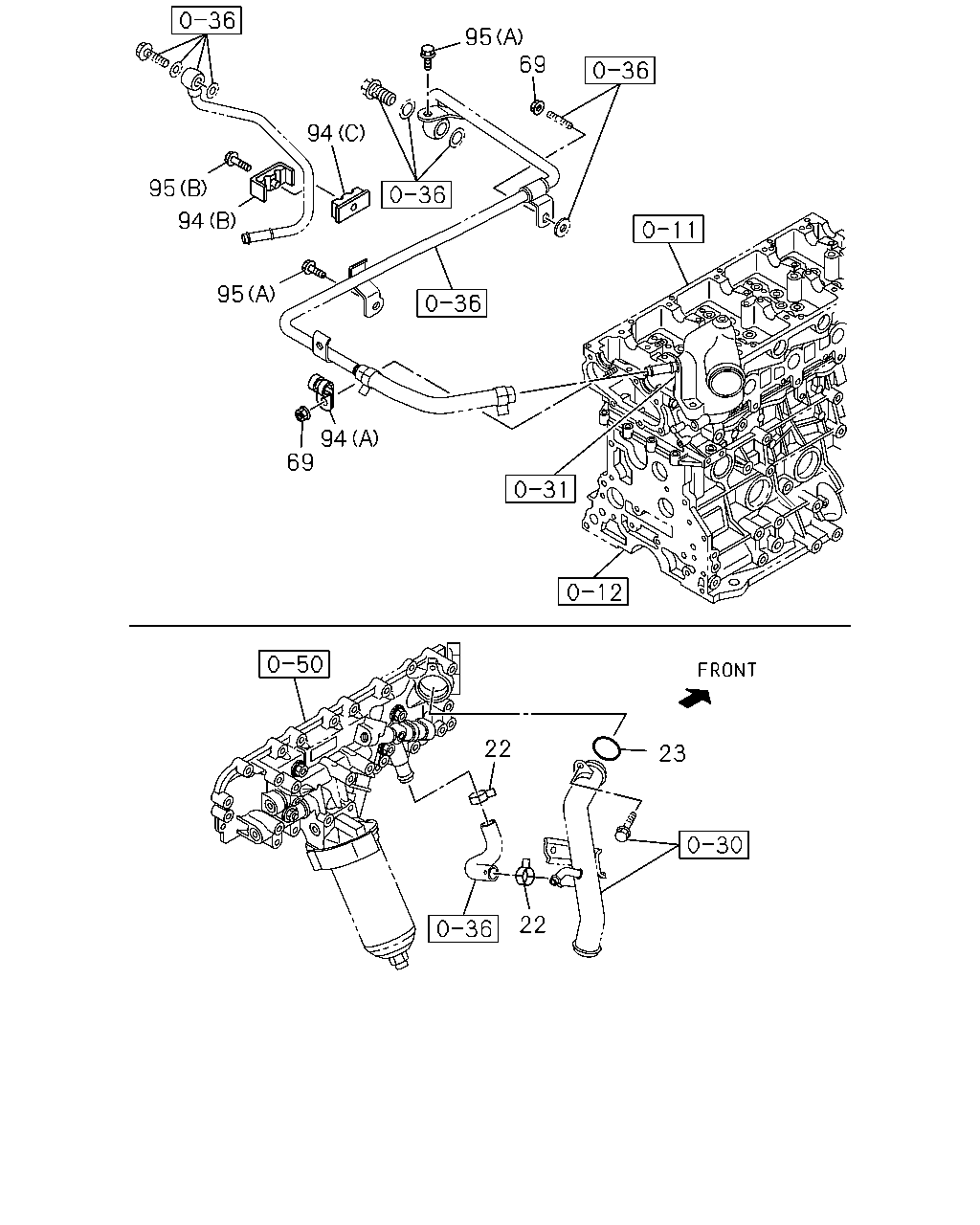

95
69
94
95
94
95
94
69
22
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
22
01.153 CLIP; WATER HOSE
03.278 ID=22
8-97359-141-0
02
1
1012-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1012-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1012-
●
●
69
01.153 NUT; WATER PIPE
01.062 M6 FLANGE
0-91180-106-0
01
1
1012-
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
02
1
1012-
●
94
01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20
1-09700-911-1
01
1
1012-
●
94
01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25
1-09701-228-3
01
1
1012-
●
94
01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25
1-09701-229-2
01
1
1012-
●
95
01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE
0-28050-612-0
02
1
1012-
●
95
01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE
0-28650-635-0
01
1
1012-
●

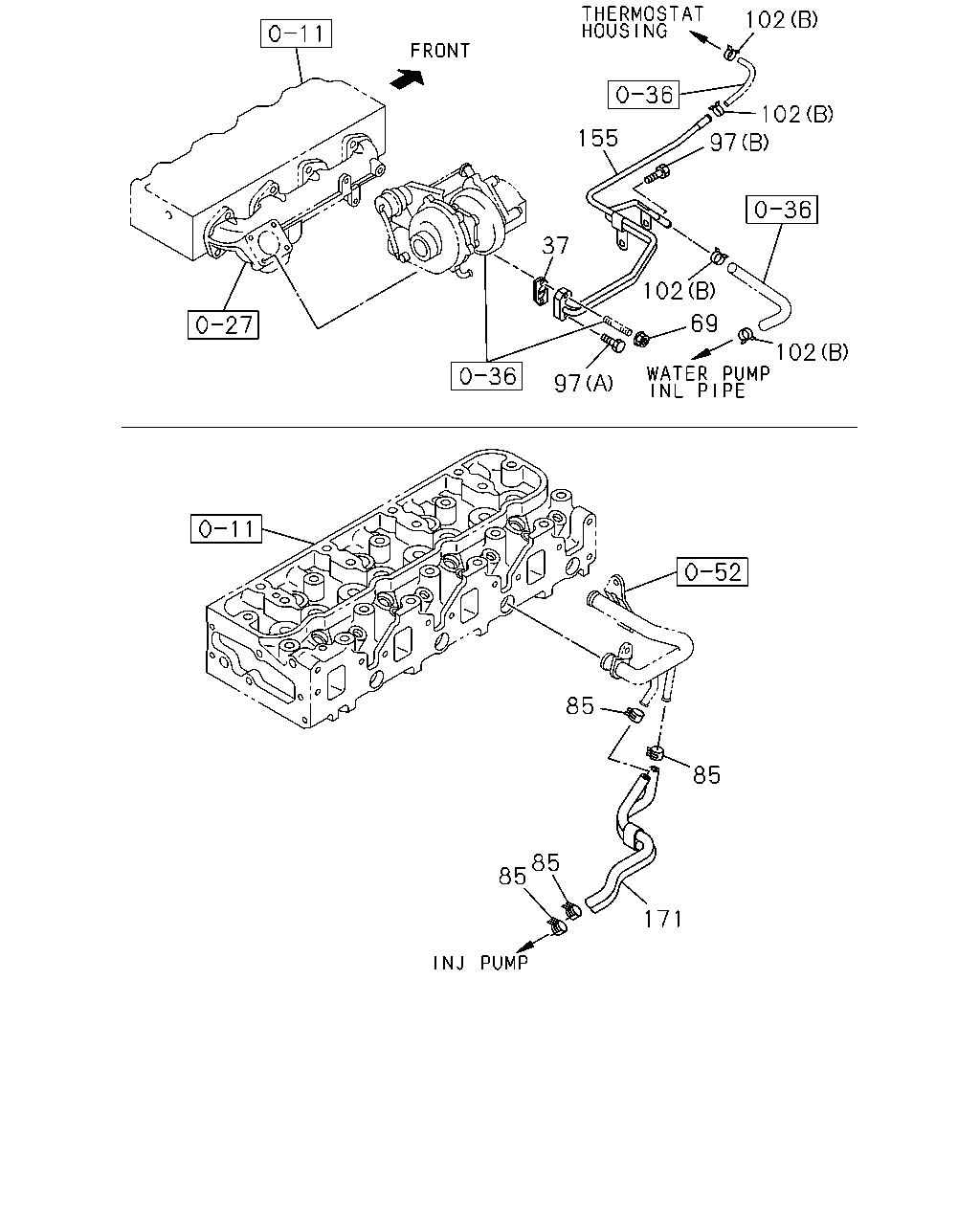

102
102
97
155
37
102
69
102
97
85
85
171
85
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
37
01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.374
8-94321-135-1
01
1
1012-
●
69
01.153 NUT; WATER PIPE
01.062 M6 FLANGE
0-91180-106-0
01
1
1012-
●
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
02
1
1012-
●
85
01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8
8-94367-943-0
04
1
1012-
●
97
04.866 BOLT; WATER PIPE
03.162 (B) M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
97
04.866 BOLT; WATER PIPE
09.242 (A) M6X16 FLANGE
0-28050-616-0
01
1
1012-
●
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1012-
●
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1012-
●
●
155
01.153 PIPE ASM; WATER
8-98169-766-0
01
1
1012-
●
171
01.240 HOSE; RUBBER,WAX CSD
8-97225-605-0
01
1
1012-
●

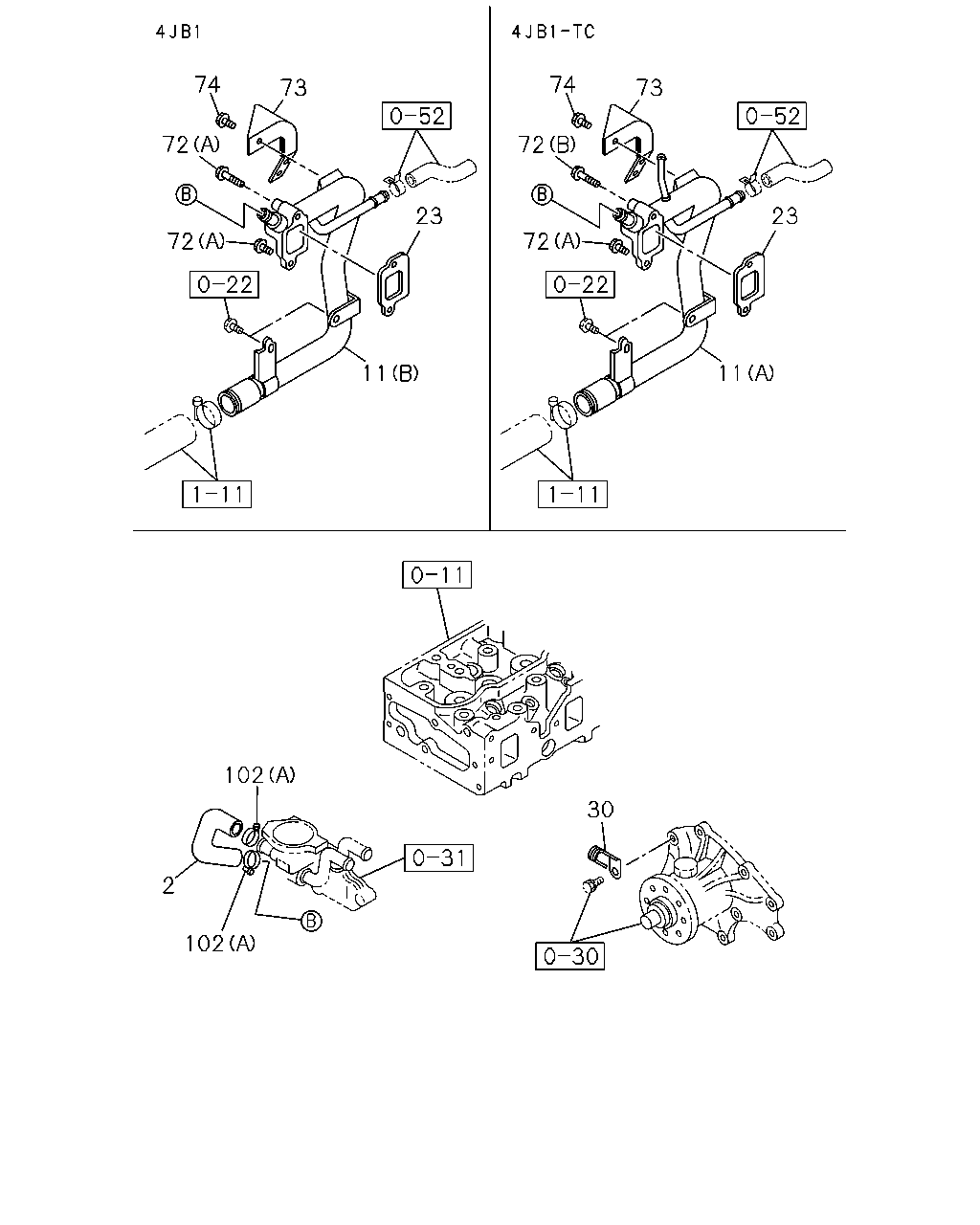

74
74
73
73
72
72
23
23
72
72
11
11
102
30
2
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
01.097 HOSE; WATER,BY-PASS
8-97209-948-0
01
1
1012-
●
●
2
01.097 HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1012-
●
●
11
01.097 PIPE; INL,WATER PUMP
(B)
8-97264-243-0
01
1
1012-
●
11
01.097 PIPE; INL,WATER PUMP
(A)
8-97213-400-2
01
1
1012-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
0-95690-338-0
01
1
1012-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
1012-
●
●
30
01.150 CLIP; HARNESS
ID=12
8-97367-983-1
01
1
1012-
●
●
72
00.206 BOLT; WATER PIPE
(A) M8X50 W/LK WASHER
0-50540-850-0
02
1
1012-
●
72
00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE
0-28050-820-0
01
1
1012-
●
72
00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER
0-50540-845-0
01
1
1012-
●
73
01.097 PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
1012-1403
●
●
73
01.097 PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
●
●
74
01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
1012-
●
●
102
01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8
8-94367-943-0
04
1
1012-
●
102
01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8
8-94125-862-1
02
1
1012-
●
●

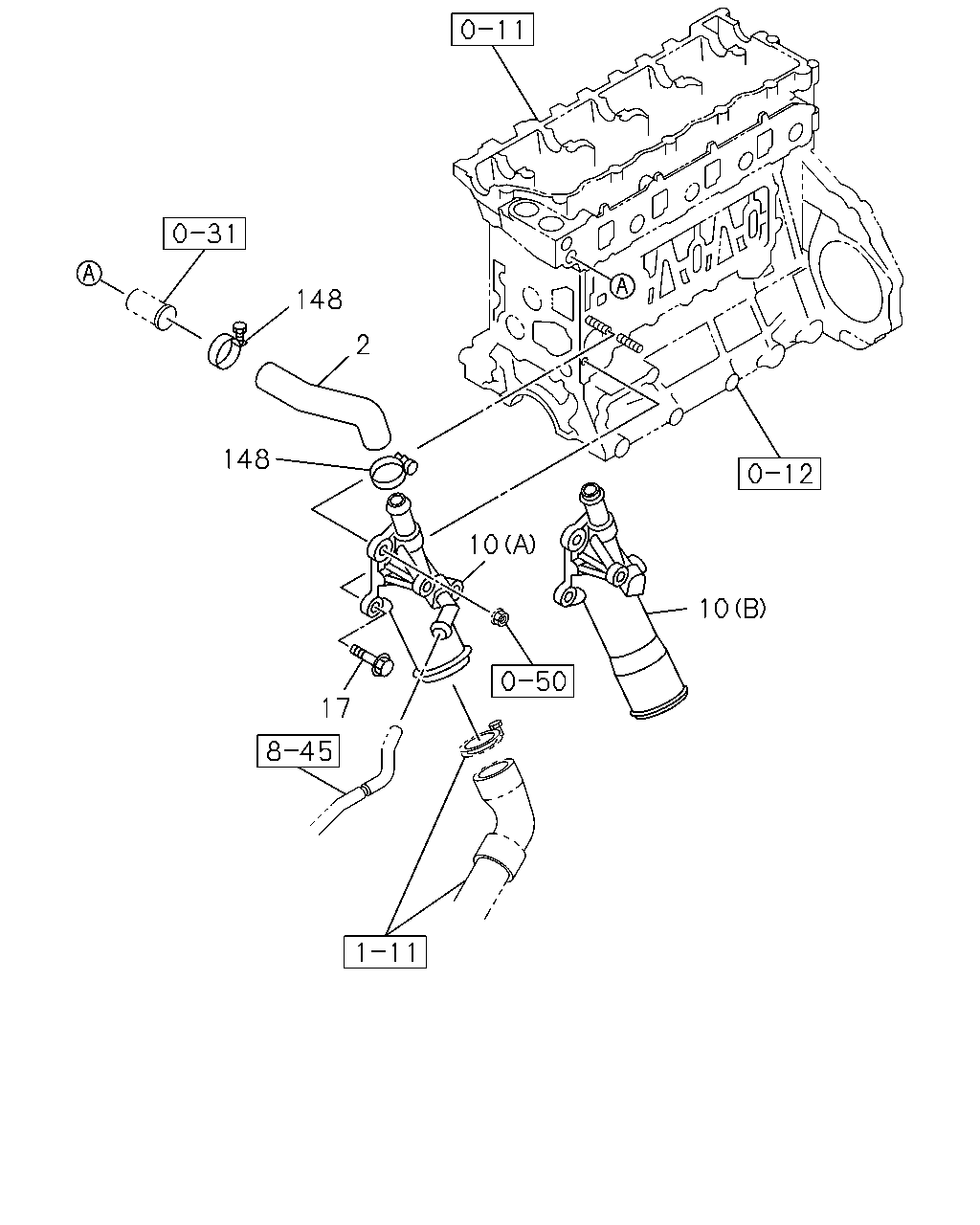

148
2
148
10
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
2
01.097 HOSE; WATER,BY-PASS
8-97209-948-0
01
1
1012-
●
●
2
01.097 HOSE; WATER,BY-PASS
8-97037-464-0
01
1
1012-
●
●
10
01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)
8-98212-009-0
01
1
1203-
●
●
10
01.153 PIPE; SUCTION
(A)
8-98166-992-0
01
1
1012-1202
●
●
10
01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)
8-98166-992-0
01
1
1203-
●
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
1012-
●
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
1012-
●
●
