Isuzu WW
▶
BUSES
▶
LV
▶
10818 - LV123/150/423-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#7938) — 38 parça
Tümü
A - 6SD1 TC
B - 6SD1 TC-S
C - 6WA1 TC-C
◀
[010A] 6SD1 (19 parça)
[010A] 6WA1 (19 parça)
▶

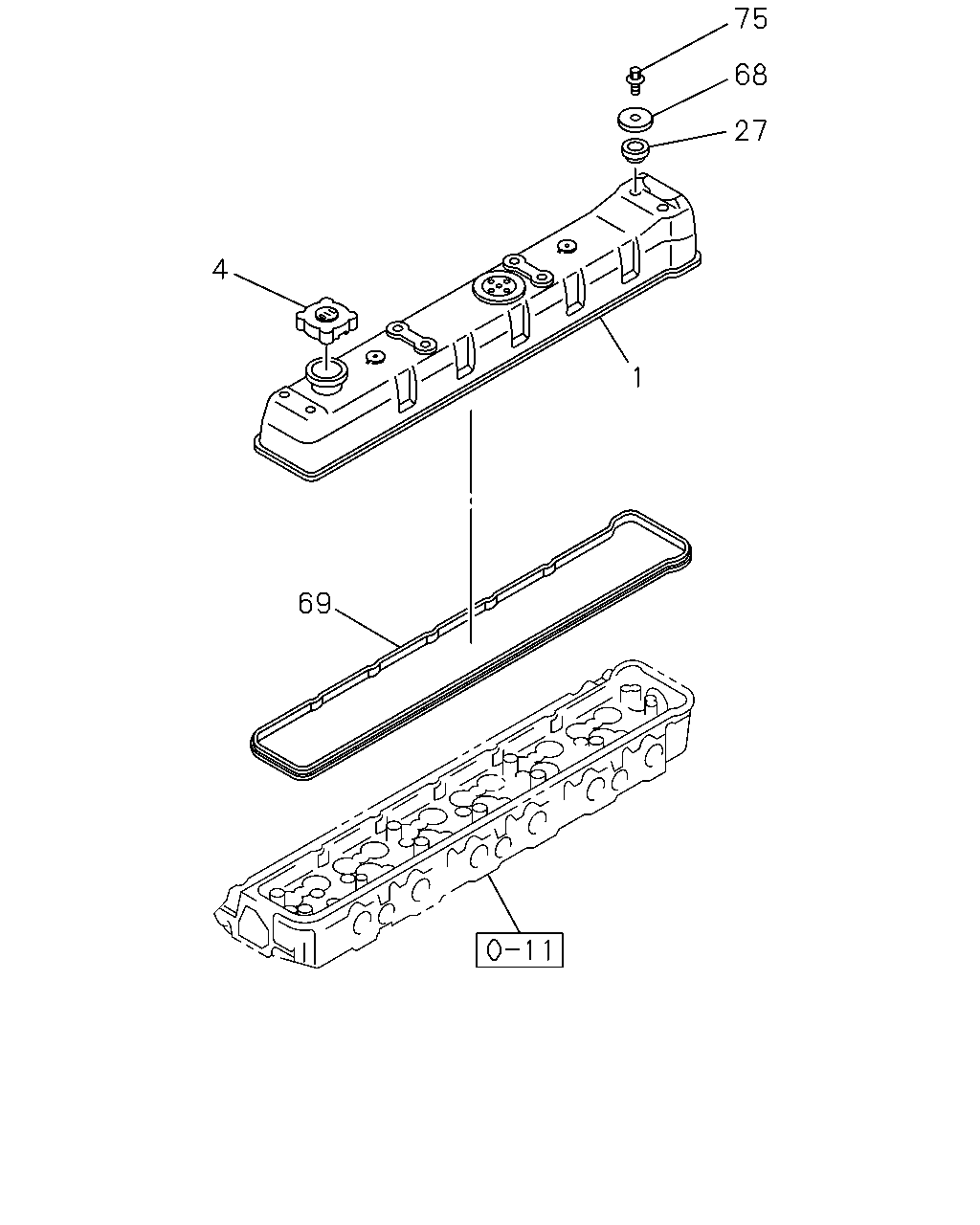

75
68
27
4
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COVER; CYL HD
1-11171-392-0
01
1
0012-0106
●
1
COVER; CYL HD
EXC. EURO3 SPECIFICATION(NJX)
1-11171-392-0
01
1
0107-0206
●
1
COVER; CYL HD
EURO3 SPECIFICATION(NJX)
1-11171-411-1
01
1
0107-0206
●
1
COVER; CYL HD
1-11171-411-1
01
1
0207-0210
●
1
COVER; CYL HD
1-11171-411-1
01
1
0211-
●
●
1
COVER; CYL HD
1-11180-464-0
01
1
0204-0204
●
1
COVER; CYL HD
1-11180-468-0
01
1
0205-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0012-0210
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0211-
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0204-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
0012-0210
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
0211-
●
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
0012-0210
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
0211-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0012-0210
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0211-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0204-
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
0012-0210
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
0211-
●
●

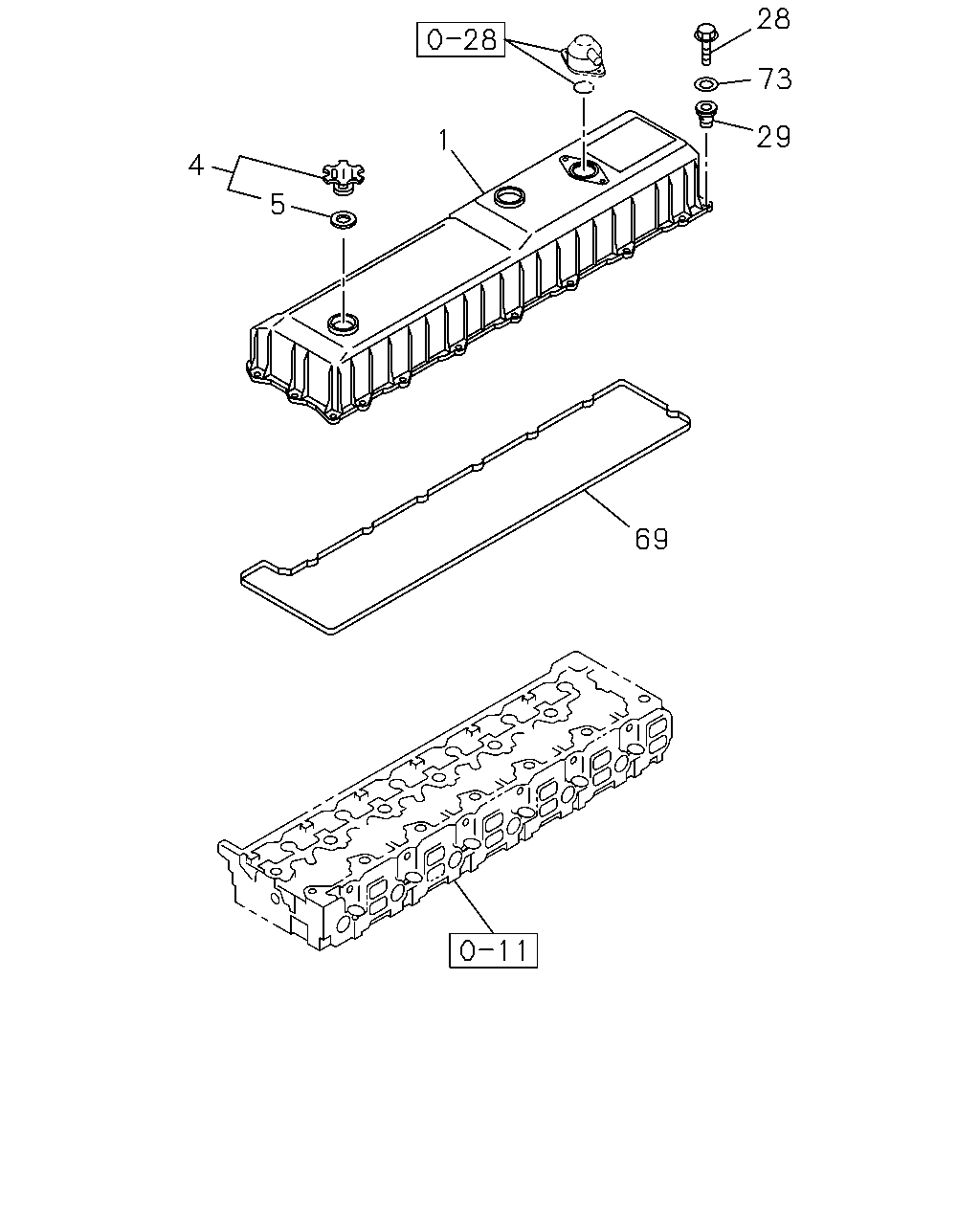

28
73
29
1
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COVER; CYL HD
1-11171-392-0
01
1
0012-0106
●
1
COVER; CYL HD
EXC. EURO3 SPECIFICATION(NJX)
1-11171-392-0
01
1
0107-0206
●
1
COVER; CYL HD
EURO3 SPECIFICATION(NJX)
1-11171-411-1
01
1
0107-0206
●
1
COVER; CYL HD
1-11171-411-1
01
1
0207-0210
●
1
COVER; CYL HD
1-11171-411-1
01
1
0211-
●
●
1
COVER; CYL HD
1-11180-464-0
01
1
0204-0204
●
1
COVER; CYL HD
1-11180-468-0
01
1
0205-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0012-0210
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
0211-
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0204-
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0204-
●
28
BOLT; HD COVER
M8X35 FLANGE
0-28080-835-0
20
1
0204-0512
●
28
BOLT; HD COVER
M8X35 FLANGE
0-28050-835-0
20
1
0601-
●
29
RUBBER; MTG,HD COVER
8-97601-849-1
20
1
0204-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0012-0210
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
0211-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0204-
●
73
WASHER; PL,HD COVER
ID=8.4 OD=22
9-09160-708-0
20
1
0204-0605
●
73
WASHER; PL,HD COVER
ID=8.4 OD=22
0-91610-708-0
20
1
0606-
●
