0-31 — THERMOSTAT AND HOUSING (#79379) — 95 parça

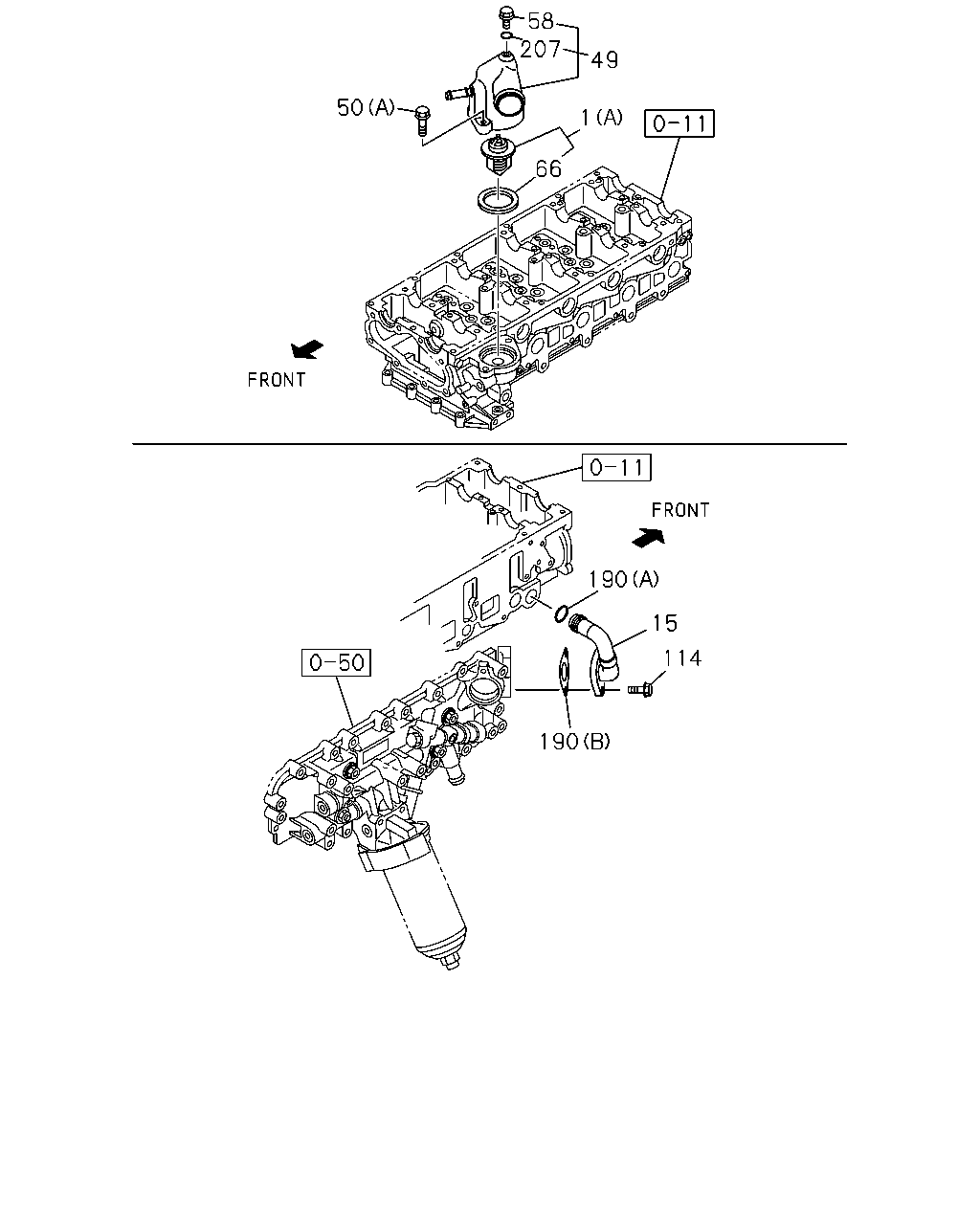

çizim 42640
114 15 190 190 66 1 49 207 58 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-792-2 01 1 1012- ● ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
(D) 82 CELSIUS 		8-97254-816-1 01 1 1012- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-98017-027-2 01 1 1012- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-97361-770-0 01 1 1012- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-94482-277-2 01 1 1012- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1012- ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-94108-321-1 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1012- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98114-587-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97212-537-1 01 1 1012- ● ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1012- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1012- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ● ●

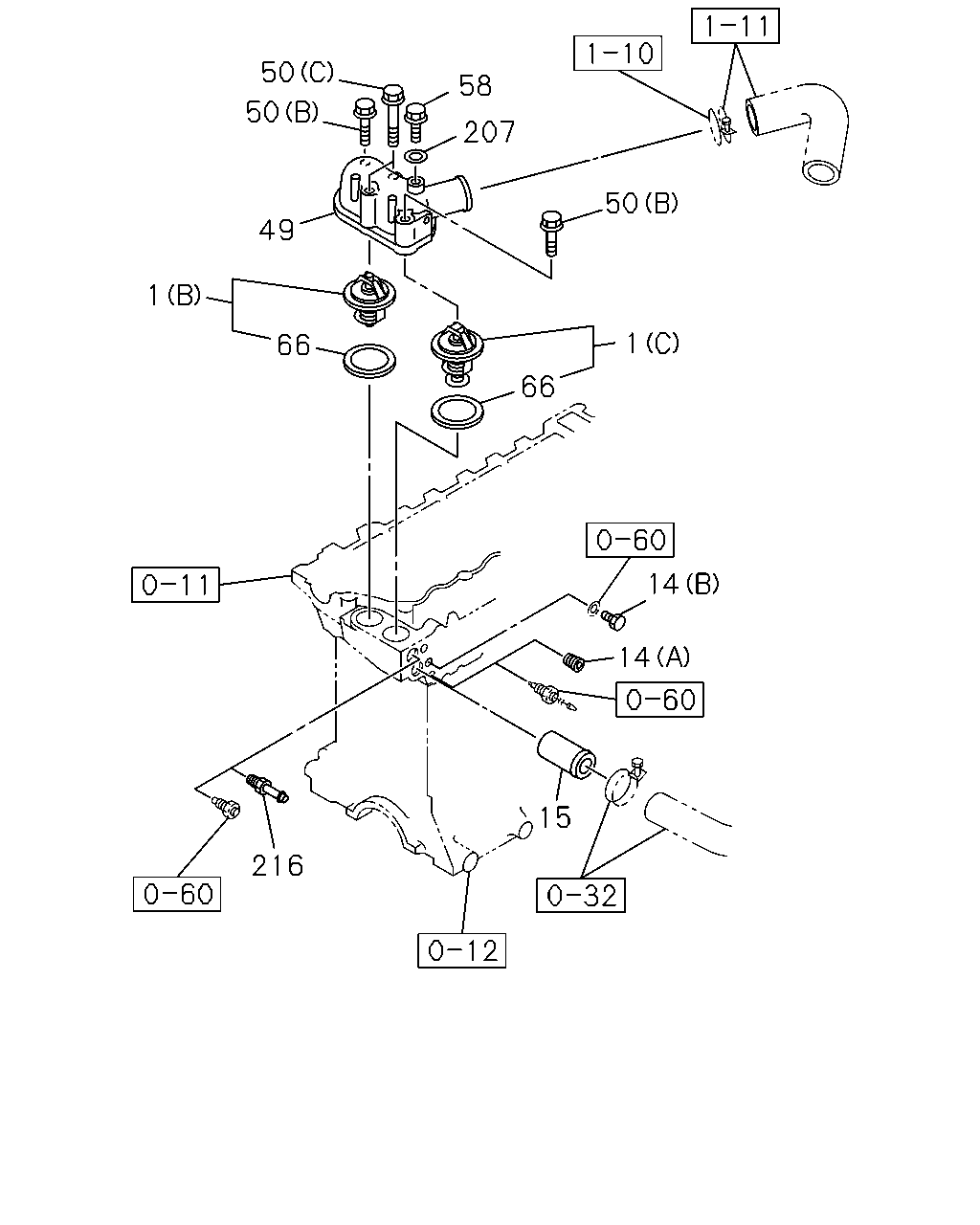

çizim 43163
50 50 49 1 66 216 15 14 14 66 1 50 207 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-792-2 01 1 1012- ● ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
(D) 82 CELSIUS 		8-97254-816-1 01 1 1012- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-98017-027-2 01 1 1012- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-97361-770-0 01 1 1012- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-94482-277-2 01 1 1012- ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 1012- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1012-1012 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1012-1404 ● ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1405- ●
14 01.252 PLUG; SW
EXC. MALAYSIA EQUIPMENT(B10) 01.073 (A) PT3/8 		5-09605-005-0 01 1 1405- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 1012- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1012- ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-94108-321-1 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1012- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98114-587-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97212-537-1 01 1 1012- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 1012- ●

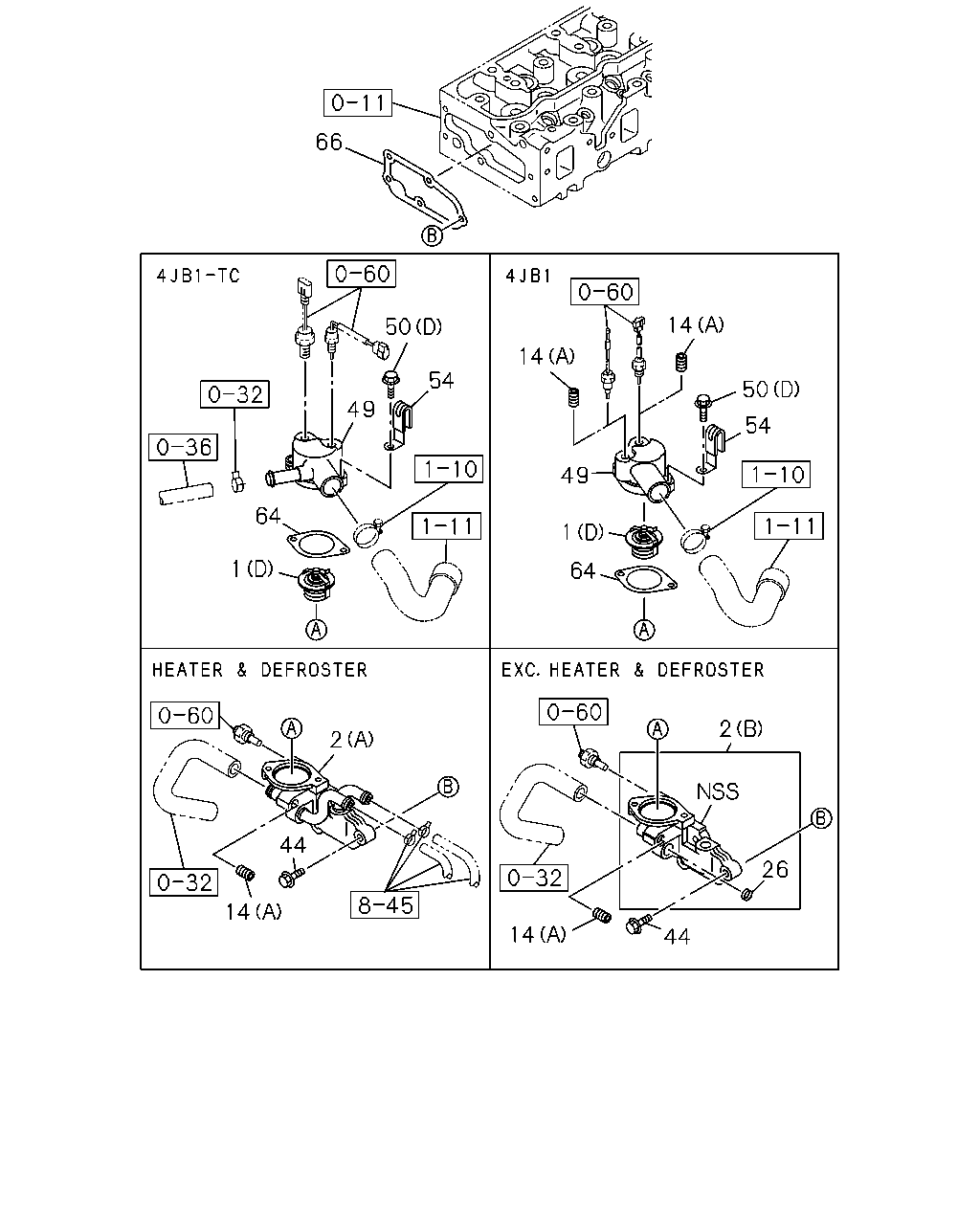

çizim 44062
66 14 50 14 54 50 49 54 49 64 1 1 64 2 2 44 26 14 14 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-787-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS 		8-97300-792-2 01 1 1012- ● ●
1 01.246 THERMOSTAT
(C) 82 CELSIUS 		8-97300-789-3 01 1 1012- ● ●
1 01.246 THERMOSTAT
(D) 82 CELSIUS 		8-97254-816-1 01 1 1012- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-98017-027-2 01 1 1012- ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-97361-770-0 01 1 1012- ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (D) 82 CELSIUS 		8-94482-277-2 01 1 1012- ●
2 01.251 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41) (A) 		8-97139-603-1 01 1 1012- ● ●
2 01.251 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 		8-97139-604-3 01 1 1012- ● ●
14 01.252 PLUG; SW
04.520 (B) M16X8 PLUG 		9-09661-005-0 01 1 1012- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1012-1012 ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1012-1404 ● ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 01 1 1405- ●
14 01.252 PLUG; SW
EXC. MALAYSIA EQUIPMENT(B10) 01.073 (A) PT3/8 		5-09605-005-0 01 1 1405- ●
14 01.252 PLUG; SW
01.073 (A) PT3/8 		5-09605-005-0 02 1 1012- ●
26 01.251 CUP; SEALING,VLV,VENTILATION
EXC. HEATER & DEFROSTER(C41) 00.253 OD=18 		5-11219-008-0 01 1 1012- ● ●
44 01.252 BOLT; HSG TO HD
09.171 M8X30 W/LK WASHER 		0-50540-830-0 05 1 1012- ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ● ●
49 01.153 PIPE; WATER OUTLET 8-97204-199-0 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-94108-321-1 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1012- ● ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=13 H=50 L=27 		8-94130-076-0 01 1 1012- ● ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.252 		8-94365-674-2 01 1 1012- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-98114-587-0 01 1 1012- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97212-537-1 01 1 1012- ● ●
