0-22 — ENGINE MOUNTING (#79374) — 129 parça

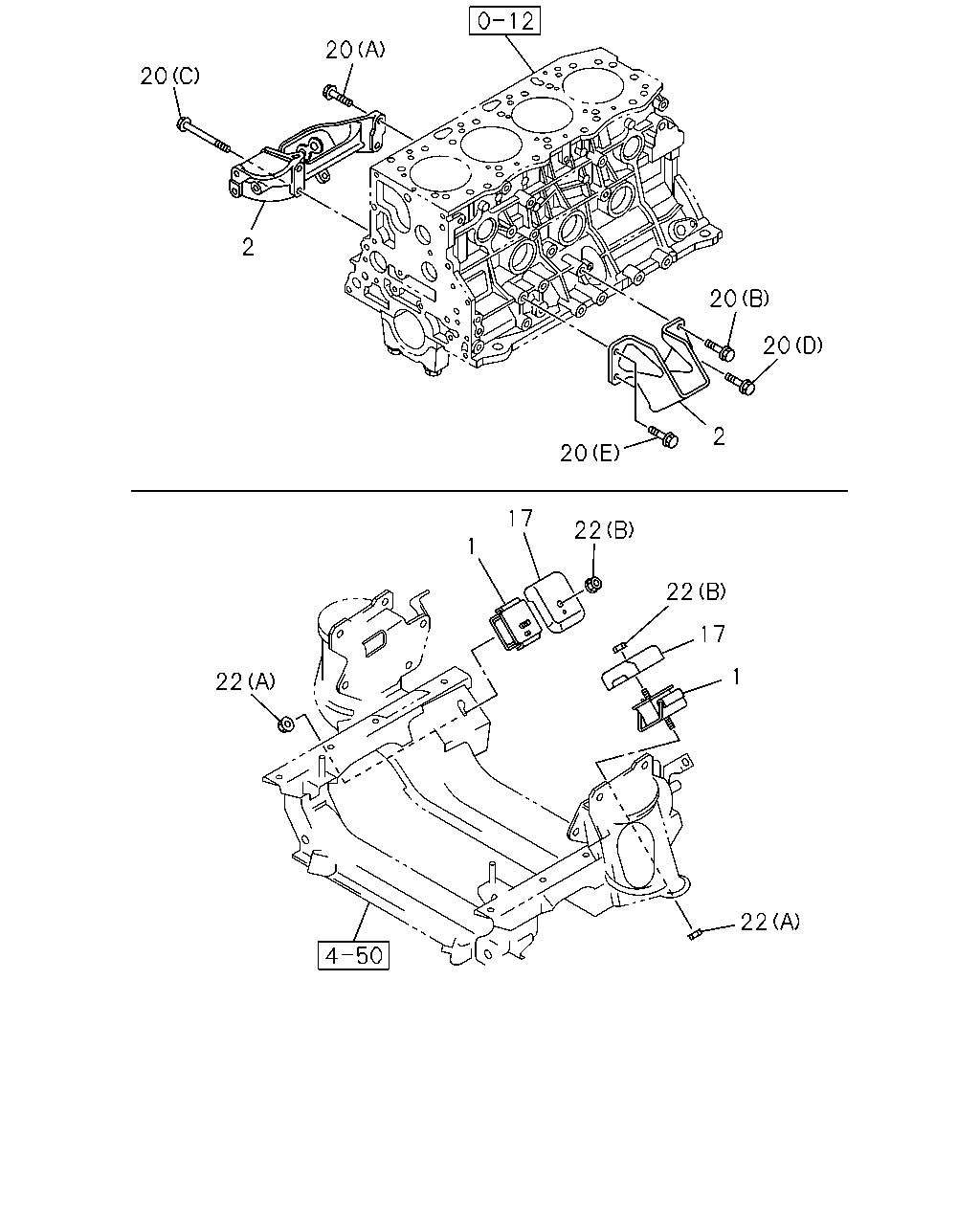

20 20 2 20 20 2 20 17 22 1 22 17 1 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-000-0	01	1	1012-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-001-0	01	1	1012-					●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	1012-	●		●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	1012-					●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	1012-					●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	1012-		●		●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	1012-		●		●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97229-825-0	01	1	1012-					●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97383-796-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (F) M10X20 FLANGE	0-28161-020-0	08	1	1012-	●		●
20	00.029 BOLT; ENG FOOT 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (E) M10X25 FLANGE	0-28651-025-0	02	1	1012-					●
20	00.029 BOLT; ENG FOOT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-					●
20	00.029 BOLT; ENG FOOT (I) M10X22 W/LK WASHER	0-50541-022-0	05	1	1012-		●		●
20	00.029 BOLT; ENG FOOT (G) M14X25 W/LK WASHER	0-50541-425-0	01	1	1012-		●		●
20	00.029 BOLT; ENG FOOT 00.034 (H) M10X28	8-94329-952-1	02	1	1012-		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (C) M10 FLANGE	0-91180-210-0	04	1	1012-	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1012-	●		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT (A) M12 FLANGE	8-98046-987-0	02	1	1012-					●

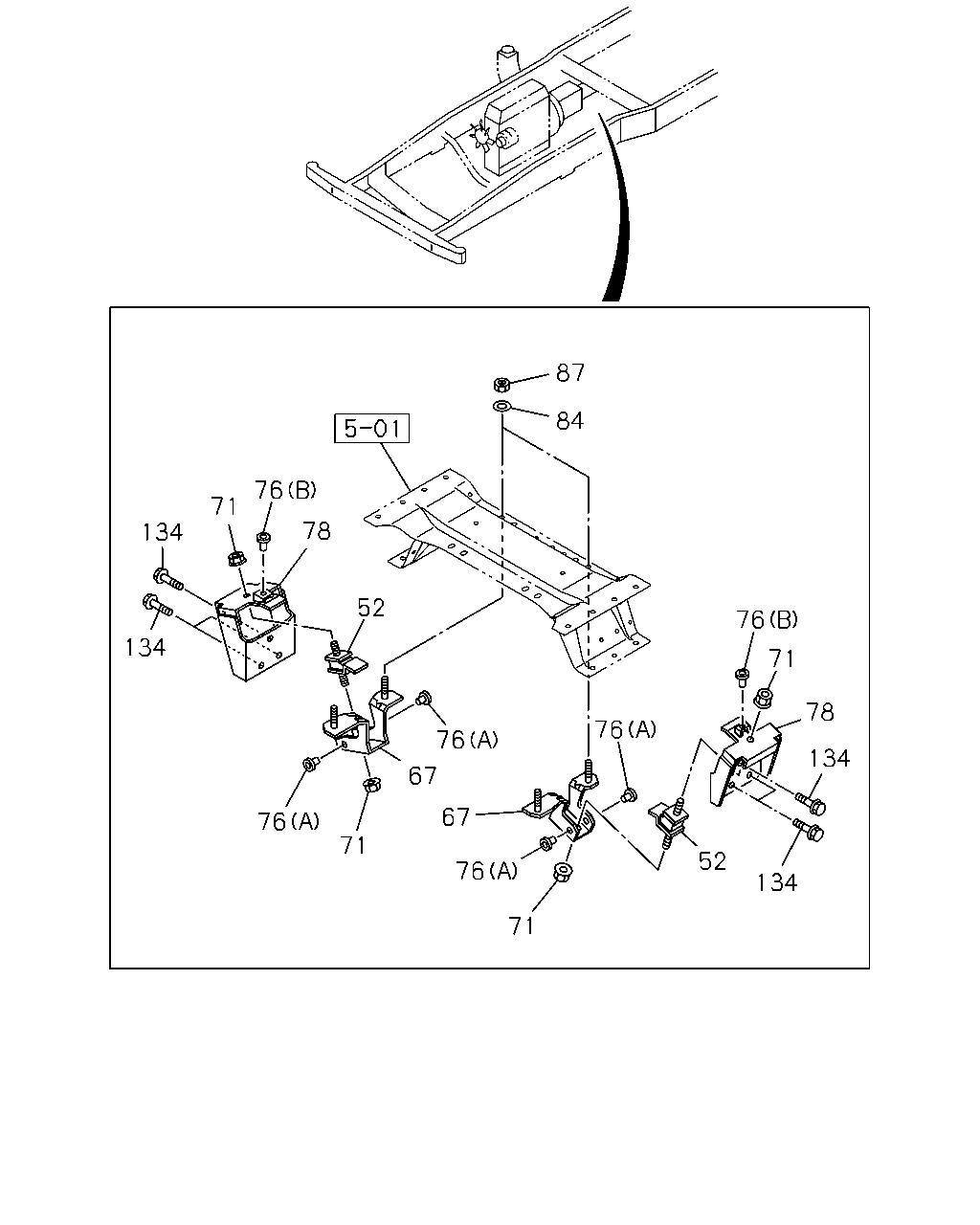

87 84 76 71 78 134 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	1012-	●	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-198-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-199-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-876-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-877-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-776-1	01	1	1012-	●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-778-1	01	1	1012-	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1012-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	1012-		●		●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	04	1	1012-	●		●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-719-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-720-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR	8-97182-197-2	01	1	1012-		●		●
78	00.029 BRACKET; ENG MTG,RR	8-98053-902-1	02	1	1012-					●
78	00.029 BRACKET; ENG MTG,RR	8-97255-756-1	02	1	1012-1505	●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97255-756-1	02	1	1506-	●		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1012-	●	●	●	●	●
87	00.029 NUT; ENG MTG RR 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	1012-	●		●		●

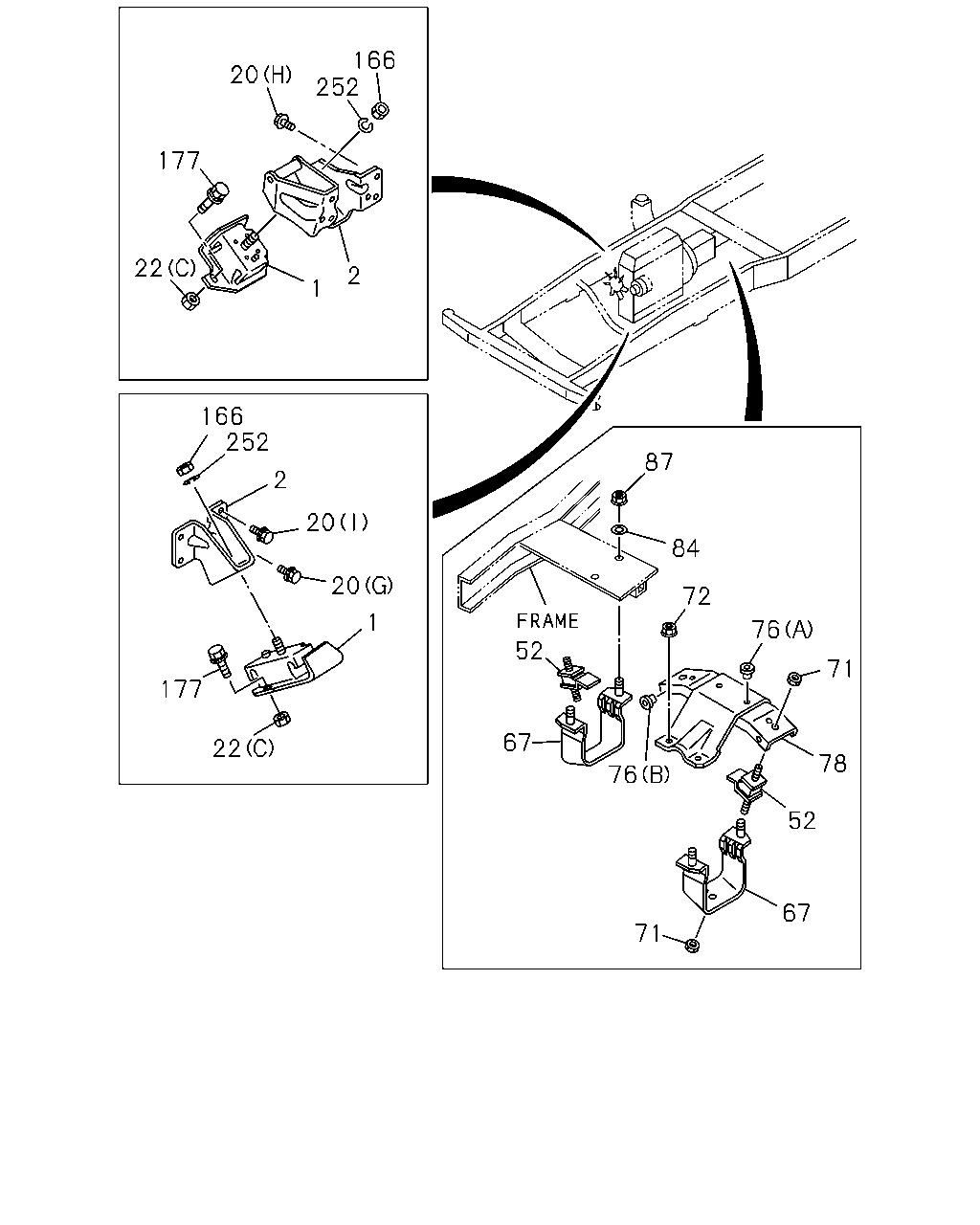

166 252 20 177 22 1 2 1 20 20 2 252 166 177 22 87 84 72 76 71 78 52 67 71 76 67 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-000-0	01	1	1012-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-001-0	01	1	1012-					●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	1012-	●		●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	1012-					●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	1012-					●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	1012-		●		●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	1012-		●		●
20	00.029 BOLT; ENG FOOT (F) M10X20 FLANGE	0-28161-020-0	08	1	1012-	●		●
20	00.029 BOLT; ENG FOOT 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (E) M10X25 FLANGE	0-28651-025-0	02	1	1012-					●
20	00.029 BOLT; ENG FOOT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-					●
20	00.029 BOLT; ENG FOOT (I) M10X22 W/LK WASHER	0-50541-022-0	05	1	1012-		●		●
20	00.029 BOLT; ENG FOOT (G) M14X25 W/LK WASHER	0-50541-425-0	01	1	1012-		●		●
20	00.029 BOLT; ENG FOOT 00.034 (H) M10X28	8-94329-952-1	02	1	1012-		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (C) M10 FLANGE	0-91180-210-0	04	1	1012-	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1012-	●		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT (A) M12 FLANGE	8-98046-987-0	02	1	1012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	1012-	●	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-198-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-199-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-876-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-877-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-776-1	01	1	1012-	●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-778-1	01	1	1012-	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
72	00.002 NUT; SUPPORT RUBBER TO TRANS 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-		●		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1012-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	1012-		●		●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	04	1	1012-	●		●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-719-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-720-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR	8-97182-197-2	01	1	1012-		●		●
78	00.029 BRACKET; ENG MTG,RR	8-98053-902-1	02	1	1012-					●
78	00.029 BRACKET; ENG MTG,RR	8-97255-756-1	02	1	1012-1505	●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97255-756-1	02	1	1506-	●		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1012-	●	●	●	●	●
87	00.029 NUT; ENG MTG RR 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	1012-		●		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	1012-	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	1012-		●		●

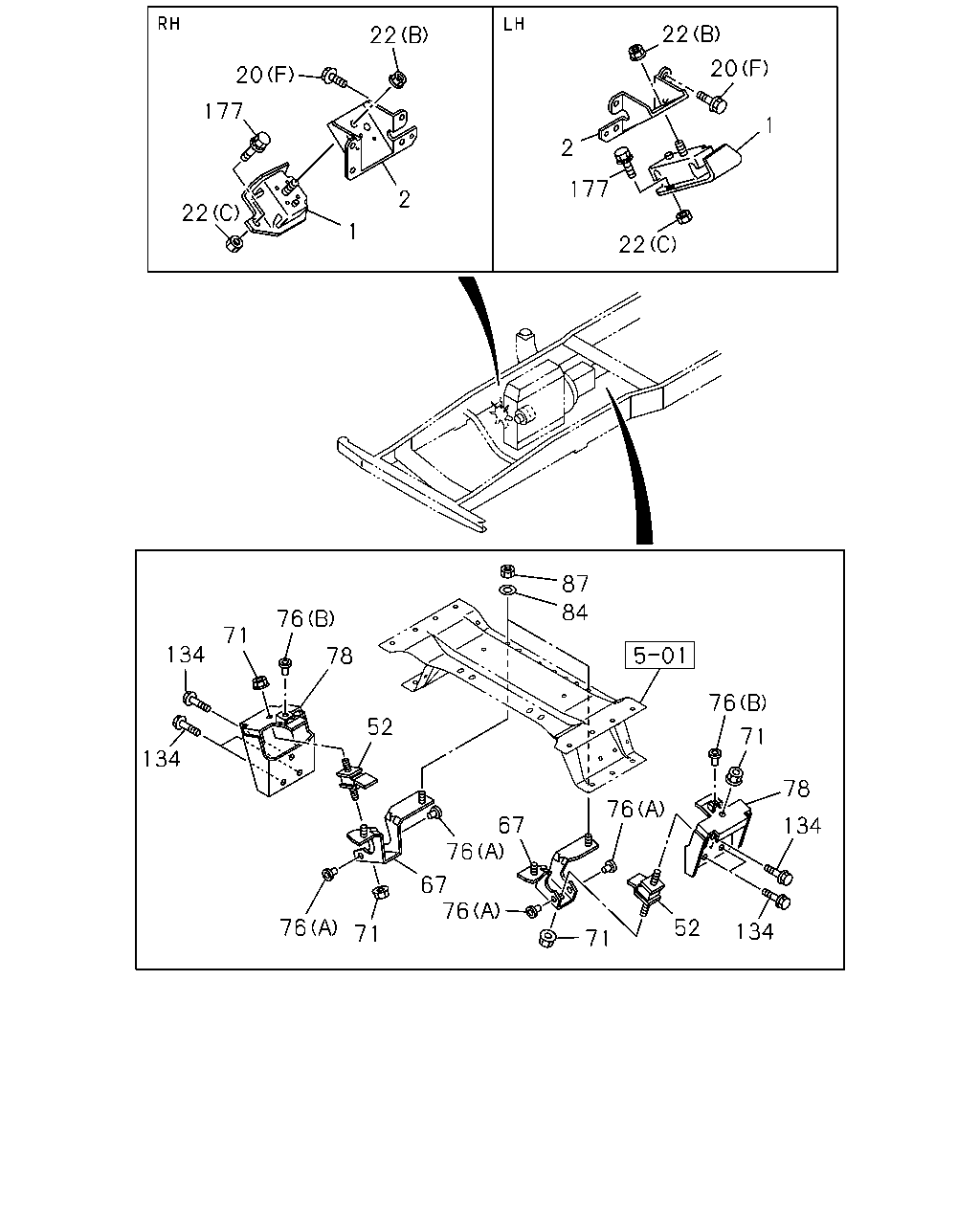

22 22 20 20 177 1 2 177 22 2 1 22 87 84 76 71 134 78 76 52 71 134 78 76 67 134 76 67 76 76 52 134 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	1012-	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-000-0	01	1	1012-					●
1	00.027 RUBBER; ENG FOOT,FRT	8-98043-001-0	01	1	1012-					●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	1012-	●		●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	1012-					●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	1012-					●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	1012-		●		●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	1012-		●		●
20	00.029 BOLT; ENG FOOT (F) M10X20 FLANGE	0-28161-020-0	08	1	1012-	●		●
20	00.029 BOLT; ENG FOOT 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (E) M10X25 FLANGE	0-28651-025-0	02	1	1012-					●
20	00.029 BOLT; ENG FOOT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT 03.706 (C) M10X70 FLANGE	0-28051-070-0	01	1	1012-					●
20	00.029 BOLT; ENG FOOT (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-					●
20	00.029 BOLT; ENG FOOT (I) M10X22 W/LK WASHER	0-50541-022-0	05	1	1012-		●		●
20	00.029 BOLT; ENG FOOT (G) M14X25 W/LK WASHER	0-50541-425-0	01	1	1012-		●		●
20	00.029 BOLT; ENG FOOT 00.034 (H) M10X28	8-94329-952-1	02	1	1012-		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (C) M10 FLANGE	0-91180-210-0	04	1	1012-	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	1012-	●		●		●
22	00.002 NUT; CUSHION RUBBER TO BRKT (A) M12 FLANGE	8-98046-987-0	02	1	1012-					●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	1012-	●	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-198-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97182-199-1	01	1	1012-		●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-876-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97354-877-1	01	1	1012-					●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-776-1	01	1	1012-	●		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97255-778-1	01	1	1012-	●		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1012-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	1012-		●		●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	04	1	1012-	●		●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-719-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR FRAME-KICK UP<7EW>	8-98092-720-0	01	1	1506-	●		●
78	00.029 BRACKET; ENG MTG,RR	8-97182-197-2	01	1	1012-		●		●
78	00.029 BRACKET; ENG MTG,RR	8-98053-902-1	02	1	1012-					●
78	00.029 BRACKET; ENG MTG,RR	8-97255-756-1	02	1	1012-1505	●		●
78	00.029 BRACKET; ENG MTG,RR EXC. FRAME-KICK UP<7EW>	8-97255-756-1	02	1	1506-	●		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1012-	●	●	●	●	●
87	00.029 NUT; ENG MTG RR 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	1012-	●		●		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	1012-	●	●	●	●
