0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#79373) — 172 parça

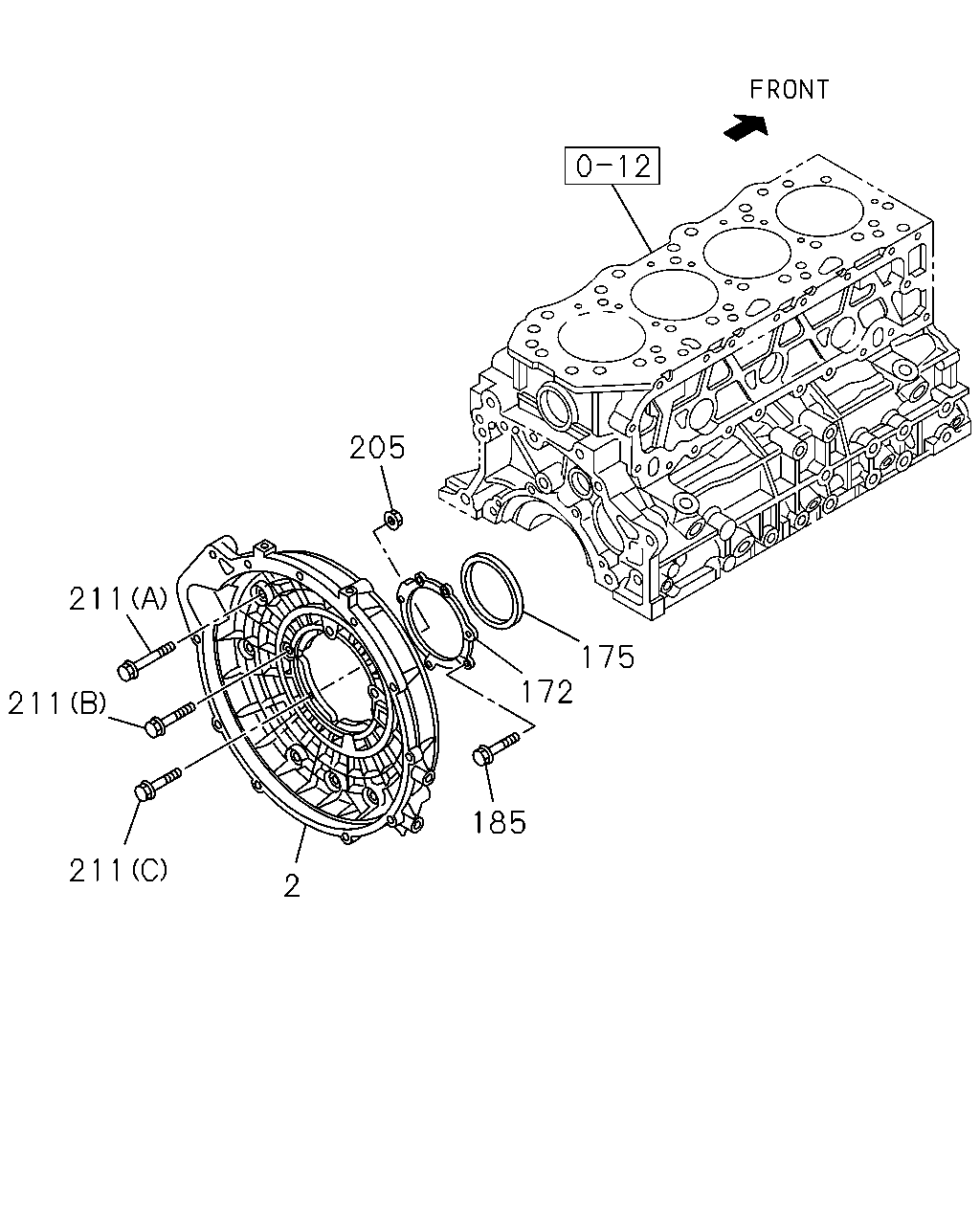

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1012-	●	●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	1012-1310			●
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-			●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	1012-1012			●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1012-			●	●	●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1012-			●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	1012-			●
211	00.669 BOLT; HSG (D) M8X20,M8X65 L=90	8-97200-622-1	02	1	1102-	●
211	00.669 BOLT; HSG MANUAL STEERING<N51> (F) M14X35 FLANGE	0-28761-435-0	01	1	1012-	●	●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	1012-		●
211	00.669 BOLT; HSG 00.029 (G) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●	●
211	00.669 BOLT; HSG (F) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1012-1102	●	●
211	00.669 BOLT; HSG (F) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●	●
211	00.669 BOLT; HSG (E) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●	●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	1012-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	1012-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	1012-			●

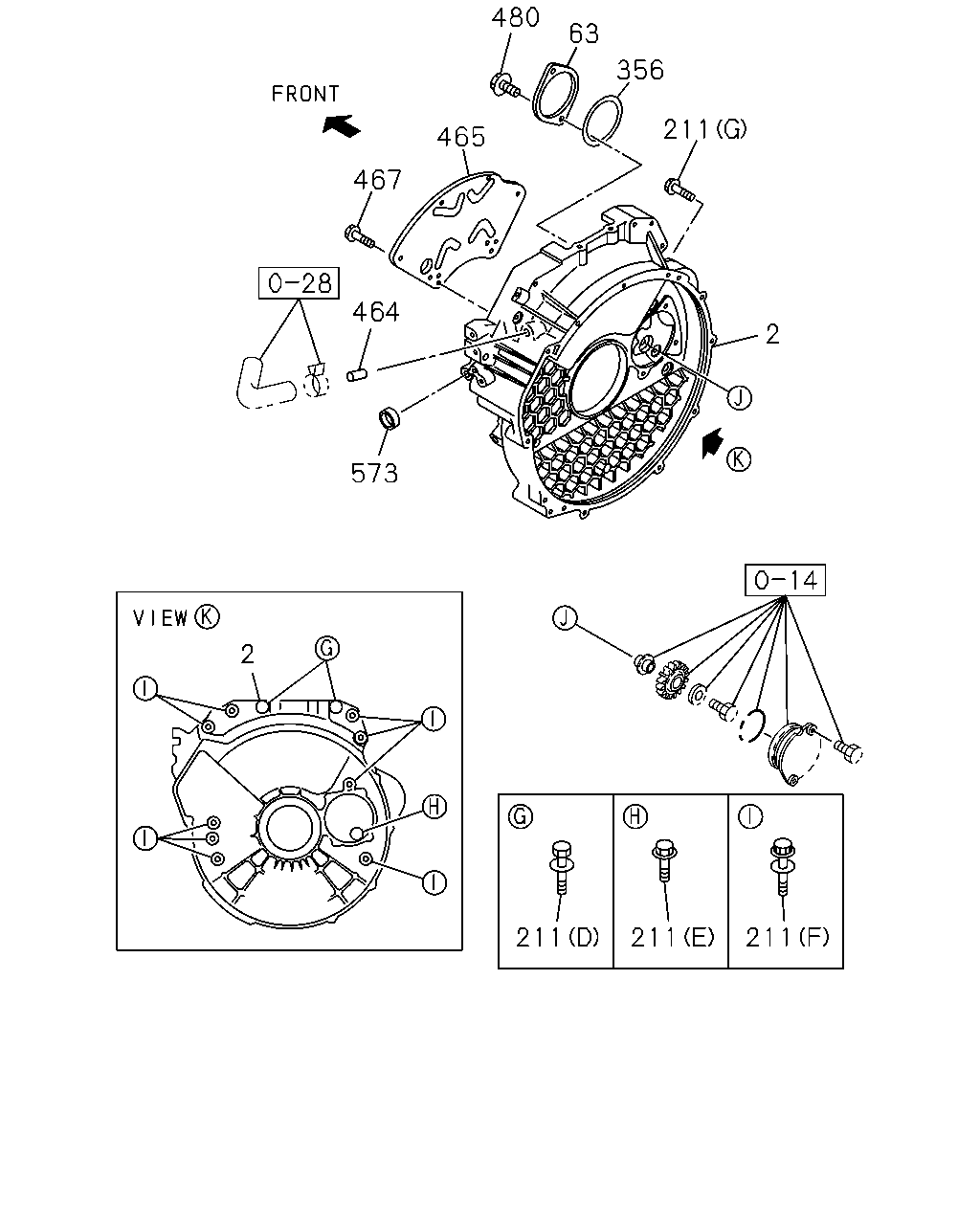

480 63 356 211 465 467 464 2 573 2 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	1012-	●	●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	1012-1310			●
2	00.683 HOUSING; FLYWHEEL	8-98252-203-0	01	1	1311-			●
63	00.206 COVER; P/S MANUAL STEERING<N51>	8-97126-392-0	01	1	1012-	●	●
211	00.669 BOLT; HSG (D) M8X20,M8X65 L=90	8-97200-622-1	02	1	1102-	●
211	00.669 BOLT; HSG MANUAL STEERING<N51> (F) M14X35 FLANGE	0-28761-435-0	01	1	1012-	●	●
211	00.669 BOLT; HSG (D) M8X65 W/PL WASHER	8-94388-781-0	02	1	1012-		●
211	00.669 BOLT; HSG 00.029 (G) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●	●
211	00.669 BOLT; HSG (F) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	1012-1102	●	●
211	00.669 BOLT; HSG (F) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●	●
211	00.669 BOLT; HSG (E) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●	●
211	00.669 BOLT; HSG 09.003 (A) M12X35 FLANGE	0-28651-235-0	06	1	1012-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	1012-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	1012-			●
356	00.207 GASKET; COVER MANUAL STEERING<N51> 06.673	8-97101-875-2	01	1	1012-	●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	1012-	●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	1012-	●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	1012-	●	●
480	00.206 BOLT; COVER MANUAL STEERING<N51> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1012-	●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	1012-	●	●

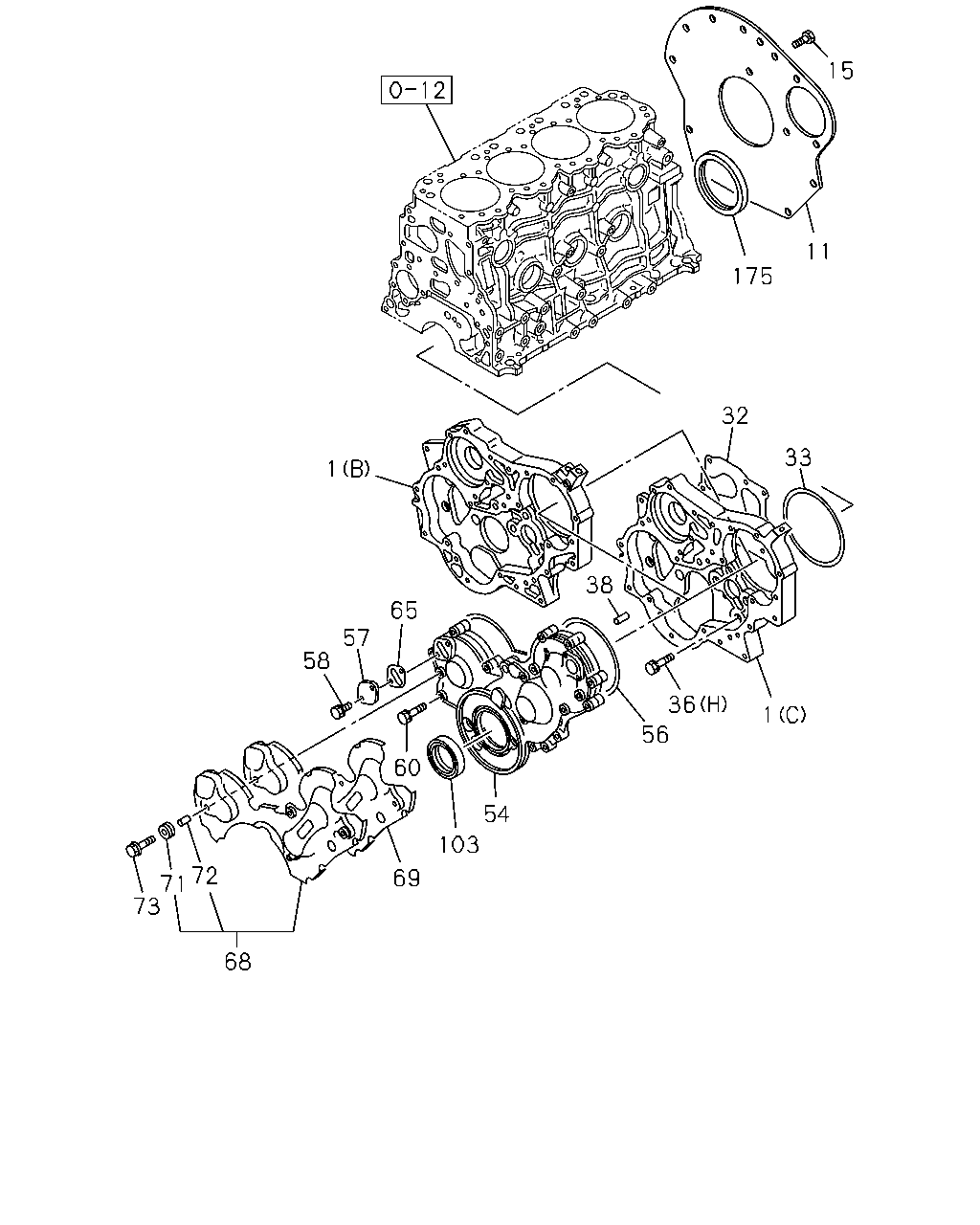

15 11 175 32 33 1 38 65 57 58 36 1 56 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.206 CASE; TIMING GEAR (B)	8-97219-001-4	01	1	1012-				●
1	00.206 CASE; TIMING GEAR (A)	8-97945-261-2	01	1	1012-1203			●
1	00.206 CASE; TIMING GEAR (A)	8-98074-747-1	01	1	1204-			●
1	00.206 CASE; TIMING GEAR (C)	8-97129-982-3	01	1	1012-					●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	1012-				●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	1012-				●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1012-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	1012-				●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	1012-				●	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	13	1	1012-			●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	1012-			●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1012-				●	●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-				●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-			●	●	●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1012-1405			●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-			●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	1012-				●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	1012-				●	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	1012-				●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1012-				●	●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	1012-				●	●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	1012-				●	●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	1012-				●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	1012-				●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	02	1	1012-				●	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	1012-				●	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	1012-				●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	1012-				●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	1012-				●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	1012-				●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1012-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1012-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1012-				●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1012-			●	●	●

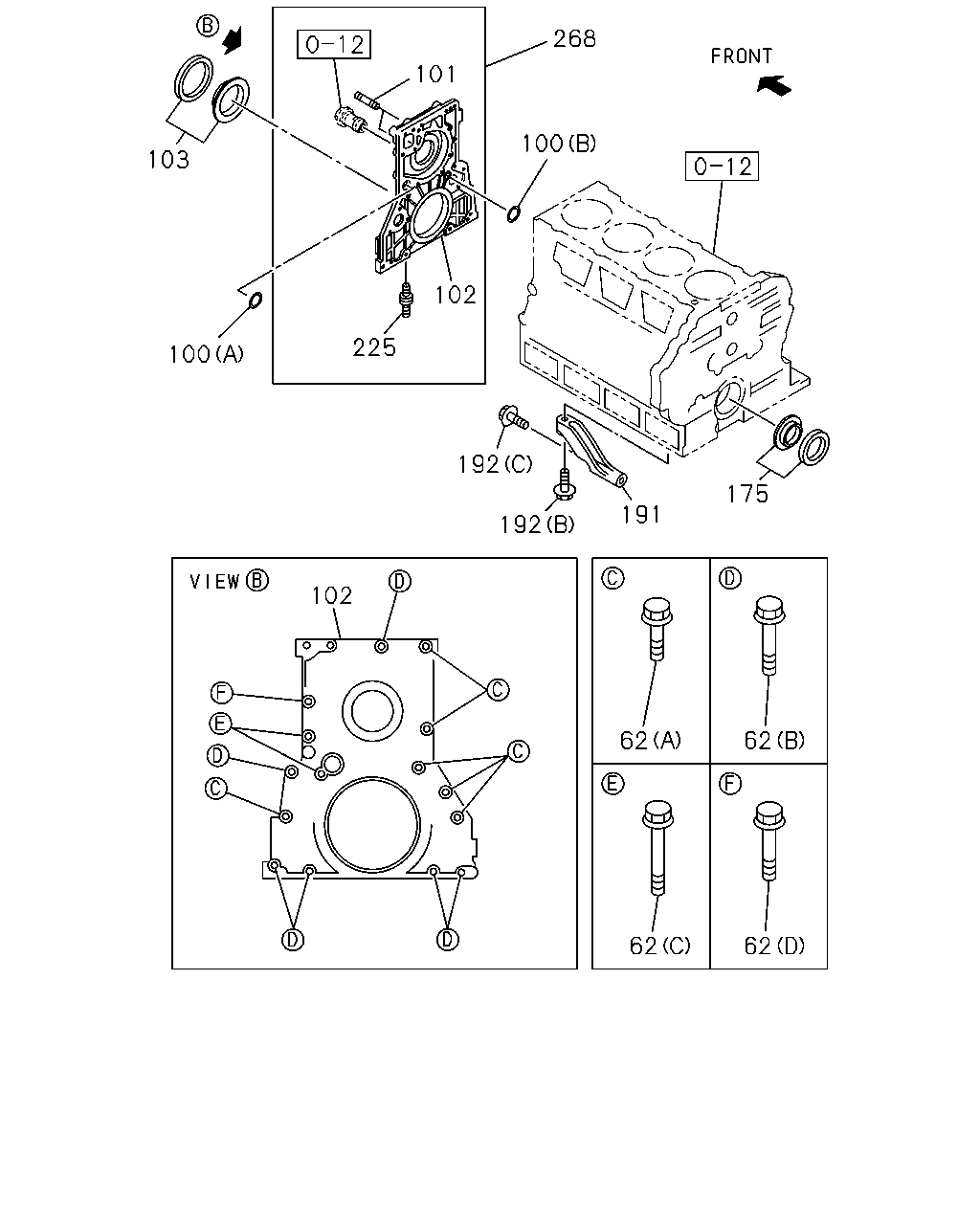

268 101 100 103 102 225 100 192 175 191 192 102 62 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1012-	●	●
62	00.206 BOLT; COVER 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
62	00.206 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	06	1	1012-	●	●
62	00.206 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	1012-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	1012-	●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	1012-	●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	1012-	●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC(7XK)	8-98081-351-1	01	1	1012-1405	●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC(7XK)	8-98081-351-1	01	1	1406-		●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC(7XK)	8-98039-932-2	01	1	1012-1405	●	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	1406-	●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC(7XK)	8-98039-932-2	01	1	1406-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1012-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1012-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1012-				●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	1012-			●	●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	1107-	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97074-108-3	01	1	1012-				●	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97084-390-2	01	1	1012-				●	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	1107-	●
192	00.206 BOLT; STAY TO HSG 00.685 (C) M12X50 FLANGE	0-28151-250-0	01	1	1107-	●
192	00.206 BOLT; STAY TO HSG 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1012-				●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1012-	●	●
268	00.206 COVER; FRT ANTI EROSION SPEC(7XK)	8-98079-080-1	01	1	1012-1405	●	●
268	00.206 COVER; FRT ANTI EROSION SPEC(7XK)	8-98079-080-1	01	1	1406-		●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC(7XK)	8-98039-931-2	01	1	1012-1405	●	●
268	00.206 COVER; FRT	8-98039-931-2	01	1	1406-	●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC(7XK)	8-98039-931-2	01	1	1406-		●

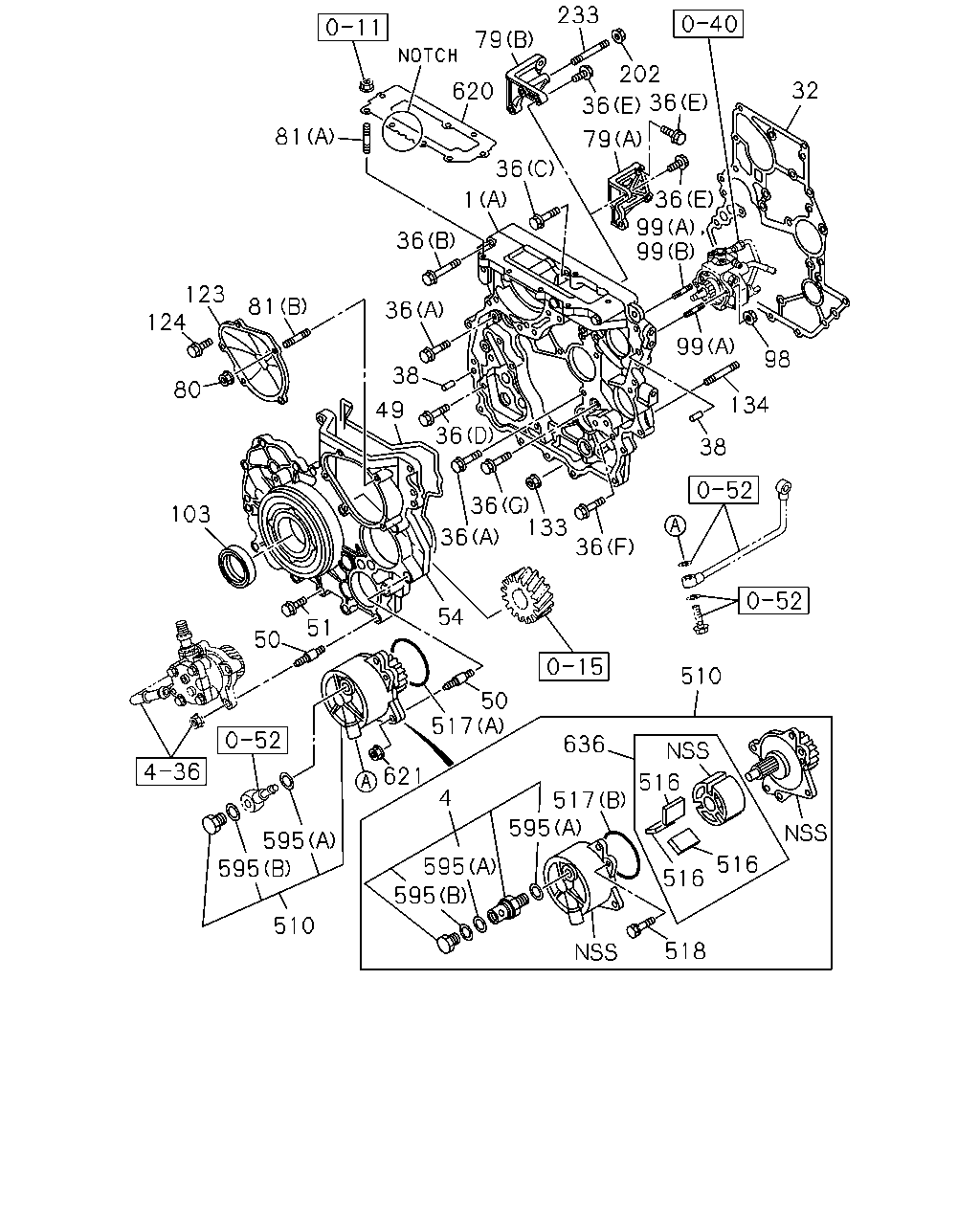

81 123 124 80 103 81 50 595 595 510 595 595 621 517 595 518 516 516 517 516 636 510 36 133 54 51 36 36 36 49 38 36 36 1 36 620 79 233 202 36 36 32 79 36 99 99 99 98 134 38 50 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.206 CASE; TIMING GEAR (B)	8-97219-001-4	01	1	1012-				●
1	00.206 CASE; TIMING GEAR (A)	8-97945-261-2	01	1	1012-1203			●
1	00.206 CASE; TIMING GEAR (A)	8-98074-747-1	01	1	1204-			●
1	00.206 CASE; TIMING GEAR (C)	8-97129-982-3	01	1	1012-					●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	1012-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	1012-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	1012-				●	●
36	00.206 BOLT; GEAR CASE 04.338 (A) M8X20 FLANGE	0-28050-820-0	13	1	1012-			●
36	00.206 BOLT; GEAR CASE 02.343 (G) M8X16 FLANGE	0-28050-816-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●
36	00.206 BOLT; GEAR CASE 04.686 (B) M8X60 FLANGE	0-28050-860-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	1012-			●
36	00.206 BOLT; GEAR CASE (H) M8X20 W/LK WASHER	0-50540-820-0	06	1	1012-				●	●
36	00.206 BOLT; GEAR CASE 03.704 (H) M8X45 W/LK WASHER	0-50540-845-0	02	1	1012-				●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-			●	●	●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	1012-			●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	1012-			●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	1012-			●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1012-1405			●
54	00.206 COVER; GEAR CASE	8-98253-700-1	01	1	1406-			●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	1012-				●	●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	1012-1203			●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1204-			●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	1012-			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	1012-			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1012-			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	1012-1203			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	02	1	1204-			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	1012-1203			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1012-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98158-110-0	01	1	1012-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	1012-				●	●
123	00.206 COVER; TIMING,LWR	8-98158-145-0	01	1	1012-			●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	1012-			●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-			●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1204-			●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-98017-063-0	01	1	1204-			●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1012-1311			●
510	04.895 PUMP ASM; VACUUM	8-98251-764-0	01	1	1312-			●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	1012-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	1012-1311			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98251-769-0	01	1	1312-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	1012-			●
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	1012-			●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1012-			●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1012-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.40 1-NOTCH	8-97328-828-2	01	1	1012-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.45 2-NOTCH	8-97331-631-2	01	1	1012-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.50 3-NOTCH	8-97331-632-2	01	1	1012-			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	1012-			●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	1012-			●

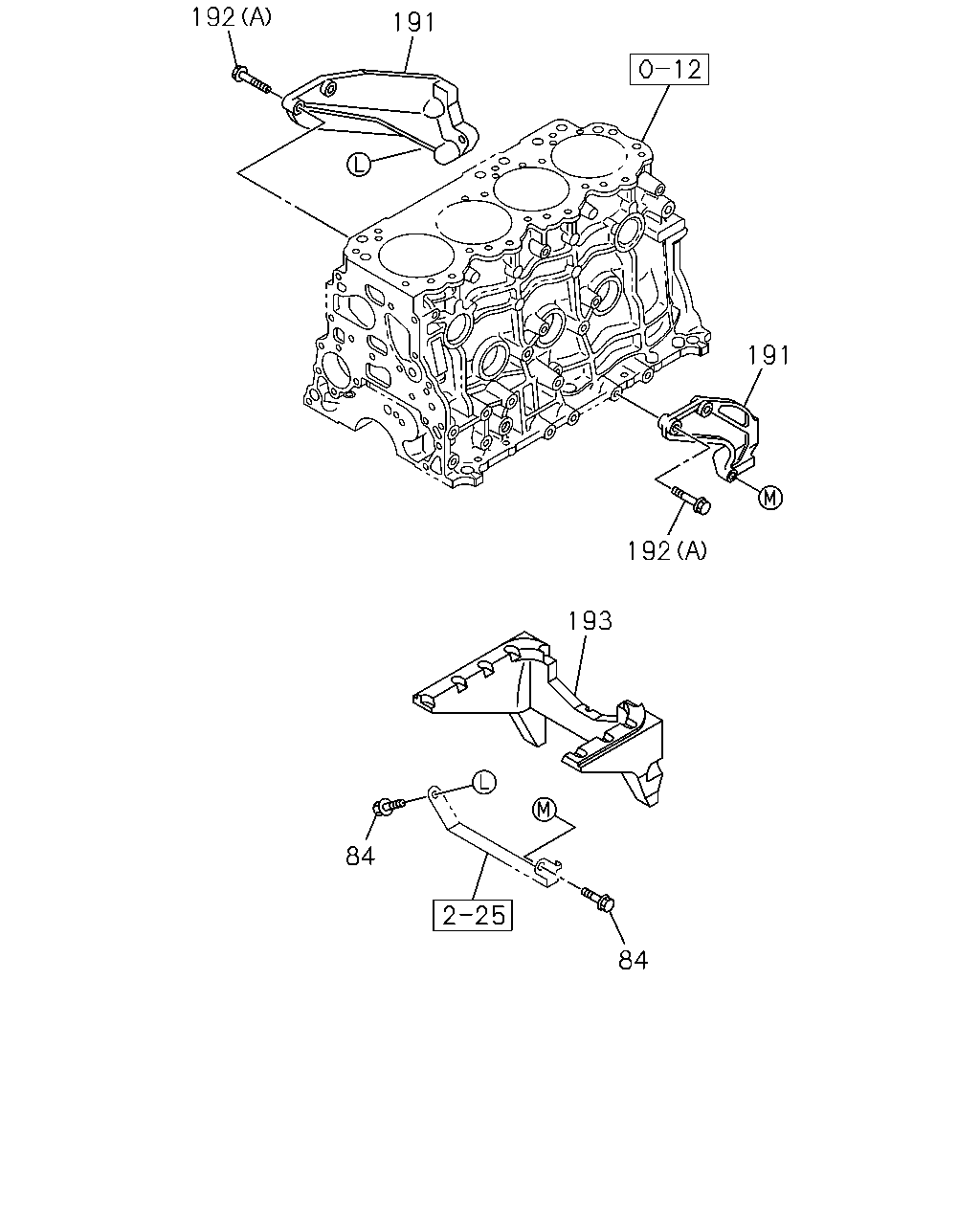

192 191 191 192 193 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E
84	00.206 BOLT; SPACER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-1204		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	1107-	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97074-108-3	01	1	1012-		●	●
191	00.669 STAY; FLYWHEEL HSG 04.083	8-97084-390-2	01	1	1012-		●	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	1107-	●
192	00.206 BOLT; STAY TO HSG 00.685 (C) M12X50 FLANGE	0-28151-250-0	01	1	1107-	●
192	00.206 BOLT; STAY TO HSG 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	1012-		●	●
193	01.428 SPACER; STAY TO OIL,PAN 00.137	8-97286-992-0	01	1	1012-1204		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
