Sayfa 0-15 - Isuzu EPC

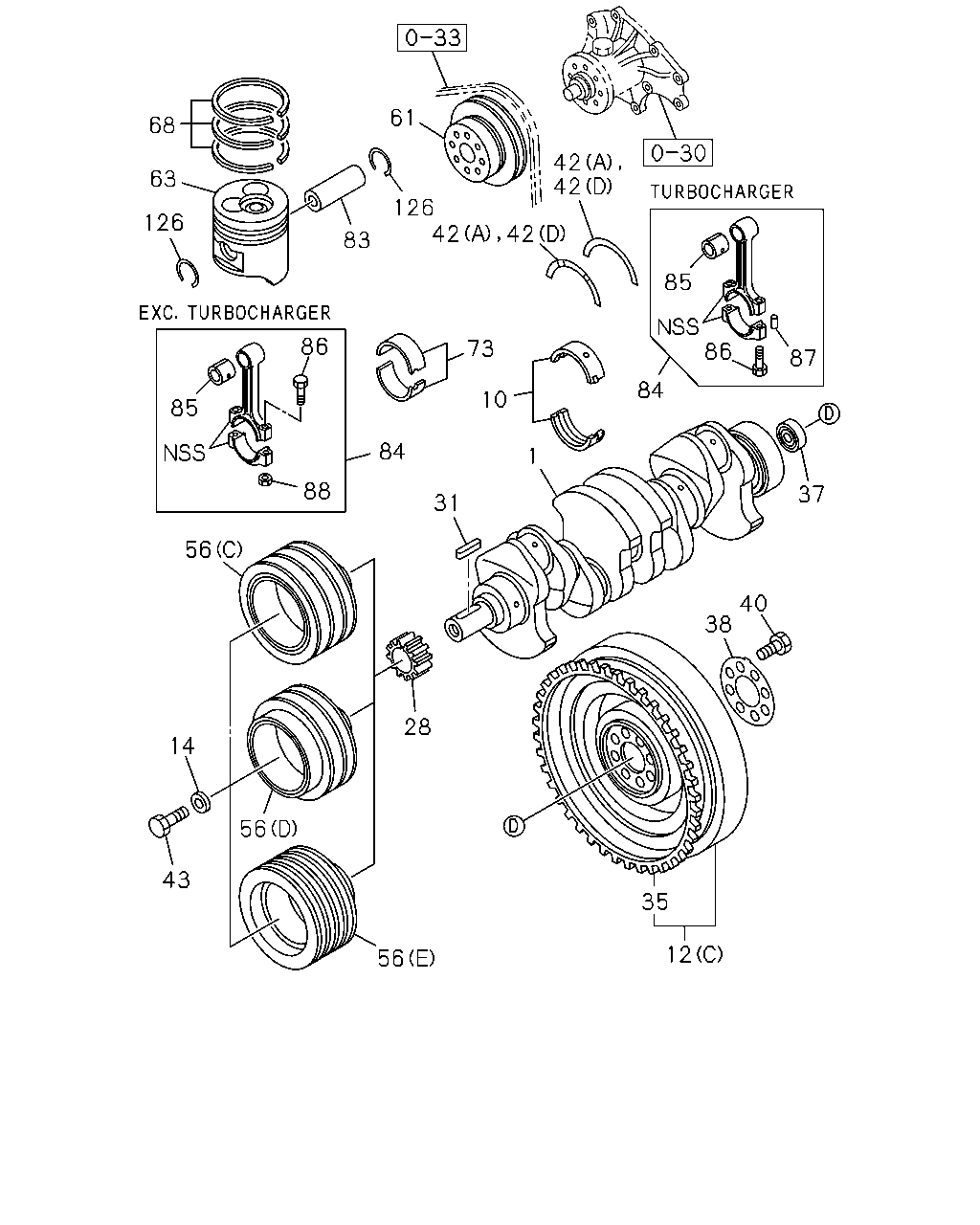

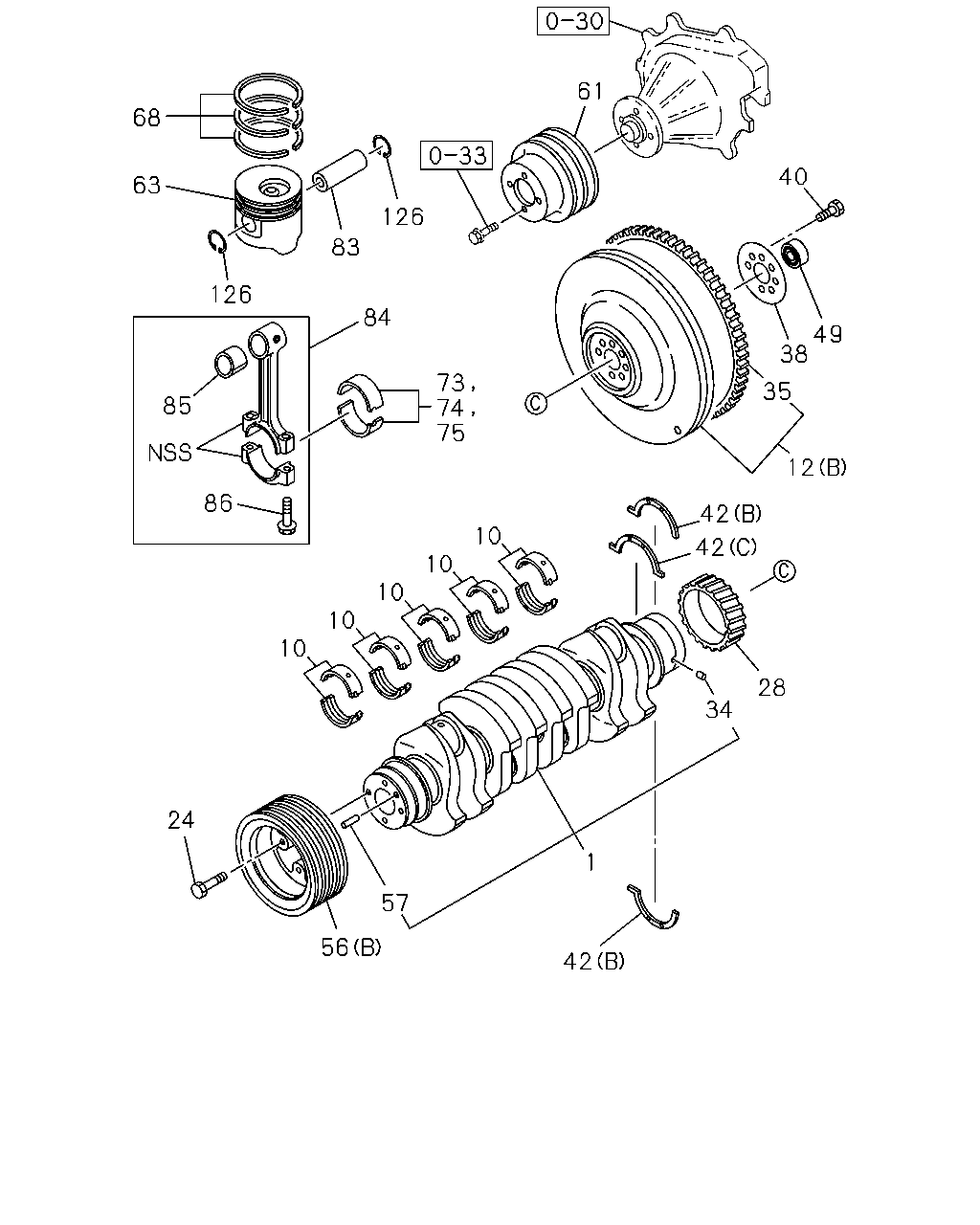

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#79372) — 281 parça

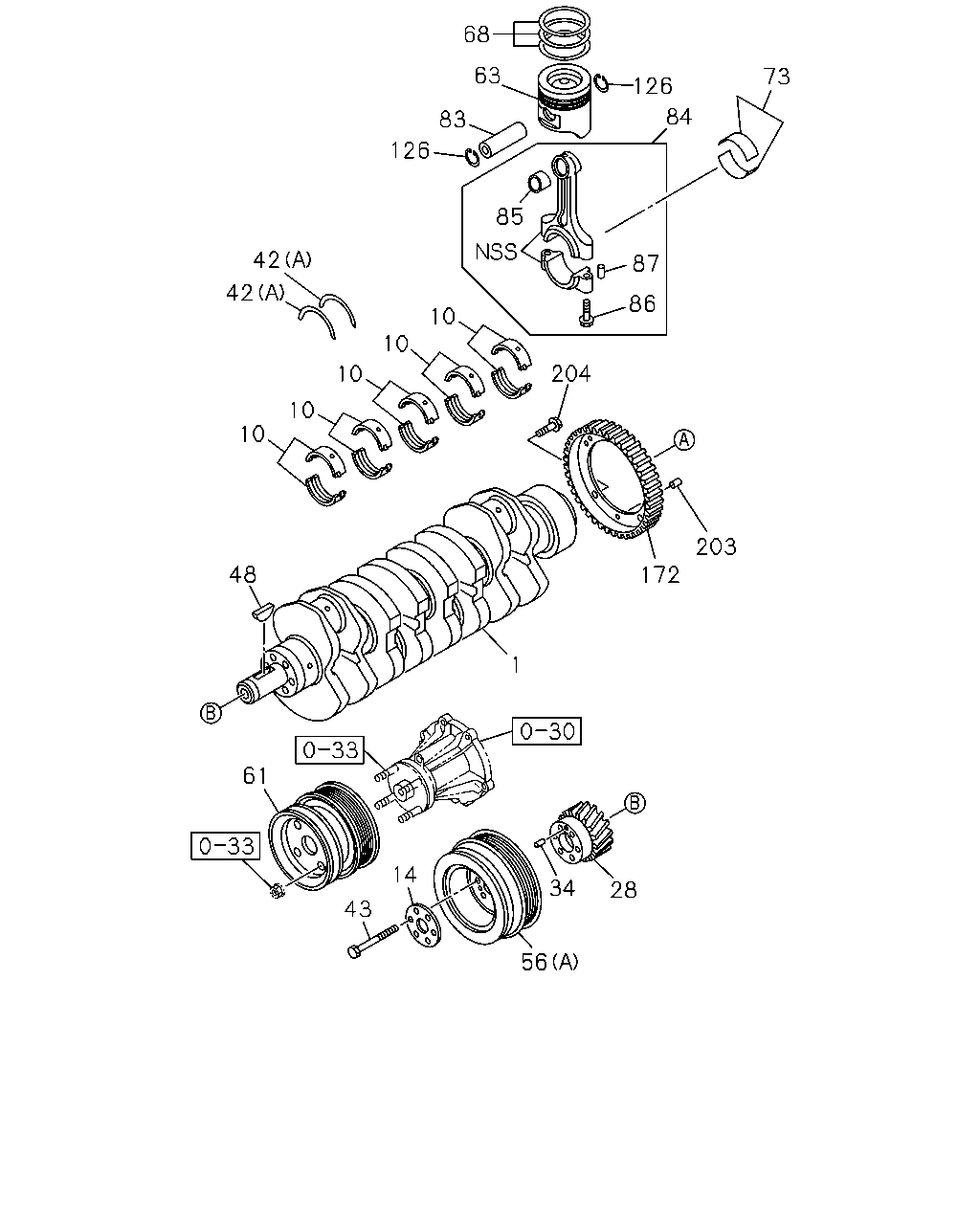

73 84 87 86 204 203 172 1 28 34 56 43 14 61 48 10 10 10 10 10 85 42 42 126 83 63 68 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-	●	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	1012-			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1409				●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
1	00.646 CRANKSHAFT	8-97190-928-3	01	1	1012-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1012-			●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1012-			●		●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1012-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1012-			●		●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1012-			●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1012-				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	1012-					●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-	●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-				●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97386-548-0	01	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1012-1108				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1109-			●	●	●
42	00.095 WASHER; THRUST,CR/SHF (D)	8-97383-740-0	02	1	1012-1108			●		●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1012-				●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1012-			●		●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97222-031-3	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97204-204-0	01	1	1012-			●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-98154-943-1	01	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER EXC. MANUAL STEERING<N51> (C) 3-GROOVE FUKOKU	8-94442-166-6	01	1	1012-					●
56	00.659 PULLEY; CR/SHF DAMPER MANUAL STEERING<N51> (D) 2-GROOVE	8-94453-552-3	01	1	1012-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	1012-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1012-			●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-			●	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1012-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1012-					●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-	●	●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	1012-			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-				●
84	00.603 ROD ASM; CONN	8-98012-607-2	04	1	1012-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1012-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1012-					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-			●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1012-					●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1012-			●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-			●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	1012-					●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1012-1101				●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-				●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1012-				●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1012-				●

68 63 126 83 126 61 42 42 42 42 85 86 87 37 84 73 84 86 85 88 56 14 43 56 56 28 35 12 38 40 1 31 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-	●	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	1012-			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1409				●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
1	00.646 CRANKSHAFT	8-97190-928-3	01	1	1012-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1012-			●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1012-			●		●

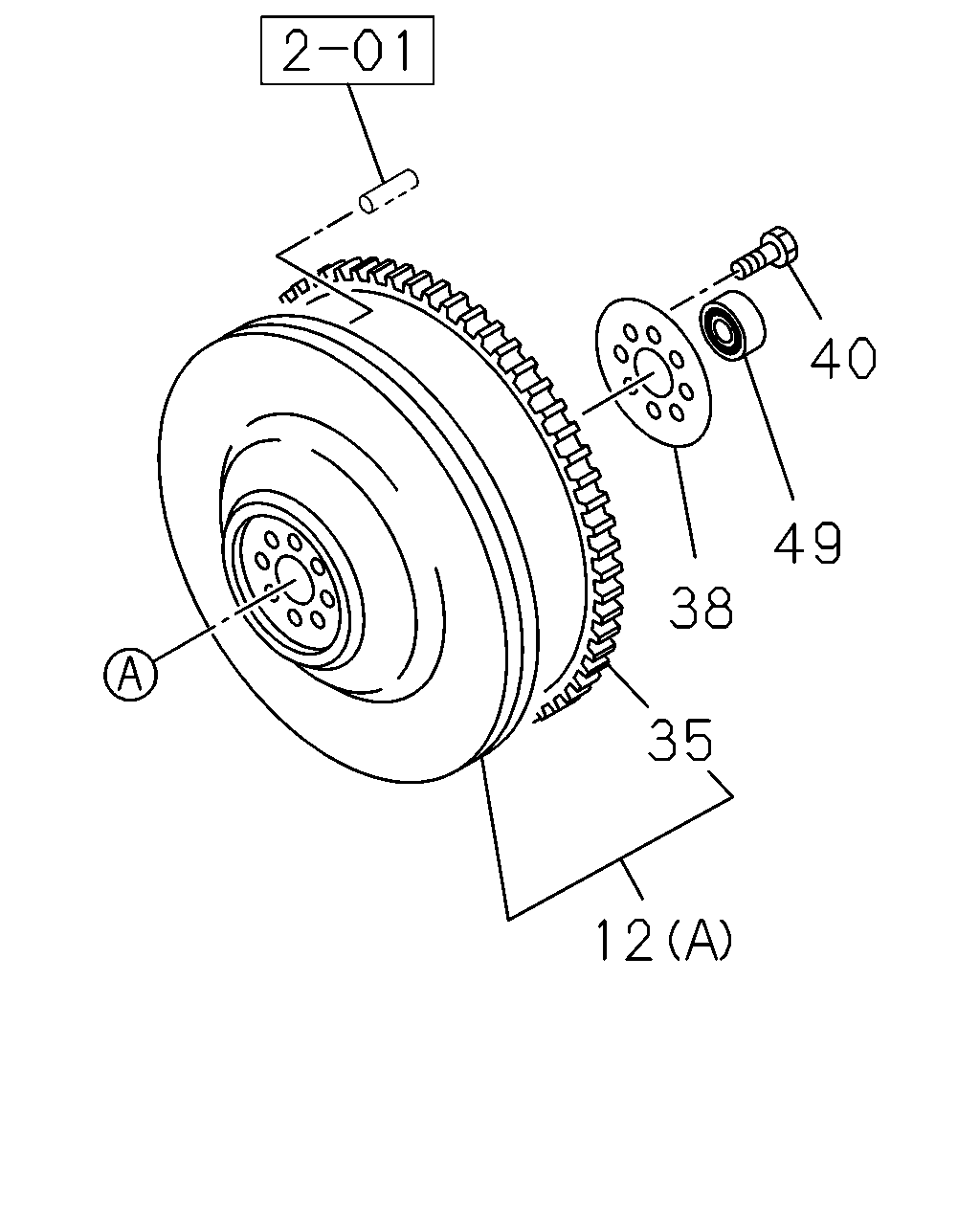

12	00.666 FLYWHEEL (B)	8-97330-892-1	01	1	1012-	●	●
12	00.666 FLYWHEEL (C)	8-97034-430-2	01	1	1012-			●
12	00.666 FLYWHEEL (A)	8-98148-063-1	01	1	1012-				●
12	00.666 FLYWHEEL (C)	8-94125-761-4	01	1	1012-					●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1012-				●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1012-			●		●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1012-			●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1012-				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	1012-					●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	1012-			●		●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1012-	●	●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1012-			●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	1012-			●		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	5-87610-165-0	01	1	1012-			●		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-	●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1012-			●	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1012-	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1012-				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1012-			●		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97386-548-0	01	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1012-1108				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1109-			●	●	●
42	00.095 WASHER; THRUST,CR/SHF (D)	8-97383-740-0	02	1	1012-1108			●		●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1012-				●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1012-			●		●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97222-031-3	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97204-204-0	01	1	1012-			●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-98154-943-1	01	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER EXC. MANUAL STEERING<N51> (C) 3-GROOVE FUKOKU	8-94442-166-6	01	1	1012-					●
56	00.659 PULLEY; CR/SHF DAMPER MANUAL STEERING<N51> (D) 2-GROOVE	8-94453-552-3	01	1	1012-					●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	1012-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1012-			●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-			●	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1012-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1012-					●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-	●	●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	1012-			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-				●
84	00.603 ROD ASM; CONN	8-98012-607-2	04	1	1012-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1012-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1012-					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-			●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1012-					●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1012-			●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	1012-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-			●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	1012-					●

61 68 40 63 126 83 126 84 49 38 73 74 75 35 85 12 86 42 10 42 10 10 10 10 28 34 24 1 57 56 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-	●	●
1	00.646 CRANKSHAFT	8-97331-853-1	01	1	1012-			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1409				●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
1	00.646 CRANKSHAFT	8-97190-928-3	01	1	1012-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-			●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	1012-			●		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	1012-			●		●
12	00.666 FLYWHEEL (B)	8-97330-892-1	01	1	1012-	●	●
12	00.666 FLYWHEEL (C)	8-97034-430-2	01	1	1012-			●
12	00.666 FLYWHEEL (A)	8-98148-063-1	01	1	1012-				●
12	00.666 FLYWHEEL (C)	8-94125-761-4	01	1	1012-					●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-97229-593-1	01	1	1012-			●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1012-				●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	1012-					●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-	●	●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-				●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1012-	●	●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1012-			●		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-	●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1012-			●	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1012-	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1012-				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1012-			●		●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-97386-548-0	01	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1012-1108				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-98040-704-0	02	1	1109-			●	●	●
42	00.095 WASHER; THRUST,CR/SHF (D)	8-97383-740-0	02	1	1012-1108			●		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1012-	●	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (B) 4-GROOVE	8-97222-031-3	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER (E) 4-GROOVE	8-97204-204-0	01	1	1012-			●
56	00.659 PULLEY; CR/SHF DAMPER (A) 2-GROOVE	8-98154-943-1	01	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER EXC. MANUAL STEERING<N51> (C) 3-GROOVE FUKOKU	8-94442-166-6	01	1	1012-					●
56	00.659 PULLEY; CR/SHF DAMPER MANUAL STEERING<N51> (D) 2-GROOVE	8-94453-552-3	01	1	1012-					●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	04	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	1012-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-606-0	04	1	1012-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-607-0	04	1	1012-					●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	1012-			●		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-			●	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	1012-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	1012-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1012-					●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-	●	●
84	00.603 ROD ASM; CONN	8-98013-962-4	04	1	1012-			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-				●
84	00.603 ROD ASM; CONN	8-98012-607-2	04	1	1012-					●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97289-264-1	04	1	1012-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1012-					●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-			●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	1012-					●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-			●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	1012-					●

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	00.666 FLYWHEEL (B)	8-97330-892-1	01	1	1012-	●	●
12	00.666 FLYWHEEL (C)	8-97034-430-2	01	1	1012-			●
12	00.666 FLYWHEEL (A)	8-98148-063-1	01	1	1012-				●
12	00.666 FLYWHEEL (C)	8-94125-761-4	01	1	1012-					●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1012-	●	●		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	1012-			●		●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-	●	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1012-			●	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1012-	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1012-				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1012-			●		●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1012-	●	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
