0-13 — OIL PAN AND LEVEL GAUGE (#79370) — 128 parça

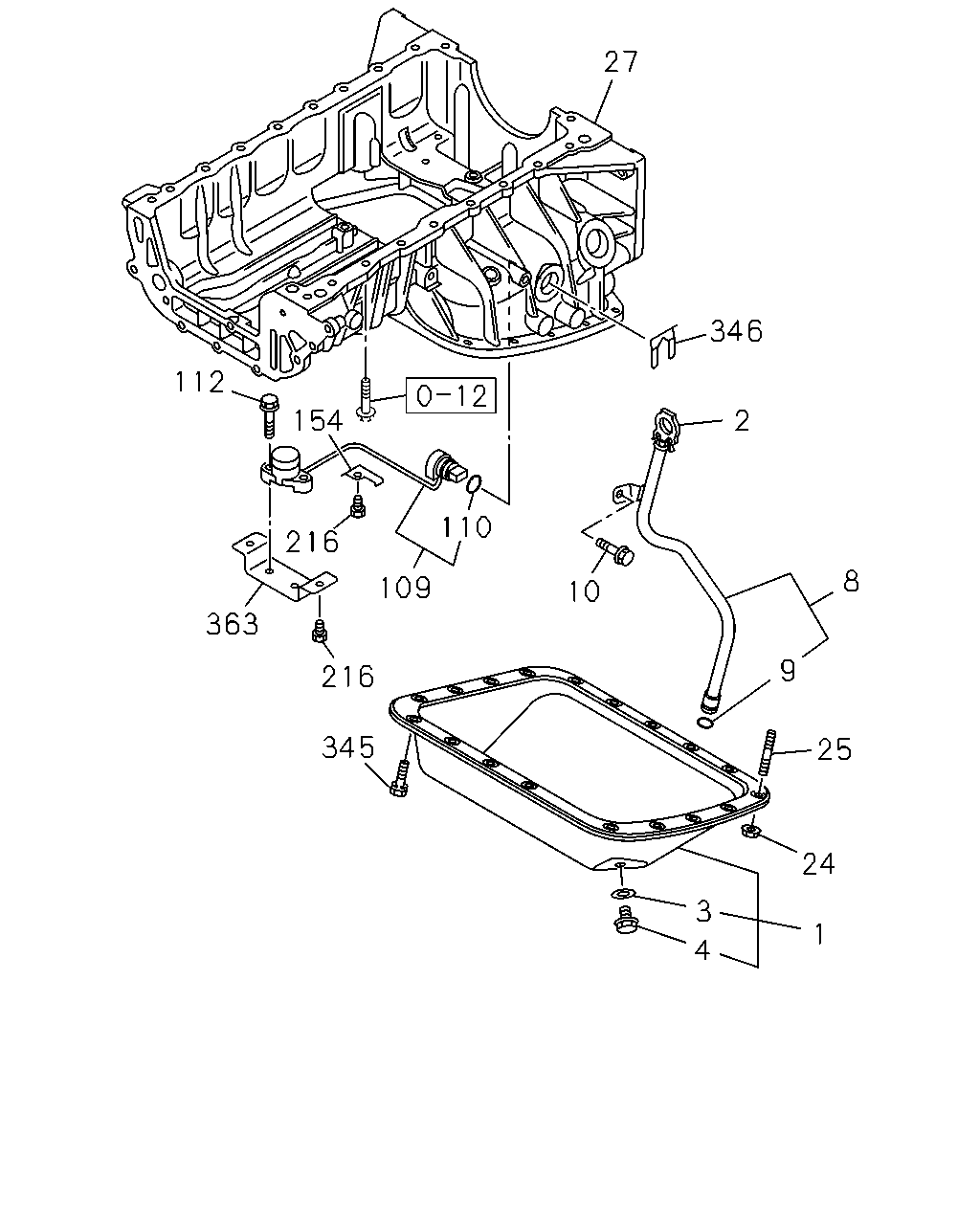

27 346 112 154 2 110 216 8 109 10 363 9 216 345 25 24 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-				●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-					●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
27	01.426 CRANKCASE	8-97381-483-6	01	1	1012-1106			●
27	01.426 CRANKCASE	8-97381-483-7	02	1	1107-1111			●
27	01.426 CRANKCASE	8-98191-052-0	01	1	1112-			●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1012-1111			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1012-1111			●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1012-1111			●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1012-1111			●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-1111			●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	1012-			●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1012-1111			●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1012-1111			●

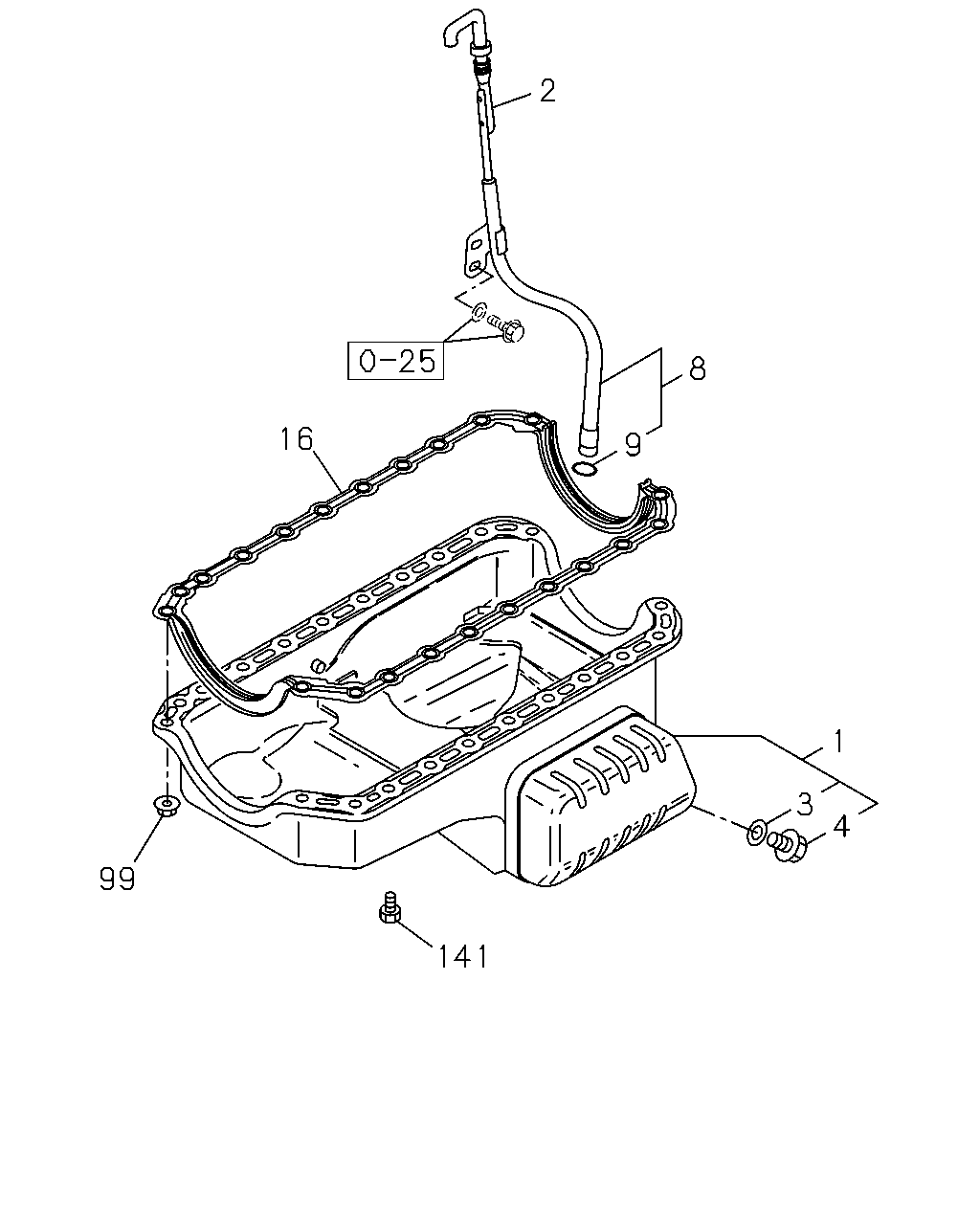

2 8 16 9 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-				●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-					●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	1012-				●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	1012-				●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	1012-				●	●

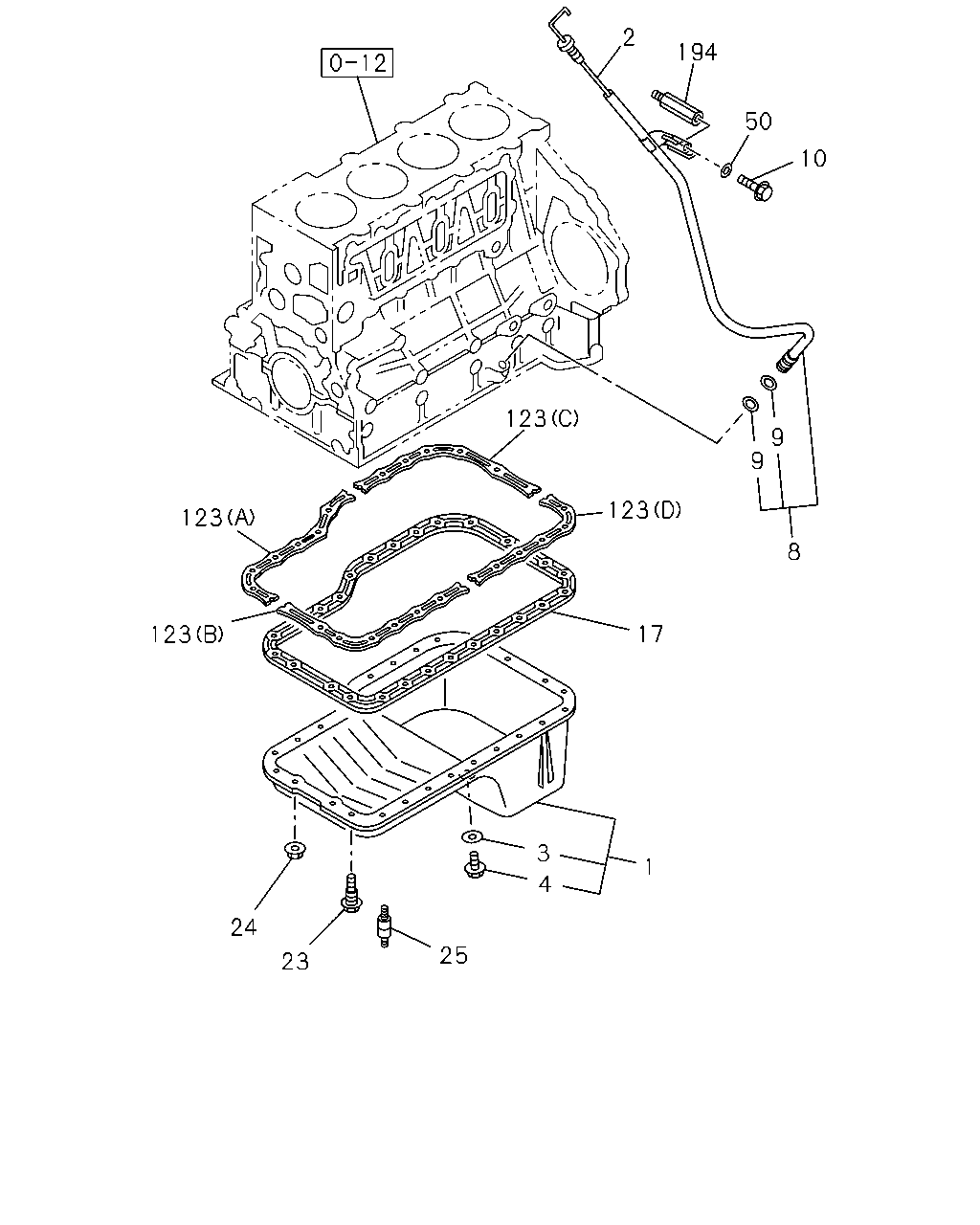

2 50 194 10 9 9 8 123 123 17 1 3 4 25 23 24 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-				●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-					●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1012-	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	1012-		●

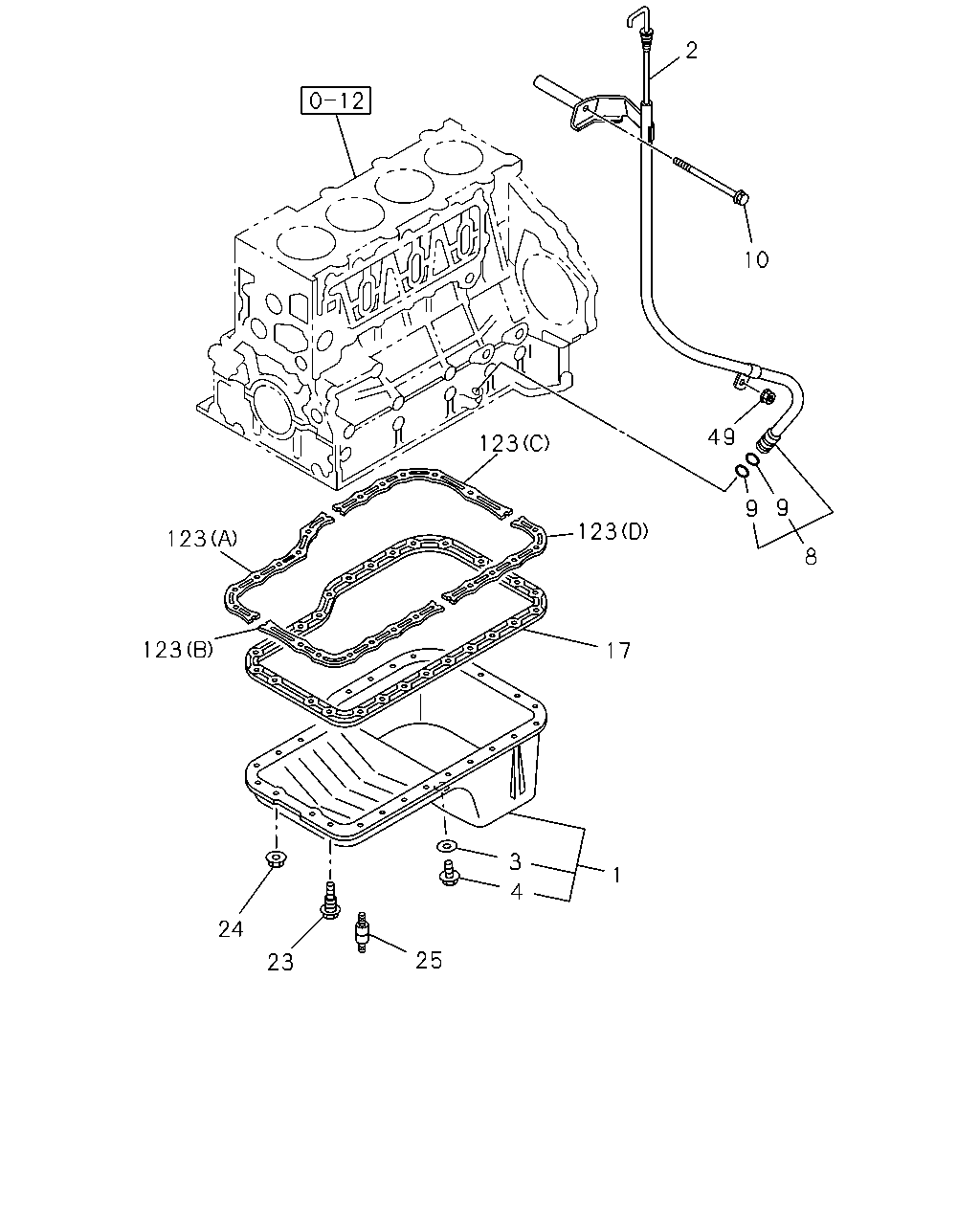

2 10 49 9 9 8 123 123 17 1 3 4 25 23 24 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1203-	●	●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-				●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-				●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-				●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-	●	●		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-					●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1012-	●	●
