◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#79368) — 246 parça

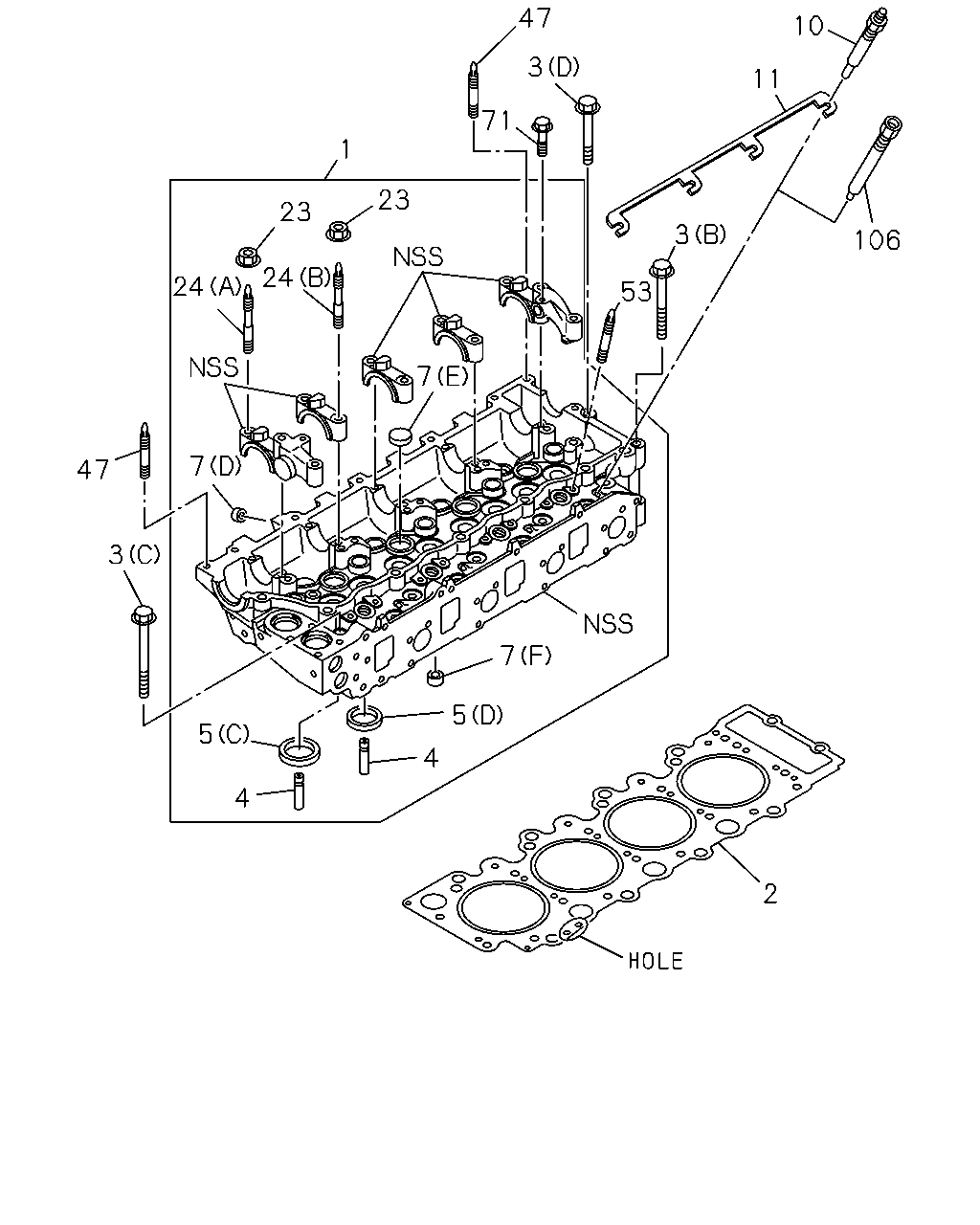

çizim 25777
47 10 3 11 71 1 23 23 3 106 24 24 53 7 7 47 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1012-1101 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 1012- ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1012-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL 8-97120-178-4 01 1 1012- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.60 1-NOTCH 		8-97350-318-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.65 2-NOTCH 		8-97350-319-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 3-NOTCH 		8-97350-320-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 		8-97144-583-2 18 1 1012-1108 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1109- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X122 		8-97133-416-1 18 1 1012- ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 1012- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1012- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=41.2 		8-97231-228-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=36.7 		8-97231-229-0 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12 		8-97036-335-1 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=45 		1-09600-005-2 01 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=12.3 		5-09600-013-0 05 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(J) OD=16 		5-11129-006-0 03 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1012- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1012- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1012- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 1012- ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1012- ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1012- ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 1102- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 1012-1101 ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 1102- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 1012- ● ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 1012- ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 1012- ● ●
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 02.270 		1-11119-018-0 04 1 1012- ● ●

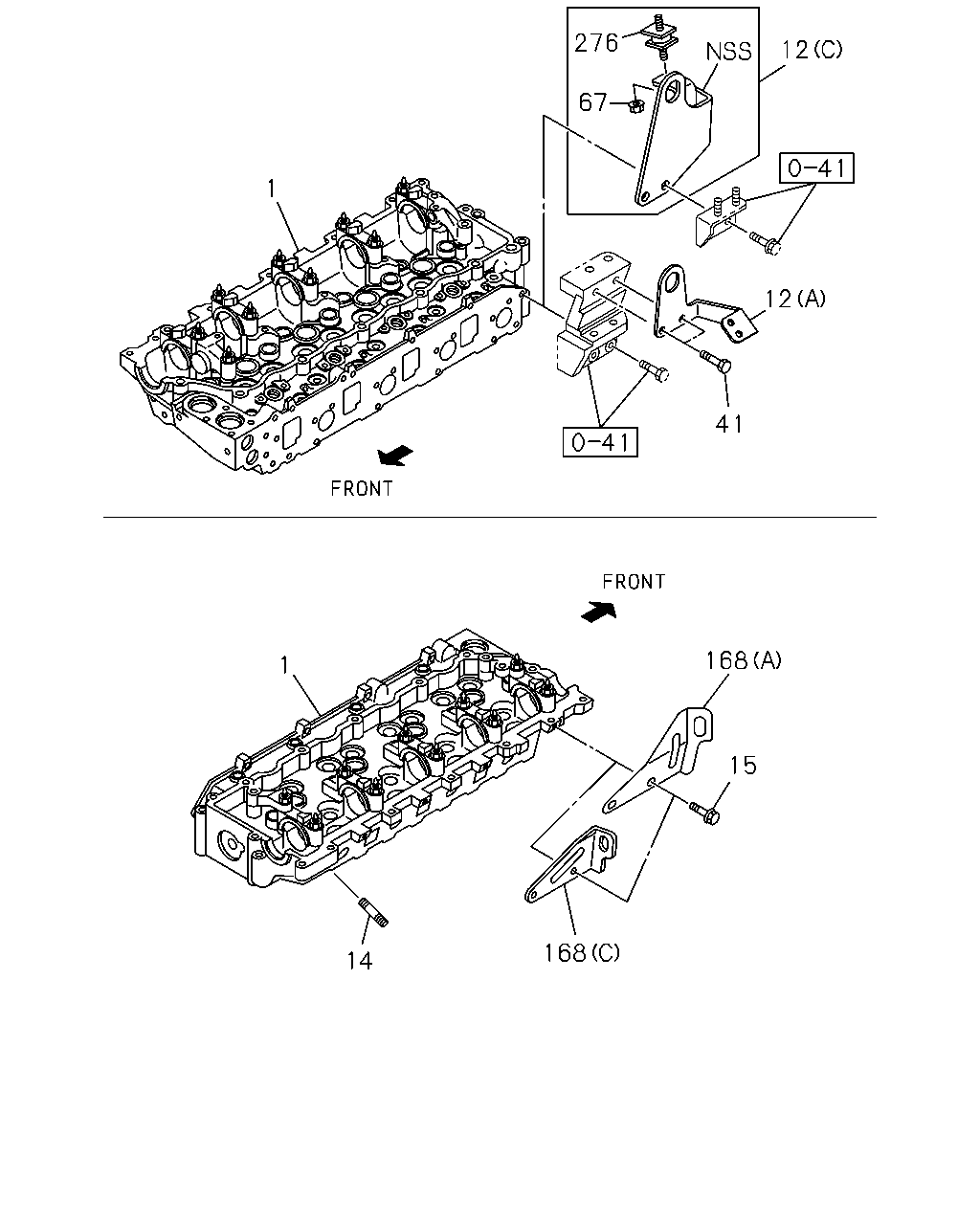

çizim 28149
1 276 67 12 41 12 15 168 1 14 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1012-1101 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 1012- ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1012-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL 8-97120-178-4 01 1 1012- ●
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 1012-1405 ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-98219-797-0 01 1 1406- ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 1012- ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1012- ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ● ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012-1405 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
67 00.349 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1406- ● ●
168 00.004 HANGER; ENG,FRT
(C) 		8-97200-618-1 01 1 1102- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 1012-1101 ● ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 1102- ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 1012- ● ●
276 00.293 RUBBER; MTG
03.463 		8-98219-799-0 01 1 1406- ● ●

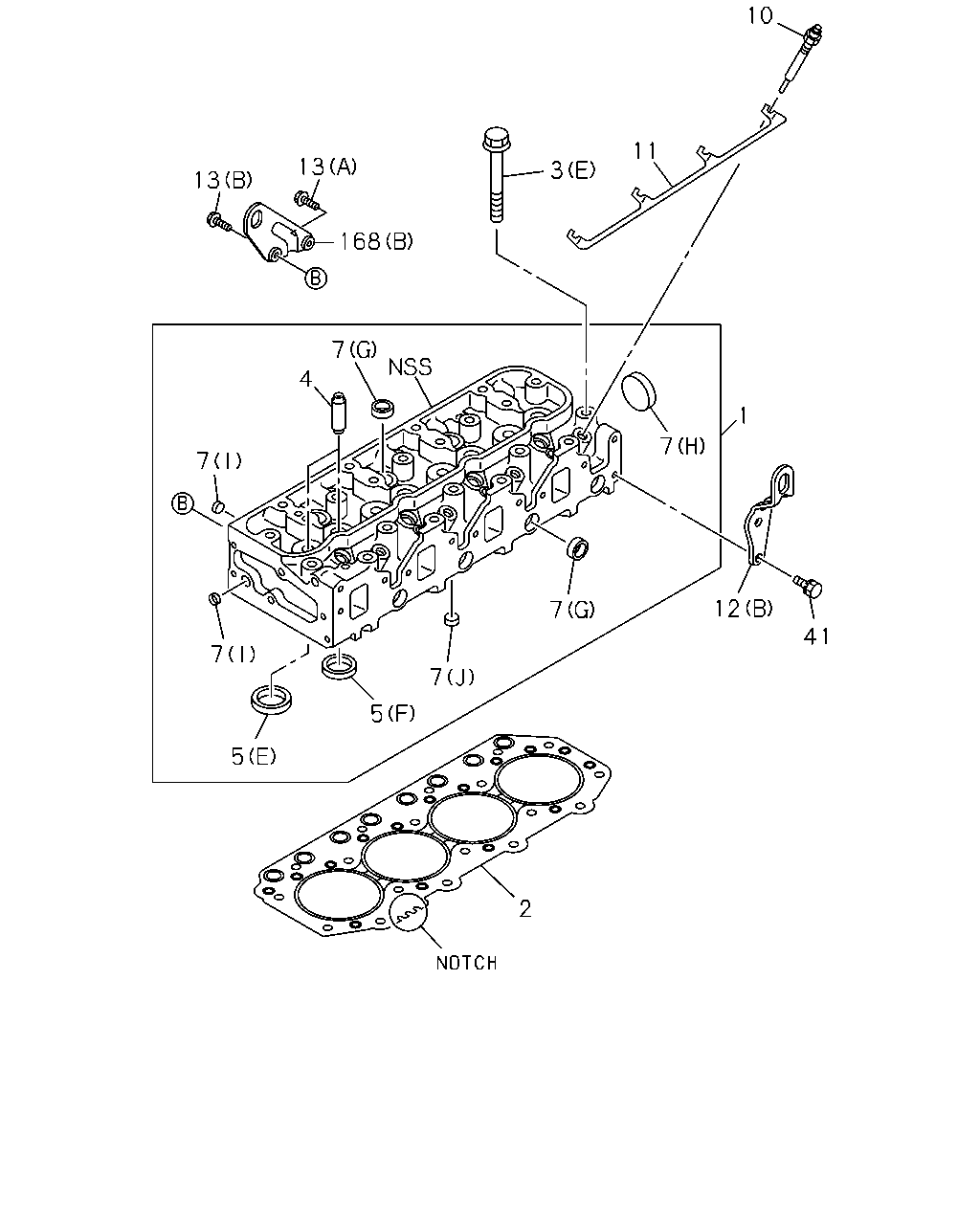

çizim 28414
11 10 3 168 13 13 7 4 7 7 5 5 7 7 12 7 1 41 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1012-1101 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 1012- ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1012-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL 8-97120-178-4 01 1 1012- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.60 1-NOTCH 		8-97350-318-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.65 2-NOTCH 		8-97350-319-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 3-NOTCH 		8-97350-320-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 		8-97144-583-2 18 1 1012-1108 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1109- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X122 		8-97133-416-1 18 1 1012- ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 1012- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1012- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=41.2 		8-97231-228-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=36.7 		8-97231-229-0 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12 		8-97036-335-1 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=45 		1-09600-005-2 01 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=12.3 		5-09600-013-0 05 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(J) OD=16 		5-11129-006-0 03 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1012- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1012- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1012- ●
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 1012-1405 ● ●
12 00.004 HANGER; ENG,RR
(C) 		8-98219-797-0 01 1 1406- ● ●
12 00.004 HANGER; ENG,RR
(B) 		8-97107-739-0 01 1 1012- ● ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 1012- ● ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 1012- ● ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012-1405 ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
168 00.004 HANGER; ENG,FRT
(C) 		8-97200-618-1 01 1 1102- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 1012-1101 ● ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 1102- ●
168 00.004 HANGER; ENG,FRT
(B) 		8-94379-714-1 01 1 1012- ● ●

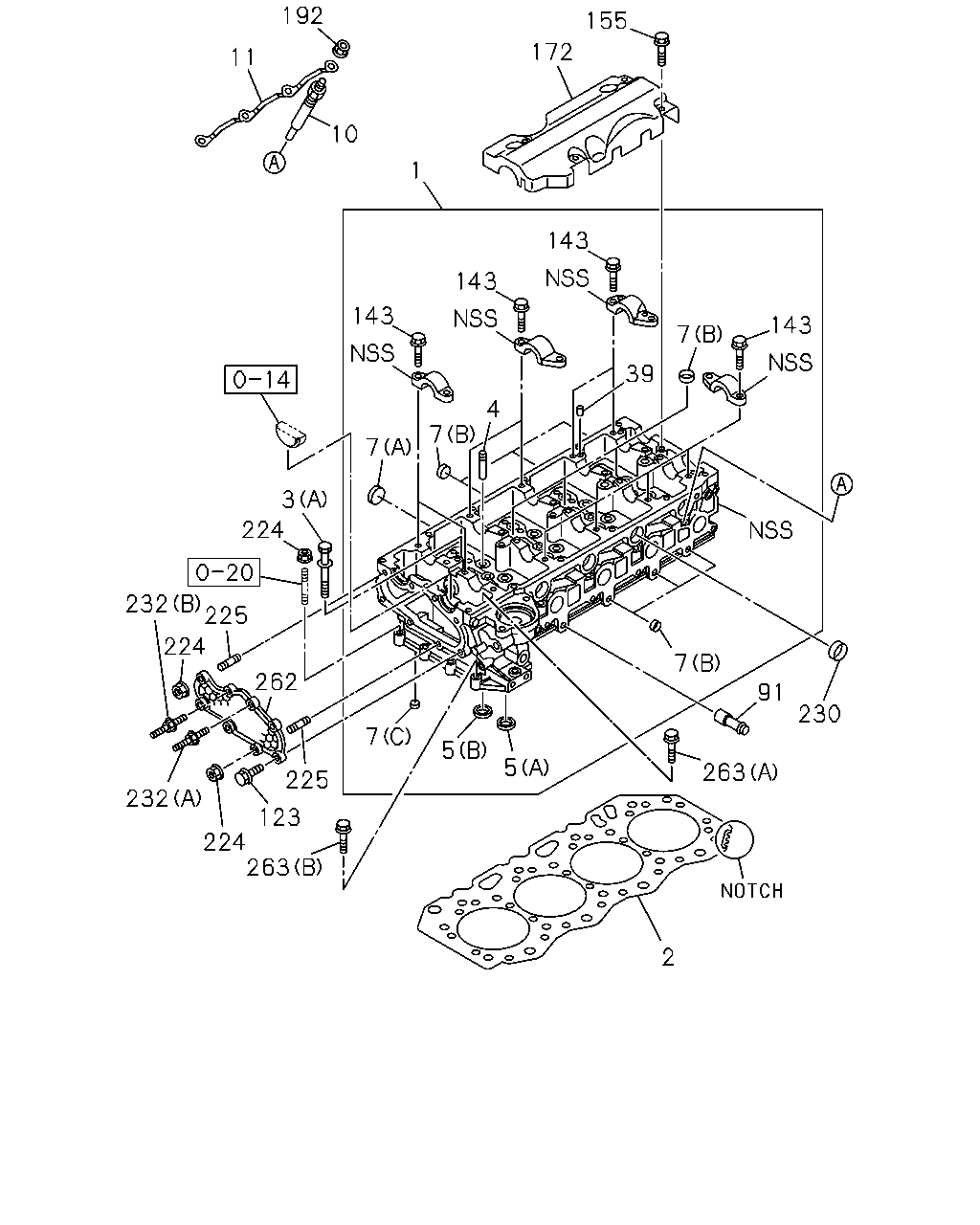

çizim 191097
192 155 172 11 10 1 143 143 143 143 7 39 4 7 7 3 224 232 225 224 7 262 91 7 230 5 225 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1012-1101 ● ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 1102- ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 1012- ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 1012-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101-1301 ●
1 00.269 HEAD ASM; CYL 8-98223-019-2 01 1 1302- ●
1 00.269 HEAD ASM; CYL 8-97120-178-4 01 1 1012- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98135-953-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-97328-866-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.05 1-NOTCH 		8-98241-037-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.14 1-NOTCH 		8-98291-683-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98135-954-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-97328-867-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.10 2-NOTCH 		8-98241-038-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.19 2-NOTCH 		8-98291-684-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98135-955-0 01 1 1012-1108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-97328-868-2 01 1 1109-1304 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.15 3-NOTCH 		8-98241-039-0 01 1 1305-1411 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.24 3-NOTCH 		8-98291-685-0 01 1 1412- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.60 1-NOTCH 		8-97350-318-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.65 2-NOTCH 		8-97350-319-0 01 1 1012- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 3-NOTCH 		8-97350-320-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M10X73 		8-94399-554-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 		8-97144-583-2 18 1 1012-1108 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER 		8-98201-019-0 18 1 1109- ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X122 		8-97133-416-1 18 1 1012- ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 1012- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1012- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=52 		8-94394-127-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=43 		8-94396-172-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1012- ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=41.2 		8-97231-228-0 04 1 1012- ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=36.7 		8-97231-229-0 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (F) OD=25 		1-09600-016-0 02 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=12 		8-97036-335-1 04 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=32 		8-97096-821-0 12 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 02 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 13 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=14 		5-11219-011-0 07 1 1012- ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=45 		1-09600-005-2 01 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=12.3 		5-09600-013-0 05 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(J) OD=16 		5-11129-006-0 03 1 1012- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> BOSCH 		1-82513-044-3 04 1 1012- ● ●
10 02.270 PLUG; GLOW
FAST GLOW SYSTEM<KM6> NGK 		8-97033-761-2 04 1 1012- ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 1012- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
FAST GLOW SYSTEM<KM6> 		8-97136-565-0 01 1 1012- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 1012- ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 1012- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1012- ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 1012- ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 1012- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 1012- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1012- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 1012- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1012- ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 1012- ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 1012- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.306 OD=30 		1-09639-034-0 04 1 1012- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1012- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1012- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 1012- ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 1012- ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
