0-10 — CYLINDER HEAD COVER (#79367) — 89 parça

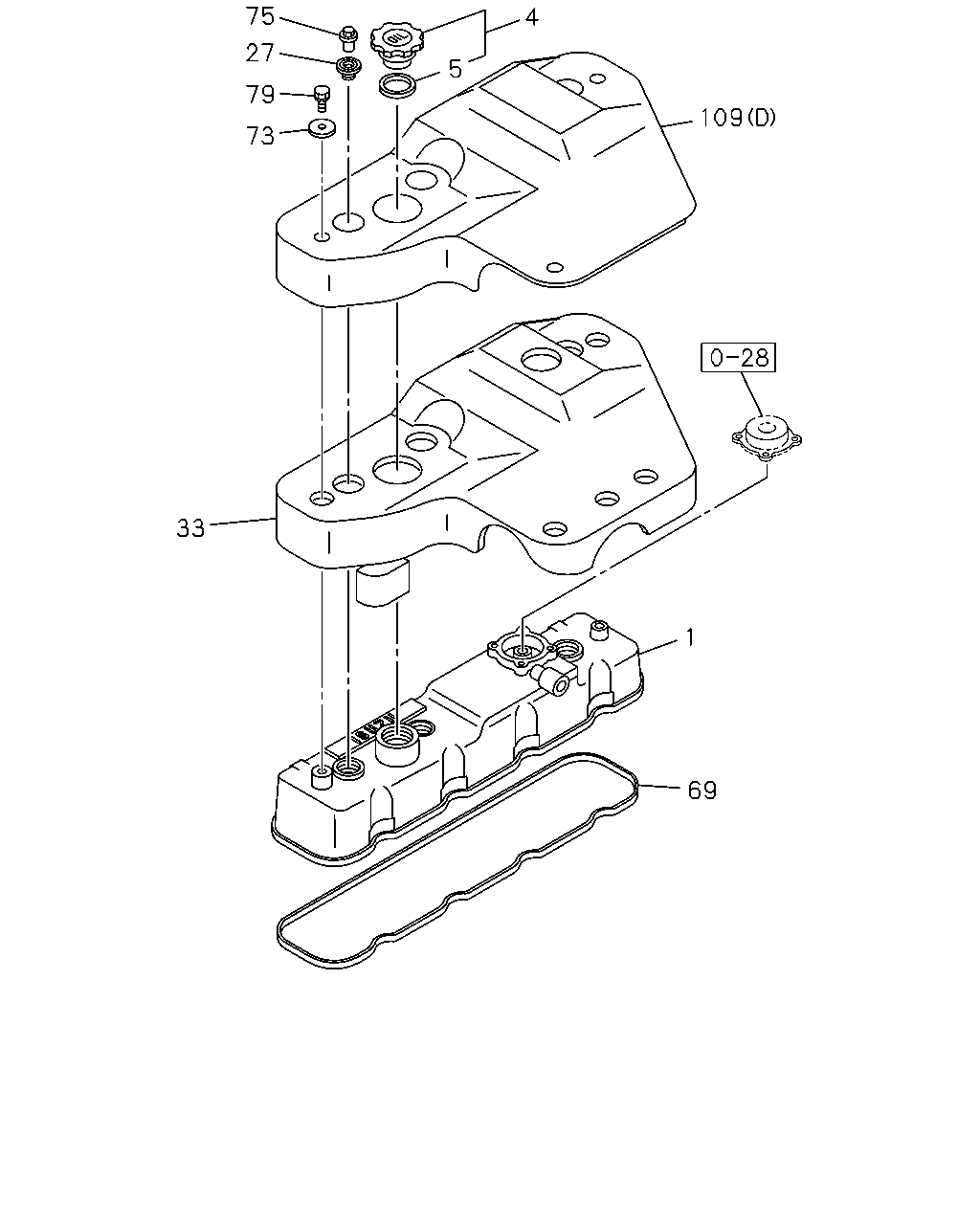

33 69 1 109 4 5 75 79 27 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	1012-				●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=19.5	8-97263-801-1	03	1	1012-				●	●
33	00.386 RUBBER; SPACE,CYL HD COVER NOISE PACK FOR REGULATION VAR.2<7TF>	8-97204-206-1	01	1	1302-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1012-				●	●
73	00.413 WASHER; PL,HD COVER NOISE PACK FOR REGULATION VAR.2<7TF> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	1302-				●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	1012-				●	●
79	00.293 BOLT; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1302-				●
79	00.293 BOLT; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1302-				●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1012-			●
109	00.386 COVER; ENG NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97204-205-4	01	1	1302-				●
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	1012-				●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	1012-				●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	1012-				●

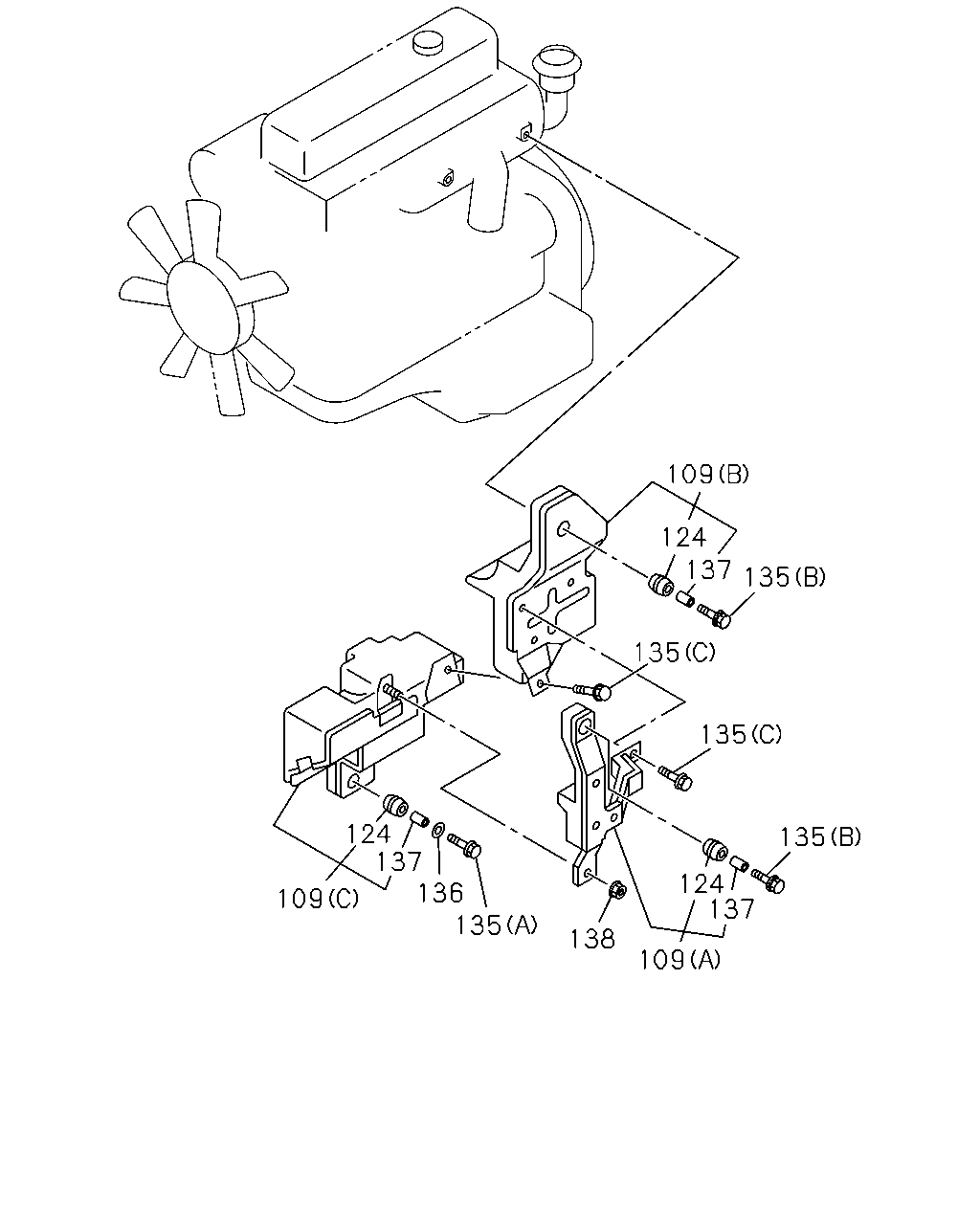

109 124 137 35 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1102-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-1101	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1102-	●
109	00.386 COVER; ENG NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97204-205-4	01	1	1302-				●
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	1012-				●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	1012-				●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	1012-				●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	1012-				●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●
135	00.413 BOLT; COVER,ENG 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	1012-				●
135	00.413 BOLT; COVER,ENG 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	1012-				●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	1012-				●
136	00.413 WASHER; PL,ENG COVER 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-				●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	1012-				●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1012-			●
138	00.413 NUT; COVER,ENG 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-				●

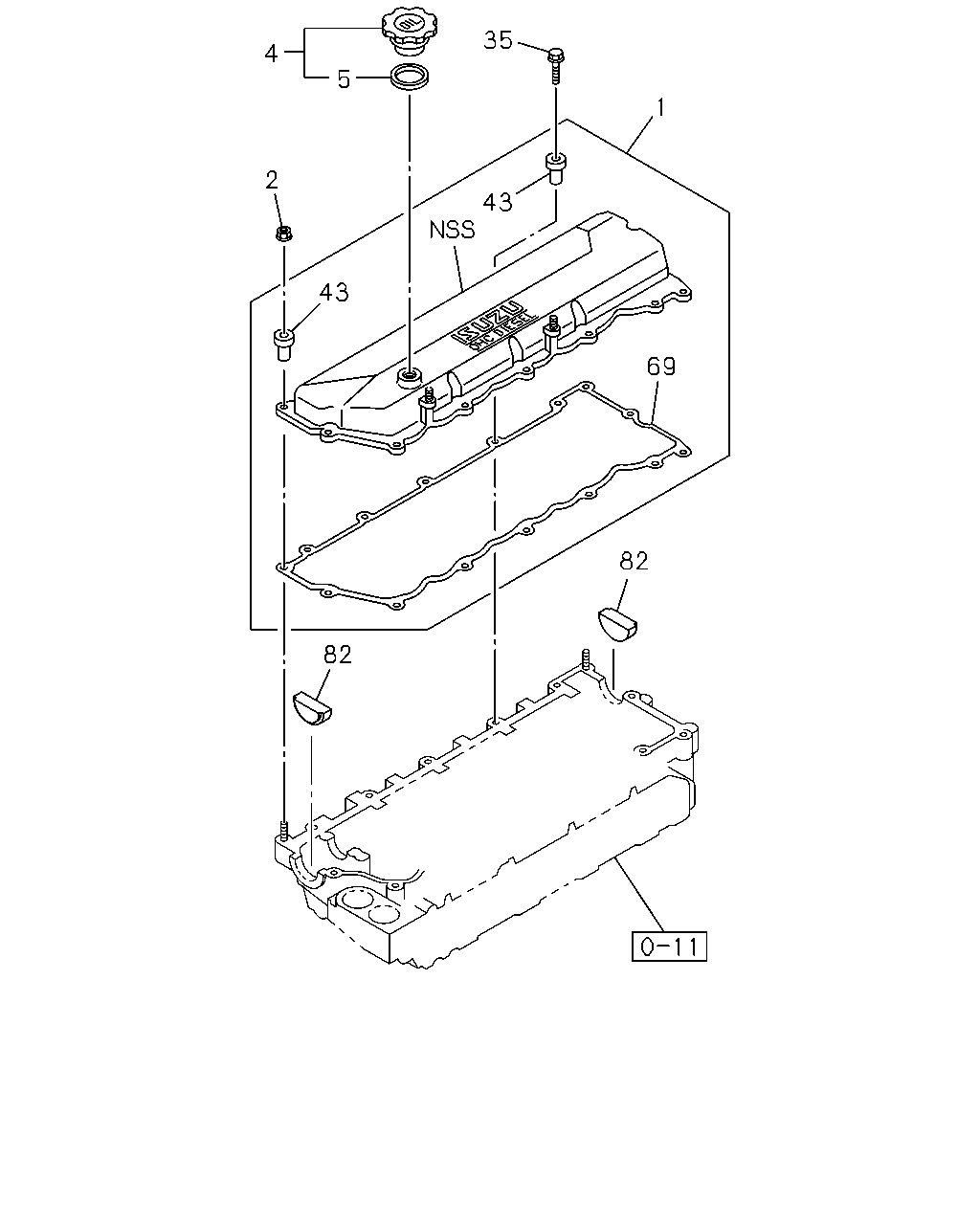

35 4 5 1 2 43 43 69 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	1012-				●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1102-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-1101	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1102-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1012-				●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●

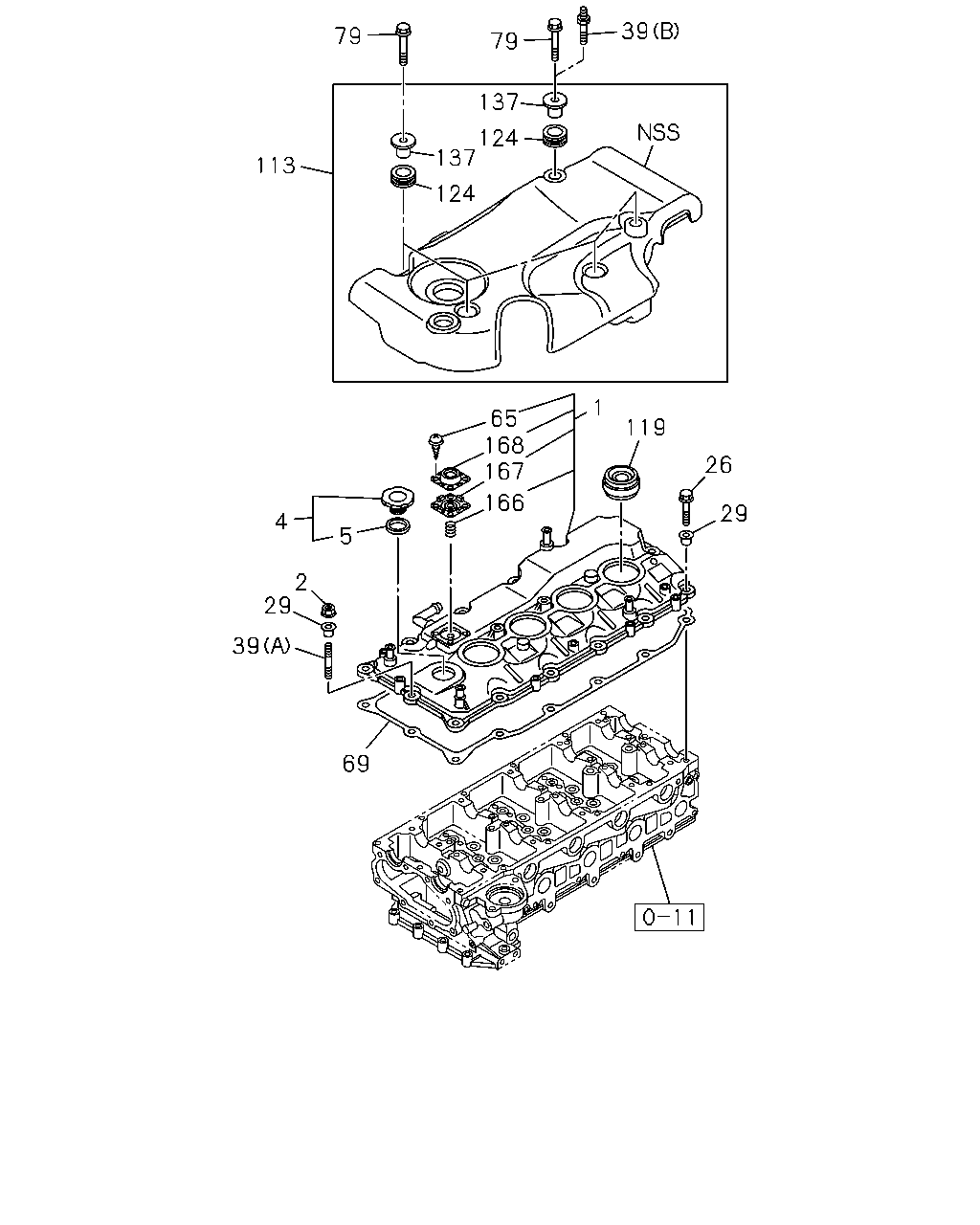

39 79 79 137 124 137 113 124 1 65 168 167 119 26 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1305			●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-			●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	1012-				●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-			●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1012-			●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1012-1408			●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-			●
39	00.413 STUD; COVER,HD 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-			●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1012-			●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-690-2	01	1	1012-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97945-338-0	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97349-416-1	01	1	1012-				●	●
79	00.293 BOLT; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1302-				●
79	00.293 BOLT; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1302-				●
79	00.293 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1012-			●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104			●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-			●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1012-			●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	1012-				●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-			●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	1012-				●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1012-			●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1012-			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1012-1305			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505			●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-			●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1012-			●
