◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#79366) — 348 parça

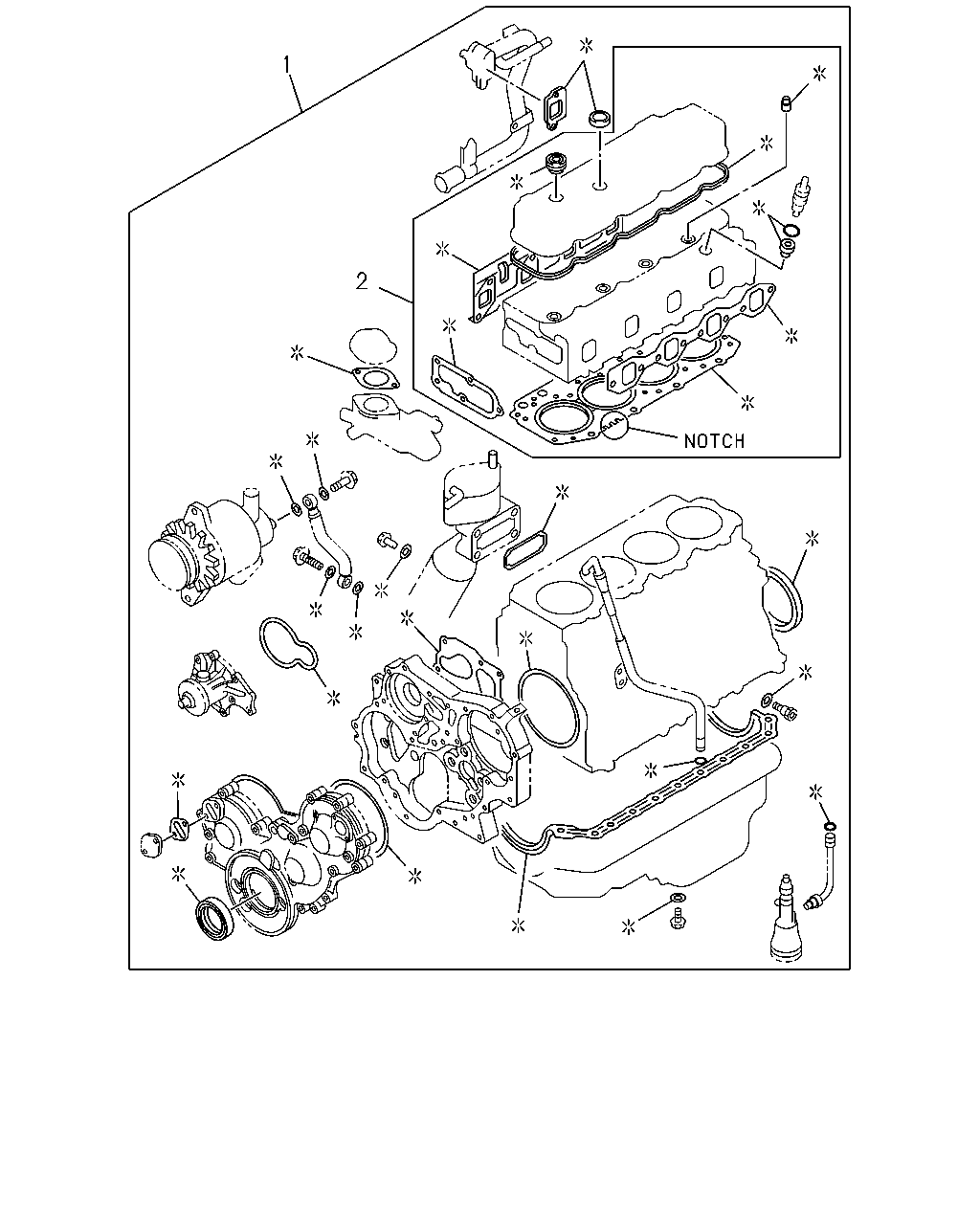

çizim 15140
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 1012- ●

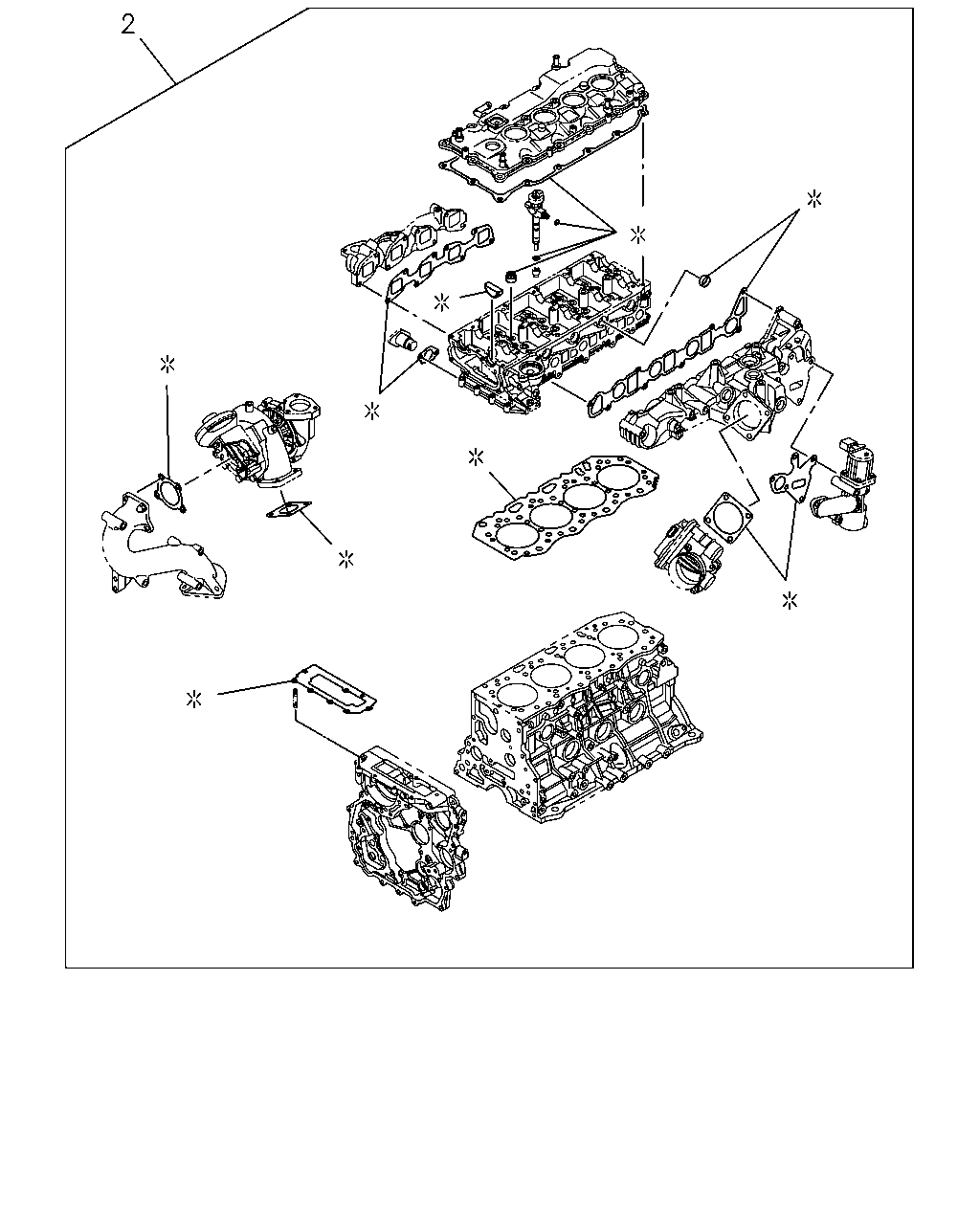

çizim 15483
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 1012- ●

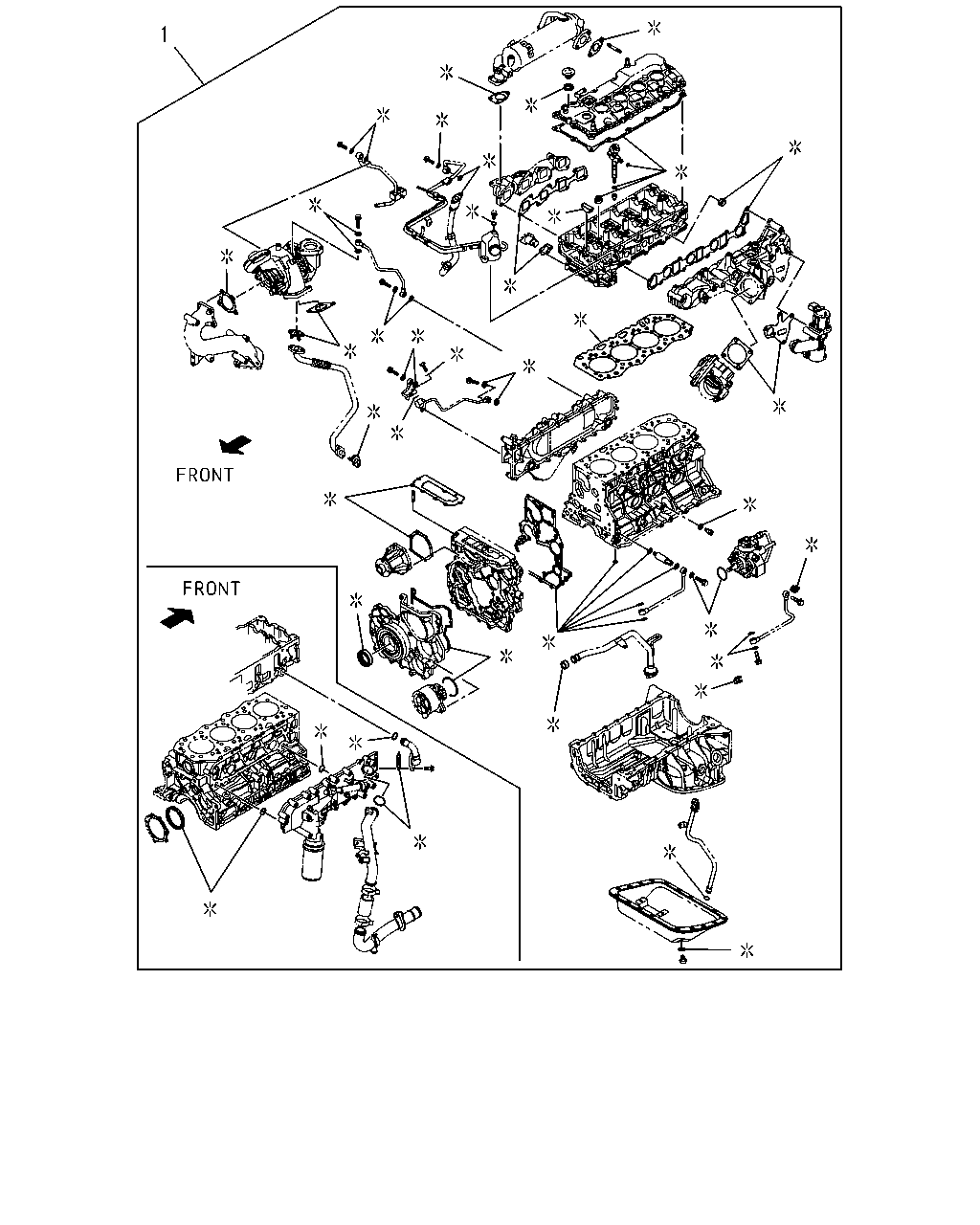

çizim 15562
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 1012- ●

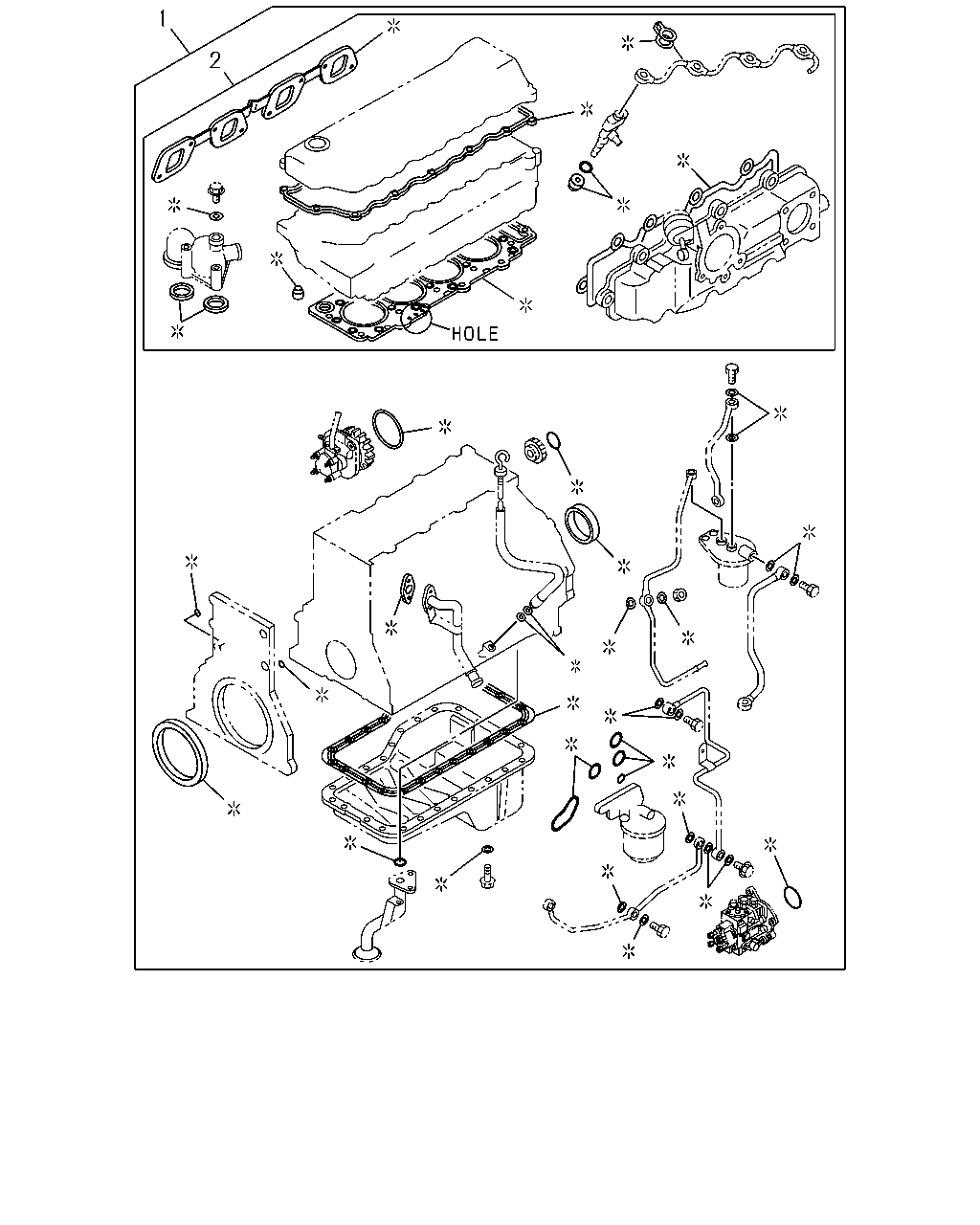

çizim 191095
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 1012- ●

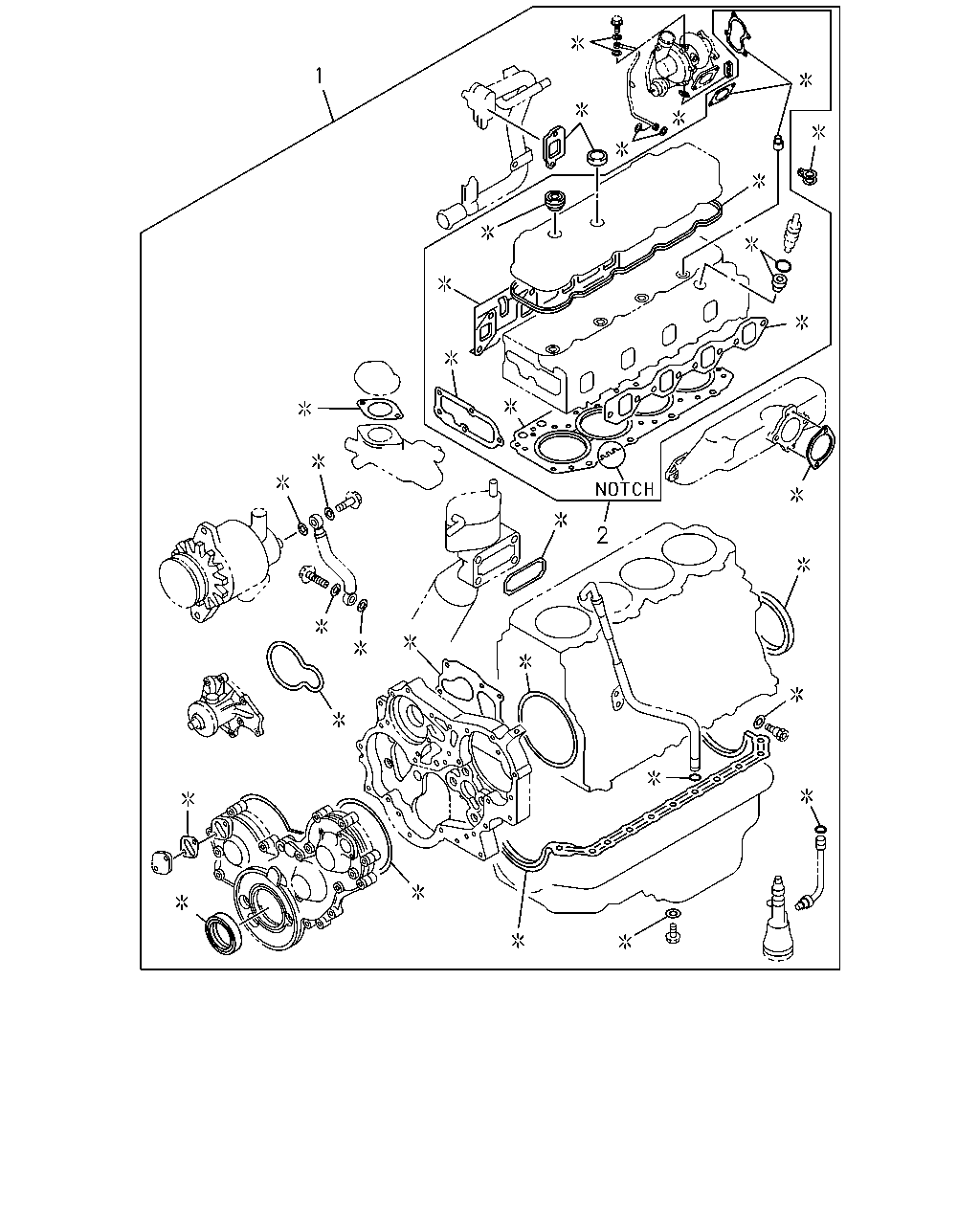

çizim 191096
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-175-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-176-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-177-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87815-169-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87815-170-3 01 1 1012- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87815-171-3 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-711-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-712-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-713-7 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-691-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-692-6 01 1 1012- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-693-6 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
