◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#79365) — 24 parça
çizim 14885
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1012-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●

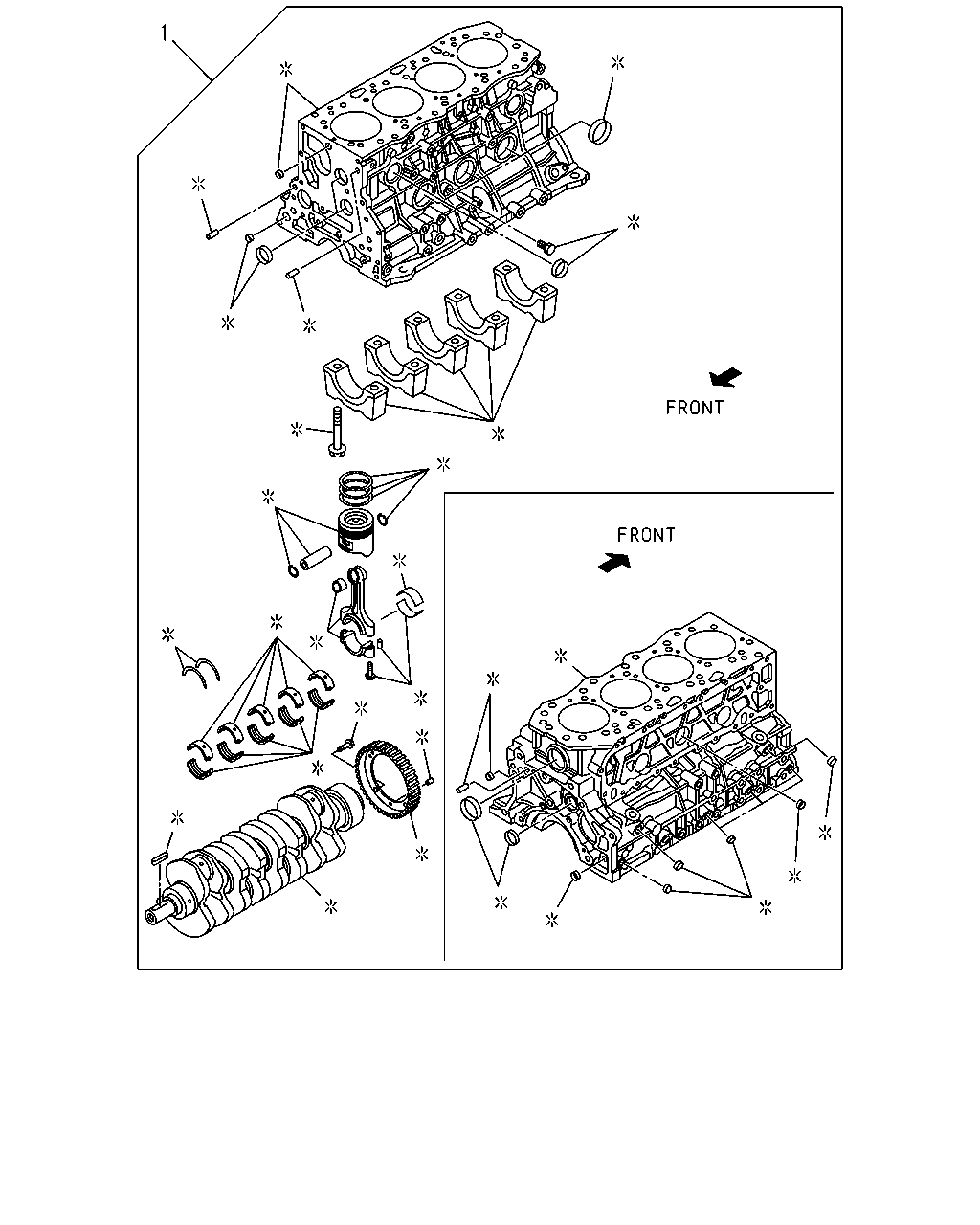

çizim 191091
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1012-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●

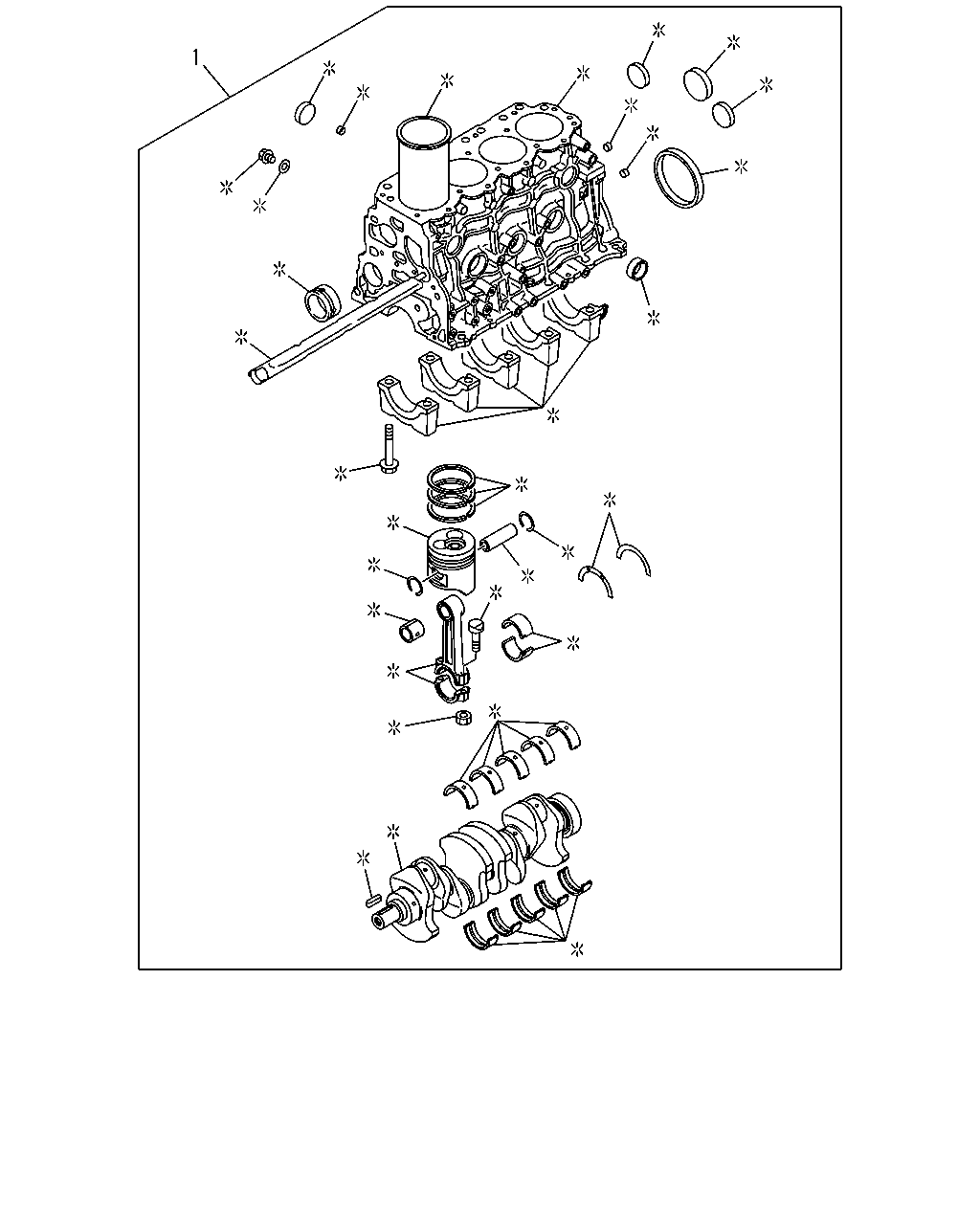

çizim 191092
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1012-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
