Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#79364) — 227 parça

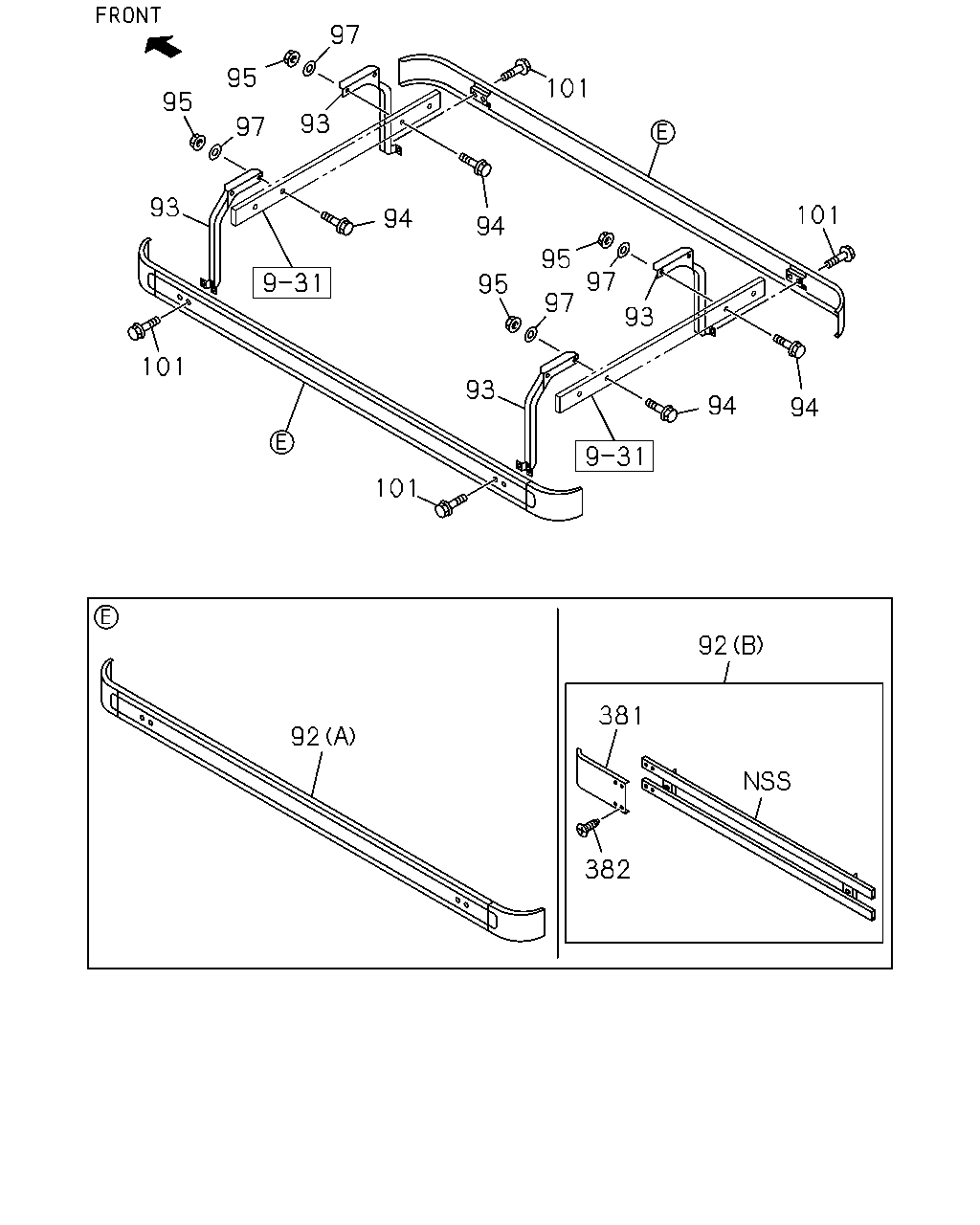

92 381 382 92 101 93 94 94 101 93 97 95 97 95 94 94 101 93 97 95 95 97 93 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) (B)	8-98288-340-1	02	1	1408-	●
92	17.505 PIPE; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) (B)	8-98288-341-1	01	1	1408-		●
92	17.505 PIPE; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) (B)	8-98288-342-1	01	1	1408-		●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> (A)	8-98092-668-1	01	1	1012-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> (A)	8-98092-669-0	01	1	1012-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-98092-666-0	01	1	1012-1407	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) (A)	8-98092-666-0	01	1	1408-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-98092-667-0	01	1	1012-1407	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) (A)	8-98092-667-0	01	1	1408-	●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6) (A)	8-98091-352-0	01	1	1012-1407		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) (A)	8-98091-352-0	01	1	1408-		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6) (A)	8-98091-353-0	01	1	1012-1407		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) (A)	8-98091-353-0	01	1	1408-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-337-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-337-0	02	1	1408-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-338-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-338-0	02	1	1408-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH>	8-98035-148-0	02	1	1012-1407	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1012-1407	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1012-1407		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH>	8-98035-148-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8)	8-98035-148-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8)	8-98035-148-0	02	1	1408-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH>	8-98035-149-0	02	1	1012-1407	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1012-1407	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1012-1407		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH>	8-98035-149-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8)	8-98035-149-0	02	1	1408-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8)	8-98035-149-0	02	1	1408-		●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.347 M12X70	0-10856-270-0	08	1	1408-	●
94	17.185 BOLT; STAY TO BOLSTER COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.347 M12X70	0-10856-270-0	06	1	1408-		●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> M10X70 W/LK WASHER	0-50541-070-0	08	1	1012-1407	●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1012-1407	●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> M10X70 W/LK WASHER	0-50541-070-0	08	1	1408-	●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) M10X70 W/LK WASHER	0-50541-070-0	08	1	1408-	●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	06	1	1012-1407		●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) M10X70 W/LK WASHER	0-50541-070-0	06	1	1408-		●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 02.042 M12 FLANGE	0-91180-112-0	08	1	1408-	●
95	17.505 NUT; STAY TO BOLSTER COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 02.042 M12 FLANGE	0-91180-112-0	08	1	1408-		●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 03.162 M10 FLANGE	0-91180-110-0	08	1	1012-1407	●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1012-1407	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1012-1407		●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 03.162 M10 FLANGE	0-91180-110-0	08	1	1408-	●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) 03.162 M10 FLANGE	0-91180-110-0	08	1	1408-	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) 03.162 M10 FLANGE	0-91180-110-0	08	1	1408-		●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.347 ID=12.2	0-91510-812-0	08	1	1408-	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.529 ID=12.5 OD=32	0-91614-712-0	08	1	1408-	●
97	17.507 WASHER; PL,STAY TO BOLSTER COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.347 ID=12.2	0-91510-812-0	06	1	1408-		●
97	17.507 WASHER; PL,STAY TO BOLSTER COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 07.529 ID=12.5 OD=32	0-91614-712-0	06	1	1408-		●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1012-1407	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1012-1407	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1408-	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1408-	●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	06	1	1012-1407		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) 00.002 ID=10.5 OD=32	0-91614-810-0	06	1	1408-		●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1012-	●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1012-	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1012-		●
381	17.505 PROTECTOR; SIDE GUARD WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-353-0	02	1	1408-	●
381	17.505 PROTECTOR; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-353-0	01	1	1408-		●
381	17.505 PROTECTOR; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6)	8-98288-354-0	01	1	1408-		●
382	17.505 SCREW; SIDE GUARD WHEEL BASE 3300MM(33W) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 16.585 M8X16	8-94188-667-0	08	1	1408-	●
382	17.505 SCREW; SIDE GUARD COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 16.585 M8X16	8-94188-667-0	08	1	1408-		●

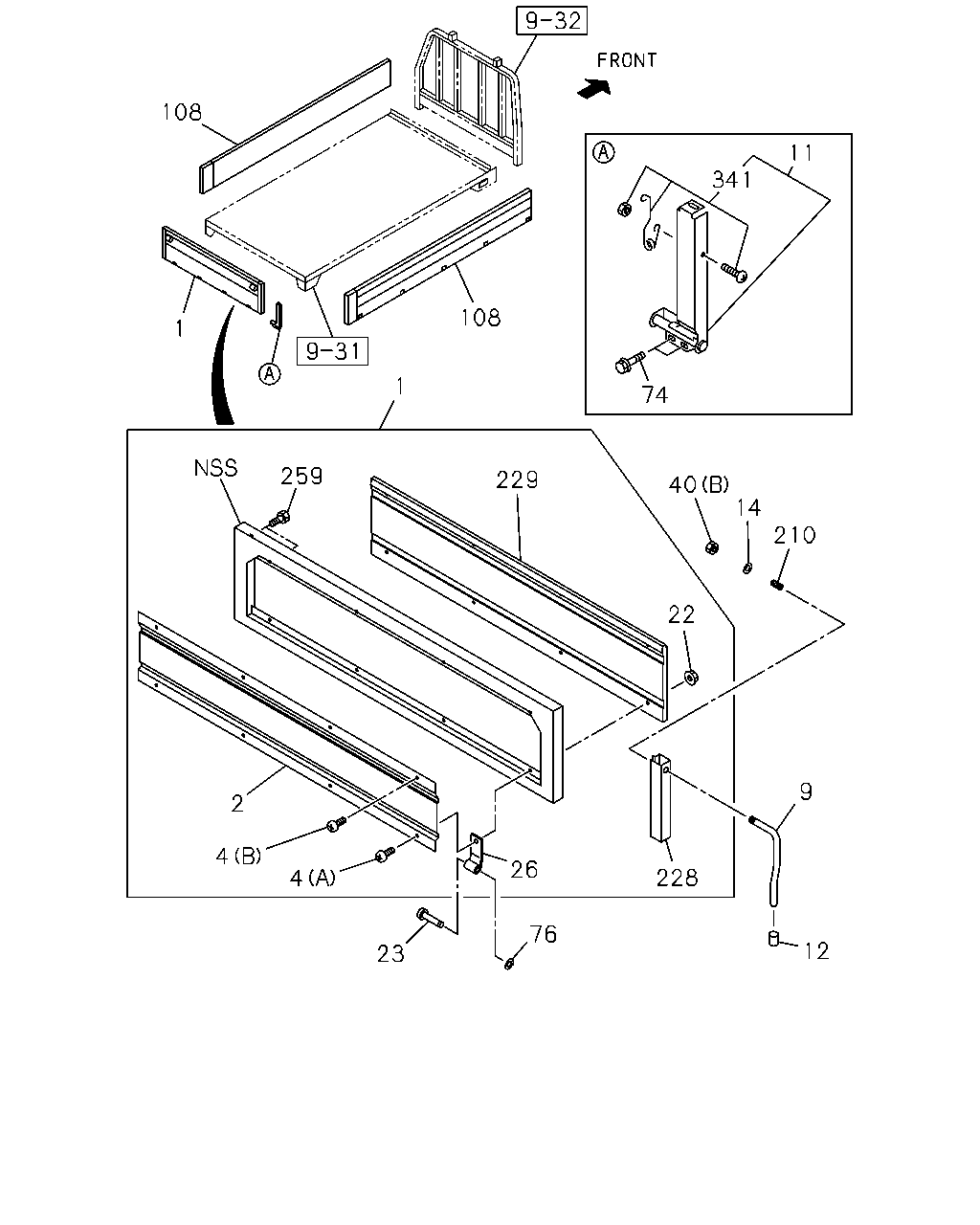

108 11 341 108 1 1 74 259 229 40 14 210 22 9 2 4 26 228 4 76 12 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404		●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-		●
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-082-0	01	1	1012-	●
2	17.185 PANEL; RR GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1012-	●
2	17.185 PANEL; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97590-081-0	01	1	1012-	●
2	17.185 PANEL; RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1012-		●
4	17.185 SCREW; PANEL,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1012-	●
4	17.185 SCREW; PANEL,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1012-		●
4	17.185 SCREW; PANEL,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1012-	●
4	17.185 SCREW; PANEL,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1012-		●
9	17.204 HANDLE; LATCH,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1012-	●
9	17.204 HANDLE; LATCH,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1012-		●
9	17.204 HANDLE; LATCH,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1012-	●
9	17.204 HANDLE; LATCH,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1012-		●
11	17.198 LOCK ASM; VERTICAL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1012-	●
11	17.198 LOCK ASM; VERTICAL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1012-		●
11	17.198 LOCK ASM; VERTICAL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1012-	●
11	17.198 LOCK ASM; VERTICAL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1012-		●
12	17.204 PIECE; END,RR HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1012-	●
12	17.204 PIECE; END,RR HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1012-		●
14	17.204 WASHER; PL,HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1012-	●
14	17.204 WASHER; PL,HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1012-		●
22	17.185 NUT; PLATE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8	8-94193-954-1	08	1	1012-1303	●
22	17.185 NUT; PLATE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8	8-94193-954-1	08	1	1012-1303		●
22	17.185 NUT; PLATE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1304-	●
22	17.185 NUT; PLATE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1304-		●
23	17.208 PIN; HINGE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1012-	●
23	17.208 PIN; HINGE,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1012-		●
26	17.208 HINGE; UPR,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1012-	●
26	17.208 HINGE; UPR,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1012-		●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1012-	●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1012-		●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1012-	●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1012-		●
74	17.490 SCREW; LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	04	1	1012-	●
74	17.490 SCREW; LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	04	1	1012-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	16	1	1012-	●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	16	1	1012-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=3235 H=398 B=50 PLYWOOD TAKADA	8-97565-914-1	01	1	1409-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=3235 H=398 B=50 PLYWOOD TAKADA	8-97565-915-1	01	1	1409-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=4288 H=398 B=50 PLYWOOD TAKADA	8-97565-916-1	01	1	1409-		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=4288 H=398 B=50 PLYWOOD TAKADA	8-97565-917-1	01	1	1409-		●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-2	01	1	1012-1408	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1409-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-2	01	1	1012-1408	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1409-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-2	01	1	1012-1408		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-3	01	1	1409-		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-2	01	1	1012-1408		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-3	01	1	1409-		●
210	17.505 SPRING; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1012-	●
210	17.505 SPRING; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1012-		●
228	17.505 BRACKET; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1012-	●
228	17.505 BRACKET; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1012-		●
228	17.505 BRACKET; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1012-	●
228	17.505 BRACKET; LATCH HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1012-		●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-243-0	01	1	1012-1404	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-793-1	01	1	1405-	●
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-242-0	01	1	1012-1404	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97594-242-0	01	1	1012-1404	●
229	17.505 BOARD; RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-242-0	01	1	1012-1404		●
229	17.505 BOARD; RR GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97565-792-1	01	1	1405-	●
229	17.505 BOARD; RR GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> TAKADA	8-97565-792-1	01	1	1405-	●
229	17.505 BOARD; RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97565-792-1	01	1	1405-		●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-94194-115-0	02	1	1012-1303	●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-94194-115-0	02	1	1012-1303		●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1304-	●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1304-		●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97593-296-0	02	1	1012-1303	●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97593-296-0	02	1	1012-1303		●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1304-	●
259	17.505 BOLT; BRKT,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1304-		●
341	17.505 SPRING KIT; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1012-	●
341	17.505 SPRING KIT; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1012-		●
341	17.505 SPRING KIT; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1012-	●
341	17.505 SPRING KIT; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1012-		●

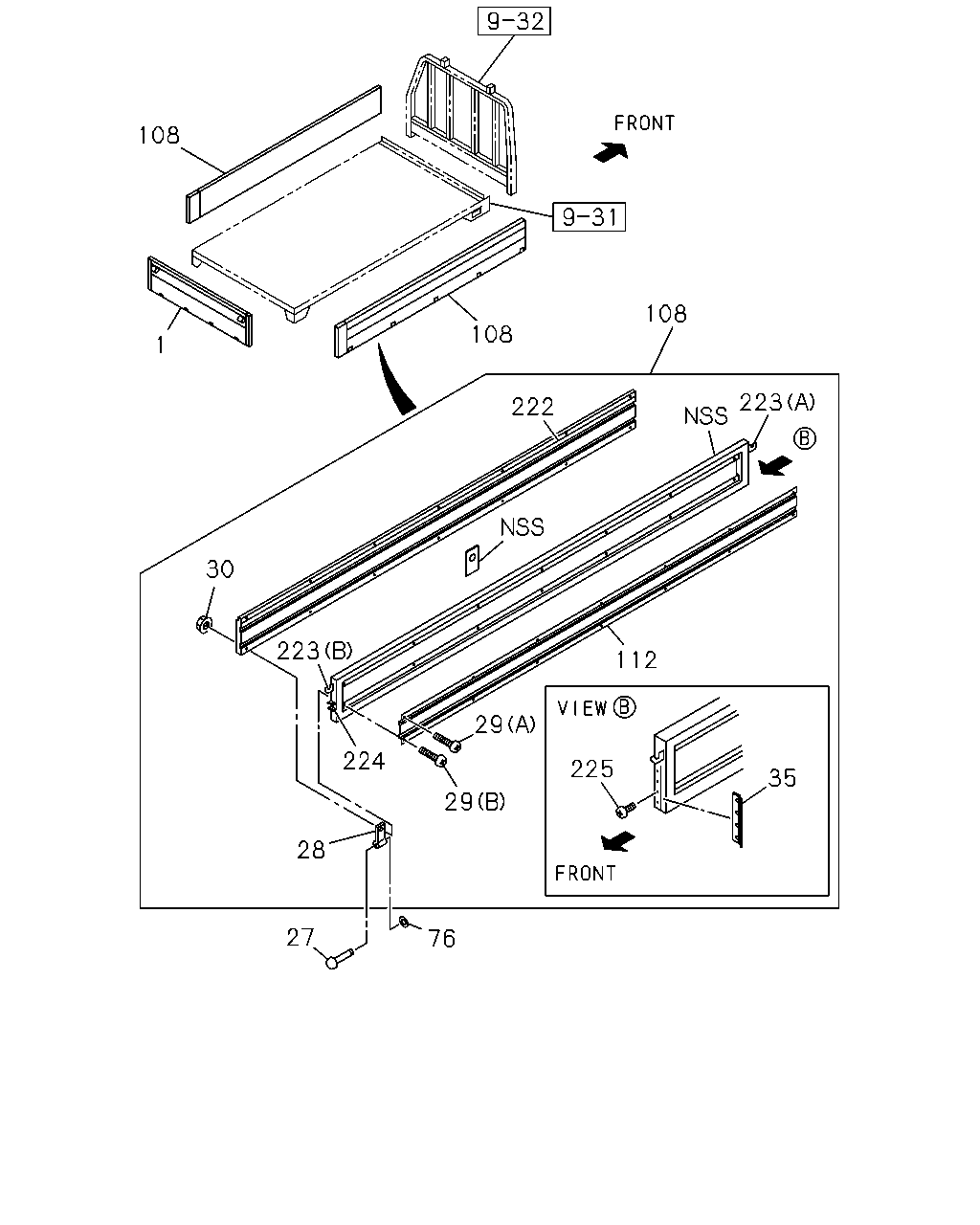

108 108 108 1 223 222 30 223 112 29 224 225 35 29 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97594-772-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> L=1907 H=422 B=50 PLYWOOD TAKADA	8-97565-788-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404	●
1	17.185 GATE ASM; RR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1012-1404		●
1	17.185 GATE ASM; RR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●
1	17.185 GATE ASM; RR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-		●
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	12	1	1012-	●
27	17.208 PIN; HINGE,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	12	1	1012-		●
27	17.208 PIN; HINGE,SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	1012-	●
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	12	1	1012-	●
28	17.208 HINGE; UPR,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	12	1	1012-		●
28	17.208 HINGE; UPR,SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	1012-	●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	12	1	1012-	●
29	17.455 SCREW; PANEL SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	12	1	1012-		●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	12	1	1012-	●
29	17.455 SCREW; PANEL SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	12	1	1012-		●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	1012-	●
29	17.455 SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	1012-	●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	24	1	1012-1303	●
30	17.455 NUT; PLATE,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	24	1	1012-1303		●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	24	1	1304-	●
30	17.455 NUT; PLATE,SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	24	1	1304-		●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	28	1	1012-1303	●
30	17.455 NUT; PLATE,SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1304-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1012-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1012-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	16	1	1012-	●
76	17.505 RING; SNAP,GATE HINGE PIN BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	16	1	1012-		●
76	17.505 RING; SNAP,GATE HINGE PIN WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=3235 H=398 B=50 PLYWOOD TAKADA	8-97565-914-1	01	1	1409-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=3235 H=398 B=50 PLYWOOD TAKADA	8-97565-915-1	01	1	1409-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=4288 H=398 B=50 PLYWOOD TAKADA	8-97565-916-1	01	1	1409-		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) L=4288 H=398 B=50 PLYWOOD TAKADA	8-97565-917-1	01	1	1409-		●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1012-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-2	01	1	1012-1408	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1409-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-2	01	1	1012-1408	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1409-	●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-2	01	1	1012-1408		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-492-3	01	1	1409-		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-2	01	1	1012-1408		●
108	17.505 GATE ASM; SIDE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) L=3235 H=393 B=50 PLYWOOD TAKADA	8-97594-493-3	01	1	1409-		●
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) TAKADA	8-97594-576-0	02	1	1409-	●
112	17.455 PANEL; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) TAKADA	8-97594-577-0	02	1	1409-		●
112	17.455 PANEL; SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-605-0	02	1	1012-	●
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-607-0	02	1	1012-1408	●
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) TAKADA	8-97594-607-0	02	1	1409-	●
112	17.455 PANEL; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-608-0	02	1	1012-1408		●
112	17.455 PANEL; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) TAKADA	8-97594-608-0	02	1	1409-		●
222	17.505 BOARD; SIDE GATE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-609-1	02	1	1012-	●
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-611-1	02	1	1012-	●
222	17.505 BOARD; SIDE GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97594-612-1	02	1	1012-		●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1012-	●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1012-		●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1012-	●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1012-		●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1012-	●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1012-		●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1012-	●
223	17.505 HOOK; PLATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1012-		●
224	17.505 HOOK; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1012-	●
224	17.505 HOOK; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1012-		●
224	17.505 HOOK; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1012-	●
224	17.505 HOOK; VERTICAL LOCK BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1012-		●
225	17.505 CLIP; WEATHERSTRIP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1012-	●
225	17.505 CLIP; WEATHERSTRIP BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1012-		●

40 40 40 36 70 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1012-	●
36	17.202 RUBBER; STOPPER,RR GATE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1012-		●
37	17.202 SCREW BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1012-	●
37	17.202 SCREW BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1012-		●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1012-	●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1012-		●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1012-	●
40	17.202 NUT; STOPPER RUBBER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1012-		●
70	17.490 RUBBER; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1012-	●
70	17.490 RUBBER; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
