9-32 — REAR BODY; GUARD FRAME (#79363) — 39 parça

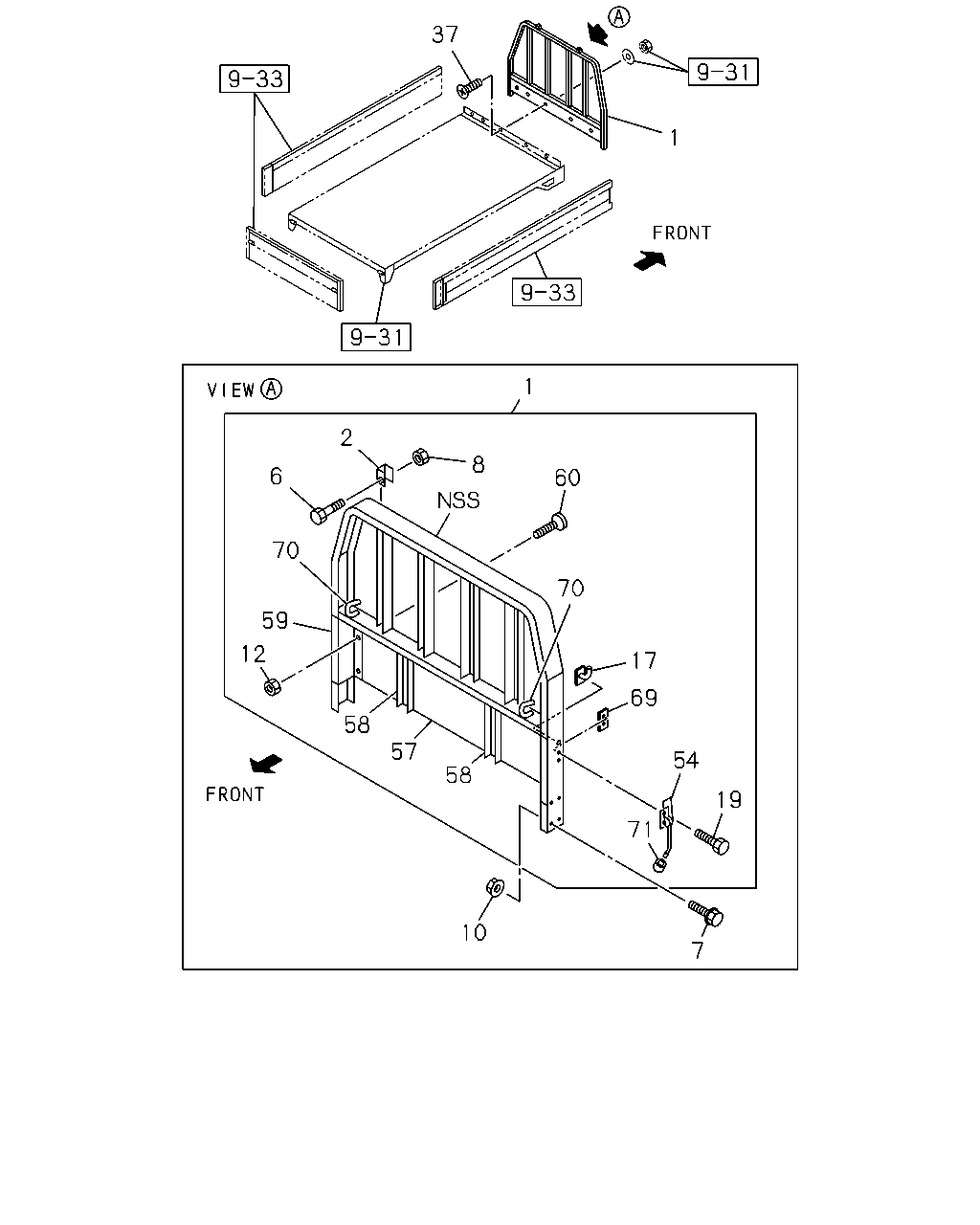

çizim 144452
37 1 1 2 8 6 60 70 70 59 12 17 69 58 57 54 58 19 71 10 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> TAKADA 		8-98071-455-2 01 1 1012- ●
1 17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> TAKADA 		8-98071-453-2 01 1 1012- ●
1 17.455 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-98071-453-2 01 1 1012- ●
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-98079-283-2 01 1 1012- ●
2 17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 		8-97590-396-0 02 1 1012- ●
2 17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 		8-97590-396-0 02 1 1012- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 		8-97590-488-0 02 1 1012- ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 		8-97590-488-0 02 1 1012- ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1012- ● ●
8 17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M10 		8-97590-493-0 02 1 1012- ●
8 17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M10 		8-97590-493-0 02 1 1012- ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012- ● ●
12 17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8 FLANGE 		8-94193-939-2 04 1 1012- ●
12 17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 M8 FLANGE 		8-94193-939-2 04 1 1012- ●
17 17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97593-683-0 02 1 1012- ●
17 17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97593-683-0 02 1 1012- ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X20 		8-94193-942-2 04 1 1012- ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X20 		8-94193-942-2 04 1 1012- ●
37 17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6) M8X26 		8-97065-436-0 05 1 1012- ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97593-639-1 02 1 1012- ●
54 17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97593-639-1 02 1 1012- ●
57 17.400 BOARD; HEADER
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> TAKADA 		8-97594-739-1 01 1 1012- ●
57 17.400 BOARD; HEADER
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> TAKADA 		8-97594-738-1 01 1 1012- ●
57 17.400 BOARD; HEADER
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97594-738-1 01 1 1012- ●
57 17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97594-738-1 01 1 1012- ●
58 17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-452-0 02 1 1012- ●
58 17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-452-0 02 1 1012- ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-453-0 01 1 1012- ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-453-0 01 1 1012- ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-454-0 01 1 1012- ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-94194-454-0 01 1 1012- ●
60 17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X30 TAKADA 		8-94193-938-3 04 1 1012- ●
60 17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X30 TAKADA 		8-94193-938-3 04 1 1012- ●
69 17.455 SETTING PLATE; LOCK HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97591-976-0 02 1 1012- ●
69 17.455 SETTING PLATE; LOCK HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97591-976-0 02 1 1012- ●
70 17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97592-598-0 02 1 1012- ●
70 17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA 		8-97592-598-0 02 1 1012- ●
71 17.204 PIECE; END,FRT HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.615 ID=12 		9-61203-650-0 02 1 1012- ●
71 17.204 PIECE; END,FRT HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.615 ID=12 		9-61203-650-0 02 1 1012- ●
