9-30 — REAR BODY ASM AND MOUNTING (#79361) — 60 parça

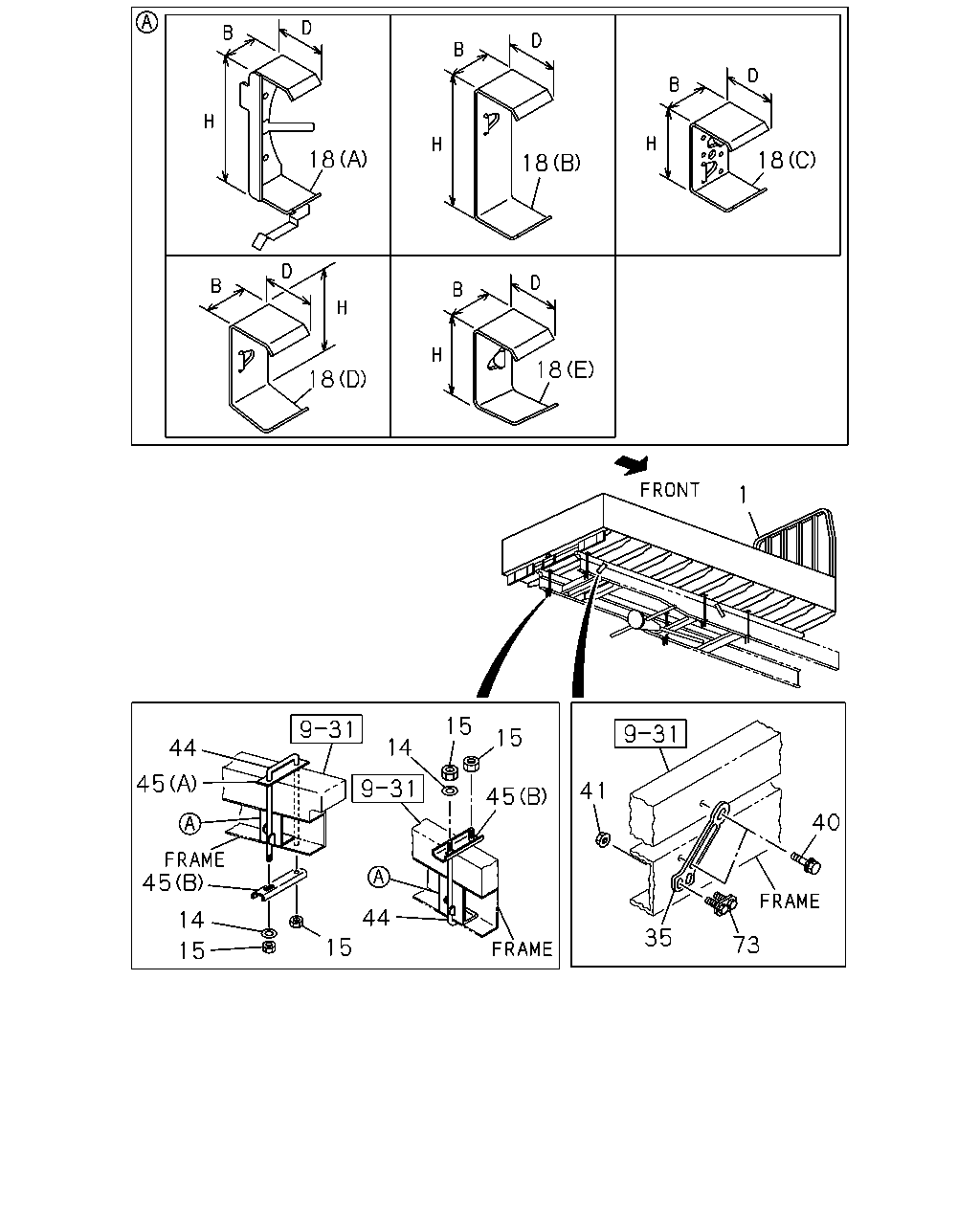

çizim 4947
18 18 18 18 18 1 15 15 14 44 45 41 45 40 45 44 14 35 73 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) WHITE 		8-97465-965-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) BLUE 		8-97465-966-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR QUICK SILVER MET(998) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) LIGHT GRAY 		8-97465-968-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) BLUE 		8-97465-967-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) WHITE 		8-97465-969-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) BLUE 		8-97465-970-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR TRANS BLUE(999) COUNTRY - SAUDI ARABIA(CU8) RR BODY FLAT BED(RS6) 		8-97465-971-0 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> WHITE 		8-97411-609-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> WHITE 		8-97411-628-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> BLUE 		8-97417-301-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> BLUE 		8-97417-300-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> LIGHT GRAY 		8-97414-632-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> LIGHT GRAY 		8-97414-631-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> BLUE 		8-97411-610-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> BLUE 		8-97411-608-2 01 1 1012- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE 		8-97411-626-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) WHITE 		8-97411-626-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE 		8-97417-299-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) BLUE 		8-97417-299-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) LIGHT GRAY 		8-97414-630-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR QUICK SILVER MET(998) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) LIGHT GRAY 		8-97414-630-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE 		8-97411-627-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) BLUE 		8-97411-627-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE 		8-97411-622-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) WHITE 		8-97411-622-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE 		8-97417-391-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) BLUE 		8-97417-391-2 01 1 1409- ●
1 17.090 BODY ASM; REAR
BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE 		8-97411-623-2 01 1 1012-1408 ●
1 17.090 BODY ASM; REAR
BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. COUNTRY - SAUDI ARABIA(CU8) BLUE 		8-97411-623-2 01 1 1409- ●
14 09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) ID=15 OD=26 		0-91614-514-0 04 1 1012- ●
14 09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) ID=15 OD=26 		0-91614-514-0 06 1 1012- ●
14 09.011 WASHER; PL,RR BODY MTG
RR BODY FLAT BED(RS6) ID=15 OD=26 		0-91614-514-0 06 1 1012- ●
15 09.011 NUT; RR BODY MTG
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) 06.008 M14 		9-09130-414-0 08 1 1012- ●
15 09.011 NUT; RR BODY MTG
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 06.008 M14 		9-09130-414-0 12 1 1012- ●
15 09.011 NUT; RR BODY MTG
RR BODY FLAT BED(RS6) 06.008 M14 		9-09130-414-0 12 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6) (A) H=172 B=40 D=65 		8-98058-167-0 01 1 1012- ● ●
18 17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (B) H=172 B=50 D=65 		8-98037-580-0 01 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (D) H=102 B=50 D=65 		8-98041-880-0 01 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (E) H=102 B=50 D=65 		8-98041-881-0 01 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (C) H=91 B=50 D=65 		8-94132-123-1 02 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6) (C) H=91 B=50 D=65 		8-94132-123-1 02 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) H=172 B=50 D=65 		8-98037-580-0 03 1 1012- ●
18 17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6) (B) H=172 B=50 D=65 		8-98037-580-0 03 1 1012- ●
35 17.447 STOPPER; RR BODY
RR BODY FLAT BED(RS6) 		8-98030-398-2 04 1 1012- ● ●
40 17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED(RS6) 		8-97189-615-0 04 1 1012- ● ●
41 17.447 NUT; STOPPER TO RR BODY
RR BODY FLAT BED(RS6) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1012- ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6) L=367 		5-51171-008-1 01 1 1012- ● ●
44 17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) L=367 		5-51171-008-1 01 1 1012- ●
44 17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) L=297 		5-51171-009-1 02 1 1012- ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6) L=297 		5-51171-009-1 02 1 1012- ●
44 17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=272 		5-51171-007-1 02 1 1012- ●
44 17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=367 		5-51171-008-1 03 1 1012- ●
44 17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6) L=367 		5-51171-008-1 03 1 1012- ●
45 17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (A) L=116 B=35 		5-66900-203-0 02 1 1012- ●
45 17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (B) L=120 B=45 		5-66900-204-3 04 1 1012- ●
45 17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) L=116 B=35 		5-66900-203-0 01 1 1012- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED(RS6) (A) L=116 B=35 		5-66900-203-0 01 1 1012- ●
45 17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) L=120 B=45 		5-66900-204-3 06 1 1012- ●
45 17.447 PLATE; U-BOLT
RR BODY FLAT BED(RS6) (B) L=120 B=45 		5-66900-204-3 06 1 1012- ●
73 03.690 PLATE; STUD BOLT
RR BODY FLAT BED(RS6) 		8-98047-322-0 04 1 1012- ● ●
