8-75 — CONDENSER (#79357) — 33 parça

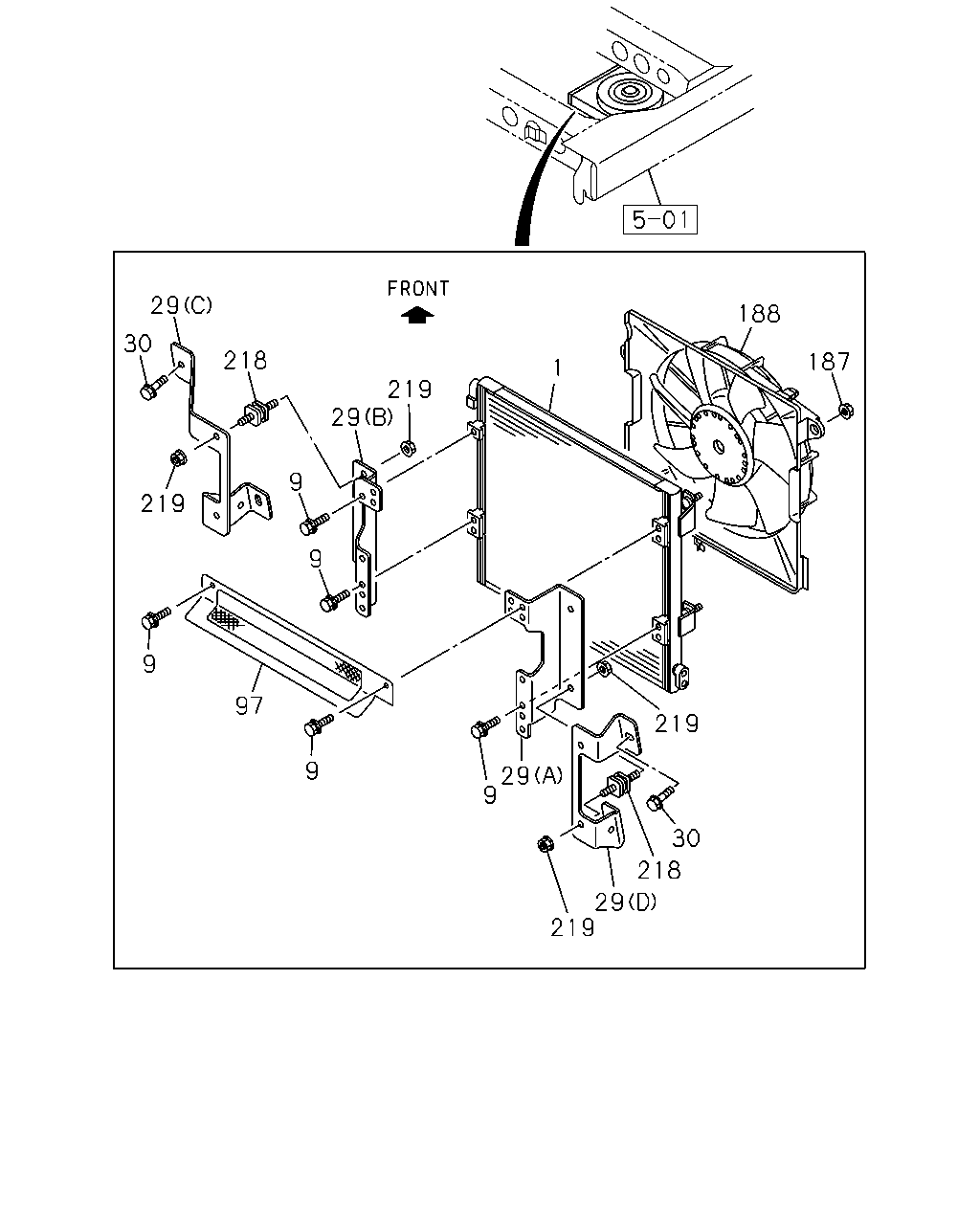

çizim 158379
29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 29 219
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 1012- ●
1 09.190 CONDENSER; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98041-884-0 01 1 1012- ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1012- ●
9 09.190 BOLT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1012- ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-893-0 01 1 1012- ●
29 09.190 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98041-893-0 01 1 1012- ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98041-895-0 01 1 1012- ●
29 09.190 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98041-895-0 01 1 1012- ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 1012- ●
29 09.190 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98041-896-1 01 1 1012- ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 1012- ●
29 09.190 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98041-897-1 01 1 1012- ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1012-1301 ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1302- ●
30 09.190 BOLT; CONDENSER,A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 1302- ●
97 09.190 NET; CONDENSER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-900-0 01 1 1012- ●
97 09.190 NET; CONDENSER UNIT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98041-900-0 01 1 1012- ●
187 09.190 NUT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1012- ●
187 09.190 NUT; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1012- ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1012- ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1012- ●
218 09.215 CUSHION; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-898-0 04 1 1012- ●
218 09.215 CUSHION; CONDENSER
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98041-898-0 04 1 1012- ●
219 09.190 NUT; CUSHION
AIR CONDITIONER MANUAL CONT(C60) M8 		1-83539-319-0 08 1 1012- ●
219 09.190 NUT; CUSHION
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M8 		1-83539-319-0 08 1 1012- ●

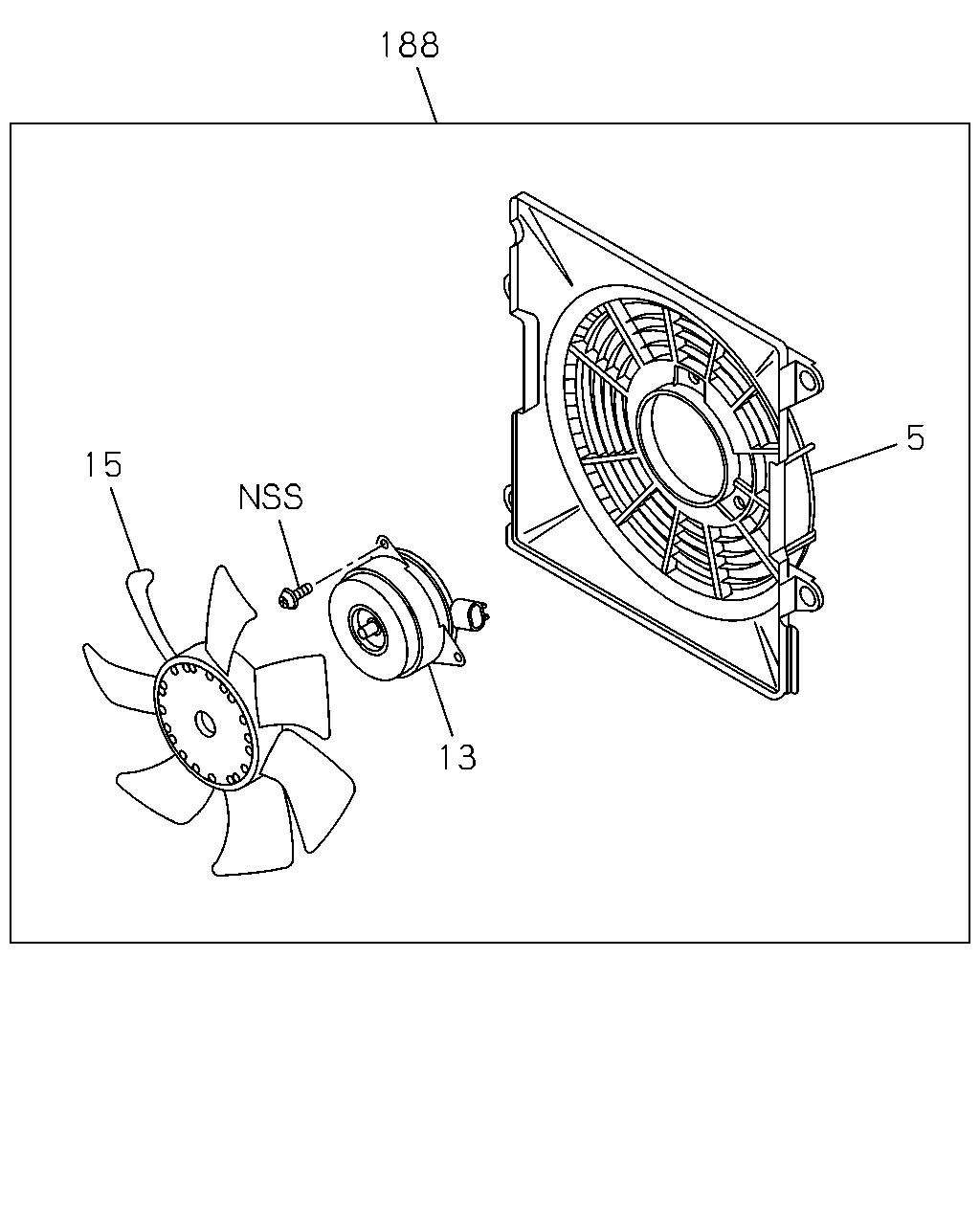

çizim 190986
188 5 15 13
BalonParca AdiParca NoAdetTipApplied Date A B
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-865-0 01 1 1012- ●
5 09.216 SHROUD; FAN MOTOR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98152-865-0 01 1 1012- ●
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-044-0 01 1 1012- ●
13 09.215 MOTOR; FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98157-044-0 01 1 1012- ●
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-860-0 01 1 1012- ●
15 09.216 FAN; MOTOR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98152-860-0 01 1 1012- ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1012- ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98041-889-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
