8-50 — AIR CONDITIONING SYSTEM; FRONT (#79351) — 61 parça

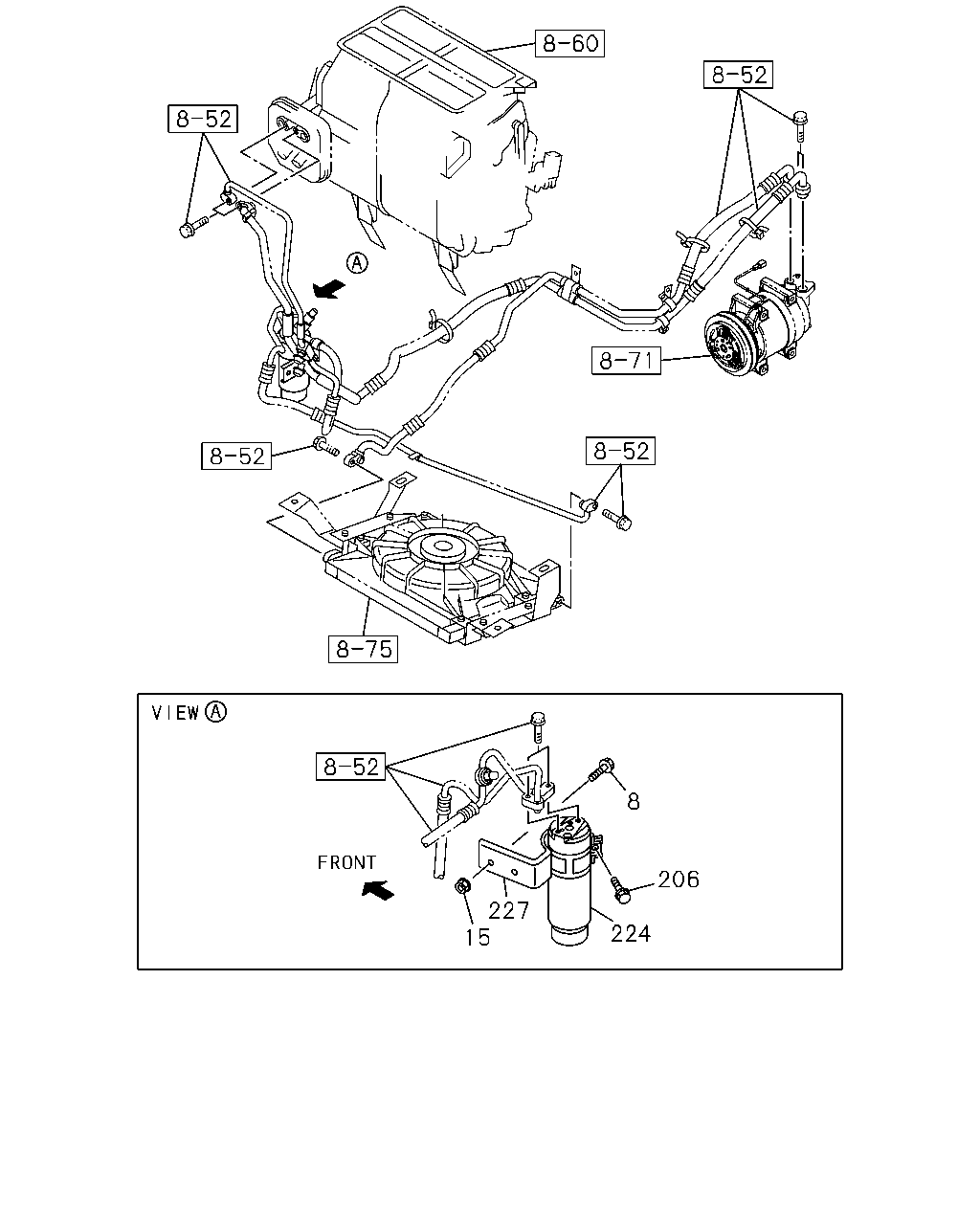

çizim 140879
8 206 227 15 224
BalonParca AdiParca NoAdetTipApplied Date A B
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1301 ● ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
8 09.171 BOLT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1302- ●
15 09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
15 09.173 NUT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-97096-525-0 01 1 1012-1301 ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-97096-525-0 01 1 1302- ●
206 09.242 BOLT; CLIP BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-97096-525-0 01 1 1302- ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-593-0 01 1 1012-1301 ● ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-593-0 01 1 1302- ●
224 09.195 TANK ASM; RECEIVER
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-97096-593-0 01 1 1302- ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-566-0 01 1 1012-1301 ● ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-566-0 01 1 1302- ●
227 09.196 BRACKET; RECEIVER TANK
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98042-566-0 01 1 1302- ●

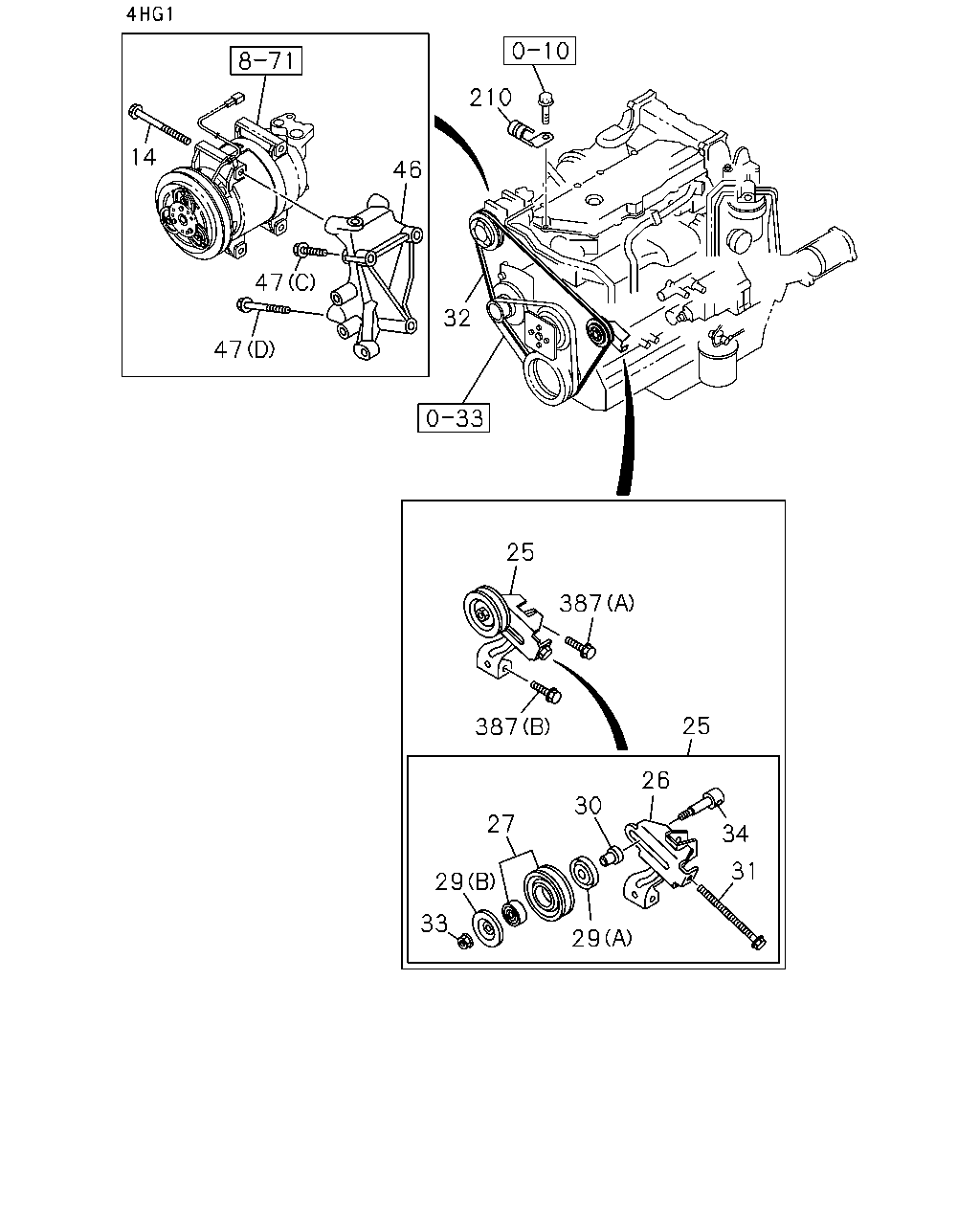

çizim 141302
210 14 46 47 32 47 25 387 25 387 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ●
14 09.171 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1012- ●
27 09.180 PULLEY; IDLE,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1012- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 1012- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-115-0 01 1 1012- ●
30 09.181 COLLAR; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1012- ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ●
33 09.181 NUT; IDLER PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1012- ●
34 09.181 SHAFT; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-97305-489-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (D) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (C) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
210 09.242 CLIP; HARNESS
4HG1 ENG(RJH) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●

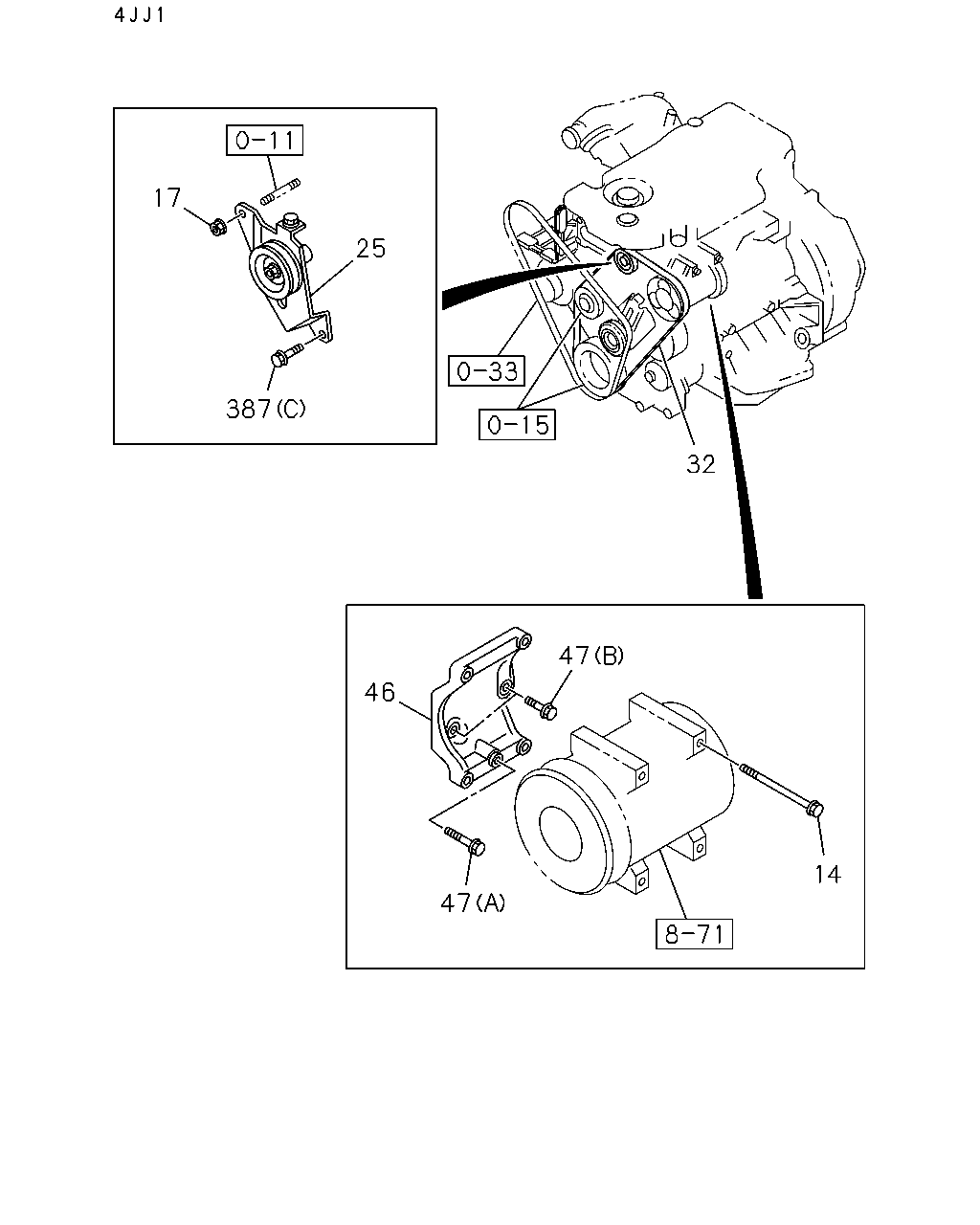

çizim 190985
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ●
14 09.171 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ● ●
17 09.171 NUT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-97305-489-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (D) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (C) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
çizim 190988
378 71
BalonParca AdiParca NoAdetTipApplied Date A B
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 		8-98017-235-1 01 1 1012-1301 ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1302- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98105-819-0 01 1 1012- ● ●
