◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#7935) — 126 parça

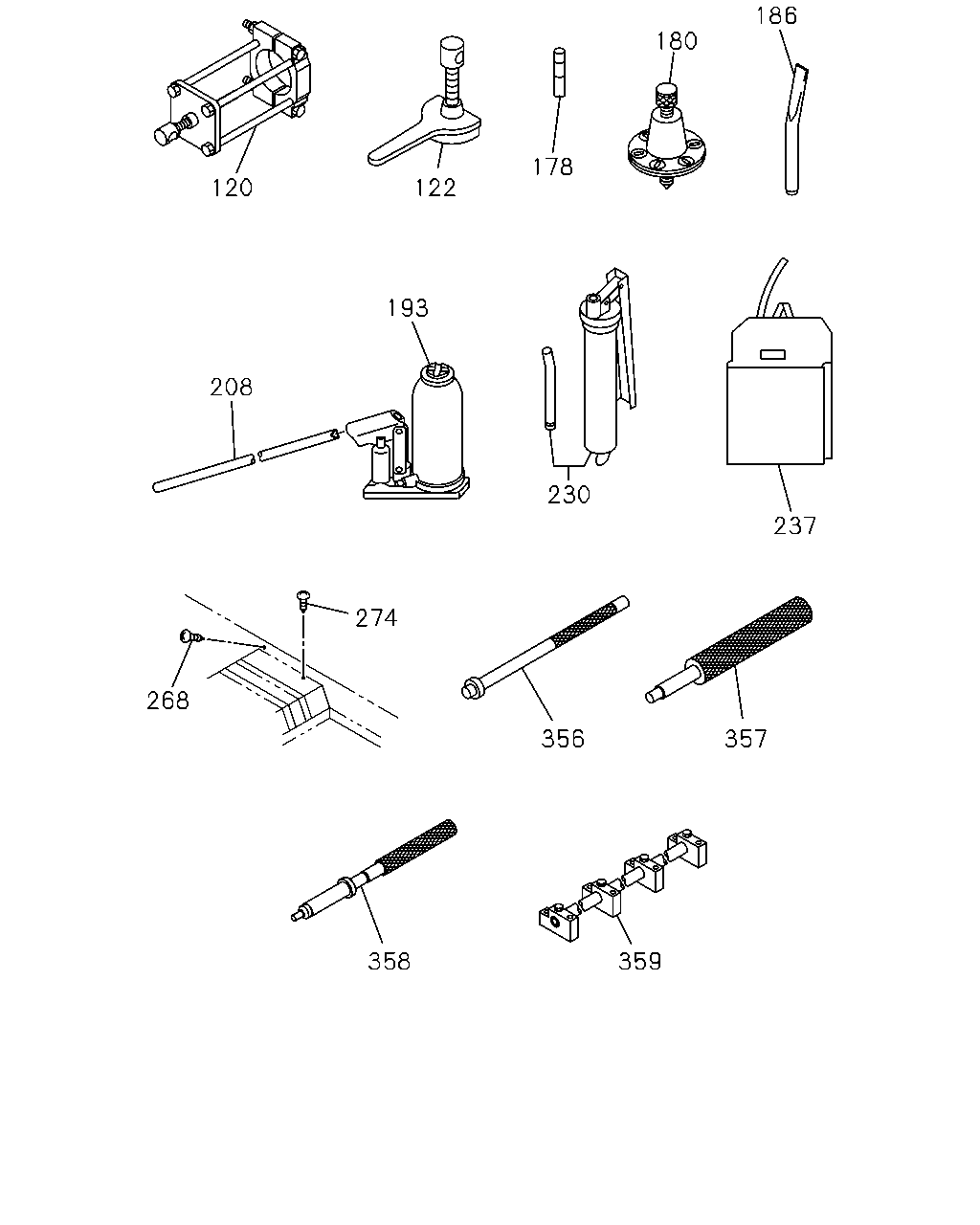

çizim 26848
186 180 178 120 122 193 208 230 237 274 268 356 357 358 359
BalonParca AdiParca NoAdetTipApplied Date A B C
120 PULLER ASM; MAIN REAR BRG
MBJ5T M/T(Y2K) 		9-85210-169-0 01 1 9905- ●
122 PULLER ASM; COUNTER FRT
MBJ5T M/T(Y2K) 		9-85210-168-0 01 1 9905- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9905-0301 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0302- ● ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9905-0301 ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0302- ● ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 9905-0208 ●
186 ADJUSTER; BRAKE
TOOL B KIT<SL1> 		1-85269-008-0 01 1 0209- ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0302-0504 ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		8-97607-599-0 01 1 0505- ●
193 JACK ASM
TOOL A KIT<SK9> 7TON 		1-85510-017-0 01 1 0209- ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 9905-0208 ● ●
193 JACK ASM
TOOL B KIT<SL1> 7TON 		1-85510-005-2 01 1 0209- ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 0209- ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 9905-0208 ●
208 HANDLE; JACK
TOOL A KIT<SK9> L=580 		1-85515-005-1 01 1 0209- ●
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0209- ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9905-0105 ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-0301 ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0302- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9905-0208 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-2 01 1 0209-0301 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-4 01 1 0302- ● ● ●
237 BAG; TOOL
TOOL A KIT<SK9> 		8-97312-893-0 01 1 0209- ●
237 BAG; TOOL 8-97130-902-0 01 1 9905-0208 ● ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-0 01 1 0209-0301 ●
237 BAG; TOOL 8-97130-902-0 01 1 0209-0301 ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0302- ●
237 BAG; TOOL 8-97130-902-1 01 1 0302- ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9905-0301 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0302-0604 ● ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9905-0301 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0302-0604 ● ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ● ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 9905-0301 ● ●
356 TOOL; SETTING,OIL SEAL,CYL HEAD 8-94391-527-0 01 1 0302- ● ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 9905-0301 ● ●
357 REPLACER; NOZZLE SLEEVE 8-94391-555-0 01 1 0302- ● ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 9905-0301 ● ●
358 PLACER; NOZZLE SLEEVE 8-94391-556-0 01 1 0302- ● ● ●
359 PIVOT 8-94396-862-0 01 1 9905-0301 ● ●
359 PIVOT 8-94396-862-0 01 1 0302- ● ● ●

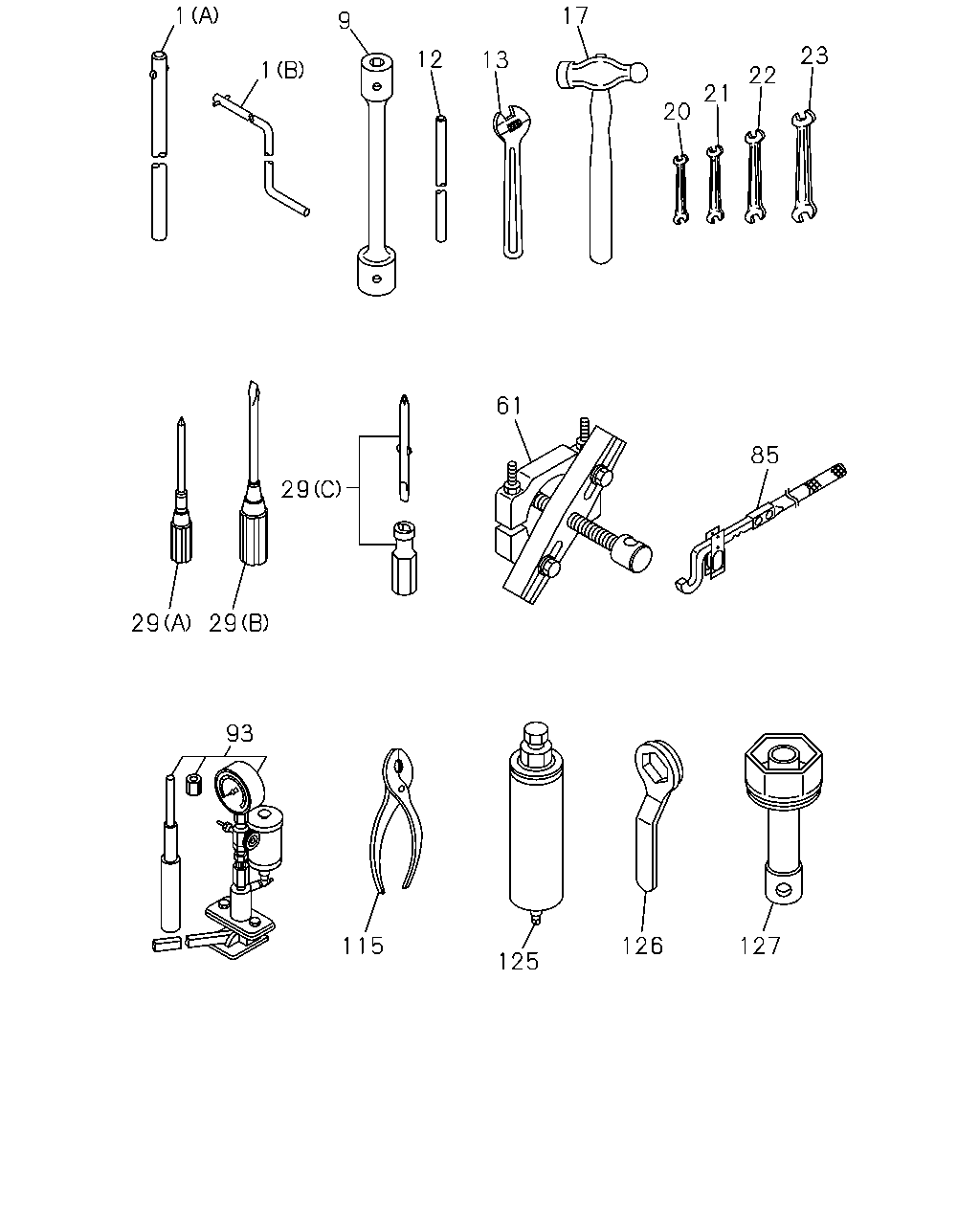

çizim 26930
17 1 9 23 12 13 1 22 21 20 61 85 29 29 29 93 115 126 127 125
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
(A) L=280 		1-85515-007-0 01 1 9905- ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		9-23110-018-0 01 1 9905-0301 ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		9-23110-018-0 01 1 0302- ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9> 41X21 L=330 		8-94340-033-2 01 1 0209- ●
9 WRENCH; WHEEL PIN
41X21 L=440 		1-85113-015-1 01 1 9905-0208 ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> 41X21 L=440 		1-85113-015-1 01 1 0209-0301 ●
9 WRENCH; WHEEL PIN
41X21 L=440 		1-85113-015-1 01 1 0209-0301 ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> 41X21 L=440 		1-85113-015-1 01 1 0302- ●
9 WRENCH; WHEEL PIN
41X21 L=440 		1-85113-015-1 01 1 0302- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9905-0208 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0209-0301 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0302- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9905-0208 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-0301 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0302- ● ● ●
17 HAMMER 9-85121-406-0 01 1 9905-0208 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209-0301 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0302- ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9905-0208 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0301 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0302-0607 ● ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9905-0208 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0301 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0302-0607 ● ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9905-0208 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0301 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0302-0607 ● ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9905-0208 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0301 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0302-0607 ● ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ● ● ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9905-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0301 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0302-0611 ● ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612- ● ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9905-0208 ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0209-0301 ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0302- ● ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9905-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209-0301 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0302- ● ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 9905-0301 ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0302- ● ● ●
85 REPLACER ASM; VALVE SPR 8-94391-528-0 01 1 9905-0301 ● ●
85 REPLACER ASM; VALVE SPR 8-94391-528-0 01 1 0302- ● ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9905-9909 ● ●
115 PLIER 5-85171-002-0 01 1 9905-0301 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0302- ● ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0302- ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 0302- ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0302- ●
çizim 27042
129 128 129 153 157 144 158 154 159 143 141 174 157 161 167 162 160 162 166
BalonParca AdiParca NoAdetTipApplied Date A B C
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9905-0301 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0302- ● ● ●
129 PULLER ASM; PITMAN ARM
(A) 		1-85210-011-0 01 1 0302- ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 9905- ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 9905-0301 ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0302- ● ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0302- ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 9905- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0302- ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 9905- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9905-0301 ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0302- ● ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9905-0301 ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0302- ● ● ●
157 REPLACER KIT; RETURN SPR
(B) 		1-85237-002-0 01 1 0302- ●
157 REPLACER KIT; RETURN SPR
(A) 		9-85231-554-0 01 1 9905- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9905- ● ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 9905- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0302- ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9905-0301 ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0302- ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 0302- ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 0302- ●
166 ALIGNER; CLU RELEASE LEVER
14" CLU(WF6) L=480 		1-85253-023-0 01 1 9905- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0302- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9905- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9905-0301 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0302- ● ● ●
