◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#79347) — 24 parça

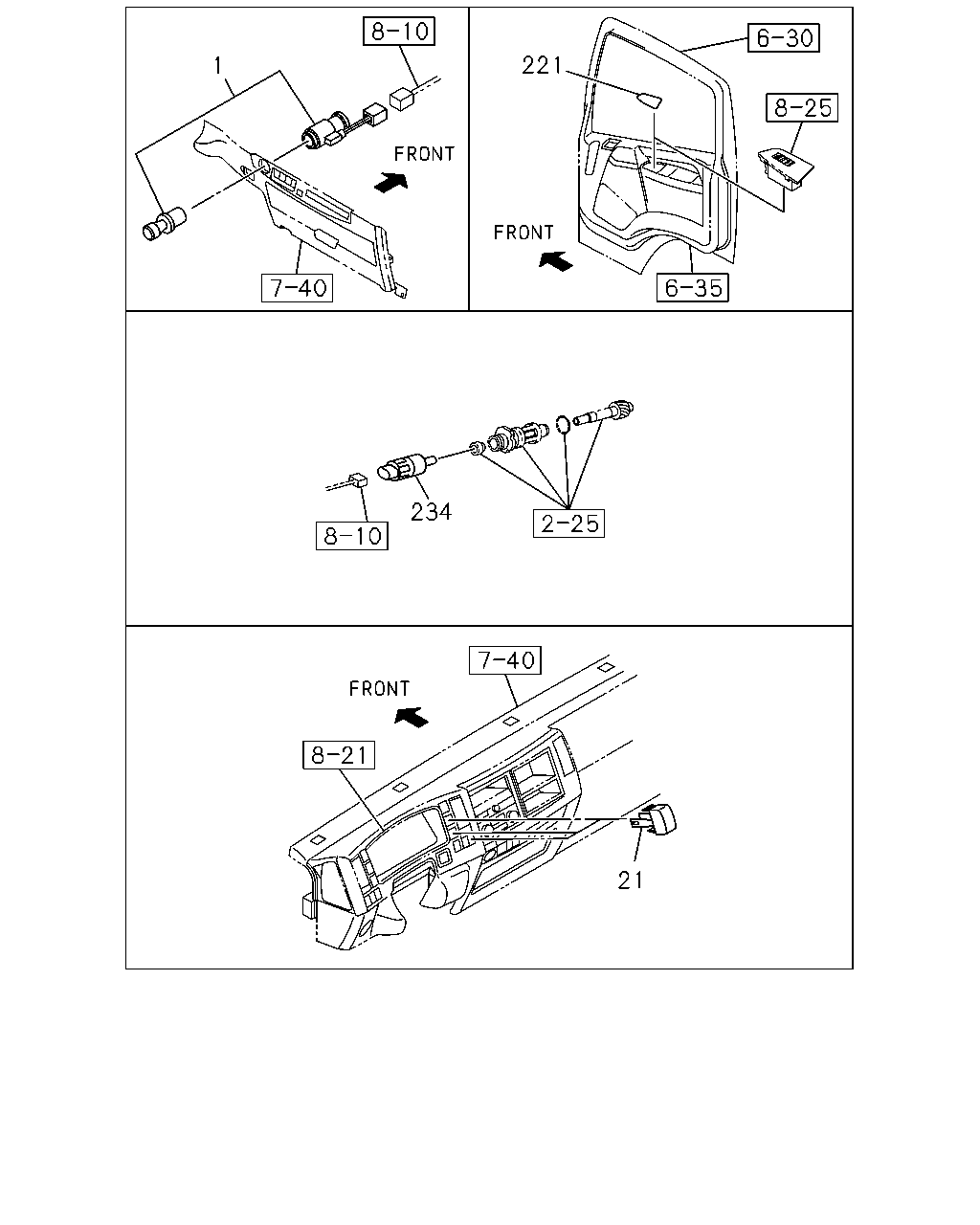

çizim 138064
221 1 234 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1012- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1012-1511 ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1012-1511 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1012- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1012- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1012- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1012- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012- ● ●

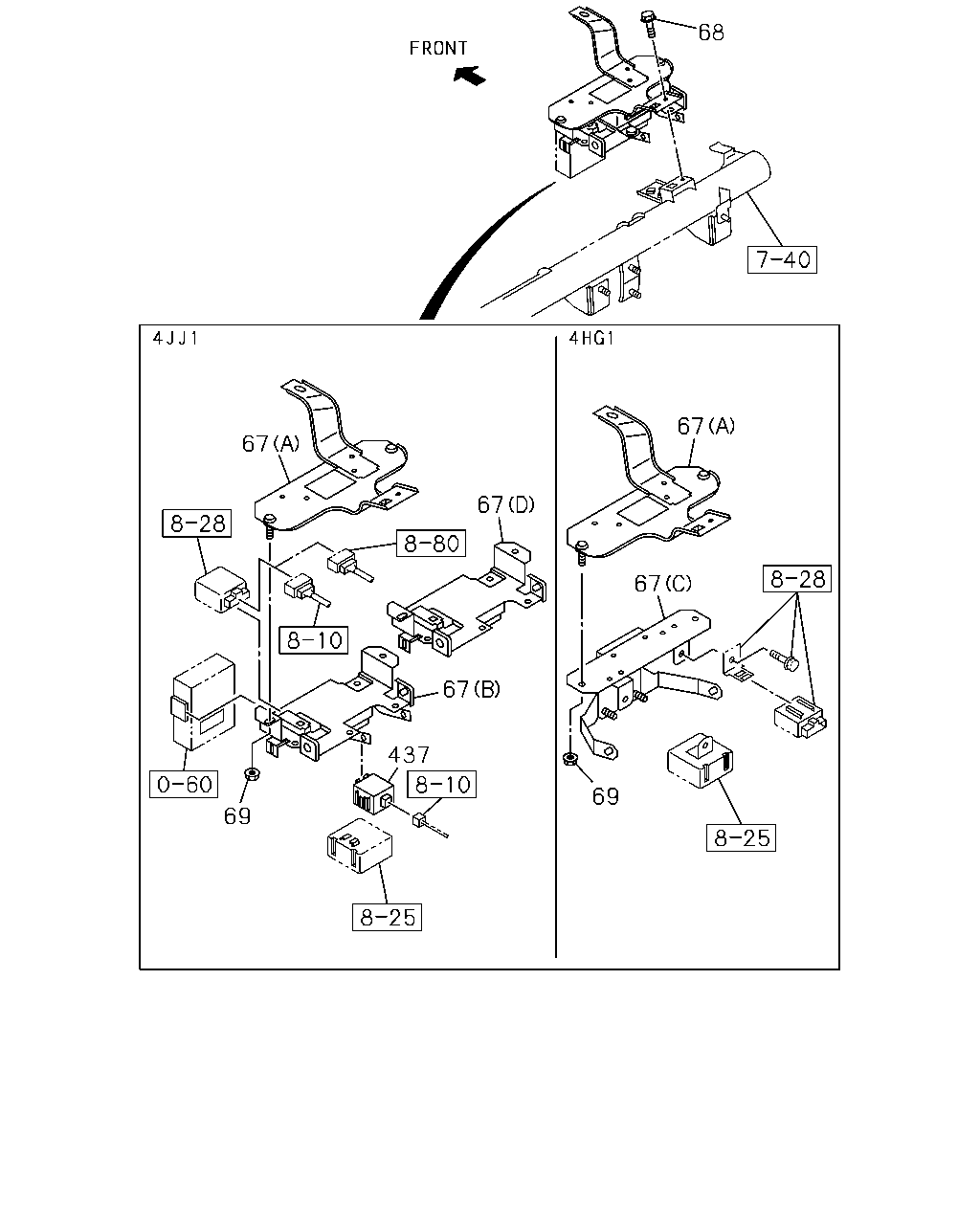

çizim 138110
68 67 67 69 437 67 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 1012-1111 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ● ●
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98110-224-1 01 1 1012- ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1012- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 1012- ● ●

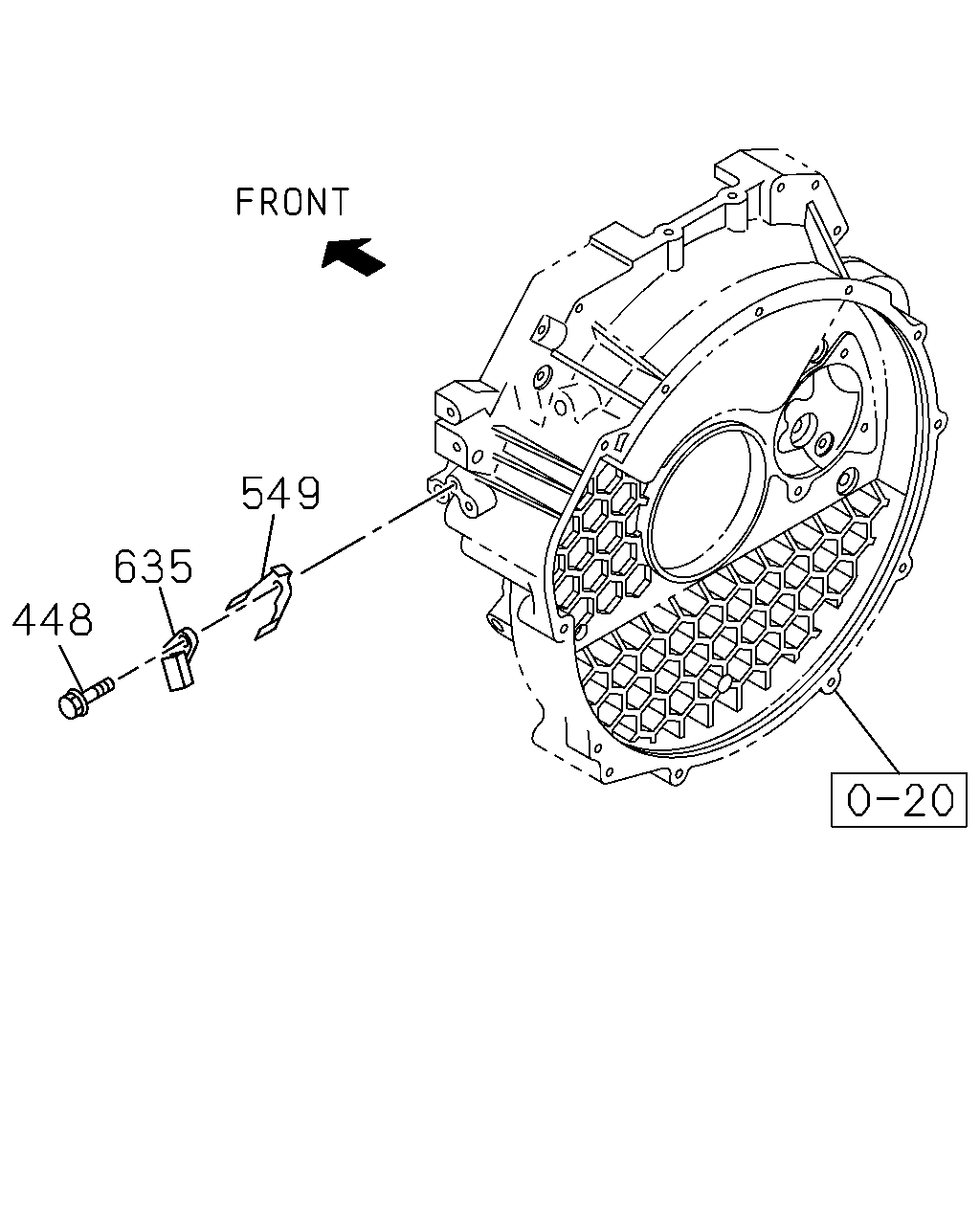

çizim 190983
549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
549 02.510 SHEET
4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 1012- ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 1012- ●
