◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#79346) — 146 parça

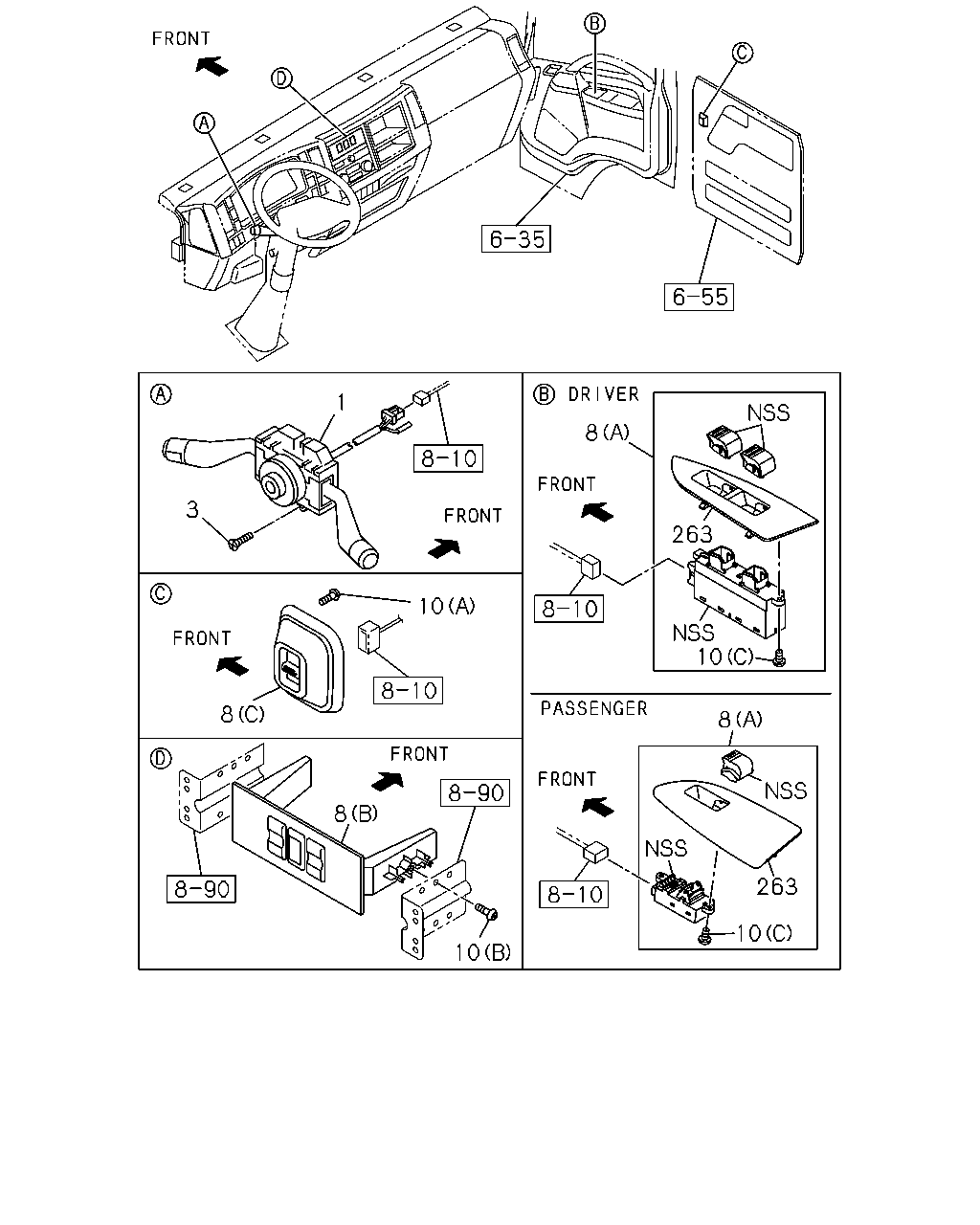

çizim 137915
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98070-010-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-749-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98114-334-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1311- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1311- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1311- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1311- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1012- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 01 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98153-838-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> DRIVER SIDE 		8-98153-838-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-843-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> PASSENGER SIDE 		8-98153-843-0 01 1 1012- ●

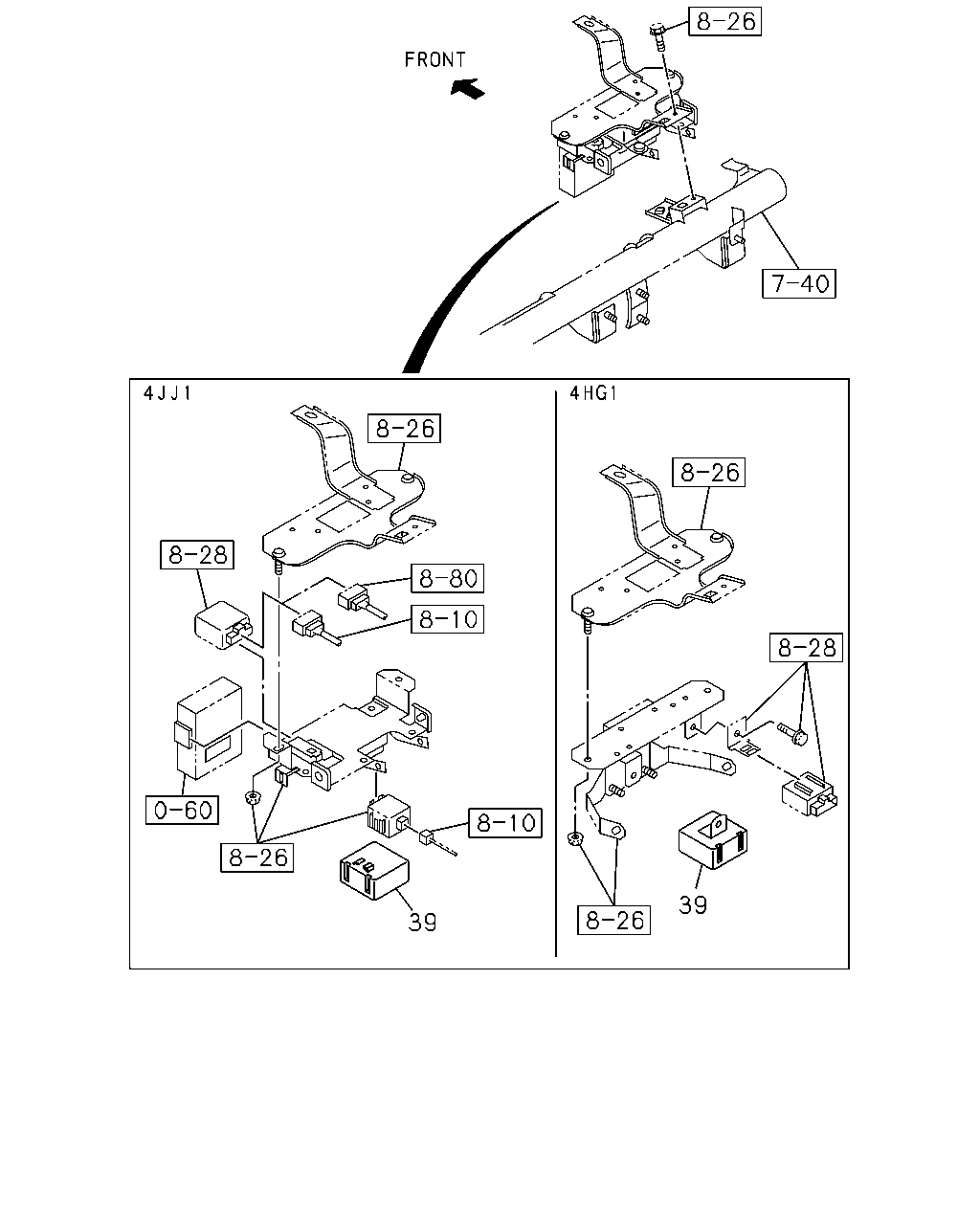

çizim 138202
39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1012- ● ●

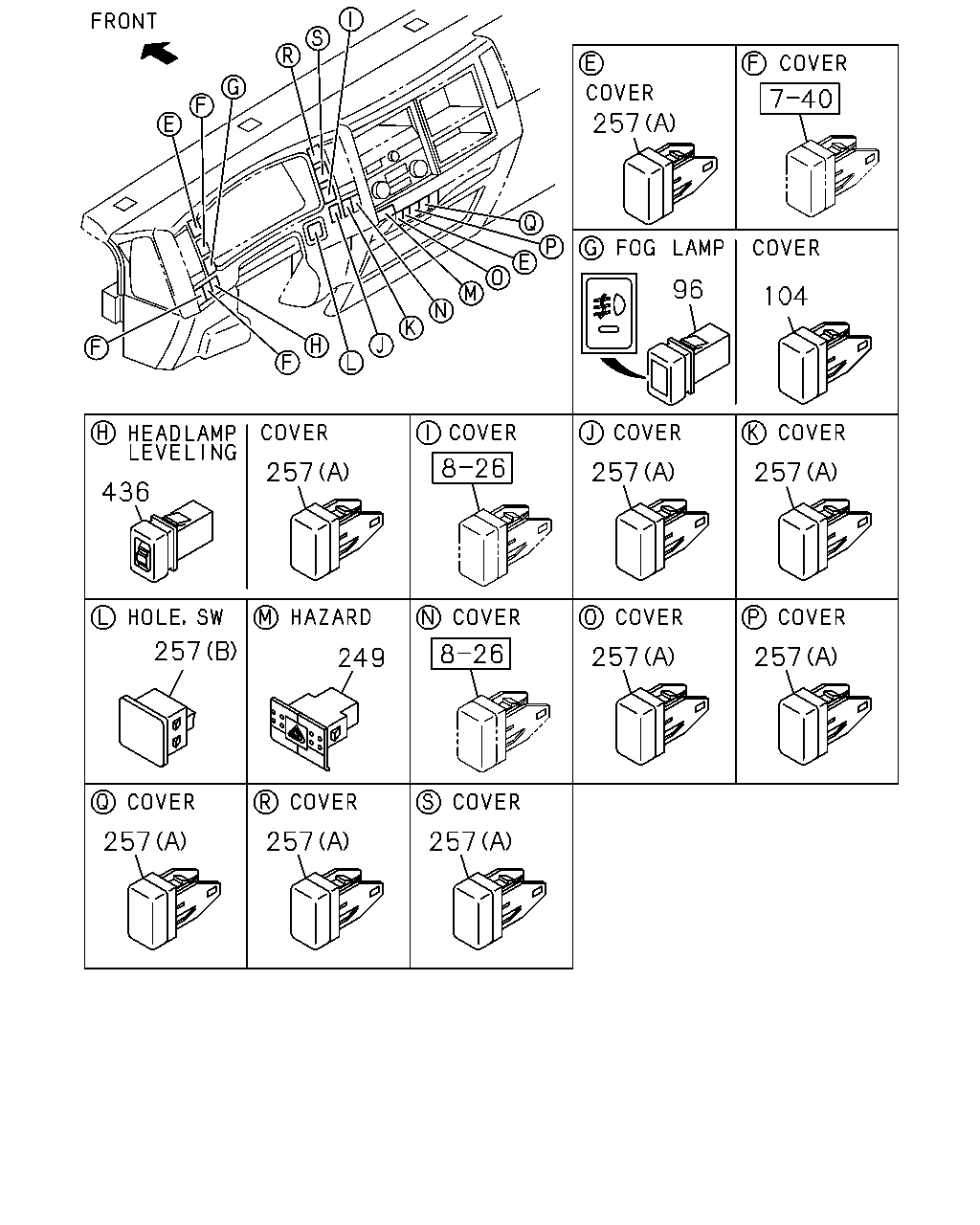

çizim 138247
257 96 104 257 257 257 436 257 257 257 249 257 257 257
BalonParca AdiParca NoAdetTipApplied Date A B
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
4JJ1-TCC ENG(RDU) (B) 		8-98029-914-1 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1303- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1303- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1012-1302 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1012- ● ●
çizim 138335
527 86 87 609 317 610 45 693 12 99
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
45 02.252 RELAY; HORN
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
86 02.485 RELAY; HI-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
87 02.485 RELAY; LOW-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
527 02.510 RELAY; TAIL
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●

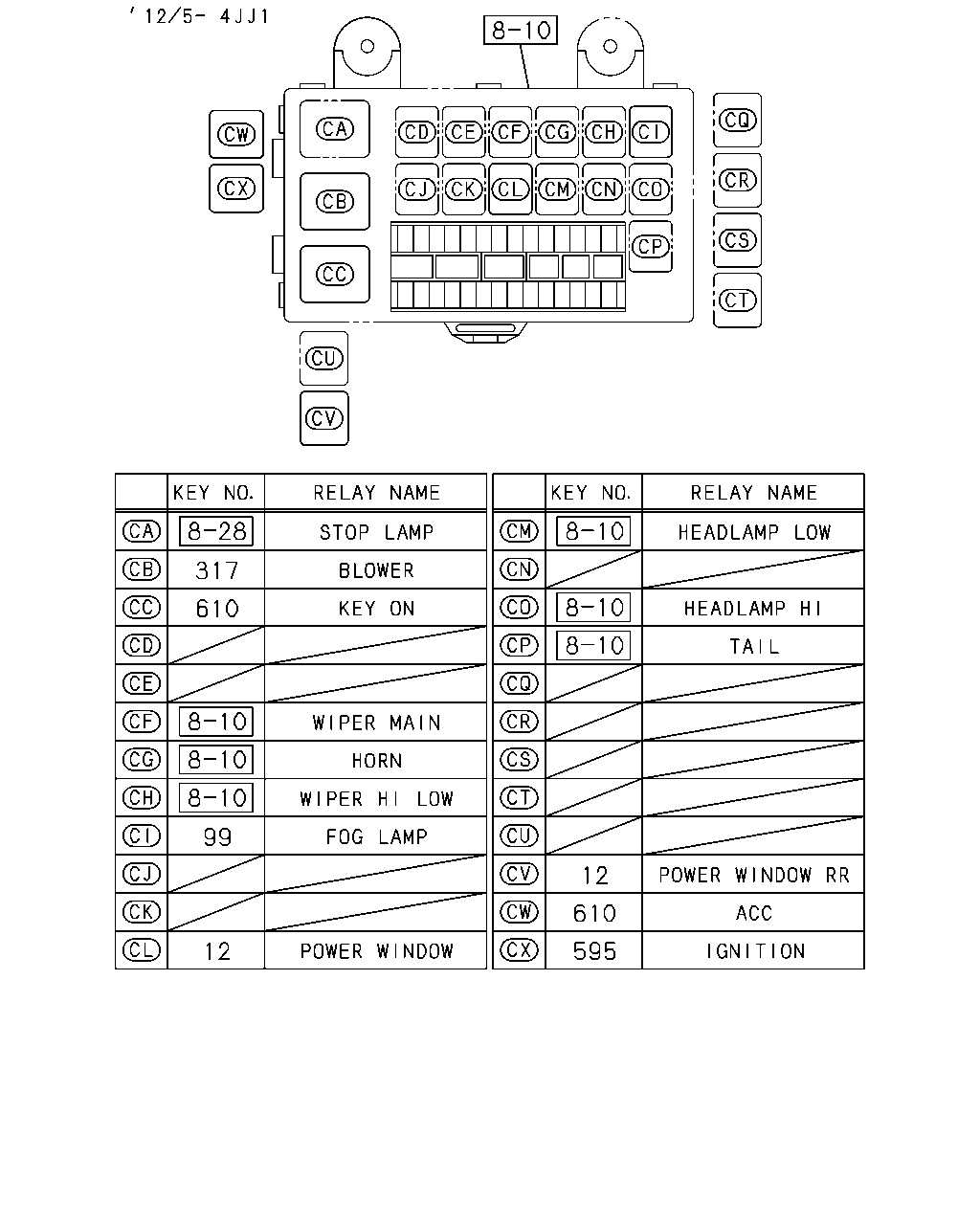

çizim 138337
317 610 99 12 610 12 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
595 02.510 RELAY; IGNITION
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ●
çizim 138394
154 315 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1012- ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1012- ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●

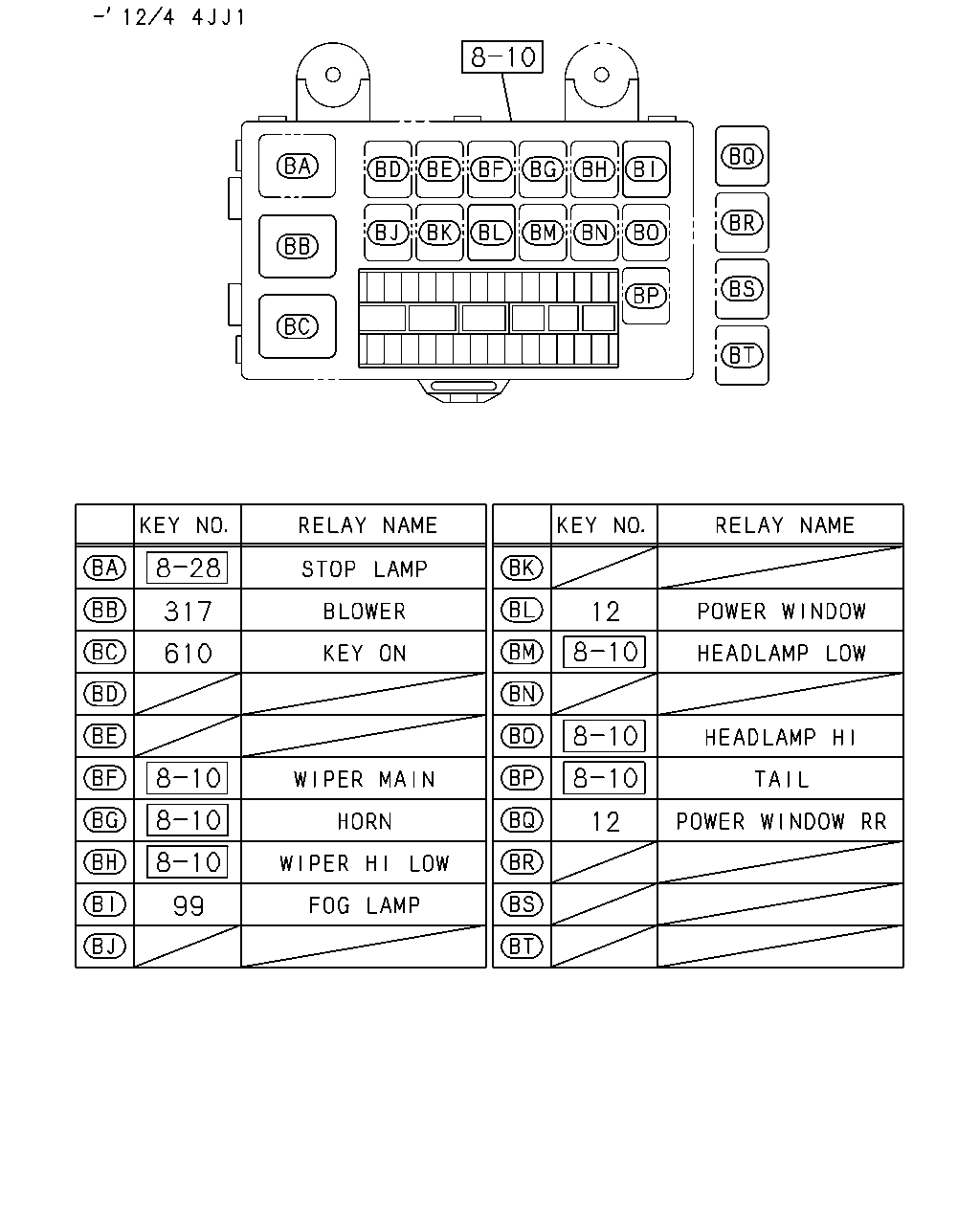

çizim 190980
317 12 610 12 99
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ●

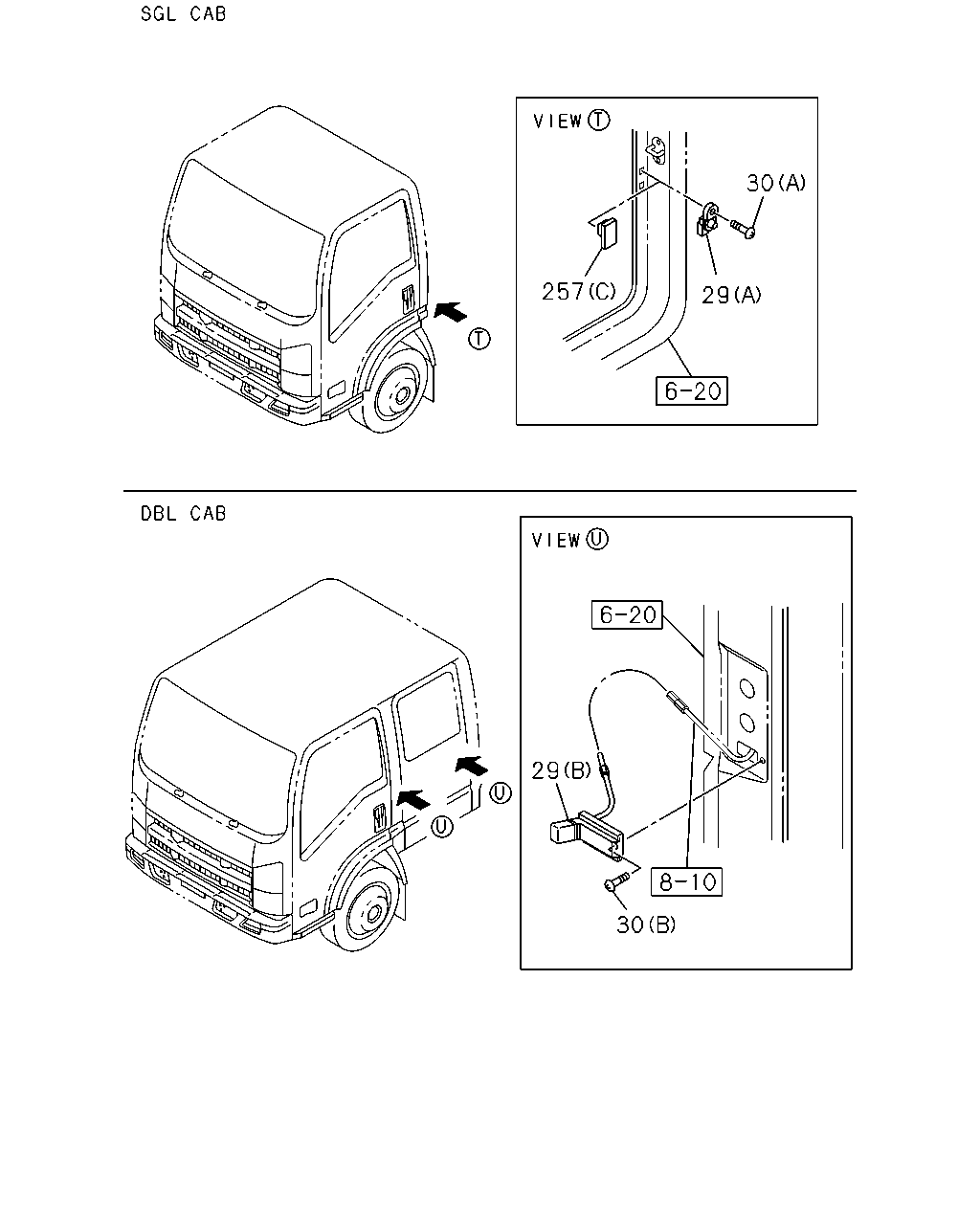

çizim 190982
30 257 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1012- ●
257 16.081 COVER; HOLE,SW
4JJ1-TCC ENG(RDU) (B) 		8-98029-914-1 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1303-1303 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1304- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1304- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012-1302 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1303- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1303- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1012-1302 ● ●
çizim 191064
151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
