◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51283 - NMR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#79345) — 18 parça

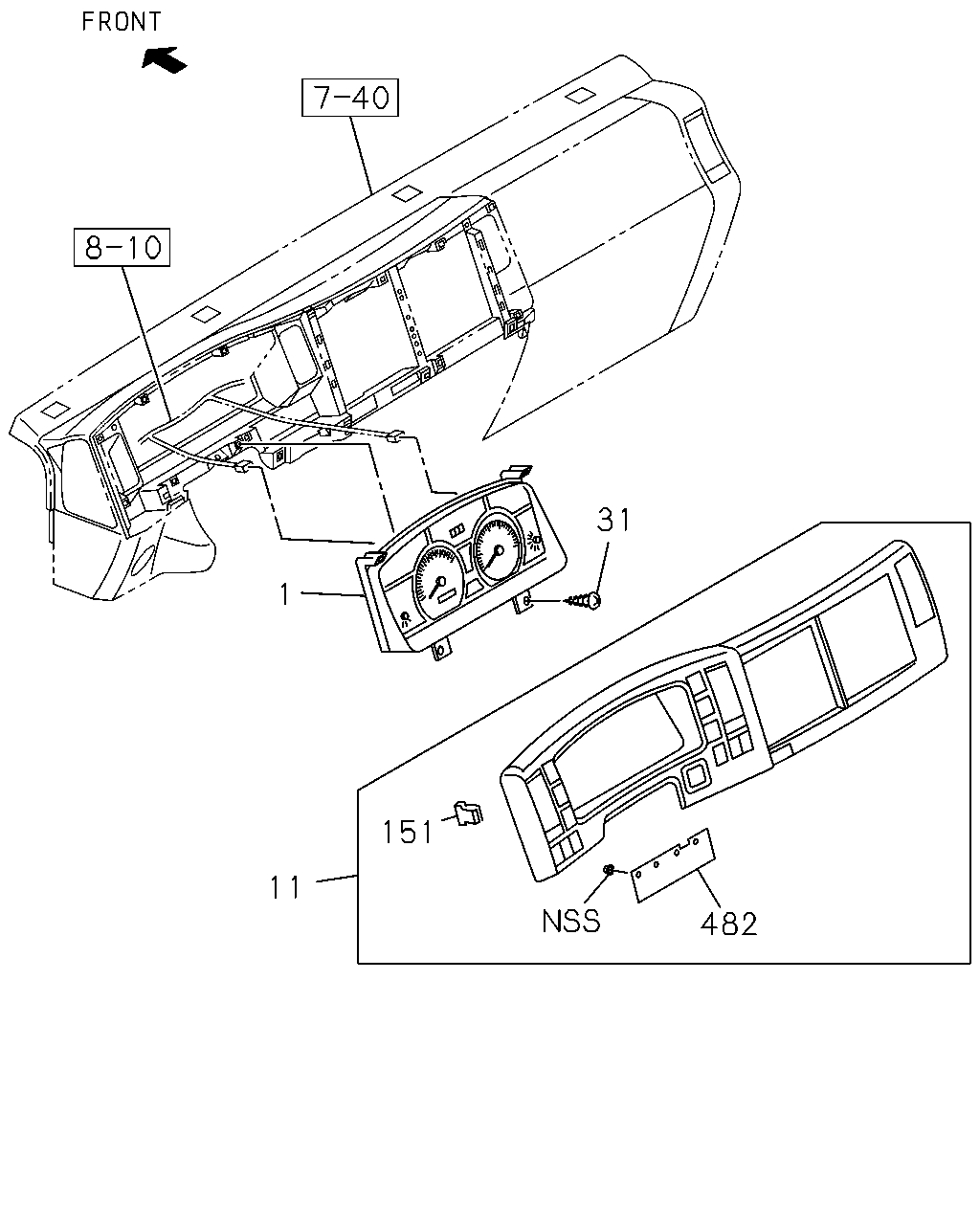

çizim 137756
31 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-283-2 01 1 1012- ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) 		8-98115-972-3 01 1 1012- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1012- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1101 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 1012- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1012- ● ●

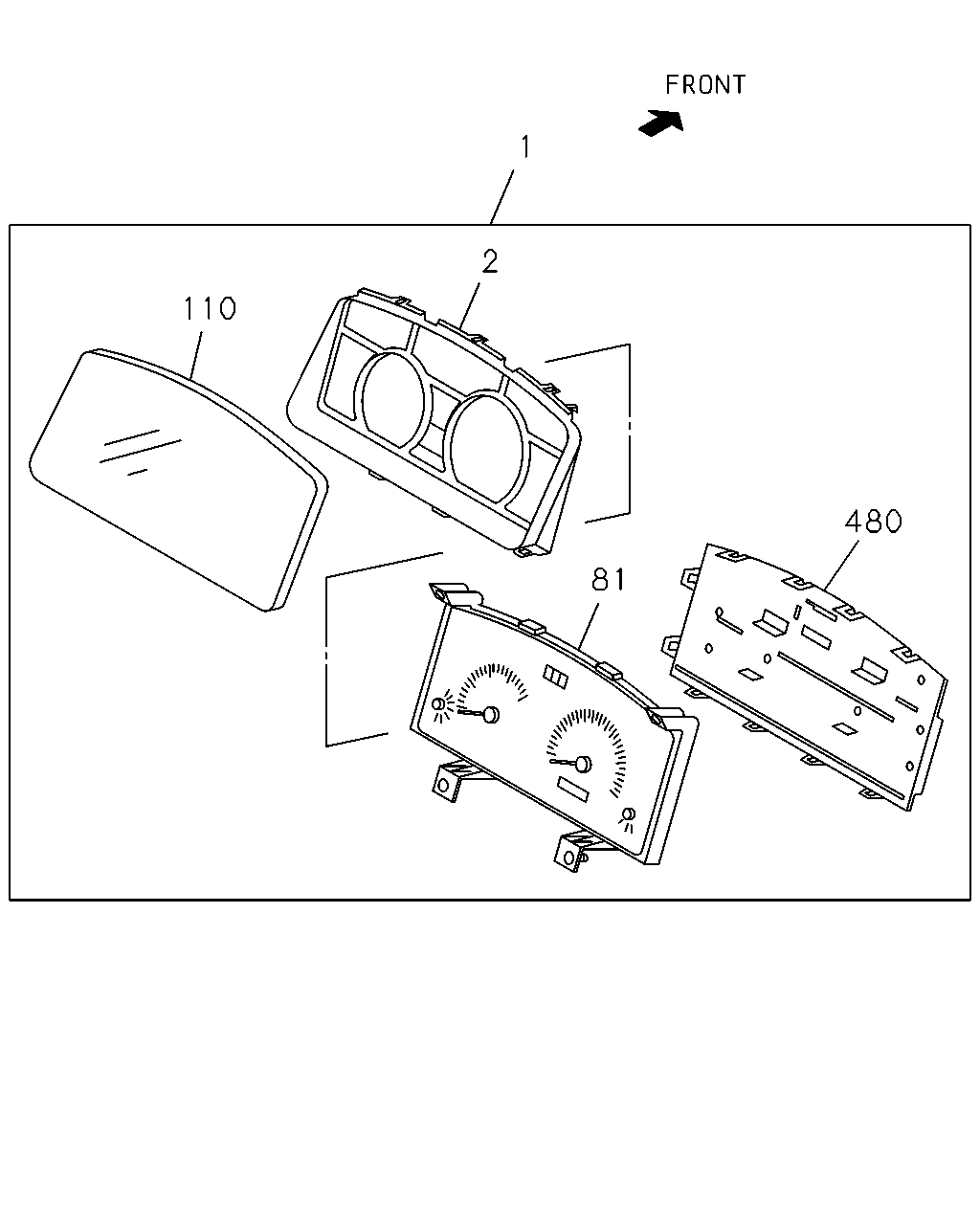

çizim 190978
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-283-2 01 1 1012- ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) 		8-98115-972-3 01 1 1012- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1012- ●
2 09.735 PANEL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98054-432-0 01 1 1012- ●
81 09.735 METER SUB ASM
4JJ1-TCC ENG(RDU) 		8-98113-317-0 01 1 1012- ● ●
81 09.735 METER SUB ASM
4HG1 ENG(RJH) 		8-98118-375-0 01 1 1012- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1012- ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCC ENG(RDU) 		8-98054-431-0 01 1 1012- ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1012- ●
480 09.748 COVER; METER
4JJ1-TCC ENG(RDU) BLACK 		8-98054-433-0 01 1 1012- ●
