Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#79344) — 484 parça

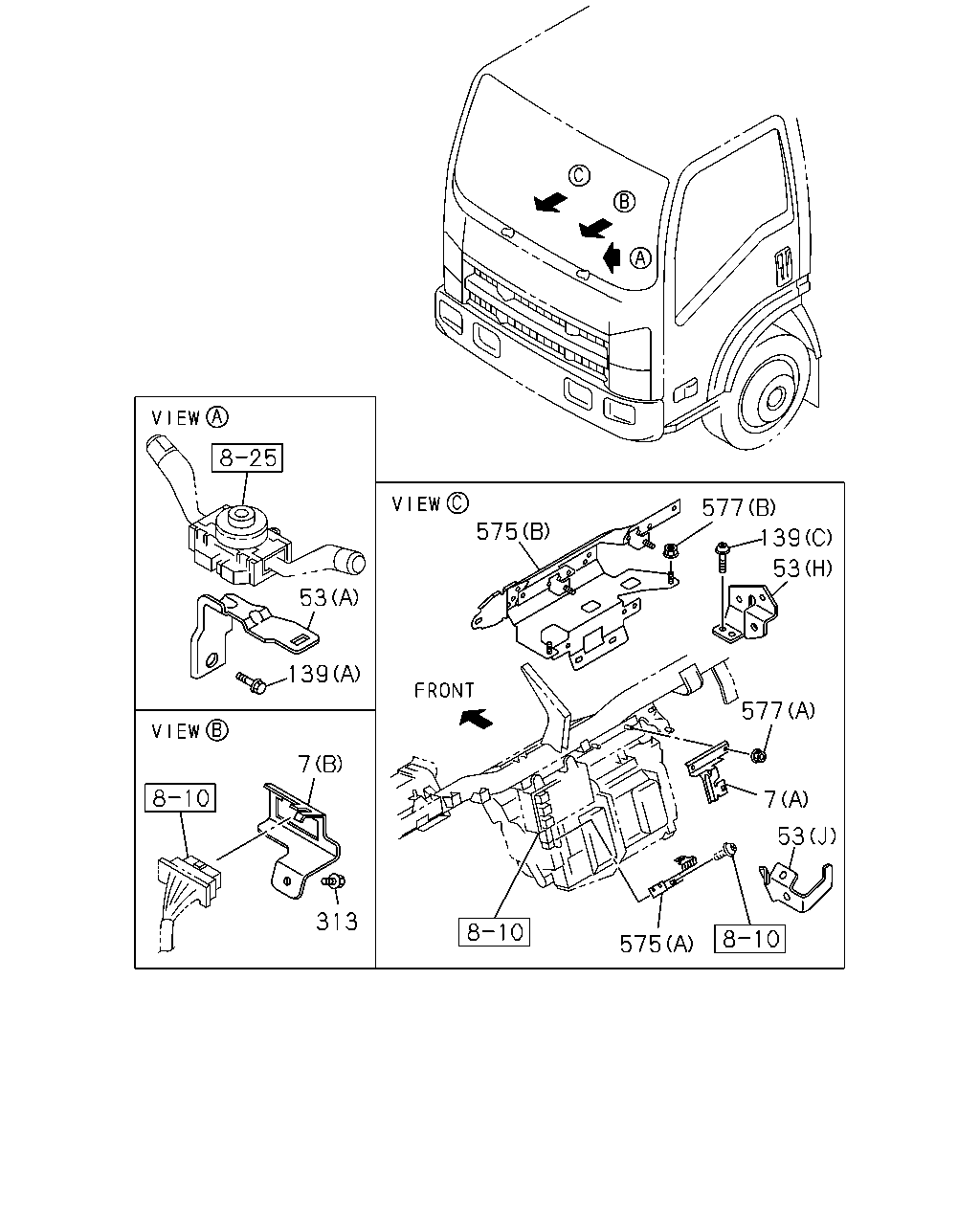

577 575 139 53 53 139 577 7 7 53 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (B)	8-98043-070-1	01	1	1012-	●	●
7	02.559 BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (A)	8-98056-073-3	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (J)	8-98074-502-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) (L)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (O)	8-98171-458-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1206-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1012		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1301	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1301		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1302-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1302-1309		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1012-1205		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1206-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1012-1206	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1206		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1207-1309	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1207-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1310-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
313	02.559 BOLT; BRKT 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
575	02.559 BRACKET; FUSE BOX 4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98054-320-2	01	1	1012-	●	●
575	02.559 BRACKET; FUSE BOX 4JJ1-TCC ENG(RDU) EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98132-932-1	01	1	1012-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) (B)	8-98173-145-3	01	1	1012-	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

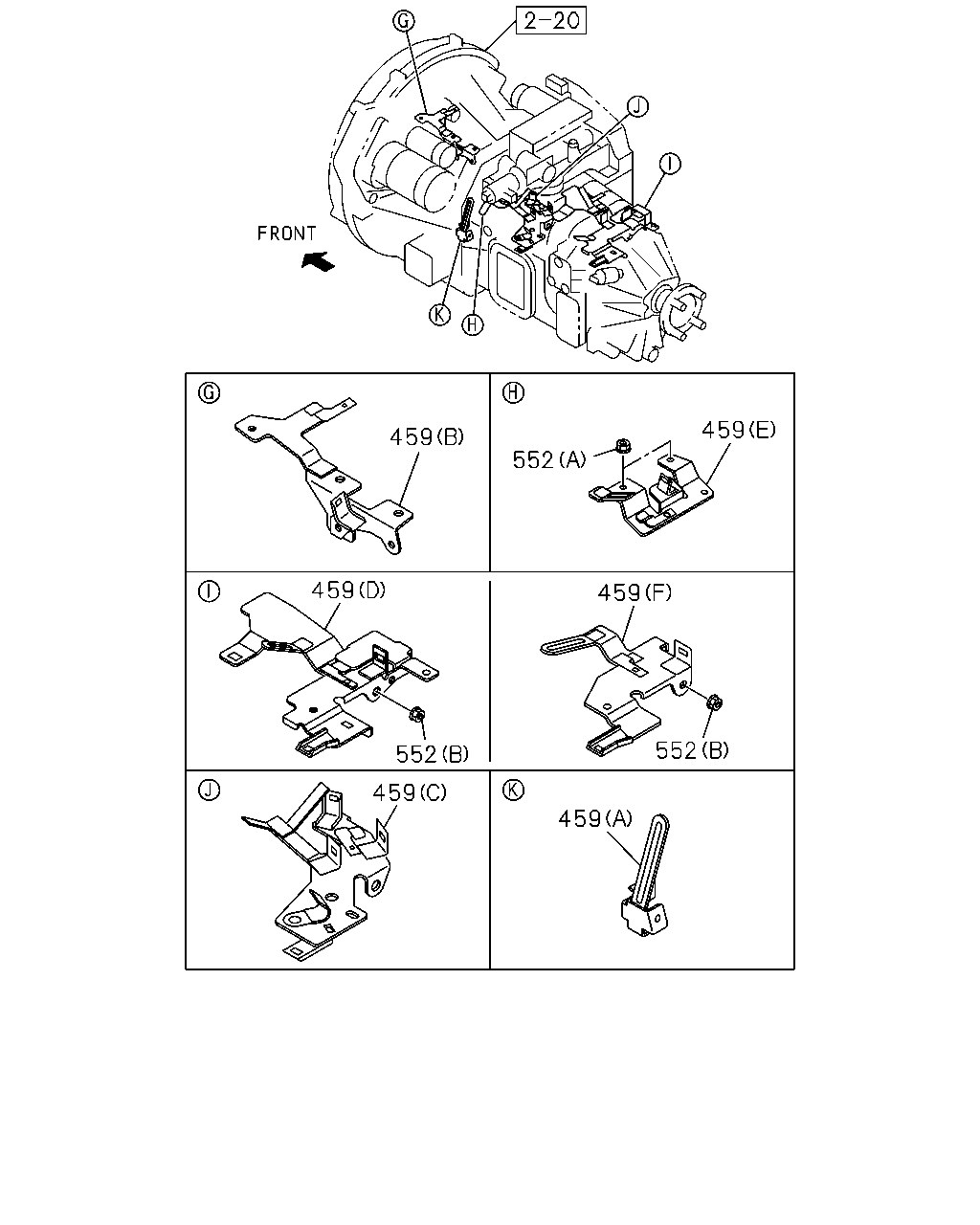

459 459 552 459 459 552 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (E)	8-98020-227-3	01	1	1012-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (D)	8-98030-990-2	01	1	1012-1109	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (F)	8-98196-974-0	01	1	1110-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) 03.452 (A)	8-97172-882-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (B)	8-98123-282-0	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1 ENG(RJH) (C)	8-98123-286-1	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	02.483 NUT; BRKT,HARNESS 4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●

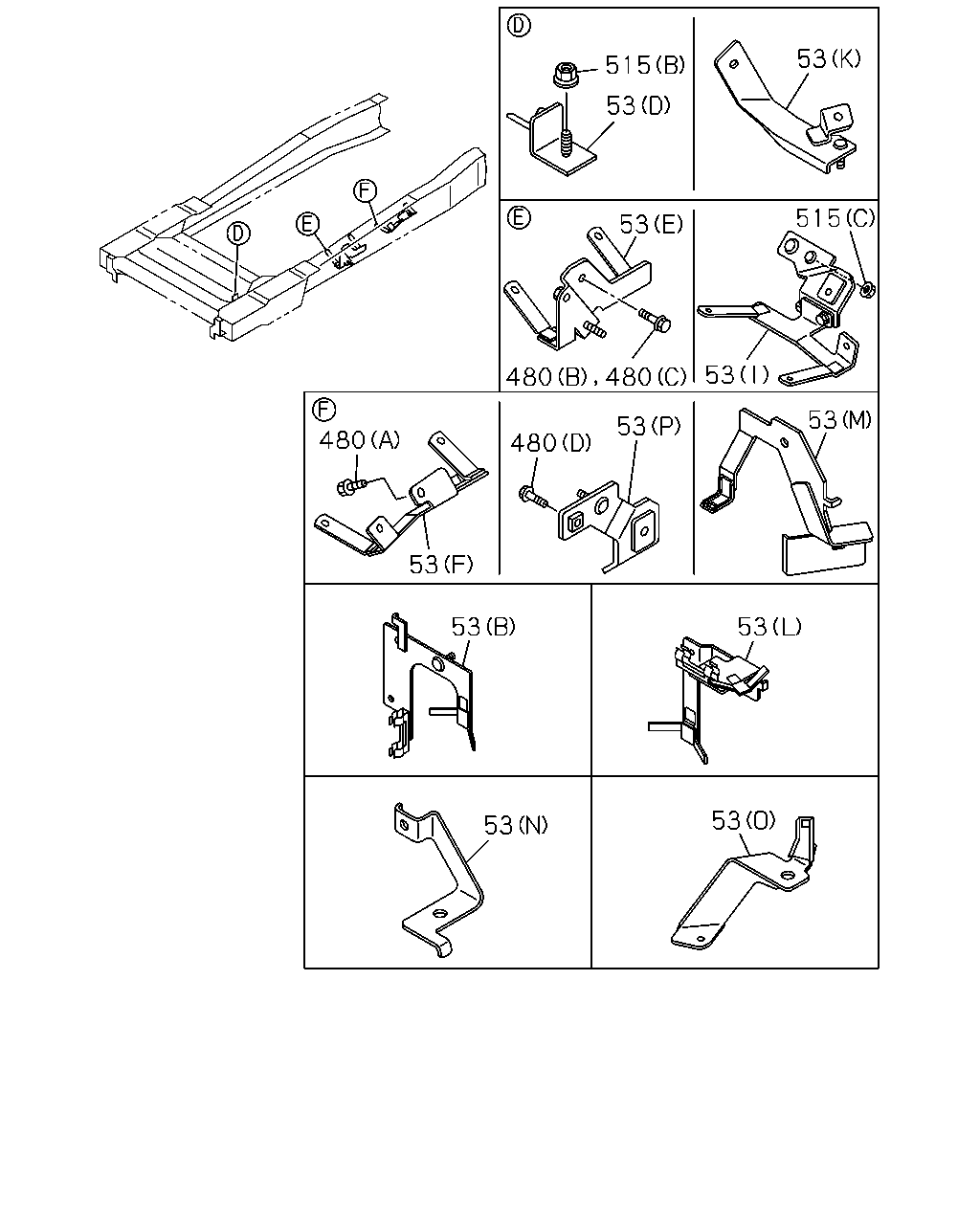

53 515 53 515 53 53 53 53 480 480 53 53 53 53 53 480 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (J)	8-98074-502-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) (L)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (O)	8-98171-458-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1206-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1012		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1301	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1301		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1302-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1302-1309		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1012-1205		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1206-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1012-1206	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1206		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1207-1309	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1207-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1310-	●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	1012-1012	●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205		●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309		●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●
480	02.483 BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012	●
480	02.483 BOLT; BRKT 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-1205	●
515	02.559 NUT; BRKT HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●

516 139 38 313 480 38 139 516 139 480 480 480 529 480 529 480 377 377 386 386 139 24 294 515 577 219 294 515 552 515 552 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1012-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1409	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1409		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1410-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1410-		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
219	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1012	●	●
219	02.559 NUT 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
219	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
294	02.559 NUT 4HG1 ENG(RJH) 02.343 (B) M6 W/LK WASHER	8-94424-179-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1012-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●
386	02.559 BOLT; GRAND HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
386	02.559 BOLT; GRAND HARNESS 4HG1 ENG(RJH) 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1012-	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	1012-1012	●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1012-1205		●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1206-1309		●
480	02.483 BOLT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●
480	02.483 BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1205	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1206-1309	●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT FRAME-KICK UP<7EW> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	02.483 BOLT; BRKT EXC. FRAME-KICK UP<7EW> 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012	●
480	02.483 BOLT; BRKT 00.029 (D) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-1205	●
515	02.559 NUT; BRKT HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111		●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-	●	●
529	02.559 BOLT; RELAY BOX 4JJ1-TCC ENG(RDU) 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●	●
529	02.559 BOLT; RELAY BOX 4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	02.483 NUT; BRKT,HARNESS 4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-	●

22 22 48 22 16 48 48 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (L) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	04	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (K) L=112	8-94232-618-0	04	1	1012-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6),FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-94449-165-0	02	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-97063-335-0	02	1	1012-		●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (H) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (D) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) (A) ID=20	8-94241-972-0	01	1	1012-		●

22 16 16 48 513 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (L) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	04	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (K) L=112	8-94232-618-0	04	1	1012-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6),FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-94449-165-0	02	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-97063-335-0	02	1	1012-		●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (H) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (D) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) EXC. EXHAUST BRAKE<NF8> 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	09	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) (A) ID=20	8-94241-972-0	01	1	1012-		●
513	02.559 TAPE; SOFT,HARNESS 4JJ1-TCC ENG(RDU) EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1012-	●	●

53 515 139 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (J)	8-98074-502-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) (L)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B)	8-98126-454-2	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (O)	8-98171-458-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (F)	8-98033-918-2	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (E)	8-98052-900-1	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (K)	8-98111-813-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (K)	8-98111-813-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1012-	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (H)	8-98084-699-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (P)	8-98175-428-0	01	1	1206-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1012	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1012		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1012-1301	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1012-1301		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1302-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98107-111-1	01	1	1302-1309		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1012-1205	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1012-1205		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1206-1309	●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (N)	8-98171-457-0	01	1	1206-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (N)	8-98171-457-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1012-1206	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1206		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1207-1309	●
53	02.483 BRACKET; HARNESS (E)	8-98105-778-0	01	1	1207-1309		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1310-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1012	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1205		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309	●
515	02.559 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1206-1309		●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-1205	●
515	02.559 NUT; BRKT HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1206-1309	●
515	02.559 NUT; BRKT FRAME-KICK UP<7EW> 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1310-	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	02.559 NUT; BRKT EXC. FRAME-KICK UP<7EW> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●

22 22 483 617 16 16 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (L) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) EXC. REAR BODY LAGER WIDTH<8EH> 02.587 (K) L=112	8-94232-618-0	04	1	1012-	●
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (K) L=112	8-94232-618-0	04	1	1012-		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-		●
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1012	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302		●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1303-		●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6),FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-94449-165-0	02	1	1012-		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (J) L=60	8-97063-335-0	02	1	1012-		●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (H) L=170.3	1-09987-182-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1410-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-1409		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 L=140	5-09707-031-1	01	1	1012-	●
617	02.559 STRAP; BAND 4JJ1-TCC ENG(RDU) 03.162 L=140	5-09707-031-1	01	1	1104-1106	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
